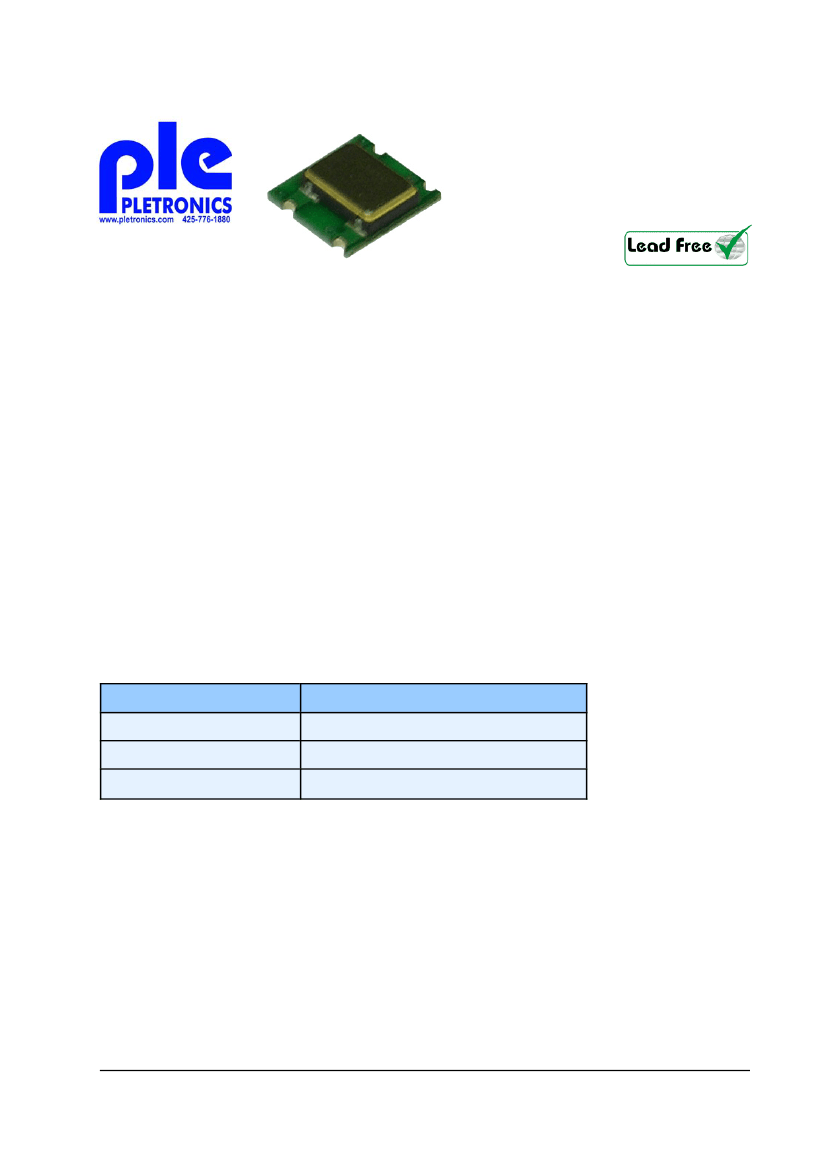

SM76H Series 2.5 V
CMOS Clock Oscillators
March 2008
• Pletronics’ SM76H Series is a quartz crystal
controlled precision square wave generator with a
CMOS output. Made from SM77H devices.
• S-Pkg is Solder pad compatible with the Epson
SG615 and SG8002J and many other 9x14mm
plastic J lead packages.
• FR4 base with an SM77H series oscillator.
• Tape and Reel or cut tape packaging is available.
0.8 to 70 MHz
9.04mm x 8.23mm package
Enable/Disable or Standby Function
Disable function includes low standby power
mode
• Low Jitter
• Package changed in 2008
•
•
•
•
Pletronics Inc. certifies this device is in accordance with the
RoHS 6/6 (2002/95/EC) and WEEE (2002/96/EC) directives.
Pletronics Inc. guarantees the device does not contain the following:
Cadmium, Hexavalent Chromium, Lead, Mercury, PBB’s, PBDE’s
Weight of the Device: 0.40 grams
Moisture Sensitivity Level: 1 As defined in J-STD-020C
Second Level Interconnect code: e4
Absolute Maximum Ratings:
Parameter
V
CC
Supply Voltage
Vi
Vo
Input Voltage
Output Voltage
Unit
-0.5V to +7.0V
-0.5V to V
CC
+ 0.5V
-0.5V to V
CC
+ 0.5V
Thermal Characteristics
The maximum die or junction temperature is 155
o
C
The thermal resistance junction to board is 60 to 100
o
C/Watt depending on the solder pads, ground plane
and construction of the PCB.
Product information is current as of publication date. The product conforms
Copyright © 2006, 2007, 2008 Pletronics
Inc.
to specifications per the terms of the Pletronics standard warranty. Production
processsing does not necessarily include testing of all parameters.
SM76H Series 2.5 V
CMOS Clock Oscillators
March 2008
Part Number:
SM76
45
H
E
W
-
50.0M
-XX
Packaging code or blank
T250 = 250 per Tape and Reel
T500 = 500 per Tape and Reel
T1K = 1000 per Tape and Reel
Frequency in MHz
Supply Voltage V
CC
W
= 2.5V _ 10%
+
Optional Enhanced OTR
Blank
= Temp. range -10 to +70
o
C
E
= Temp. range -40 to +85
o
C
Series Model
Frequency Stability
45
= _ 50 ppm
+
44
= _ 25 ppm
+
20
= _ 20 ppm
+
Series Model
Marking Legend:
PLE = Pletronics
FF.FFF
M = Frequency in MHZ
YMD
= Date of Manufacture (year-month-day)
All other marking is internal factory codes
Specifications such as frequency stability, supply voltage and operating temperature range, etc. are
not identified from the marking. External packaging labels and packing list will correctly identify the
ordered Pletronics part number.
Codes for Date Code YMD
Code
Year
Code
Month
Code
Day
Code
Day
Code
Day
1
1
D
13
T
25
6
2006
A
JAN
2
2
E
14
U
26
7
2007
B
FEB
3
3
F
15
V
27
8
2008
C
MAR
4
4
G
16
W
28
9
2009
D
APR
E
MAY
5
5
H
17
X
29
0
2010
F
JUN
6
6
J
18
Y
30
1
2011
G
JUL
7
7
K
19
Z
31
H
AUG
8
8
L
20
2
2012
J
SEP
9
9
M
21
K
OCT
A
10
N
22
L
NOV
B
11
P
23
M
DEC
C
12
R
24
Part Marking:
PLE
SM76
FF.FFF
M
C
YMDXX
or
PLE SM77
FF.FFF
M
C
YMDXX
Legacy Part Numbers:
‘S’
Denoted Symmetry of 45%/55% at 50% of V
CC
. This is now the standard Duty Cycle and is no longer needed in
the part number. We will still support part numbers with the ‘S’. For example SM7645HW and SM7645HSW
describe the same specifications and can be used interchangeably by the customer.
-30
Denoted Output Load other than the standard 15 pF. Data sheets now reflect the specifications at all available
loads so this load designation is no longer needed. We will still support part numbers with this load designation.
www.pletronics.com
425-776-1880
2
SM76H Series 2.5 V
CMOS Clock Oscillators
March 2008
Electrical Specification for 2.50V +10% over the specified temperature range
_
Item
Frequency Range
Frequency Accuracy “45"
“44"
“20"
Output Waveform
Output High Level
Output Low Level
Output Symmetry
Jitter
90
-
45
-
-
Enable/Disable Internal Pull-up
V disable
V enable
Output leakage
V
OUT
= V
CC
V
OUT
= 0V
Standby Current I
CC
Enable time
Disable time
Start up time
Operating Temperature Range
50
-
70
-10
-10
-
-
-
-
-10
-40
Storage Temperature Range
-55
Min
0.8
-50
-25
-20
Max
69.9
+50
+25
+20
CMOS
-
10
55
0.6
2.5
-
30
-
+10
+10
3
100
100
3
+70
+85
+125
%
%
%
pS RMS
pS RMS
Kohm
%
%
uA
uA
uA
nS
nS
mS
o
o
Unit
MHZ
ppm
Condition
For all supply voltages, load changes, aging for
1 year, shock, vibration and temperatures
of V
CC
(See load circuit)
at 50% point of V
CC
(See load circuit)
12 KHz to 20 MHZ from the output frequency
10 Hz to 1 MHZ from the output frequency
to V
CC
of V
CC
applied to pin 1
Pin 1 low, device disabled
Time for output to reach a logic state
Time for output to reach a high Z state
Time for output to reach specified frequency
Standard Temperature Range
Extended Temperature Range
“E” Option
C
C
C
o
www.pletronics.com
425-776-1880
3
SM76H Series 2.5 V
CMOS Clock Oscillators
March 2008
Electrical Specification for 2.50V +10% over the specified temperature range
_
Item
Output T
RISE
and T
FALL
Typ
-
-
-
V
CC
Supply Current (I
CC
)
-
-
-
-
-
-
-
-
Max
7
9
12
6
8
11
29
7
8
10
41
Unit
nS
nS
nS
mA
mA
mA
mA
mA
mA
mA
mA
Condition
All
< 35 MHZ
> 35 MHZ
< 8 MHZ
> 8 MHZ and < 16 MHZ
> 16 MHZ and < 35 MHZ
> 35 MHZ
< 8 MHZ
> 8 MHZ and < 16 MHZ
> 16 MHZ and < 35 MHZ
> 35 MHZ
C
LOAD
= 30 pF
10% to 90% of V
CC
See Load Circuit
C
LOAD
= 15 pF
10% to 90% of V
CC
See Load Circuit
C
LOAD
= 15 pF
C
LOAD
= 30 pF
Specifications with Pad 1 E/D open circuit

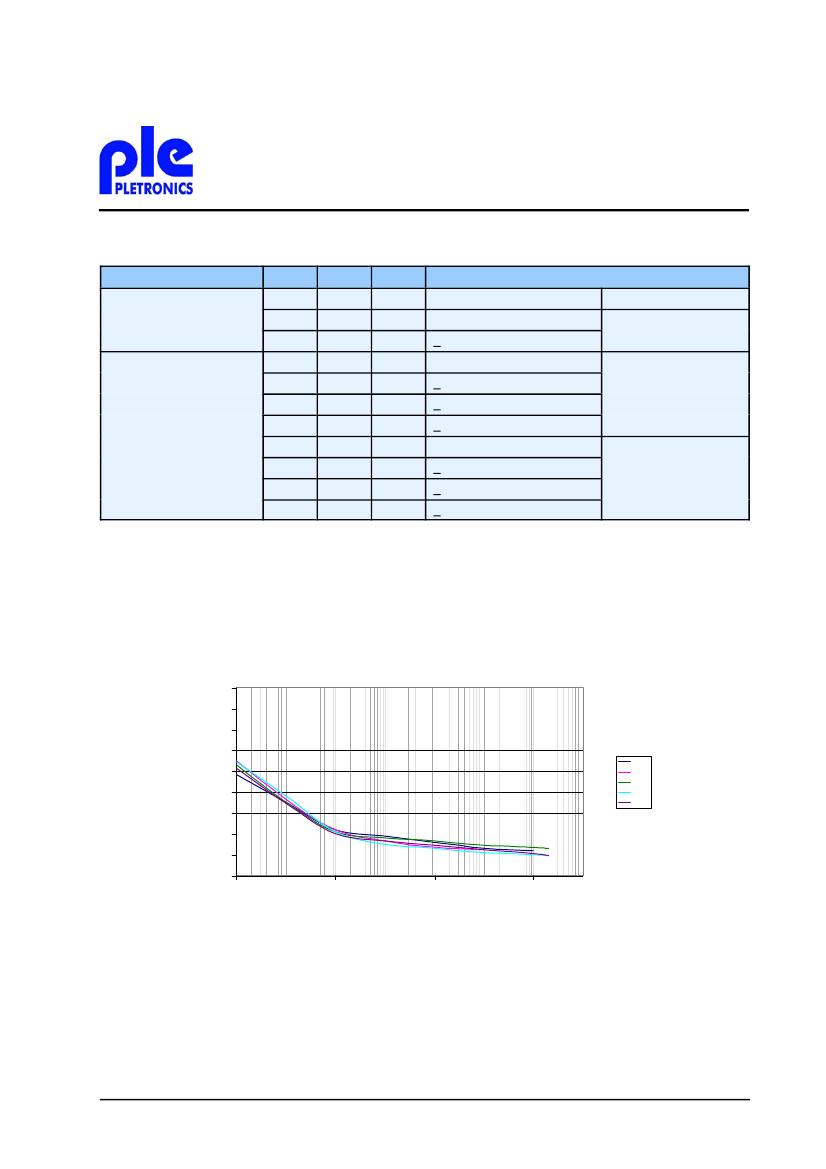

Typical phase noise plot for 5 oscillators at different output frequencies.
0
-20
-40
-60
dBc/Hz
19.4M
25M
32M
50M
66.7M
-80
-100
-120
-140
-160
-180
10
1,000
100,000
10,000,000
Frequency (Hz)
www.pletronics.com
425-776-1880
4
SM76H Series 2.5 V
CMOS Clock Oscillators
March 2008

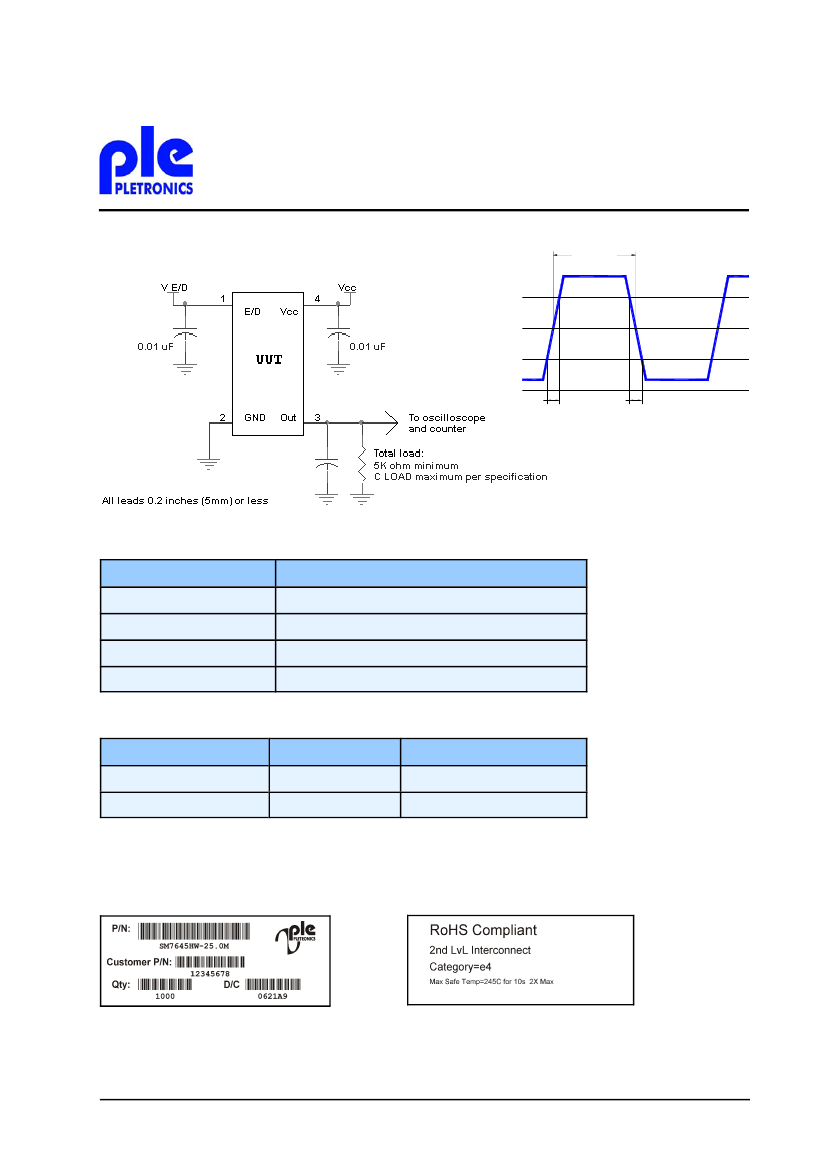

Load Circuit and Test Waveform
Vhigh
90% * Vcc
50% * Vcc
10% * Vcc
Vlow
Ground
Trise
Symmetry
Tfall
Reliability
: Environmental Compliance
Parameter
Mechanical Shock
Vibration
Solderability
Thermal Shock
Condition
MIL-STD-883 Method 2002, Condition B
MIL-STD-883 Method 2007, Condition A
MIL-STD-883 Method 2003
MIL-STD-883 Method 1011, Condition A
ESD Rating
Model
Human Body Model
Charged Device Model
Minimum Voltage
1500
1000
Conditions
MIL-STD-883 Method 3115
JESD 22-C101
Package Labeling
Label is 1" x 2.6" (25.4mm x 66.7mm)
Font is Courier New
Bar code is 39-Full ASCII
Label is 1" x 2.6" (25.4mm x 66.7mm)
Font is Arial
www.pletronics.com
425-776-1880
5
