ZRC330Y02: Description1-OUTPUT TWO TERM VOLTAGE REFERENCE, 3.3 V, PDSO8; CategoryPower/power management The power supply circuit; File Size98KB，5 Pages; ManufacturerZetex Semiconductors; Websitehttp://www.zetex.com/

Download Datasheet Parametric Compare View All

ZRC330Y02 Overview

1-OUTPUT TWO TERM VOLTAGE REFERENCE, 3.3 V, PDSO8

ZRC330Y02 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Zetex Semiconductors
package instruction	SIP, SIP3,.1,50
Reach Compliance Code	unknow
ECCN code	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PSIP-T2
JESD-609 code	e0
length	4.57 mm
Number of functions	1
Output times	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	3.366 V
Minimum output voltage	3.234 V
Nominal output voltage	3.3 V
Package body material	PLASTIC/EPOXY
encapsulated code	SIP
Encapsulate equivalent code	SIP3,.1,50
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.01 mm
Maximum supply current (Isup)	5 mA
surface mount	NO
technology	BIPOLAR
Maximum voltage temperature coefficient	50 ppm/°C
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
Fine-tuning/adjustable output	NO
Maximum voltage tolerance	2%
width	2.285 mm

Preview

Download Datasheet

View All

PRECISION 3.3 VOLT LOW KNEE

CURRENT VOLTAGE REFERENCE

ZRC330

No stabilising capacitor required

Low knee current, 15µA typical

Typical slope resistance 0.6Ω

3%, 2% and 1% tolerance

Industrial temperature range

Operating current 20µA to 5mA

Battery powered and portable equipment.

Metering and measurement systems.

Instrumentation.

Test equipment.

Data acquisition systems.

Precision power supplies.

Crystal oscillators

ISSUE 2 - FEBRUARY 1997

DEVICE DESCRIPTION

The ZRC330 uses a bandgap circuit design to

achieve a precision micropower voltage

reference of 3.3 volts. The device is available

in small outline surface mount packages, ideal

for applications where space saving is

important.

•

APPLICATIONS

The ZRC330 design provides a stable voltage

without an external capacitor and is stable with

capacitive loads. The ZRC330 is recommended

for operation between 20µA and 5mA and so is

ideally suited to low power and battery

powered applications.

Excellent performance is maintained to a

suggested absolute maximum of 25mA,

however the rugged design and 20 volt

processing allows the reference to withstand

transient effects and currents up to 200mA.

Superior switching capability allows the device

to reach stable operating conditions in only a

few microseconds.

FEATURES

•

Small outline SOT23, SO8 and TO92

style packages

SCHEMATIC DIAGRAM

1 - 42

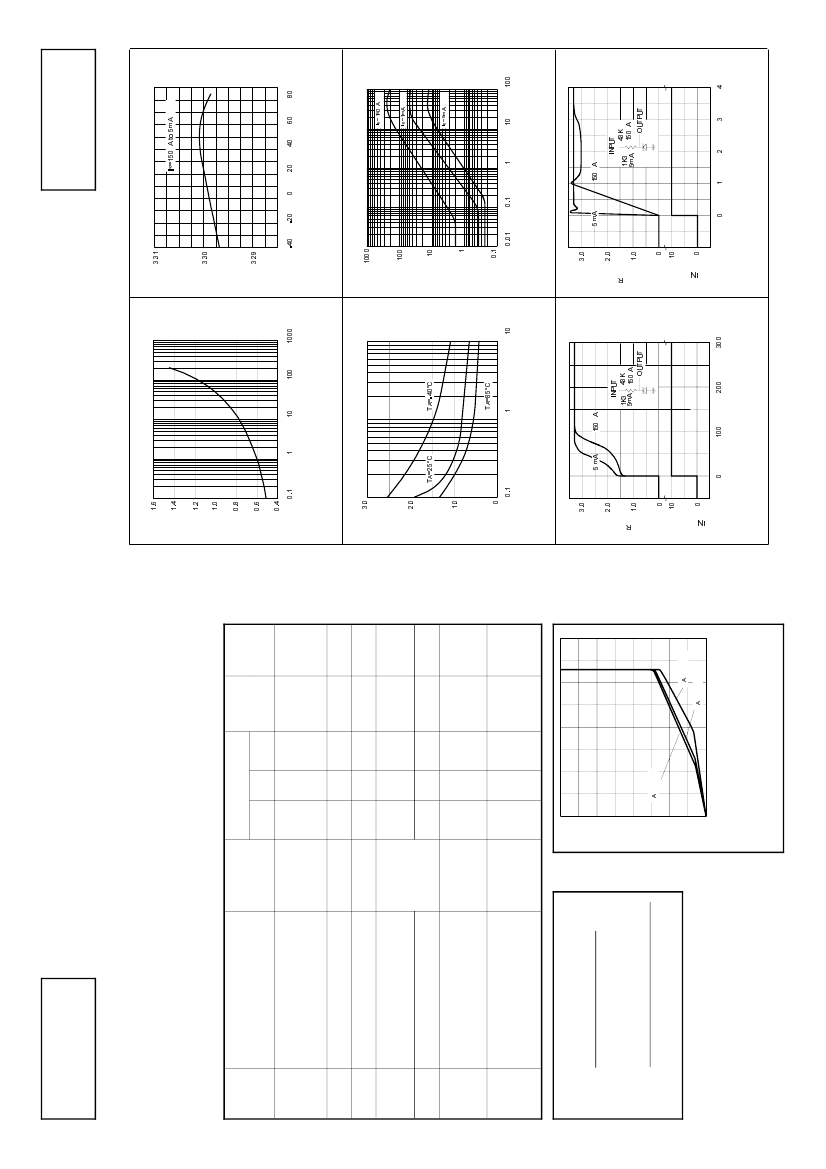

ZRC330Y02 Related Products

	ZRC330Y02	ZRC330R03	ZRC330N803	ZRC330R02	ZRC330N801	ZRC330N802
Description	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 3.3 V, PDSO8	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 3.3 V, PDSO8	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 3.3 V, PDSO8	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 3.3 V, PDSO8	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 3.3 V, PDSO8	1-OUTPUT TWO TERM VOLTAGE REFERENCE, 3.3 V, PDSO8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors	Zetex Semiconductors
package instruction	SIP, SIP3,.1,50	SIP, SIP3,.1,50	SOP, SOP8(UNSPEC)	SIP, SIP3,.1,50	SOP, SOP8(UNSPEC)	SOP, SOP8(UNSPEC)
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Analog Integrated Circuits - Other Types	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE	TWO TERMINAL VOLTAGE REFERENCE
JESD-30 code	R-PSIP-T2	R-PSIP-T3	R-PDSO-G8	R-PSIP-T3	R-PDSO-G8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0	e0
length	4.57 mm	4.57 mm	4.89 mm	4.57 mm	4.89 mm	4.89 mm
Number of functions	1	1	1	1	1	1
Output times	1	1	1	1	1	1
Number of terminals	2	3	8	3	8	8
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	3.366 V	3.4 V	3.4 V	3.366 V	3.33 V	3.366 V
Minimum output voltage	3.234 V	3.2 V	3.2 V	3.234 V	3.27 V	3.234 V
Nominal output voltage	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SIP	SIP	SOP	SIP	SOP	SOP
Encapsulate equivalent code	SIP3,.1,50	SIP3,.1,50	SOP8(UNSPEC)	SIP3,.1,50	SOP8(UNSPEC)	SOP8(UNSPEC)
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	235	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.01 mm	4.01 mm	1.75 mm	4.01 mm	1.75 mm	1.75 mm
Maximum supply current (Isup)	5 mA	5 mA	5 mA	5 mA	5 mA	5 mA
surface mount	NO	NO	YES	NO	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Maximum voltage temperature coefficient	50 ppm/°C	50 ppm/°C	50 ppm/°C	50 ppm/°C	50 ppm/°C	50 ppm/°C
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	GULL WING
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	SINGLE	SINGLE	DUAL	SINGLE	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO
Maximum voltage tolerance	2%	3%	3%	2%	1%	2%
width	2.285 mm	2.285 mm	3.9 mm	2.285 mm	3.9 mm	3.9 mm
