CMOZ3V0BK datasheet, PDF - EEWORLD Datasheet

CMOZ3V0BK: DescriptionZener Diode, 3V V(Z), 5%, 0.3W, Silicon, Unidirectional, ULTRAMINI, PLASTIC PACKAGE-2; CategoryDiscrete semiconductor diode; File Size3MB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

CMOZ3V0BK Overview

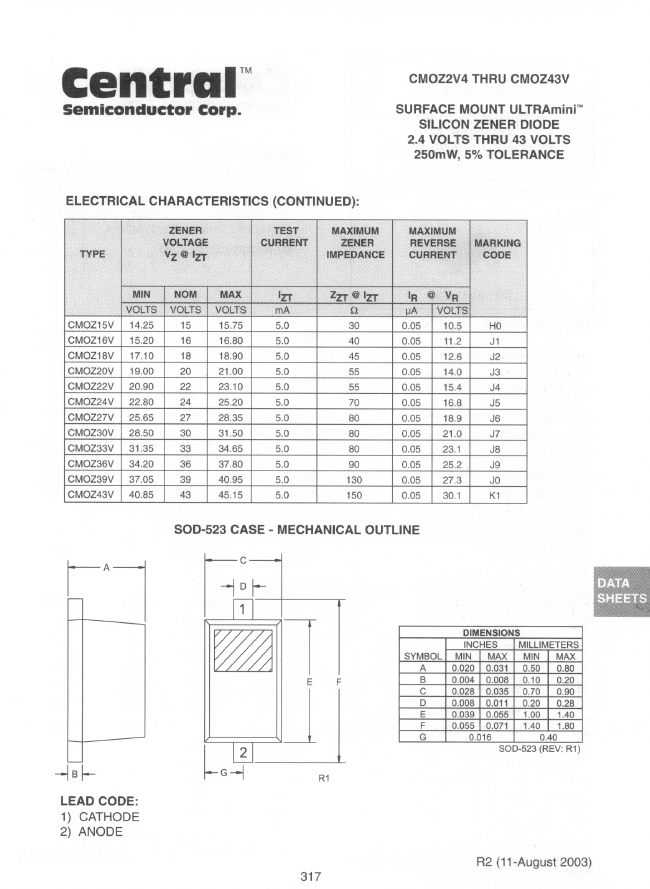

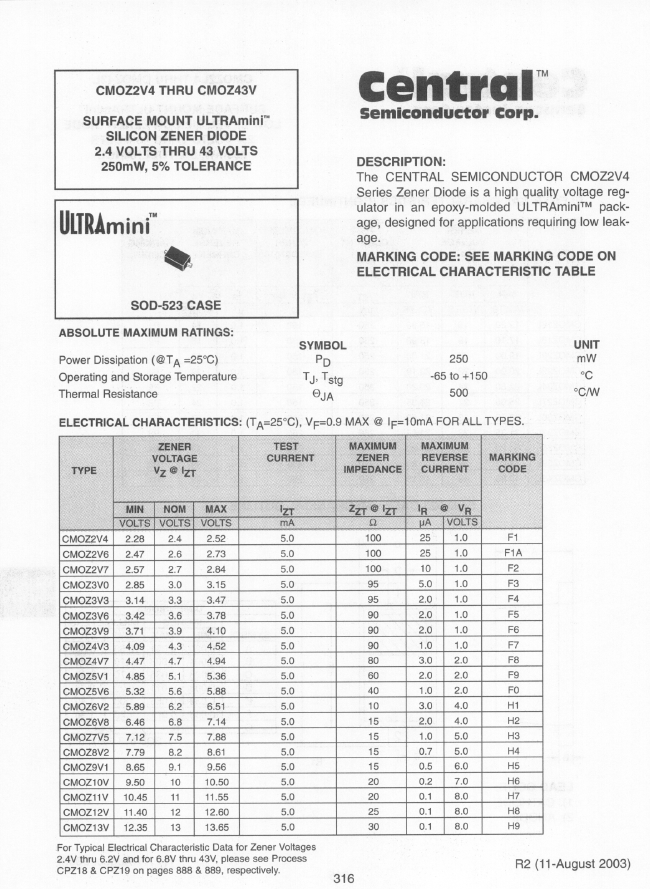

Zener Diode, 3V V(Z), 5%, 0.3W, Silicon, Unidirectional, ULTRAMINI, PLASTIC PACKAGE-2

Parameter Name	Attribute value
Maker	Central Semiconductor
package instruction	R-PDSO-F2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LOW LEAKAGE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	95 Ω
JESD-30 code	R-PDSO-F2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
polarity	UNIDIRECTIONAL
Maximum power dissipation	0.3 W
Certification status	Not Qualified
Nominal reference voltage	3 V
surface mount	YES
technology	ZENER
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal location	DUAL
Maximum voltage tolerance	5%
Working test current	5 mA
