50 Ohm Technical Specifications: See TS-0285 for 90101 - Gray PVC Jacket
See TS-0402 for 90201 - Gray TPE Cover
See TS-0876 for 93101 - Low Skew, Gray PVC Jacket
75 Ohm Technical Specifications: See TS-0451 for 90111 - Gray PVC Jacket
See TS-0598 for 90211 - Gray TPE Cover
(Shells)
Overmolded: 68, 80 and 100 positions, thumbscrews
Glass Reinforced Polyester (PBT) - Gray
Metal: See TS-0655 - 20, 26, 36 and 40 position, latching
See TS-0396 - 50 position, latching
See TS-0355 - 68 position, latching
See TS-0666 - 68, 80 and 100 position, thumbscrew
(Jackscrews)
Material: Stainless Steel
Electrical
Voltage Rating:
30 V
Impedance:
See Pleated Foil Cable (PFC) Specifications
Environmental
Temperature Rating:
75°C maximum
*"RoHS Compliant 2005/95/EC" means that the product or part ("Product") does not contain any of the substances in excess of the maximum concentration
values in EU Directive 2002/95/EC, as amended by Commission Decision 2005/618/EC, unless the substance is in an application that is exempt under EU
RoHS. This information represents 3M's knowledge and belief, which may be based in whole or in part on information provided by third party suppliers to 3M.
In the event any product is proven not to conform with 3M’s Regulatory Information Appendix,
then 3M’s entire liability and Buyer’sexclusive remedy will be in accordance with the Warranty stated below.
UL File No.:E86982
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™

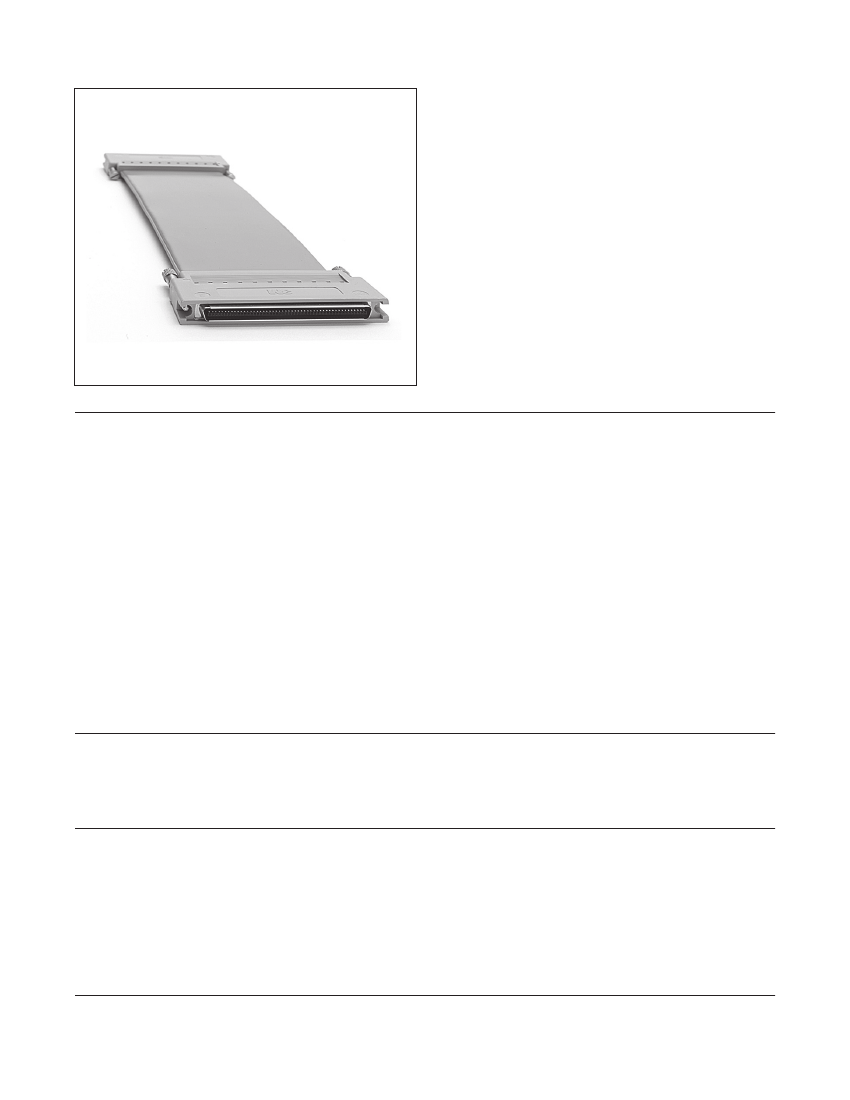

Pleated Foil I/O Cable Assemblies
MDR Series

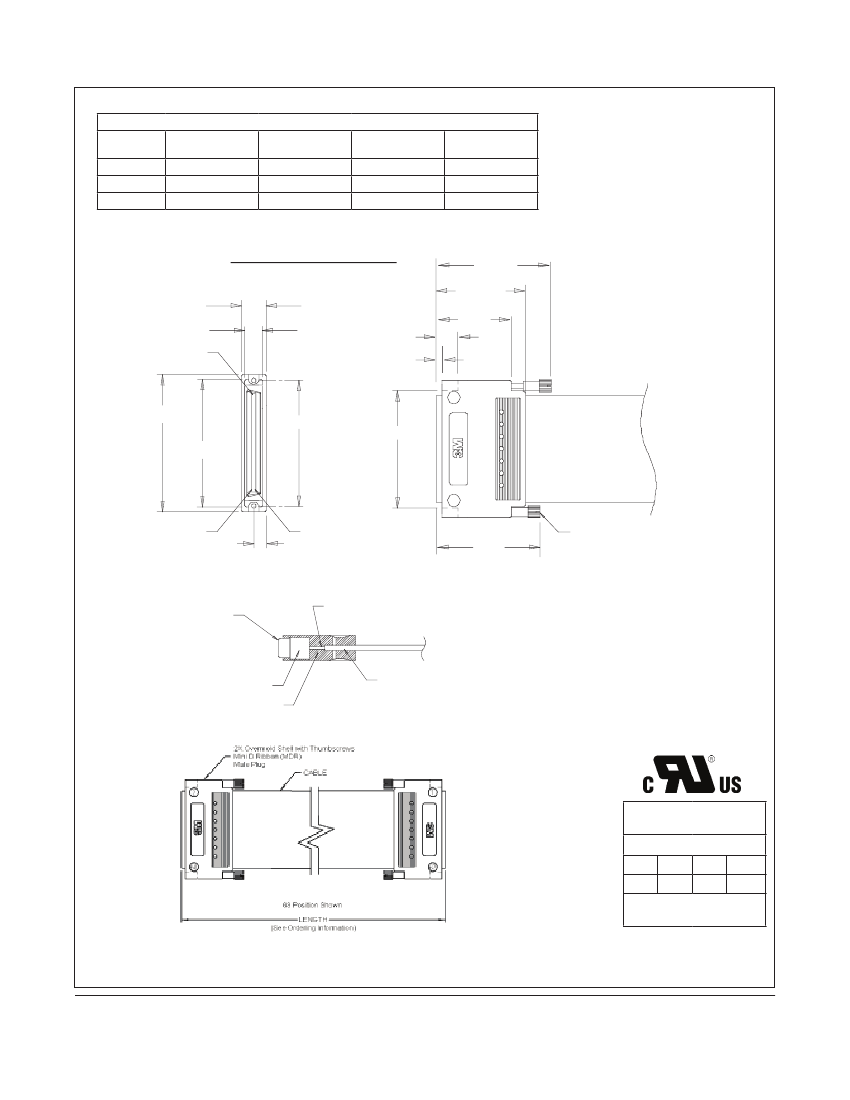

Overmolded Shell with Thumbscrews
Contact
Quantity
68
80
100
Dimension A
2.52 [ 64.0 ]
2.81 [ 71.4 ]
3.32 [ 84.3 ]
Dimension B
2.32 [ 58.9 ]
2.61 [ 66.3 ]
3.12 [ 79.2 ]
Dimension C
2.22 [ 56.4 ]
2.58 [ 65.5 ]
3.08 [ 78.2 ]
Dimension D
2.11 [ 53.6 ]
2.41 [ 61.2 ]
2.91 [ 73.9 ]
Assembly Tolerances
Length and Tolerance
<36": ± 1"
36" to 120": ±2"
120" to 240": ±4"
>240": ±6"
Minimum Length: 8" [203 mm]
Overmold Backshell Version
2.05 Max
[ 52.1 ]
1.43
[ 36.3 ]
.51
[ 13.0 ]
.36 Min
[ 9.1 ]
(Last) Position “n”
.43
[ 10.9 ]
.08
[ 2.0 ]
1.13
[ 28.7 ]
A
C
B
D
Position 2
.250
[ 6.35 ]
Position 1
1.72
[ 43.7 ]
Jackscrew Option
4-40 UNC or M2.5
MDR Plug
Pleated Foil
Copper Foil Shield
Overmold Resin
Cable Jacket
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
[ ] Dimensions for
Reference Only
TS-0804-B
Sheet 2 of 4
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pleated Foil I/O Cable Assemblies
MDR Series

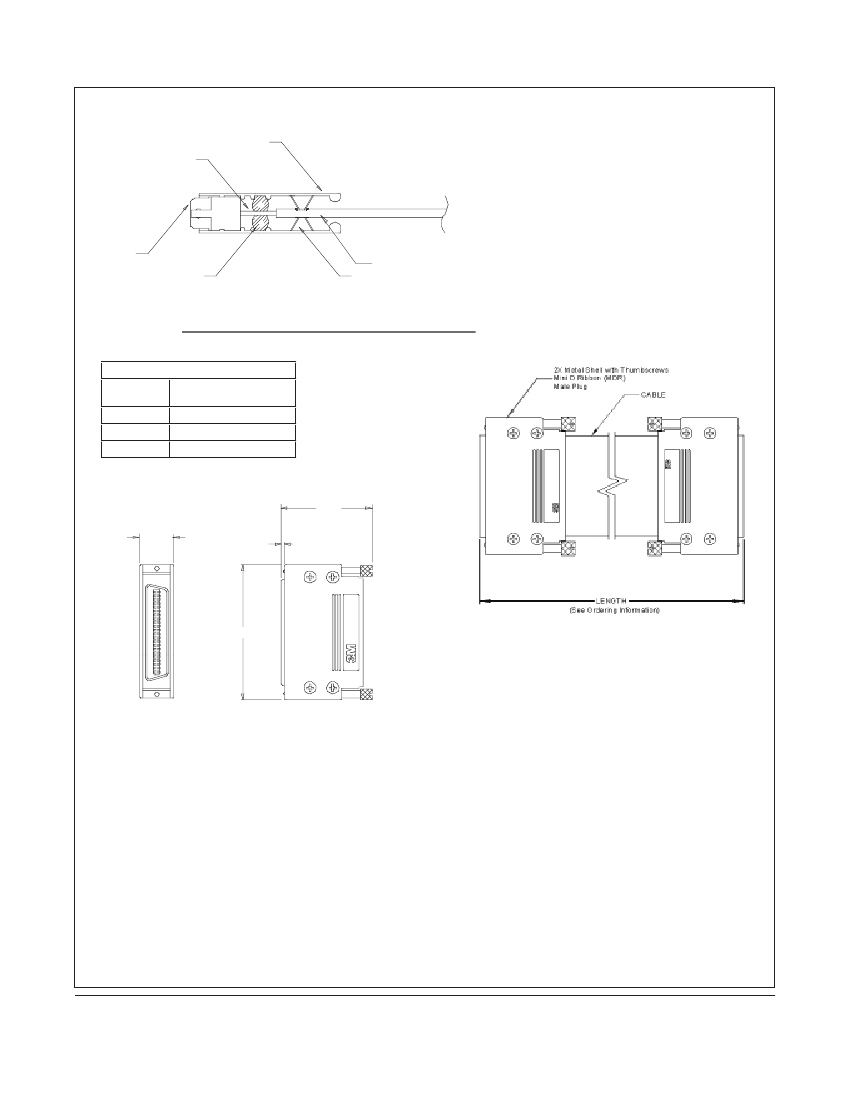

Metal Shell
Pleated Foil
Assembly Tolerances
Length and Tolerance
<36" : ±1"
36" to 120": ±2"
120" to 240": ± 4"
>240": ±6"
Minimum Length:
68-100 Position: 8" [203 mm]
Cable Jacket
Metal Cable Clamp
MDR Plug
Conductive Gasket
Metal Backshell with Thumbscrews Version
Metal Shell with Thumbscrews
Contact
Quantity
68
80
100
Dimension A
2.52 [ 64.0 ]
2.82 [ 71.6 ]
3.32 [ 84.3 ]
1.73
[ 43.9 ]
.52
[ 13.2 ]
.11
[ 2.8 ]
Dim A
Note: There are two connector terminations available for Metal Shell Versions (see ordering information).
1. MS = Standard Connection for GSGSG, with Signals on wires 2, 4, 6, (etc.) places all the Grounds in the lower (Circle) row of
the connector and all the signals in the upper (Triangle) row of the connector.
2. LS = Low Crosstalk Connection for GSGSG, with signals on wires 2, 4, 6, (etc.) places a GSGSG pattern on both the lower (Circle)
and upper (Triangle) rows of the connector.
3. Metal junction shells come with either 2 or 4 screws, see individual tech sheet for details.
TS-0804-B
Sheet 3 of 4
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
3M
™
Pleated Foil I/O Cable Assemblies
MDR Series
Metal Shell with Latches
Contact
Quantity
20
26
36
40
50
68
Dimension B
1.17 [ 29.7 ]
1.31 [ 33.3]
1.57 [ 39.9]
1.67 [ 42.4]
1.93 [ 49.0]
2.37 [ 60.2]
1.35 [ 34.3]
.46 [ 11.7 ]
1.50 [ 38.1]
Dimension C
1.55 [ 39.4]
.42 [ 10.7 ]
D
Metal Backshell with Latching Version
Dimension D
C
.08
[ 2.0 ]
B
Inch
[mm]
Tolerance Unless Noted
.0
Inch
±.1
.00
±.01
.000
±.005
[ ] Dimensions for Reference Only
Assembly Tolerances
Length and Tolerance
<36" : ±1"
36" to 120": ±2"
120" to 240": ± 4"
>240": ±6"
Minimum Length:
20-50 Position: 6" [152 mm]
68-100 Position: 8" [203 mm]
50 Ohm, PVC
Jacket, 90101/XX
Over Molded or Metal Backshell
withThumbscrews
68 - 100 position
Metal Backshell with Latches
20 - 68 position
X
50 Ohm, TPE
Cover, 90201/XX
50 Ohm, PVC
Jacket Low Skew,
93101/XX
X
75 Ohm, PVC
Jacket, 90111/XX
75 Ohm, TPE
Cover, 90211/XX
X
X
X
X
X
X
Ordering Information
XX - XXXXXG - XXX - XX - XXX.X
Body Type
OM=Overmold
LS=Metal Shell, Low Crosstalk Connection
MS=Metal Shell, Standard Connection
Cable Impedance and Jacket Type
50
Ω
90101= Thick Jacket
90201= Thin Cover
93101= Thick Jacket, Low Skew
75
Ω
90111= Thick Jacket
90211= Thin Cover
Conductor/
Contact Quantity
( See Table )
Jackscrew
4=4-40 Thread
M=M2.5 Thread
L=Latch
Length in Inches
Minimum lengths, 6" [152 mm] for 20 - 50
position cables, and 8" [203 mm] for 68 - 100
position cables
Shim
N=No Shim (Overmold Only)
0=Placeholder (metal shell only)
TS-0804-B
Sheet 4 of 4
Electronic Solutions Division
Interconnect Solutions
http://www.3Mconnector.com
3M is a trademark of 3M Company.
For technical, sales or ordering information call
800-225-5373
Important Notice
All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness
is not guaranteed. Before using this product, you must evaluate it and determine if it is suitable for your intended application. You assume all risks and liability associated
with such use. Any statements related to the product which are not contained in 3M’s current publications, or any contrary statements contained on your purchase order
shall have no force or effect unless expressly agreed upon, in writing, by an authorized officer of 3M.
Warranty; Limited Remedy; Limited Liability.
This product will be free from defects in material and manufacture for a period of one (1) year from the time of purchase.
3M MAKES NO OTHER WARRANTIES
INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
If this product is defective within the
warranty period stated above, your exclusive remedy shall be, at 3M’s option, to replace or repair the 3M product or refund the purchase price of the 3M product.
Except
where prohibited by law, 3M will not be liable for any indirect, special, incidental or consequential loss or damage arising from this 3M product, regardless of
