CM06FD471JO3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> CM06FD471JO3

CM06FD471JO3: DescriptionMica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, 0/+70ppm/Cel TC, 0.00047uF, Through Hole Mount, 6420, RADIAL LEADED; CategoryPassive components capacitor; File Size107KB，4 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric Compare View All

CM06FD471JO3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	CM06FD471JO3	-	-	View	Buy Now

CM06FD471JO3 Overview

Mica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, 0/+70ppm/Cel TC, 0.00047uF, Through Hole Mount, 6420, RADIAL LEADED

CM06FD471JO3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	CDE [ CORNELL DUBILIER ELECTRONICS ]
package instruction	RADIAL LEADED
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	0.00047 µF
Capacitor type	MICA CAPACITOR
dielectric materials	MICA
high	13 mm
JESD-609 code	e0
length	16.3 mm
Manufacturer's serial number	CM06
Installation features	THROUGH HOLE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	Radial
method of packing	TR
positive tolerance	5%
Rated (DC) voltage (URdc)	500 V
Guideline	MIL-C-5
series	CD19
size code	6420
surface mount	NO
Temperature Coefficient	0/+70ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal pitch	8.7 mm
Terminal shape	WIRE
width	5.1 mm

Preview

Download Datasheet

View All

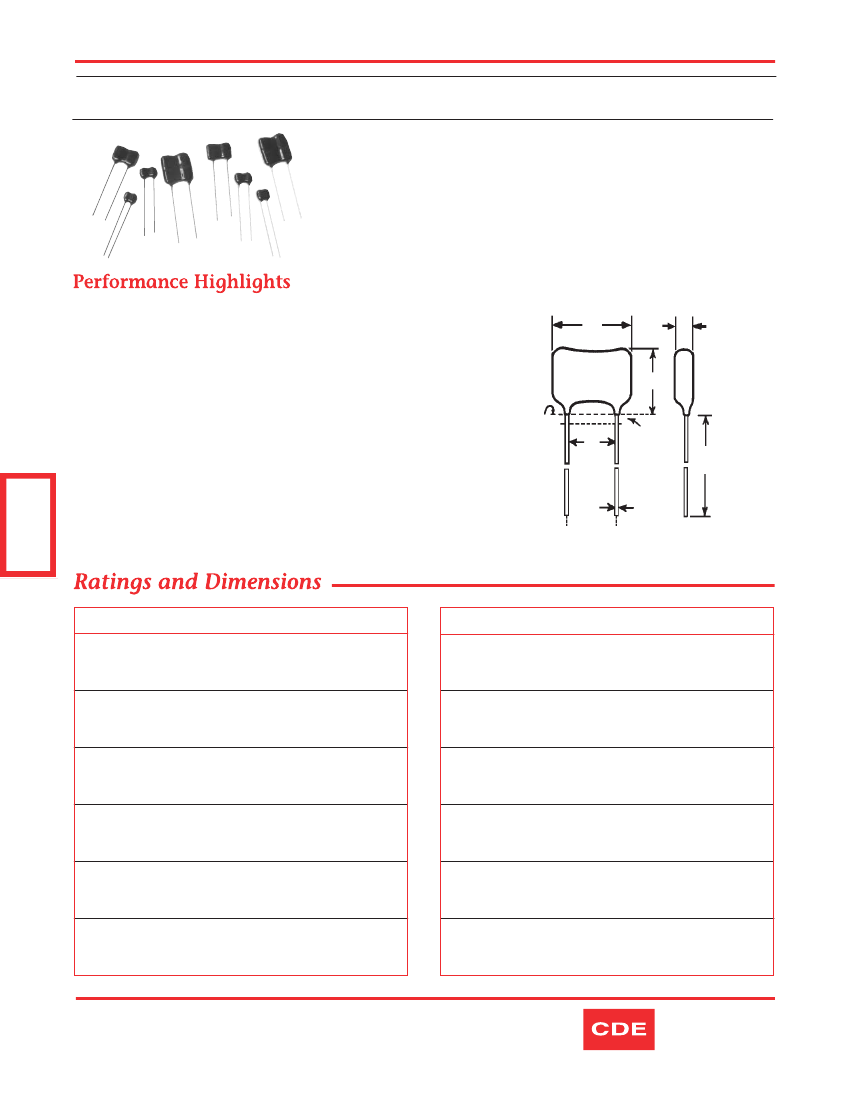

Mica Capacitors, Standard Dipped

Types CD10, D10, CD15, CD19, CD30, CD42, CDV19, CDV30

Heralded for stability, CDE standard dipped

silvered mica capacitors are the first choice for

timing, close tolerance, and all applications

where you need to count on the capacitance.

These standard types are widely available

through distribution.

• Voltage Range: 100 Vdc to 2,500 Vdc

• Capacitance Range: 1 pF to 91,000 pF

• Capacitance Tolerance:

⁄

pF (D),

±1

pF (C),

⁄

% (E),

±1%

(F),

±2%

(G),

±5%

(J)

• Temperature Range: –55°C to +125°C (O)

–55°C to +150°C (P)*

• Dimensions meet EIA RS153B specification

• MIL-C-5 military styles available

(See Ordering Information, p. 4.018)

• Reel packing available

• 100,000 V/µs dV/dt pulse capability minimum

• Units tested at 200% of rated voltage

• Non-flammable units which meet IEC 695-2-2 available

*“P” temperature range is available for Types CD10, CD15, CD19, CD30,

CD42, CDA15

Max.

H Max.

Measured at

point where

phenolic cone

becomes a

cylinder

.031″

.078″ Max.

no solder

1″

Min.

Radial Leaded

Mica Capacitors

Cap

Catalog

Number

CD10CD010D03

CD15CD010D03

CD10CD020D03

CD15CD020D03

CD10CD030D03

CD15CD030D03

CD15CD040D03

CD10CD050D03

CD15CD050D03

CDV19CF050D03

CD10CD060D03

CD15CD060D03

CDV19CF060D03

CD10CD070D03

CD15CD070D03

CDV19CF070D03

CD10CD080D03

CD15CD080D03

CDV19CF080D03

CD10CD100J03

CD15CD100J03

CDV19CF100J03

CD10CD120J03

CD15CD120J03

CDV19CF120J03

CD10CD150J03

CD15CD150J03

CDV19CF150J03

CD10CD180J03

CD15CD180J03

Volt

Rate

500

1,000

500

1,000

500

1,000

500

1,000

500

1,000

500

1,000

500

1,000

500

Inches (mm) Inches (mm) Inches (mm) Inches (mm) Inches (mm)

.360 ( 9.1)

.450 (11.4)

.360 ( 9.1)

.450 (11.4)

.360 ( 9.1)

.450 (11.4)

.360 ( 9.1)

.450 (11.4)

.640 (16.3)

.360 ( 9.1)

.450 (11.4)

.640 (16.3)

.360 ( 9.1)

.450 (11.4)

.640 (16.3)

.360 ( 9.1)

.450 (11.4)

.640 (16.3)

.360 ( 9.1)

.450 (11.4)

.640 (16.3)

.360 ( 9.1)

.450 (11.4)

.640 (16.3)

.360 ( 9.1)

.450 (11.4)

.640 (16.3)

.360 ( 9.1)

.450 (11.4)

.330 ( 8.4)

.360 ( 9.1)

.330 ( 8.4)

.360 ( 9.1)

.330 ( 8.4)

.360 ( 9.1)

.330 ( 8.4)

.360 ( 9.1)

.500 (12.7)

.330 ( 8.4)

.360 ( 9.1)

.500 (12.7)

.330 ( 8.4)

.360 ( 9.1)

.500 (12.7)

.330 ( 8.4)

.360 ( 9.1)

.500 (12.7)

.330 ( 8.4)

.360 ( 9.1)

.500 (12.7)

.330 ( 8.4)

.360 ( 9.1)

.500 (12.7)

.330 ( 8.4)

.360 ( 9.1)

.500 (12.7)

.330 ( 8.4)

.360 ( 9.1)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.170 (4.3)

.141 (3.6)

.234 (5.9)

.141 (3.6)

.234 (5.9)

.141 (3.6)

.234 (5.9)

.141 (3.6)

.234 (5.9)

.344 (8.7)

.141 (3.6)

.234 (5.9)

.344 (8.7)

.141 (3.6)

.234 (5.9)

.344 (8.7)

.141 (3.6)

.234 (5.9)

.344 (8.7)

.141 (3.6)

.234 (5.9)

.344 (8.7)

.141 (3.6)

.234 (5.9)

.344 (8.7)

.141 (3.6)

.234 (5.9)

.344 (8.7)

.141 (3.6)

.234 (5.9)

.016 (.4)

.025 (.6)

.016 (.4)

.025 (.6)

.016 (.4)

.025 (.6)

.016 (.4)

.025 (.6)

.032 (.8)

.016 (.4)

.025 (.6)

.032 (.8)

.016 (.4)

.025 (.6)

.032 (.8)

.016 (.4)

.025 (.6)

.032 (.8)

.016 (.4)

.025 (.6)

.032 (.8)

.016 (.4)

.025 (.6)

.032 (.8)

.016 (.4)

.025 (.6)

.032 (.8)

.016 (.4)

.025 (.6)

Cap

Catalog

Number

CDV19CF180J03

CD10ED200J03

CD15ED200J03

CDV19EF200J03

CD10ED220J03

CD15ED220J03

CDV19EF220J03

CD10ED240J03

CD15ED240J03

CDV19EF240J03

CDV30EH240J03

CDV30EJ240J03

CDV30EK240J03

CD10ED270J03

CD15ED270J03

CDV19EF270J03

CDV30EH270J03

CDV30EJ270J03

CDV30EK270J03

CD10ED300J03

CD15ED300J03

CDV19EF300J03

CDV30EH300J03

CDV30EJ300J03

CDV30EK300J03

CD10ED330J03

CD15ED330J03

CDV19EF330J03

CDV30EH330J03

CDV30EJ330J03

Volt

Rate

1,000

500

1,000

500

1,000

500

1,000

1,500

2,000

2,500

500

1,000

1,500

2,000

2,500

500

1,000

1,500

2,000

2,500

500

1,000

1,500

2,000

Inches (mm) Inches (mm) Inches (mm) Inches (mm) Inches (mm)

.640 (16.3)

.360 ( 9.1)

.450 (11.4)

.640 (16.3)

.360 ( 9.1)

.450 (11.4)

.640 (16.3)

.360 ( 9.1)

.450 (11.4)

.640 (16.3)

.770 (19.6)

.780 (19.8)

.370 ( 9.4)

.450 (11.4)

.640 (16.3)

.770 (19.6)

.780 (19.8)

.370 ( 9.4)

.450 (11.4)

.640 (16.3)

.770 (19.6)

.780 (19.8)

.370 ( 9.4)

.450 (11.4)

.640 (16.3)

.770 (19.6)

.500 (12.7)

.330 ( 8.4)

.360 ( 9.1)

.500 (12.7)

.330 ( 8.4)

.360 ( 9.1)

.500 (12.7)

.330 ( 8.4)

.360 ( 9.1)

.500 (12.7)

.850 (21.6)

.860 (21.8)

.330 ( 8.4)

.360 ( 9.1)

.500 (12.7)

.850 (21.6)

.860 (21.8)

.340 ( 8.6)

.360 ( 9.1)

.500 (12.7)

.850 (21.6)

.860 (21.8)

.340 ( 8.6)

.360 ( 9.1)

.500 (12.7)

.850 (21.6)

.860 (21.8)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.250 (6.4)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.250 (6.4)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.250 (6.4)

.190 (4.8)

.170 (4.3)

.190 (4.8)

.250 (6.4)

.344 ( 8.7)

.141 ( 3.6)

.234 ( 5.9)

.344 ( 8.7)

.141 ( 3.6)

.234 ( 5.9)

.344 ( 8.7)

.141 ( 3.6)

.234 ( 5.9)

.344 ( 8.7)

.438 (11.1)

.141 ( 3.6)

.234 ( 5.9)

.344 ( 8.7)

.438 (11.1)

.141 ( 3.6)

.234 ( 5.9)

.344 ( 8.7)

.438 (11.1)

.141 ( 3.6)

.234 ( 5.9)

.344 ( 8.7)

.438 (11.1)

.032 ( .8)

.016 ( .4)

.025 ( .6)

.032 ( .8)

.016 ( .4)

.025 ( .6)

.032 ( .8)

.016 ( .4)

.025 ( .6)

.032 ( .8)

.040 (1.0)

.016 ( .4)

.025 ( .6)

.032 ( .8)

.040 (1.0)

.016 ( .4)

.025 ( .6)

.032 ( .8)

.040 (1.0)

.016 ( .4)

.025 ( .6)

.032 ( .8)

.040 (1.0)

4.002

1605 East Rodney French Blvd.

New Bedford, MA 02744

(508) 996-8564, Fax (508) 996-3830

http://www.cornell-dubilier.com

E-mail: cdenb@cornell-dubilier.com

CORNELL

DUBILIER

Your Source For Capacitor Solutions

CM06FD471JO3 Related Products

	CM06FD471JO3	CM04FD221JO3	CM04ED330JO3	CM04ED470JO3	CM04ED680JO3	CM04FA391JO3	CM04FD101JO3	CM04FD241JO3
Description	Mica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, 0/+70ppm/Cel TC, 0.00047uF, Through Hole Mount, 6420, RADIAL LEADED	Mica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, 0/+70ppm/Cel TC, 0.00022uF, Through Hole Mount, RADIAL LEADED	Mica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, -20/+100ppm/Cel TC, 0.000033uF, Through Hole Mount, RADIAL LEADED	Mica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, -20/+100ppm/Cel TC, 0.000047uF, Through Hole Mount, RADIAL LEADED	Mica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, -20/+100ppm/Cel TC, 0.000068uF, Through Hole Mount, RADIAL LEADED	Mica Capacitor, Mica, 100V, 5% +Tol, 5% -Tol, 0/+70ppm/Cel TC, 0.00039uF, Through Hole Mount, RADIAL LEADED	Mica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, 0/+70ppm/Cel TC, 0.0001uF, Through Hole Mount, RADIAL LEADED	Mica Capacitor, Mica, 500V, 5% +Tol, 5% -Tol, 0/+70ppm/Cel TC, 0.00024uF, Through Hole Mount, RADIAL LEADED
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	0.00047 µF	0.00022 µF	0.000033 µF	0.000047 µF	0.000068 µF	0.00039 µF	0.0001 µF	0.00024 µF
Capacitor type	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR	MICA CAPACITOR
dielectric materials	MICA	MICA	MICA	MICA	MICA	MICA	MICA	MICA
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	5%	5%	5%	5%	5%	5%	5%	5%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
method of packing	TR	TR	TR	TR	TR	TR	TR	TR
positive tolerance	5%	5%	5%	5%	5%	5%	5%	5%
Rated (DC) voltage (URdc)	500 V	500 V	500 V	500 V	500 V	100 V	500 V	500 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Temperature Coefficient	0/+70ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C	-20/+100ppm/Cel ppm/°C	-20/+100ppm/Cel ppm/°C	-20/+100ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C	0/+70ppm/Cel ppm/°C
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Manufacturer's serial number	CM06	CM04	CM04	CM04	CM04	-	CM04	CM04
Base Number Matches	-	1	1	1	1	1	-	-
