SM620D
THRU
SM6100D
Elektronische Bauelemente
VOLTAGE 20V ~ 100V
6.0AMP Surface Mount Schottky Barrier Rectifiers
RoHS Compliant Product
A suffix of "-C" specifies halogen & lead-free
D-Pack
FEATURES
6.6
5.3
0.2
.
Low forward voltage drop
.
High current capability
.
High reliability
.
High surge current capability
.
Epitaxial construction
0.8
0.2
0.1
2.3
0.5
0.1
0.1
0.2
5.6
2.5
0.1
1.0
0.3
7.0
0.2
0.2
MECHANICAL DATA
1.2
0.3
.
Case: Molded plastic
.
Epoxy: UL 94V-0 rate flame retardant
.
Metallurgically bonded construction
.
Polarity: Color band denotes cathode end
.
Mounting position: Any
.
Weight: 0.70 grams
0.6
0.7
0.3
0.1
0.1
2.3
1.5Max
PIN 1
PIN 3
Positive CT
Suffix "C"
CASE
PIN 2
Dimensions in
millimeters
½
Rating 25 C ambient temperature unless otherwise specified.
Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
TYPE NUMBER
Maximum Recurrent Peak Reverse Voltage
Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Rectified Current,
See Fig. 1
Peak Forward Surge Current, 8.3 mS single half Sine-wave
superimposed on rated load (JEDEC method)
Maximum Instantaneous Forward Voltage at 3.0A
Maximum DC Reverse Current Ta=25
℃
At Rated DC Blocking Voltage Ta=100
℃
Typical Junction Capacitance (Note 1)
Typical Thermal Resistance RθJA
(Note 2)
Typical Thermal Resistance RθJL (Note 2)
Operating Temperature Range T
J
Storage Temperature Range T
STG
SM620D
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
SM640D
SM660D
SM6100D
20
20
20
40
40
40
6.0
80
0.55
0.2
30
170
120
10
-50 ~ +150
-65 ~ +175
A
A
60
60
60
100
100
100
UNITS
V
V
V
0.65
0.1
15
0.83
0.05
7.5
V
mA
pF
℃
/W
℃
℃
NOTES:
1. Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2. Thermal Resistance Junction to
Lead & Ambient
PC Board Mounting 0.5"(12.7mm) Lead Length.
http://www.SeCoSGmbH.com/
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page 1 of 2
SM620D
THRU
SM6100D
Elektronische Bauelemente
VOLTAGE 20V ~ 100V
6.0AMP Surface Mount Schottky Barrier Rectifiers
●

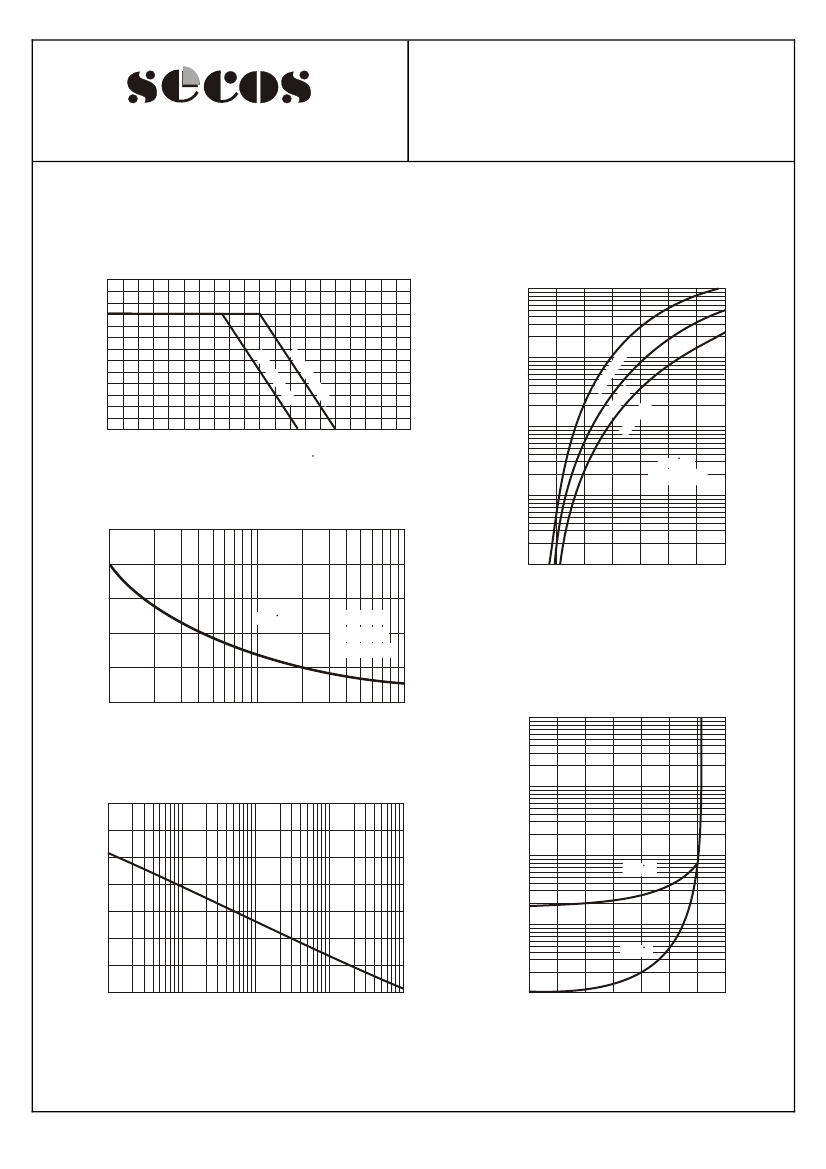

RATING AND CHARACTERISTIC CURVES (SM620D THRU SM6100D)
FIG.1-TYPICAL FORWARD CURRENT DERATING CURVE
AVERAGE FORWARD CURRENT,(A)
FIG.2-TYPICAL FORWARD
CHARACTERISTICS
3.6
3.0
50
INSTANTANEOUS FORWARD CURRENT,(A)
2.4
0D
66
SM
1.8
1.2
0.6
0
0
20
40
60
80
10
3.0
1.0
100
120
140
160
180
200
AMBIENT TEMPERATURE,( C)
SM
61
00
D
SM
62
0D
SM
~S
66
M6
0D
40
D
FIG.3-MAXIMUM NON-REPETITIVE FORWARD
SURGE CURRENT
100
~
0D
62
SM
0D
10
M6
~S
0D
64
SM
Tj=25 C
Pulse Width 300us
1% Duty Cycle
0.1
PEAK FORWARD SURGE CURRENT,(A)
80
.01
.1
.3
.5
.7
.9
1.1
1.3
1.5
60
Tj=25 C
8.3ms Single Half
Sine Wave
JEDEC method
FORWARD VOLT
AGE,(V)
40
20
FIG.5 - TYPICAL REVERSE
0
1
5
10
50
100
CHARACTERISTICS
100
NUMBER OF CYCLES AT 60Hz
FIG.4-TYPICAL JUNCTION CAPACITANCE
700
600
500
400
300
200
100
0
JUNCTION CAPACITANCE,(pF)
REVERSE LEAKAGE CURRENT, (mA)
10
1.0
Tj=75 C
.1
T j=25 C
.01
.05
.1
.5
1
5
10
50
100
.01
0
20
40
60
80
100 120 140
REVERSE VOLTAGE,(V)
PERCENT OF RATED PEAK REVERSE VOLT
AGE,(%)
http://www.SeCoSGmbH.com/
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page 2 of 2
