CM521225 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> CM521225

CM521225: DescriptionSilicon Controlled Rectifier, 392.5A I(T)RMS, 1200V V(RRM), 1 Element, V5, POW-R-BLOK-6; CategoryAnalog mixed-signal IC Trigger device; File Size148KB，4 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric Compare View All

CM521225 Overview

Silicon Controlled Rectifier, 392.5A I(T)RMS, 1200V V(RRM), 1 Element, V5, POW-R-BLOK-6

CM521225 Parametric

Parameter Name	Attribute value
Maker	POWEREX
package instruction	FLANGE MOUNT, R-PUFM-X6
Contacts	6
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE WITH BUILT-IN SERIES DIODE
JESD-30 code	R-PUFM-X6
Number of components	1
Number of terminals	6
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum rms on-state current	392.5 A
Repeated peak reverse voltage	1200 V
surface mount	NO
Terminal form	UNSPECIFIED
Terminal location	UPPER
Trigger device type	SCR

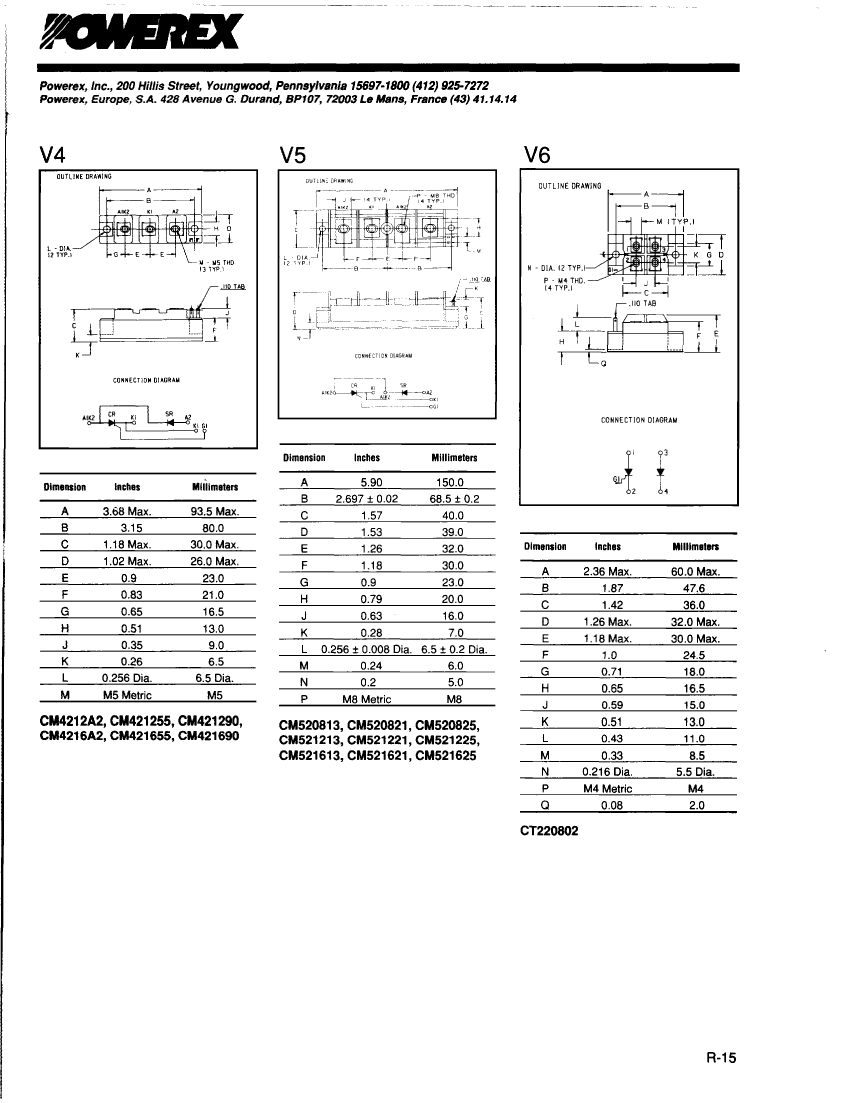

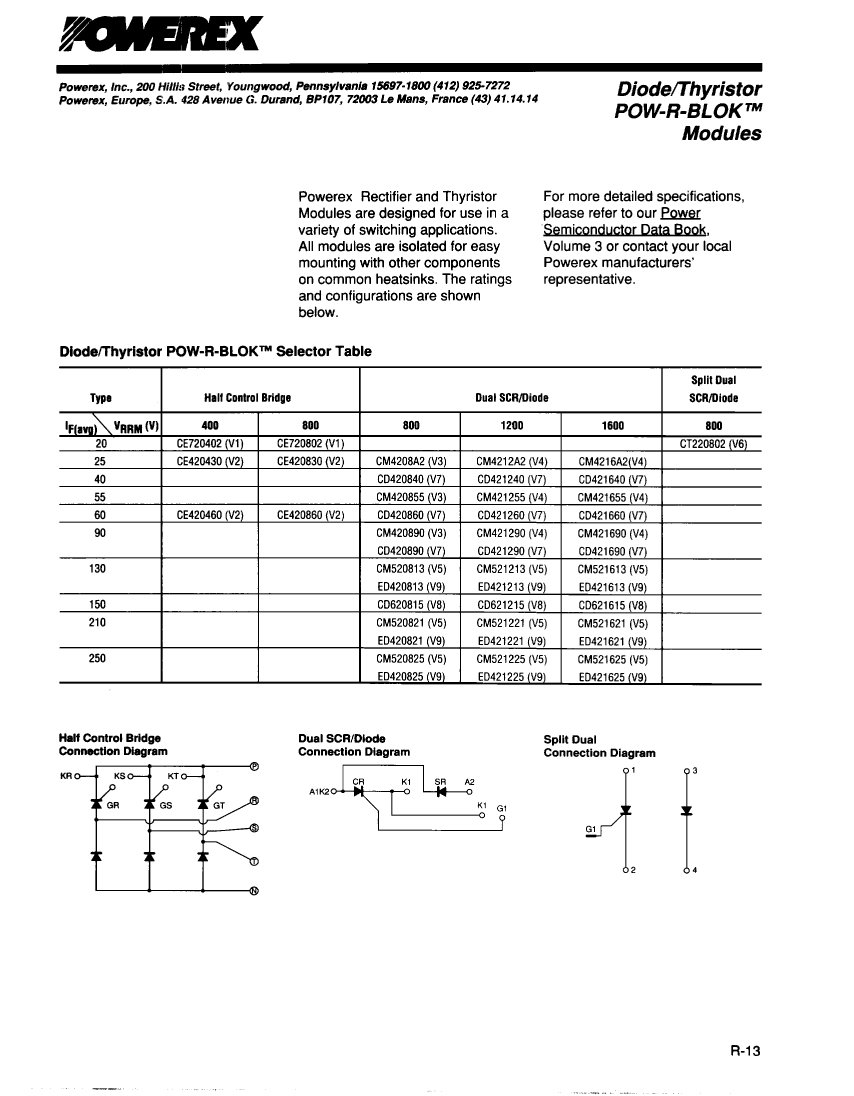

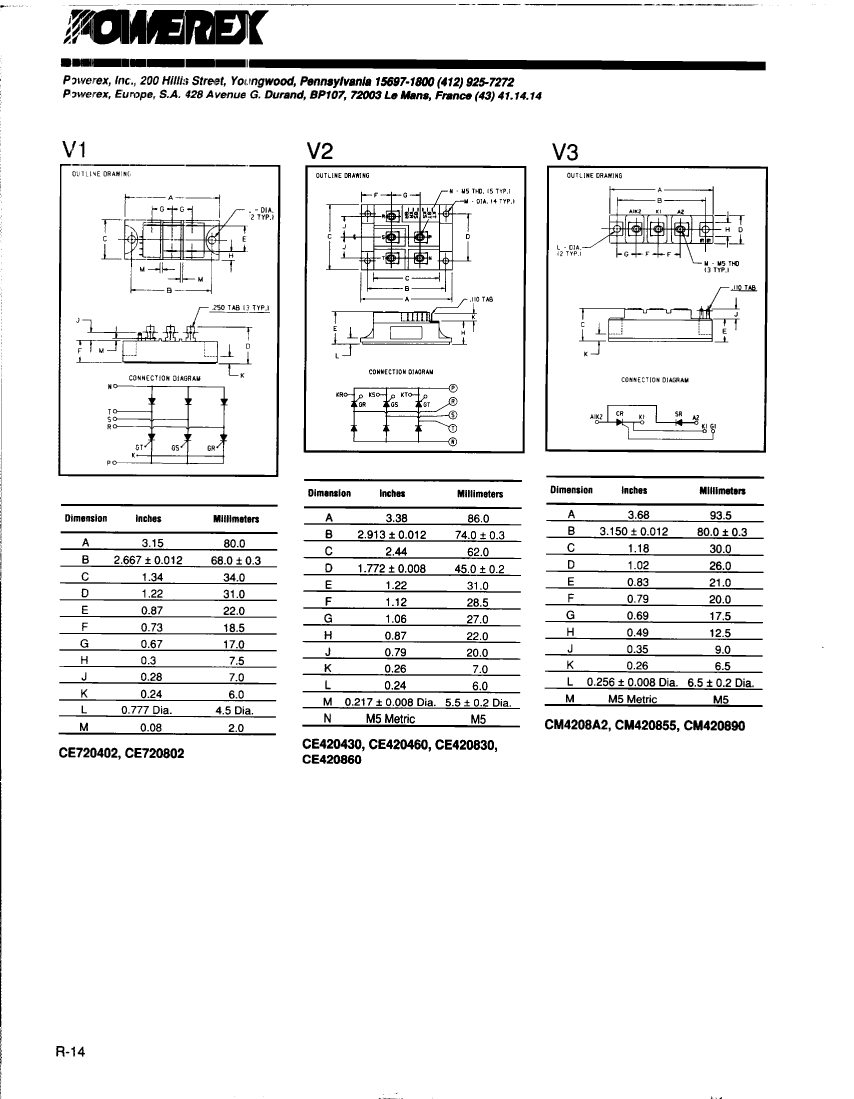

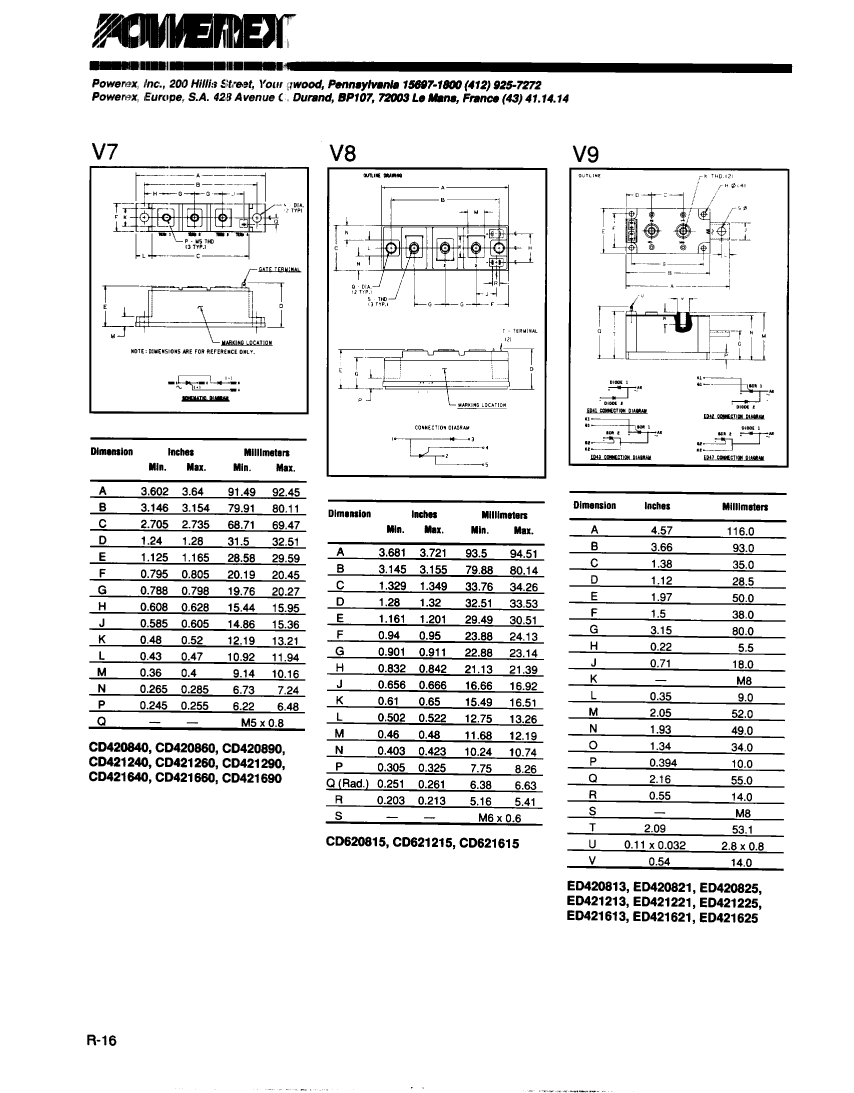

Preview

Download Datasheet

View All

CM521225 Related Products

	CM521225	CM520825	CE720402	CM520821	CE420430	CE420460	CM521221	CM521621	CM521625
Description	Silicon Controlled Rectifier, 392.5A I(T)RMS, 1200V V(RRM), 1 Element, V5, POW-R-BLOK-6	Silicon Controlled Rectifier, 392.5A I(T)RMS, 800V V(RRM), 1 Element, V5, POW-R-BLOK-6	Silicon Controlled Rectifier, 31.4A I(T)RMS, 20000mA I(T), 400V V(RRM), 3 Element, V1, POW-R-BLOK-9	Silicon Controlled Rectifier, 329.7A I(T)RMS, 800V V(RRM), 1 Element, V5, POW-R-BLOK-6	Silicon Controlled Rectifier, 39.25A I(T)RMS, 30000mA I(T), 400V V(RRM), 3 Element, V2, POW-R-BLOK-11	Silicon Controlled Rectifier, 94.2A I(T)RMS, 60000mA I(T), 400V V(RRM), 3 Element, V2, POW-R-BLOK-11	Silicon Controlled Rectifier, 329.7A I(T)RMS, 1200V V(RRM), 1 Element, V5, POW-R-BLOK-6	Silicon Controlled Rectifier, 329.7A I(T)RMS, 1600V V(RRM), 1 Element, V5, POW-R-BLOK-6	Silicon Controlled Rectifier, 392.5A I(T)RMS, 1600V V(RRM), 1 Element, V5, POW-R-BLOK-6
Maker	POWEREX	POWEREX	POWEREX	POWEREX	POWEREX	POWEREX	POWEREX	POWEREX	POWEREX
package instruction	FLANGE MOUNT, R-PUFM-X6	FLANGE MOUNT, R-PUFM-X6	FLANGE MOUNT, R-PUFM-D9	FLANGE MOUNT, R-PUFM-X6	FLANGE MOUNT, R-PUFM-X11	FLANGE MOUNT, R-PUFM-X11	FLANGE MOUNT, R-PUFM-X6	FLANGE MOUNT, R-PUFM-X6	FLANGE MOUNT, R-PUFM-X6
Contacts	6	6	9	6	11	11	6	6	6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SINGLE WITH BUILT-IN SERIES DIODE	SINGLE WITH BUILT-IN SERIES DIODE	3 PHASE BRIDGE, HALF-CONTROLLED, COMMON CATHODE	SINGLE WITH BUILT-IN SERIES DIODE	3 PHASE BRIDGE, HALF-CONTROLLED, COMMON CATHODE	3 PHASE BRIDGE, HALF-CONTROLLED, COMMON CATHODE	SINGLE WITH BUILT-IN SERIES DIODE	SINGLE WITH BUILT-IN SERIES DIODE	SINGLE WITH BUILT-IN SERIES DIODE
JESD-30 code	R-PUFM-X6	R-PUFM-X6	R-PUFM-D9	R-PUFM-X6	R-PUFM-X11	R-PUFM-X11	R-PUFM-X6	R-PUFM-X6	R-PUFM-X6
Number of components	1	1	3	1	3	3	1	1	1
Number of terminals	6	6	9	6	11	11	6	6	6
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum rms on-state current	392.5 A	392.5 A	31.4 A	329.7 A	39.25 A	94.2 A	329.7 A	329.7 A	392.5 A
Repeated peak reverse voltage	1200 V	800 V	400 V	800 V	400 V	400 V	1200 V	1600 V	1600 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	UNSPECIFIED	UNSPECIFIED	SOLDER LUG	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Trigger device type	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR	SCR
Base Number Matches	-	1	1	1	1	1	-	-	-
