B481F-2T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B481F-2T

B481F-2T: DescriptionRectifier Diode, 1 Phase, 2 Element, 35A, 1200V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3; CategoryDiscrete semiconductor diode; File Size65KB，1 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric Compare View All

B481F-2T Overview

Rectifier Diode, 1 Phase, 2 Element, 35A, 1200V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3

B481F-2T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crydom
package instruction	R-XUFM-X3
Contacts	3
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
application	GENERAL PURPOSE
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-XUFM-X3
Maximum non-repetitive peak forward current	600 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	35 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	1200 V
surface mount	NO
Terminal surface	COPPER
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

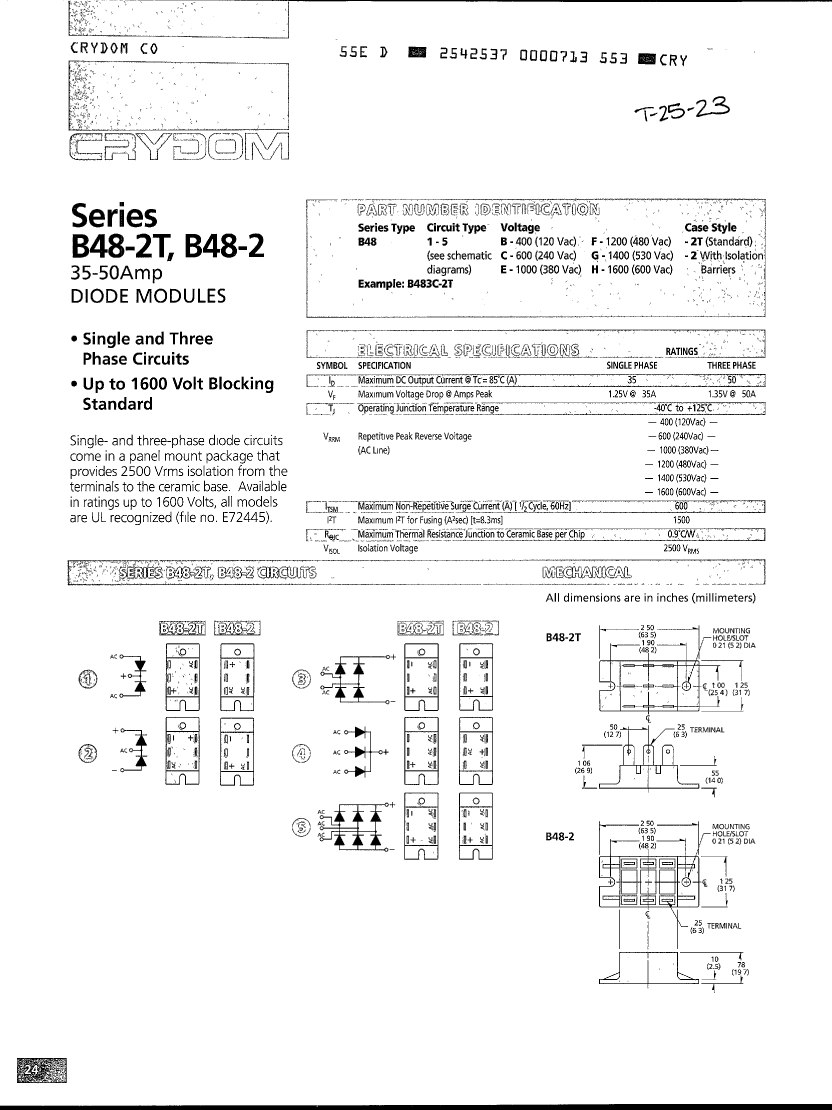

Preview

Download Datasheet

View All

B481F-2T Related Products

	B481F-2T	B481E-2T	B481E-2	B481G-2	B481F-2	B481B-2T	B481G-2T	B481H-2
Description	Rectifier Diode, 1 Phase, 2 Element, 35A, 1200V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3	Rectifier Diode, 1 Phase, 2 Element, 35A, 1000V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3	Rectifier Diode, 1 Phase, 2 Element, 35A, 1000V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3	Rectifier Diode, 1 Phase, 2 Element, 35A, 1400V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3	Rectifier Diode, 1 Phase, 2 Element, 35A, 1200V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3	Rectifier Diode, 1 Phase, 2 Element, 35A, 400V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3	Rectifier Diode, 1 Phase, 2 Element, 35A, 1400V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3	Rectifier Diode, 1 Phase, 2 Element, 35A, 1600V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3
Contacts	3	3	3	3	3	3	3	3
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V
JESD-30 code	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3	R-XUFM-X3
Maximum non-repetitive peak forward current	600 A	600 A	600 A	600 A	600 A	600 A	600 A	600 A
Number of components	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1
Number of terminals	3	3	3	3	3	3	3	3
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	35 A	35 A	35 A	35 A	35 A	35 A	35 A	35 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	1200 V	1000 V	1000 V	1400 V	1200 V	400 V	1400 V	1600 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER
Terminal form	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Crydom	-	-	-	Crydom	Crydom	Crydom	Crydom
