70V3579S5DRG

Description
Dual-Port SRAM, 32KX36, 5ns, CMOS, PQFP208, 28 X 28 MM, 3.50 MM HEIGHT, GREEN, PLASTIC, MO-143FA-1, QFP-208
Categorystorage    storage
File Size176KB,17 Pages
ManufacturerIDT (Integrated Device Technology)
Environmental Compliance
Download Datasheet Parametric View All

70V3579S5DRG Overview

Dual-Port SRAM, 32KX36, 5ns, CMOS, PQFP208, 28 X 28 MM, 3.50 MM HEIGHT, GREEN, PLASTIC, MO-143FA-1, QFP-208

70V3579S5DRG Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerIDT (Integrated Device Technology)
Parts packaging codeQFP
package instructionFQFP, QFP208,1.2SQ,20
Contacts208
Reach Compliance Codecompliant
ECCN code3A991
Maximum access time5 ns
Other featuresPIPELINED OUTPUT MODE, SELF TIMED WRITE CYCLE
Maximum clock frequency (fCLK)100 MHz
I/O typeCOMMON
JESD-30 codeS-PQFP-G208
JESD-609 codee3
length28 mm
memory density1179648 bit
Memory IC TypeDUAL-PORT SRAM
memory width36
Humidity sensitivity level3
Number of functions1
Number of ports2
Number of terminals208
word count32768 words
character code32000
Operating modeSYNCHRONOUS
Maximum operating temperature70 °C
Minimum operating temperature
organize32KX36
Output characteristics3-STATE
Package body materialPLASTIC/EPOXY
encapsulated codeFQFP
Encapsulate equivalent codeQFP208,1.2SQ,20
Package shapeSQUARE
Package formFLATPACK, FINE PITCH
Parallel/SerialPARALLEL
Peak Reflow Temperature (Celsius)260
power supply2.5/3.3,3.3 V
Certification statusNot Qualified
Maximum seat height4.1 mm
Minimum standby current3.15 V
Maximum slew rate0.36 mA
Maximum supply voltage (Vsup)3.45 V
Minimum supply voltage (Vsup)3.15 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceMATTE TIN
Terminal formGULL WING
Terminal pitch0.5 mm
Terminal locationQUAD
Maximum time at peak reflow temperature30
width28 mm
HIGH-SPEED 3.3V 32K x 36
SYNCHRONOUS PIPELINED
DUAL-PORT STATIC RAM
WITH 3.3V OR 2.5V INTERFACE
Features:
IDT70V3579S
True Dual-Port memory cells which allow simultaneous
access of the same memory location
High-speed clock to data access
– Commercial: 4.2/5/6ns (max.)
– Industrial: 5ns (max)
Pipelined output mode
Counter enable and reset features
Dual chip enables allow for depth expansion without
additional logic
Full synchronous operation on both ports
– 7.5ns cycle time, 133MHz operation (9.6 Gbps bandwidth)
– Fast 4.2ns clock to data out
– 1.8ns setup to clock and 0.7ns hold on all control, data, and
address inputs @ 133MHz
– Data input, address, byte enable and control registers
– Self-timed write allows fast cycle time
Separate byte controls for multiplexed bus and bus
matching compatibility
LVTTL- compatible, single 3.3V (±150mV) power supply for
core
LVTTL compatible, selectable 3.3V (±150mV)/2.5V (±125mV)
power supply for I/Os and control signals on each port
Industrial temperature range (-40°C to +85°C) is
available for selected speeds
Available in a 208-pin Plastic Quad Flatpack (PQFP) and
208-pin fine pitch Ball Grid Array, and 256-pin Ball Grid
Array
Green parts available, see ordering information

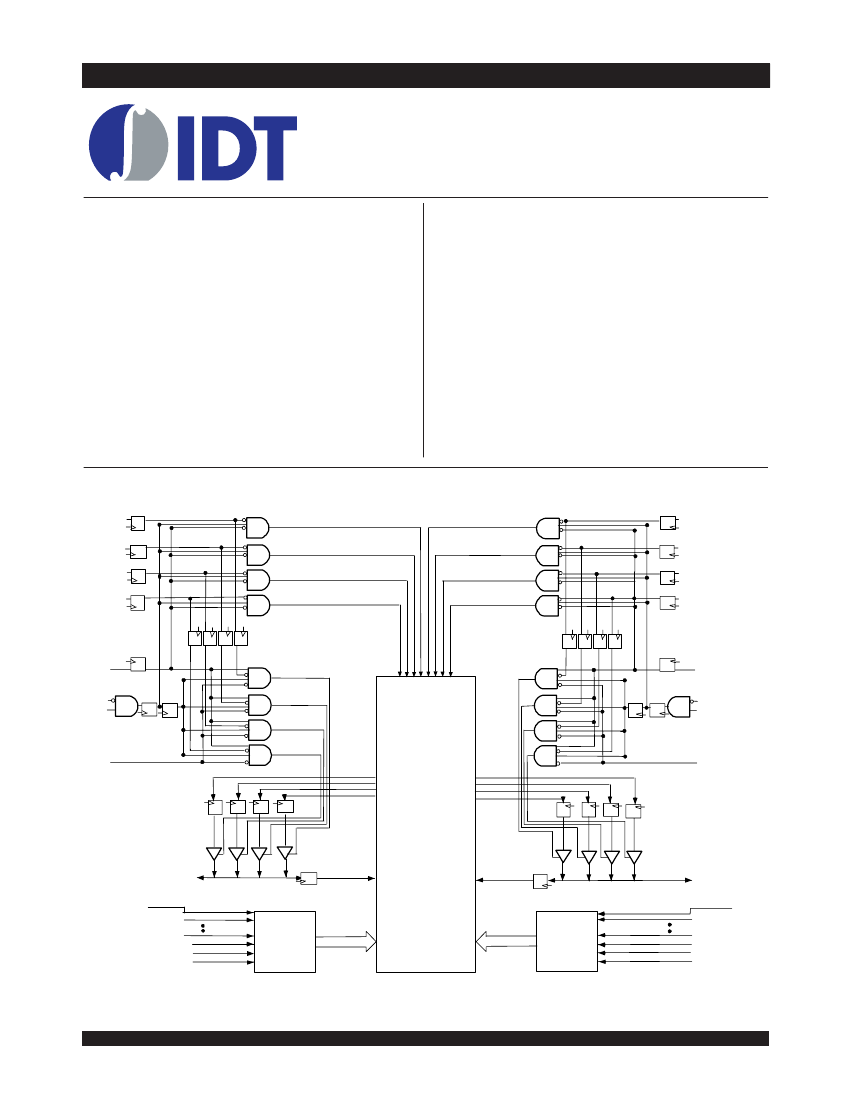

Functional Block Diagram
BE
3L
BE
3R
BE
2L
BE
1L
BE
0L
BE
2R
BE
1R
BE
0R
R/W
L
B
W
0
L
B
W
1
L
B B
WW
2 3
L L
B
W
3
R
BB
WW
2 1
RR
B
W
0
R
R/W
R
CE
0L
CE
1L
CE
0R
CE
1R
OE
L
Dout0-8_L
Dout9-17_L
Dout18-26_L
Dout27-35_L
Dout0-8_R
Dout9-17_R
Dout18-26_R
Dout27-35_R
OE
R
32K x 36
MEMORY
ARRAY
I/O
0L
- I/O
35L
Din_L
Din_R
I/O
0R
- I/O
35R
CLK
L
A
14L
A
0L
CNTRST
L
ADS
L
CNTEN
L
CLK
R
,
Counter/
Address
Reg.
A
14R
ADDR_L
ADDR_R
Counter/
Address
Reg.
A
0R
CNTRST
R
ADS
R
CNTEN
R
4830 tbl 01
OCTOBER 2008
1
©2008 Integrated Device Technology, Inc.
DSC 4830/16
