LC-305VK datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LC-305VK

Preview

LC-305VK: DescriptionSmart/Normal 7 Seg Numeric LED Display, 5-Character, Red, 7.6mm; CategoryLED optoelectronic/LED photoelectric; File Size48KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

LC-305VK Overview

Smart/Normal 7 Seg Numeric LED Display, 5-Character, Red, 7.6mm

LC-305VK Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ROHM Semiconductor
Reach Compliance Code	compliant
color	RED
color@wavelength	Red
Configuration	COMMON CATHODE, MULTIPLEXED, 5 DIGITS WITH DECIMAL POINT
Display height	7.6 mm
Maximum forward current	0.015 A
Maximum forward voltage	2.8 V
JESD-609 code	e0
Number of characters	5
Number of functions	5
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Terminal surface	Tin/Lead (Sn/Pb)

Preview

Download Datasheet

View All

LED displays

High efficiency, five-digit numeric

displays

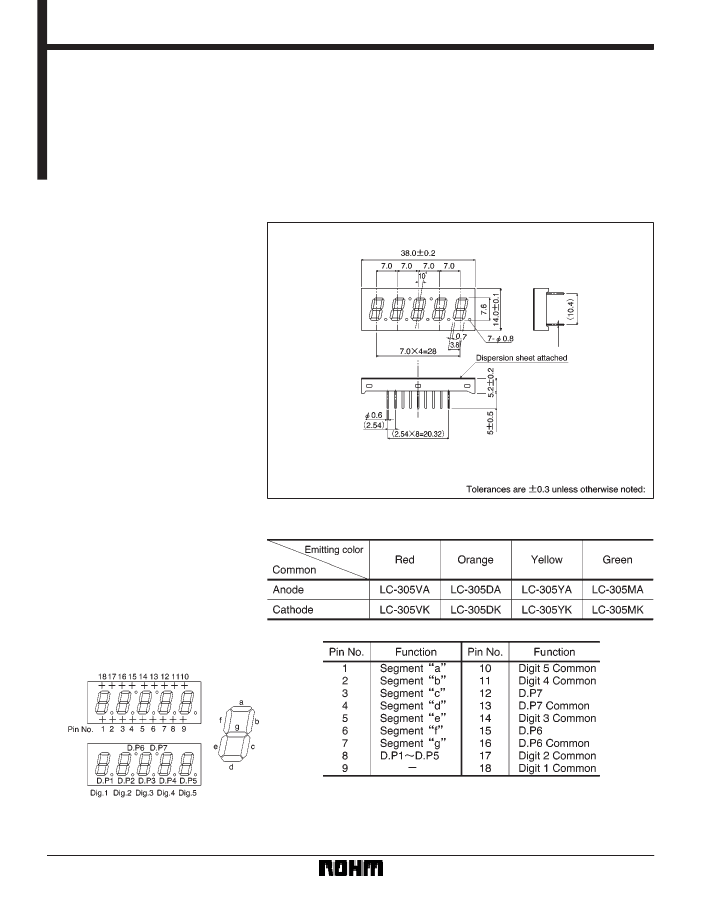

LC-305 AK Series

The LC-305 AK series achieve a five-

digit numeric display with a character

height of 7.6 mm in a compact 38 14

mm package. Red, orange, yellow and

green are available, and these displays

are ideal for wireless display.

FFeatures

1) Height of character: 7.6 mm.

2) External dimensions: 38

14

5.2 mm.

3) Four colors : red, orange, yellow

and green.

4) Common anode and common cath-

ode configurations are available for

each color.

5) Segments are difficult to see when

not illuminated.

FExternal

dimensions (Units: mm)

FSelection

guide

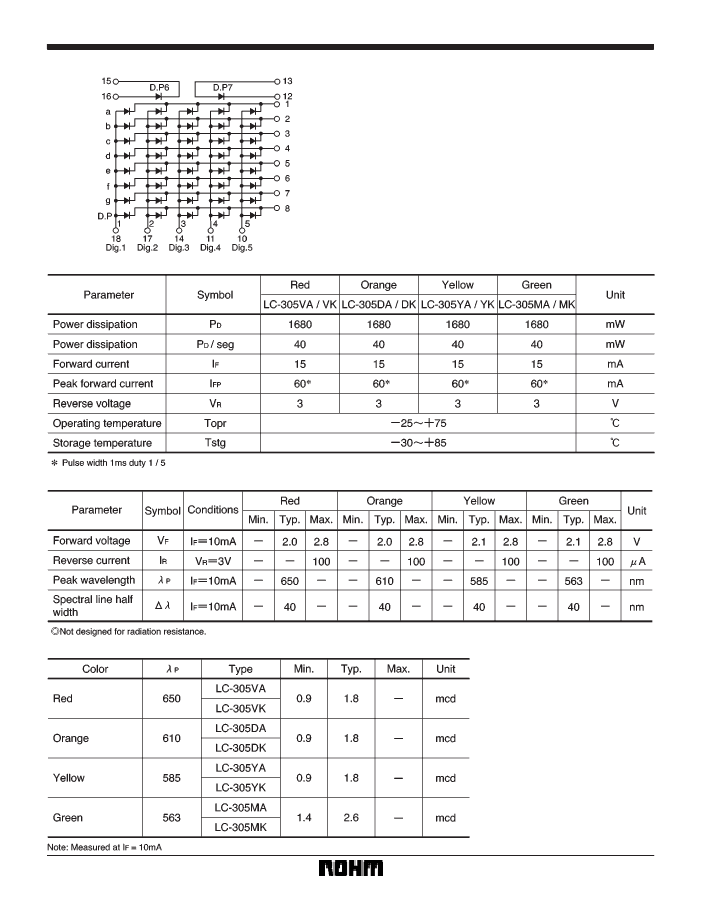

FPin

assignments

220

LC-305VK Related Products

	LC-305VK	LC-305MA
Description	Smart/Normal 7 Seg Numeric LED Display, 5-Character, Red, 7.6mm	Smart/Normal 7 Seg Numeric LED Display, 5-Character, Green, 7.6mm
Is it Rohs certified?	incompatible	incompatible
Maker	ROHM Semiconductor	ROHM Semiconductor
Reach Compliance Code	compliant	compliant
color	RED	GREEN
color@wavelength	Red	Green
Configuration	COMMON CATHODE, MULTIPLEXED, 5 DIGITS WITH DECIMAL POINT	COMMON ANODE, MULTIPLEXED, 5 DIGITS WITH DECIMAL POINT
Display height	7.6 mm	7.6 mm
Maximum forward current	0.015 A	0.015 A
Maximum forward voltage	2.8 V	2.8 V
JESD-609 code	e0	e0
Number of characters	5	5
Number of functions	5	5
Maximum operating temperature	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
