LBR2272S: DescriptionSingle Color LED, Red, Diffused Pastel Red, 1.6mm; CategoryLED optoelectronic/LED photoelectric; File Size248KB，2 Pages; ManufacturerStanley Electric Co

Download Datasheet Parametric Compare View All

LBR2272S Overview

Single Color LED, Red, Diffused Pastel Red, 1.6mm

LBR2272S Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Stanley Electric Co
Reach Compliance Code	unknown
color	RED
color@wavelength	Red
Configuration	SINGLE
Maximum forward current	0.01 A
Maximum forward voltage	1.8 V
JESD-609 code	e0
Lens type	DIFFUSED PASTEL RED
Nominal luminous intensity	1.5 mcd
Installation features	AXIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	2.3 mm
method of packing	BULK
peak wavelength	660 nm
Maximum reverse voltage	4 V
shape	ROUND
size	1.6 mm
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
perspective	80 deg

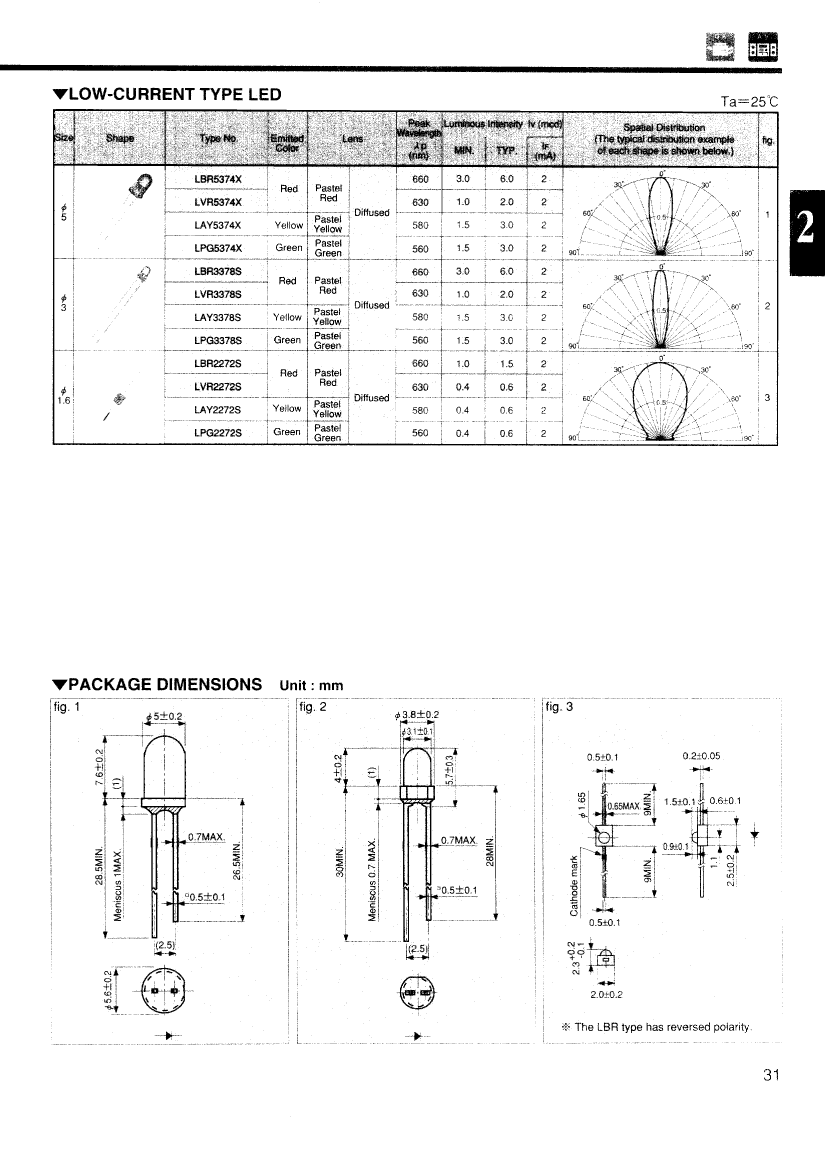

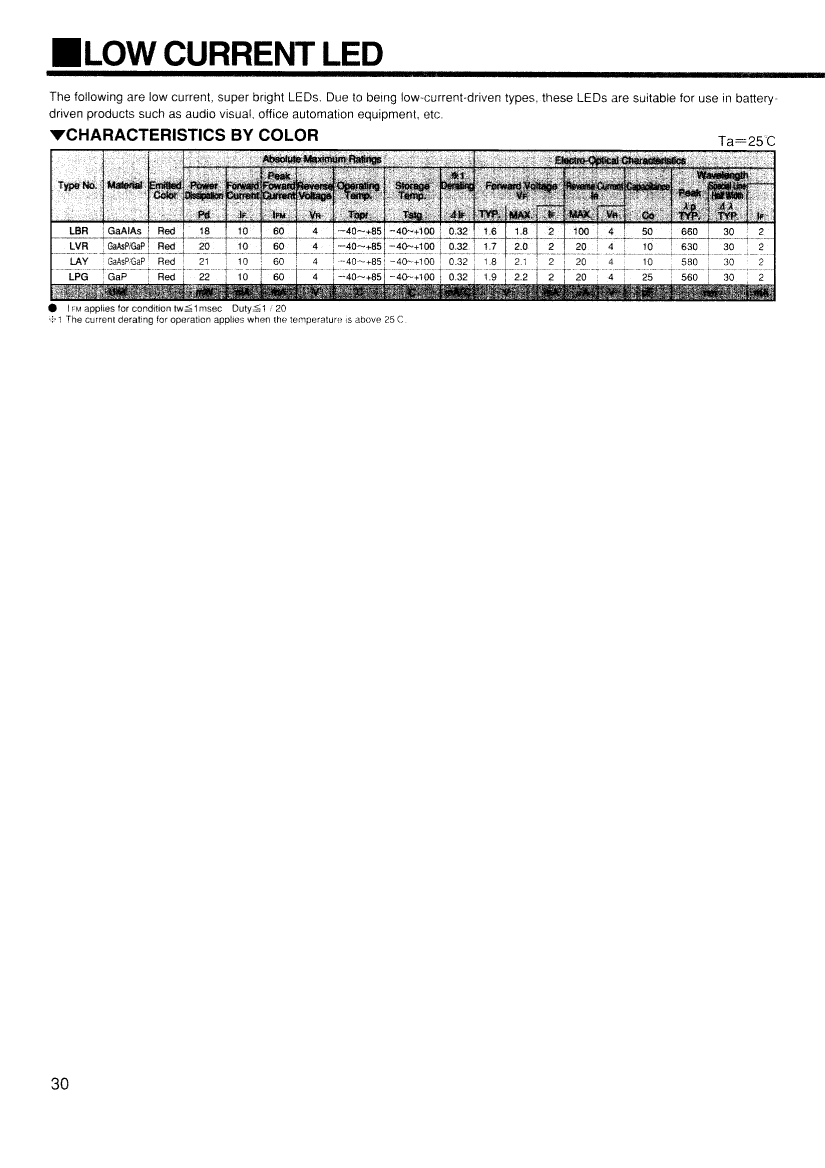

Preview

Download Datasheet

View All

LBR2272S Related Products

	LBR2272S	LAY3378S	LPG5374X	LBR5374X	LPG3378S	LVR3378S	LBR3378S	LVR5374X
Description	Single Color LED, Red, Diffused Pastel Red, 1.6mm	Single Color LED, Yellow, Diffused Pastel Yellow, 3mm	Single Color LED, Green, Pastel Green Diffused, 5mm	Single Color LED, Red, Diffused Pastel Red, 5mm	Single Color LED, Green, Pastel Green Diffused, 3mm	Single Color LED, Red, Diffused Pastel Red, 3mm	Single Color LED, Red, Diffused Pastel Red, 3mm	Single Color LED, Red, Diffused Pastel Red, 5mm
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
color	RED	YELLOW	GREEN	RED	GREEN	RED	RED	RED
color@wavelength	Red	Yellow	Green	Red	Green	Red	Red	Red
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A	0.01 A
Maximum forward voltage	1.8 V	2.1 V	2.2 V	1.8 V	2.2 V	2 V	1.8 V	2 V
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Lens type	DIFFUSED PASTEL RED	DIFFUSED PASTEL YELLOW	PASTEL GREEN DIFFUSED	DIFFUSED PASTEL RED	PASTEL GREEN DIFFUSED	DIFFUSED PASTEL RED	DIFFUSED PASTEL RED	DIFFUSED PASTEL RED
Nominal luminous intensity	1.5 mcd	3 mcd	3 mcd	6 mcd	3 mcd	2 mcd	6 mcd	2 mcd
Installation features	AXIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	2.3 mm	5.7 mm	9.6 mm	9.6 mm	5.7 mm	5.7 mm	5.7 mm	9.6 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	660 nm	580 nm	560 nm	660 nm	560 nm	630 nm	660 nm	630 nm
Maximum reverse voltage	4 V	4 V	4 V	4 V	4 V	4 V	4 V	4 V
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	1.6 mm	3 mm	5 mm	5 mm	3 mm	3 mm	3 mm	5 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
perspective	80 deg	20 deg	30 deg	30 deg	20 deg	20 deg	20 deg	30 deg
Terminal pitch	-	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
