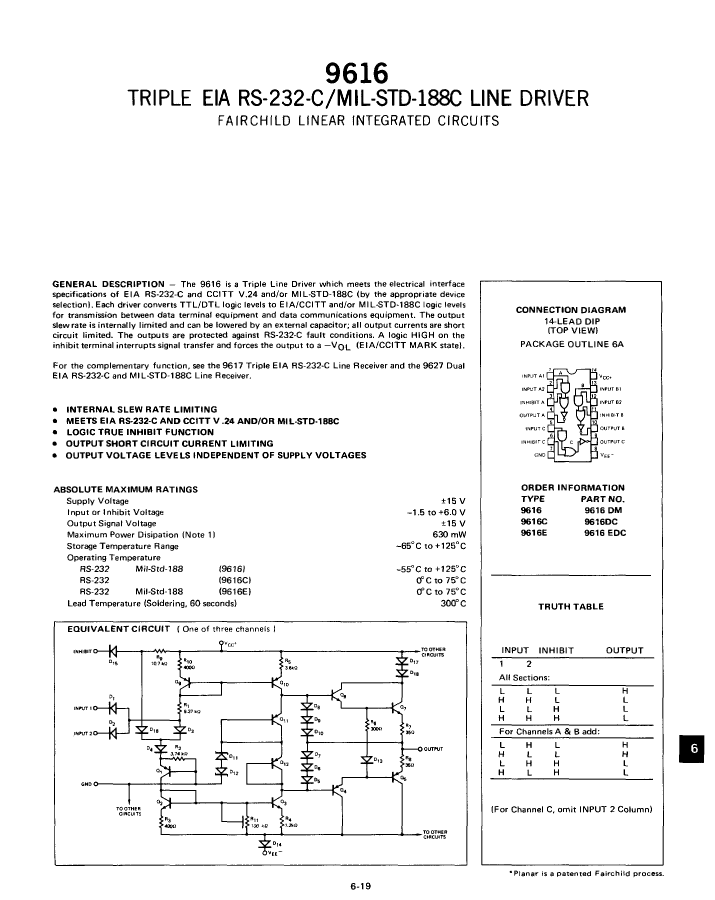

Line Driver, 3 Func, 3 Driver, BIPolar, CDIP14, HERMETIC SEALED, DIP-14

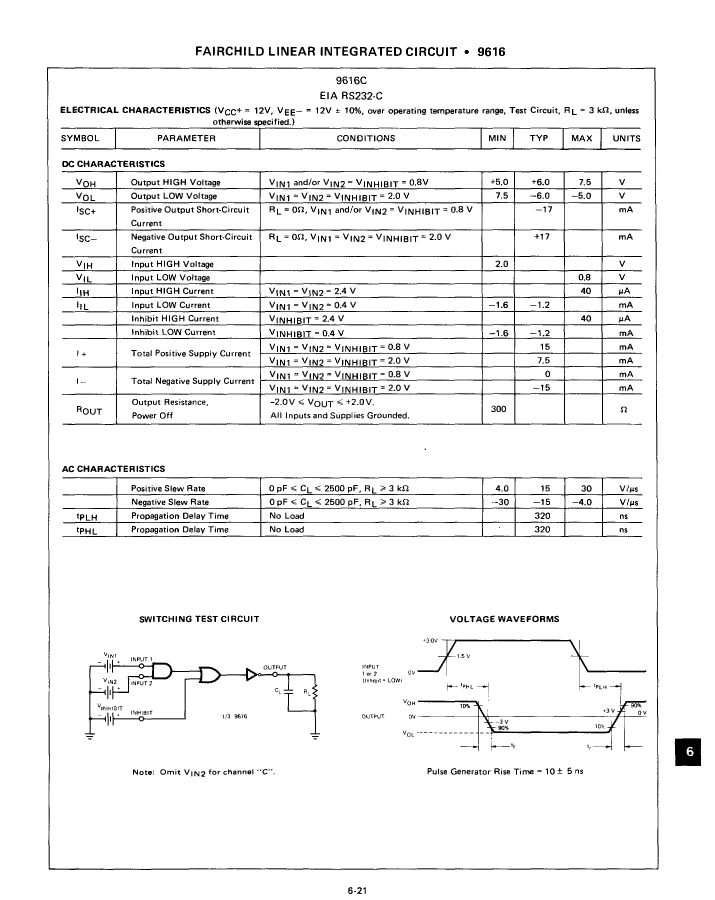

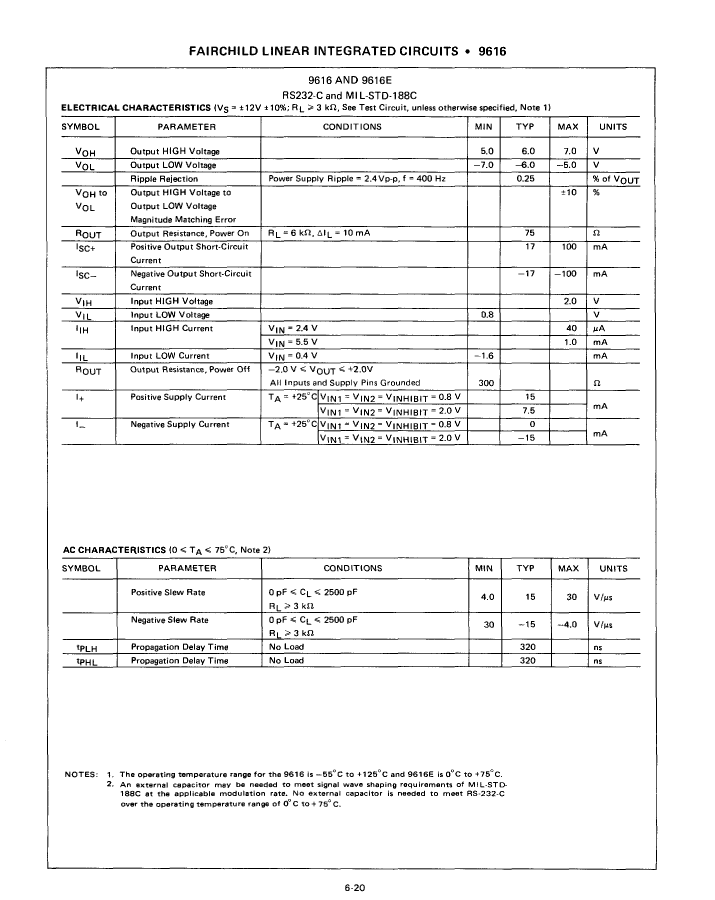

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| Parts packaging code | DIP |
| package instruction | HERMETIC SEALED, DIP-14 |
| Contacts | 14 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Differential output | NO |
| Number of drives | 3 |
| High level input current maximum value | 0.00004 A |
| Input properties | GATED |
| Interface integrated circuit type | LINE DRIVER |
| Interface standards | EIA-232-C; V.24; MIL-STD-188C |
| JESD-30 code | R-GDIP-T14 |
| JESD-609 code | e0 |
| length | 19.4945 mm |
| Nominal negative supply voltage | -12 V |
| Number of functions | 3 |
| Number of terminals | 14 |
| Maximum operating temperature | 75 °C |
| Minimum operating temperature | |
| Minimum output swing | 10 V |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP14,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| power supply | +-12 V |
| Certification status | Not Qualified |
| Maximum receive delay | |
| Maximum seat height | 5.08 mm |
| Maximum supply voltage | 13.2 V |
| Minimum supply voltage | 10.8 V |
| Nominal supply voltage | 12 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | COMMERCIAL EXTENDED |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| width | 7.62 mm |
| 9616DC | 9616EDC | 9616DM | |
|---|---|---|---|
| Description | Line Driver, 3 Func, 3 Driver, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 | Line Driver, 3 Func, 3 Driver, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 | Line Driver, 3 Func, 3 Driver, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Maker | Fairchild | Fairchild | Fairchild |
| Parts packaging code | DIP | DIP | DIP |
| package instruction | HERMETIC SEALED, DIP-14 | DIP, DIP14,.3 | DIP, DIP14,.3 |
| Contacts | 14 | 14 | 14 |
| Reach Compliance Code | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Differential output | NO | NO | NO |
| Number of drives | 3 | 3 | 3 |
| High level input current maximum value | 0.00004 A | 0.00004 A | 0.00004 A |
| Input properties | GATED | GATED | GATED |
| Interface integrated circuit type | LINE DRIVER | LINE DRIVER | LINE DRIVER |
| Interface standards | EIA-232-C; V.24; MIL-STD-188C | EIA-232-C; V.24; MIL-STD-188C | EIA-232-C; V.24; MIL-STD-188C |
| JESD-30 code | R-GDIP-T14 | R-GDIP-T14 | R-GDIP-T14 |
| JESD-609 code | e0 | e0 | e0 |
| length | 19.4945 mm | 19.4945 mm | 19.4945 mm |
| Nominal negative supply voltage | -12 V | -12 V | -12 V |
| Number of functions | 3 | 3 | 3 |
| Number of terminals | 14 | 14 | 14 |
| Maximum operating temperature | 75 °C | 75 °C | 125 °C |
| Minimum output swing | 10 V | 10 V | 10 V |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DIP |
| Encapsulate equivalent code | DIP14,.3 | DIP14,.3 | DIP14,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE |
| power supply | +-12 V | +-12 V | +-12 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 5.08 mm | 5.08 mm |
| Maximum supply voltage | 13.2 V | 13.2 V | 13.2 V |
| Minimum supply voltage | 10.8 V | 10.8 V | 10.8 V |
| Nominal supply voltage | 12 V | 12 V | 12 V |
| surface mount | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | COMMERCIAL EXTENDED | COMMERCIAL EXTENDED | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| width | 7.62 mm | 7.62 mm | 7.62 mm |
