3x3mm SQUARE TOP LED LAMP
L-714EDT
ORANGE
Features
LOW POWER CONSUMPTION.
ULTRA BRIGHTNESS AVAILABLE.
WIDE VIEWING ANGLE.
RELIABLE AND RUGGED.
EXCELLENT UNIFORMITY OF LIGHT OUTPUT.
IDEAL FOR FLUSH MOUNTED PANEL INDICATORS.
RoHS COMPLIANT.
Description
The Orange source color devices are made with
Gallium Arsenide Phosphide on Gallium Phosphide
Orange Light Emitting Diode.
Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the leads emerge from the package.
4. Specifications are subject to change without notice.
SPEC NO.: DSAE8362
.
APPROVED: J. Lu
REV NO.: V.2
.
CHECKED: Allen Liu
DATE: MAR/21/2005
DRAWN: S.M.TANG
PAGE: 1 OF 3
Selection Guide
Part No.
Dice
Lens Type
Iv (mcd)
@ 10mA
Min.
L-714EDT
ORANGE (GaAsP/GaP)
ORANGE DIFFUSED
3
Typ.
5
Viewing
Angle
2θ1/2
θ
110
°
Note:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
Electrical / Optical Characteristics at T
A
=25°C
Symbol
λpeak
λD
∆λ1/2
C
V
F
I
R
Parameter
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Capacitance
Forward Voltage
Reverse Current
Device
Orange
Orange
Orange
Orange
Orange
Orange
Typ.
627
625
45
15
2.0
2.5
10
Max.
Units
nm
nm
nm
pF
V
uA
Test Conditions
I
F
=20mA
I
F
=20mA
I
F
=20mA
V
F
=0V;f=1MHz
I
F
=20mA
V
R
= 5V
Absolute Maximum Ratings at T
A
=25°C
Parameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Solder Temperature [2]
Lead Solder Temperature [3]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 2mm below package base.
3. 5mm below package base.
Orange
105
30
160
5
-40°C To +85°C
260°C For 3 Seconds
260°C For 5 Seconds
Units
mW
mA
mA
V
SPEC NO.: DSAE8362
.
APPROVED: J. Lu
REV NO.: V.2
.
CHECKED: Allen Liu
DATE: MAR/21/2005
DRAWN: S.M.TANG
PAGE: 2 OF 3

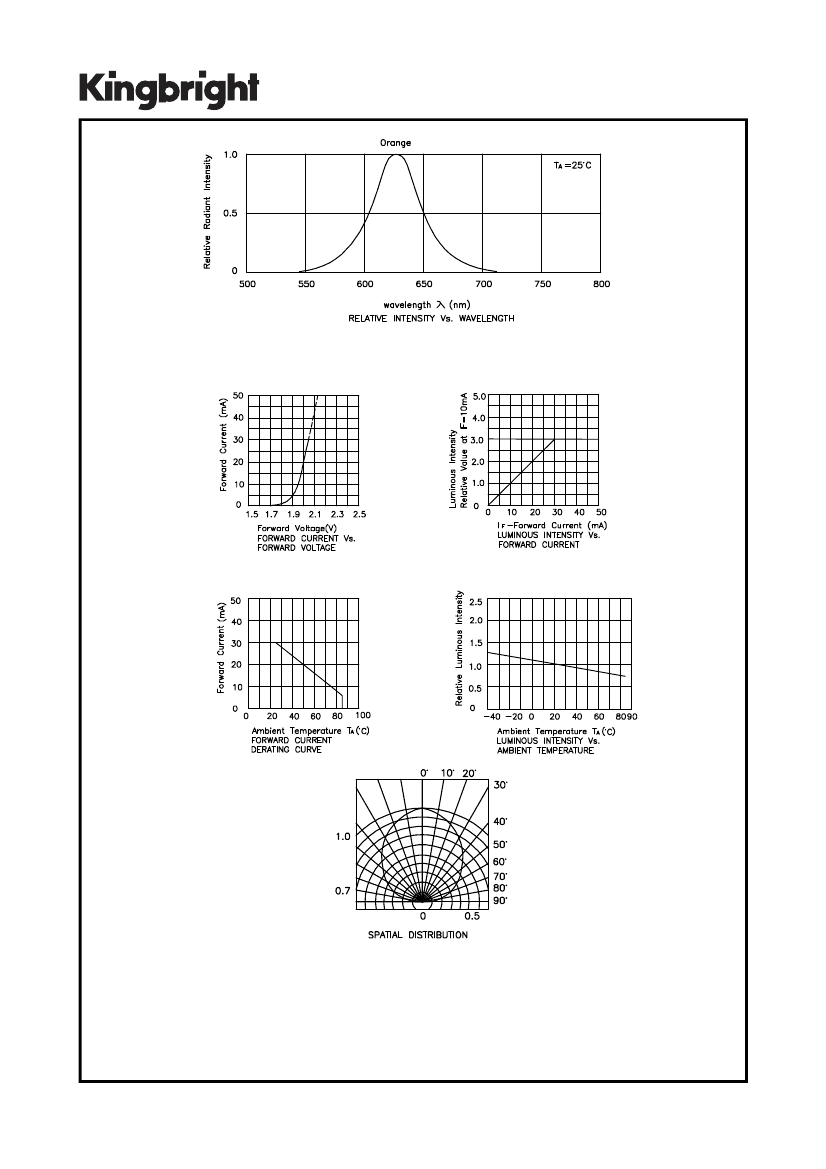

Orange
L-714EDT
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength),
the typical accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
SPEC NO.: DSAE8362
.
APPROVED: J. Lu
REV NO.: V.2
.
CHECKED: Allen Liu
DATE: MAR/21/2005
DRAWN: S.M.TANG
PAGE: 3 OF 3
