4370-H-3366-A-001500 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 4370-H-3366-A-001500

4370-H-3366-A-001500: DescriptionMains Power Connector, 10/15A, 250VAC, Female, ROHS COMPLIANT; CategoryThe connector The connector; File Size393KB，3 Pages; ManufacturerSCHURTER; Websitehttp://www.schurterinc.com/; Environmental Compliance

Download Datasheet Parametric View All

4370-H-3366-A-001500 Overview

Mains Power Connector, 10/15A, 250VAC, Female, ROHS COMPLIANT

4370-H-3366-A-001500 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	SCHURTER
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Other features	STANDARDS: IEC/EN 60320-2-2/C15, UL 498, CSA C22.2, VDE
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
Coupling type	SNAP
DIN compliance	NO
IEC compliance	YES
MIL compliance	NO
Power Connector Ratings	10/15A, 250VAC
Plug information	MULTIPLE MATING PARTS AVAILABLE
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYVINYLCHLORIDE
Total number of contacts	3

Preview

Download Datasheet

View All

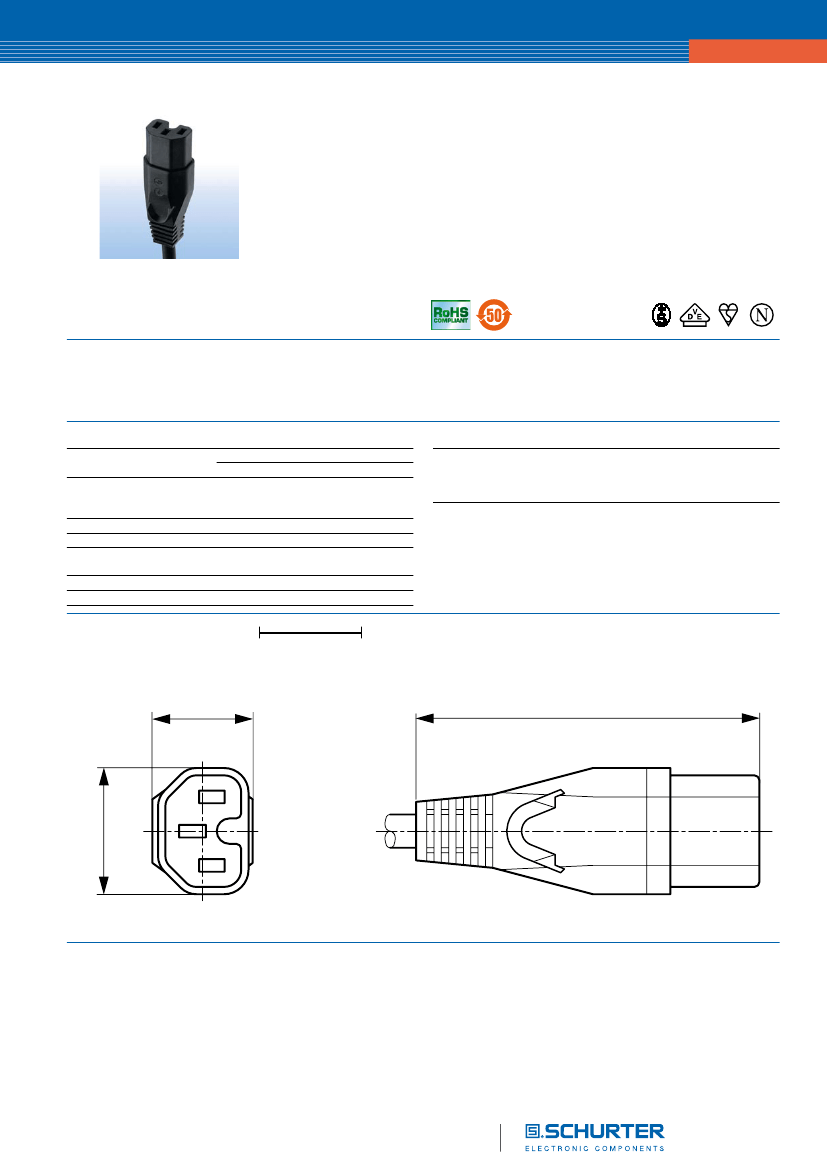

Cord Sets

www.schurter.com/pg07_2

Power Cord with IEC Connector C15, Straight, 120°C

3366

Description

Approvals

Power Supply Cord / Interconnection Cord, Protection class I, Pin tem-

perature 120 °C, Cable

- VDE Certificate Number: 55731

Technical Data

Ratings IEC

Ratings UL/CSA

Dielectric Strength

Allowable Operation Temp.

Degree of Protection

Protection Class

Terminal

Material: Housing

Dimensions

20.5

25.8 mm

10 A / 250 VAC; 50 Hz

15 A / 250 VAC; 60 Hz

> 2 kVDC between L-N

> 2 kVAC between L/N-PE

(1 min/50 Hz)

-25 °C to 70 °C

from front side IP 20 acc. to IEC 60529

Suitable for appliances with protection

class 1 acc. to IEC 61140

moulded

PVC, black or grey

25.8

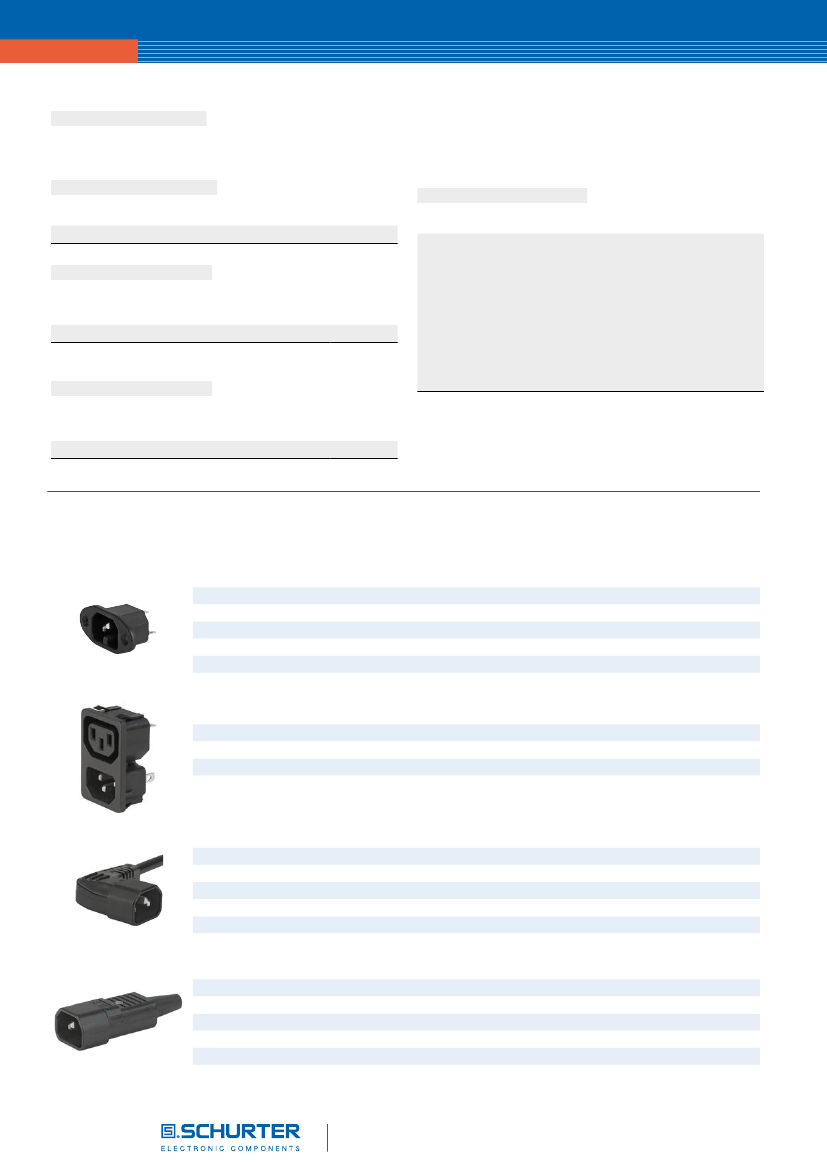

Connectors

-O

Weblinks

Connector

C15 acc. to IEC/EN 60320-1

UL 498, CSA C22.2 no. 42 (For hot

conditions) pin-temperature 120 °C,

10 A, Protection Class 1

pdf, html, General Product Information, Approvals, RoHS, CHINA-RoHS,

Mating Connectors, e-Shop, SCHURTER-Stock-Check, Distributor-

Stock-Check, Accessories, Detailed request for product
