KA25-2TC38: DescriptionRing Terminal; CategoryThe connector terminals; File Size43KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

KA25-2TC38 Overview

Ring Terminal

KA25-2TC38 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
ECCN code	EAR99
Manufacturer's serial number	KA
terminal gender	FEMALE
Terminal and terminal strip types	RING TERMINAL
Wire gauge	0 AWG

Preview

Download Datasheet

View All

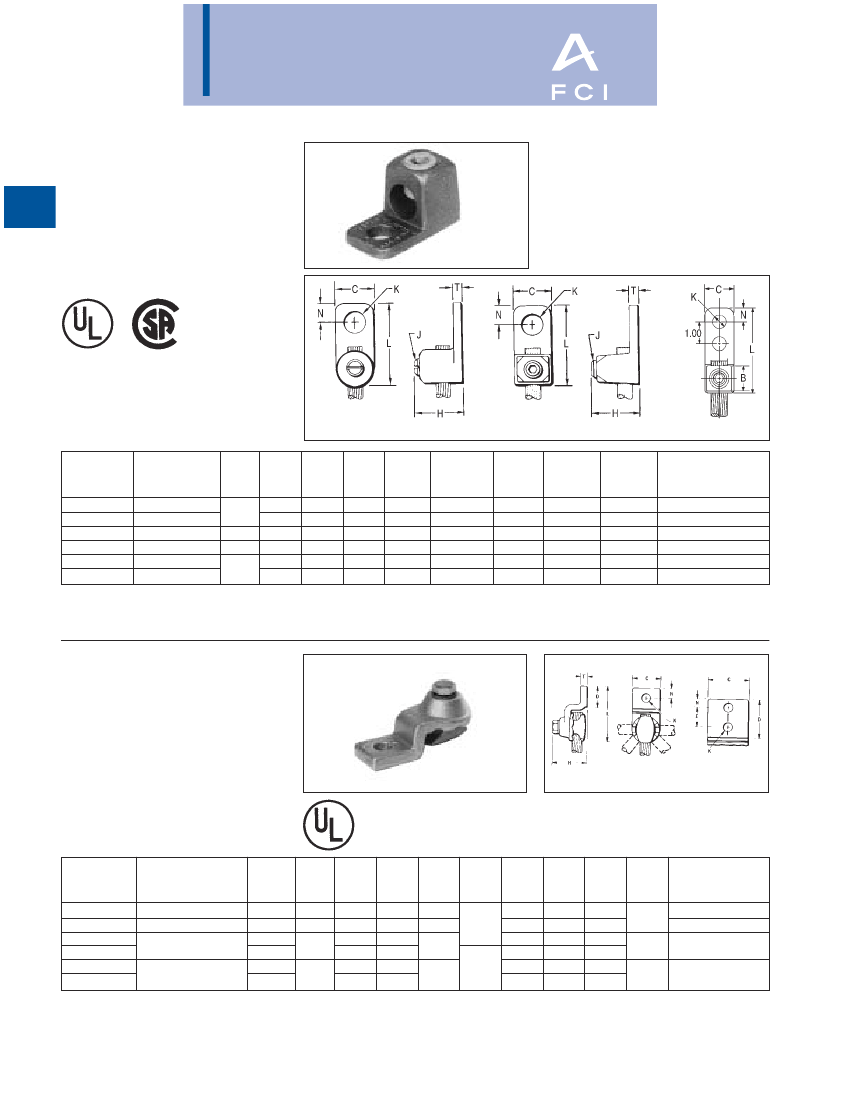

BURNDY

Mechanical

TYPE KA

KA-LUG™

A-14

For Copper Cable

Compact, economical, high copper alloy

terminal for joining a wide range of cable to

equipment pads or terminal blocks.

Fig. 1

CATALOG

NUMBER

KA8C

KA4C

KA25

KA25-2TC 38

KA28

KA34

Fig. 2

STUD

HOLE

SIZE

#10

1/4

3/8

1/2

Fig. 3

RECOMMENDED

TIGHTENING

TORQUE in-lb

25

45

200

275

375

CONDUCTOR

14 SOL. - 8 STR.

14 SOL. - 4 STR.

4 STR. - 1/0 STR.

1 STR. - 4/0 STR.

4/0 STR. - 500

FIG.

NO.

1

2

3

2

C

3/8

9/16

3/4

15/16

1-3/8

H

5/8

3/4

15/16

1-1/4

2-3/32

J

#12

5/16

1/2

5/8

13/16

K

7/32

9/32

27/64

9/16

L

13/16

1-1/8

1-11/16

2-13/16

1-15/16

2-9/16

N

3/16

1/4

3/8

7/16

9/16

T

3/32

7/64

1/8

3/16

9/32

▲

Listed torque values are for maximum conductor sizes

accommodated.

Consult UL486 Tables 7-4, 7-5, 7-6 for smaller conductor

sizes.

TYPE EA

VERSILUG™

For Copper Cable

Compact, high copper alloy terminal for join-

ing a wide range of cable to equipment pads

or bar.

Clamping element adjustable to

several angles.

One-wrench installation.

CATALOG

NUMBER

EA2C

EA25

EA28

EA28-2N

EA34

EA34-2N

CONDUCTOR

8 SOL. - 2 STR.

2 STR. - 1/0 STR.

1/0 STR. - 4/0 STR.

250 - 500

NO. OF

HOLES

IN PAD

1

2 NEMA

1

2 NEMA

C

13/16

7/8

1-1/16

1-3/8

D

1-1/16

1-1/8

1-3/8

3-5/8

1-5/8

3-5/8

E

—

1-3/4

—

1-3/4

H

1-3/8

1-7/16

1-3/4

2-1/4

K

7/16

STUD

HOLE

SIZE

3/8

1/2

L

2-1/2

2-11/16

3-3/16

5-1/8

4

5-5/8

N

13/32

7/16

17/32

5/8

13/16

5/8

T

1/4

5/16

3/8

RECOMMENDED

TIGHTENING

TORQUE in-lb

150

180

250

375

9/16

* “N” indicates NEMA standard stud holes.

▲

Listed torque values are for maximum conductor

sizes accommodated.

Consult UL486 Tables 7-4, 7-5, 7-6 for smaller

conductor sizes.

KA25-2TC38 Related Products

	KA25-2TC38	KA34	KA28	EA34-2N	EA28-2N	KA25	1510633303	KA4C	EA34
Description	Ring Terminal	Ring Terminal	Ring Terminal	Ring Terminal	Ring Terminal	Ring Terminal	2.00mm Pitch Milli-Grid Header, Through Hole, Single Row, Vertical, 0.75μm Gold	Ring Terminal	Ring Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	-	Amphenol	-	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	-	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	-	EAR99	EAR99
Manufacturer's serial number	KA	KA	KA	EA	EA	KA	-	KA	EA
terminal gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	-	FEMALE	FEMALE
Terminal and terminal strip types	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	RING TERMINAL	-	RING TERMINAL	RING TERMINAL
Wire gauge	0 AWG	500 AWG	0 AWG	500 AWG	0 AWG	0 AWG	-	4 AWG	500 AWG
