SMBJ SERIES
SURFACE MOUNT
UNIDIRECTIONAL AND BIDIRECTIONAL
TRANSIENT VOLTAGE SUPPRESSORS
FEATURES
●
Rating to 200V VBR
●
For surface mounted applications
●
Reliable low cost construction utilizing molded plastic
.
REVERSE VOLTAGE
- 5.0
to
170
Volts
POWER DISSIPATION
- 600
Watts
SMB
technique
●
Plastic material has UL recognition 94V-0
●
Typical IR less than 1µA above 10V
●
Fast response time:typically less than 1.0ns for
.083(2.11)
.075(1.91)
.155(3.94)
.130(3.30)
Uni-direction,less than 5.0ns fo Bi-direction,from 0 Volts
to BV min
.185(4.70)
.160(4.06)
.012(.305)
.006(.152)
.096(2.44)
.084(2.13)
.060(1.52)
.030(0.76)
.008(.203)
.002(.051)
MECHANICAL DATA
●
Case : Molded Plastic
●
Polarity:by cathode band denotes uni-directional device
none cathode band denotes bi-directional device
●
Weight : 0.003 ounces, 0.093 grams
.220(5.59)
.200(5.08)
Dimensions in inches and(millimeters)
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25℃ ambient temperature unless otherwise specified.
Single phase, half wave ,60Hz, resistive or inductive load.
For capacitive load, derate current by 20%
CHARACTERISTICS
Peak Power Dissipation at T
A
=25℃
TP=1ms (NOTE1,2)
Peak Forward Surge Current
8.3ms Single Half Sine-Wave
Super Imposed on Rated Load (JEDEC Method)
Steady State Power Dissipation at T
L
=75℃
Maximum Instantaneous Forward Voltage
at 50A for Unidirectional Devices Only (NOTE3)
Operating Temperature Range
Storage Temperature Range
SYMBOL
P
PK
VALUE
Minimum 600
UNIT
WATTS
I
FSM
P
M(AV)
V
F
T
J
T
STG
100
5.0
SEE NOTE4
-55 to + 150
-55 to + 175
AMPS
WATTS
VOLTS
℃
℃
NOTES:1. Non-repetitive current pulse ,per Fig. 3 and derated above T
A
=25℃ per Fig. 1.
2. Thermal Resistance junction to Lead.
3. 8.3ms single half-wave duty cycle=4 pulses per minutes maximum (uni-directional units only).
4. V
F
=3.5V on SMBJ5.0 thru SMBJ90A devices and V
F
=5.0V on SMBJ100 thru SMBJ170A devices.
~ 284 ~

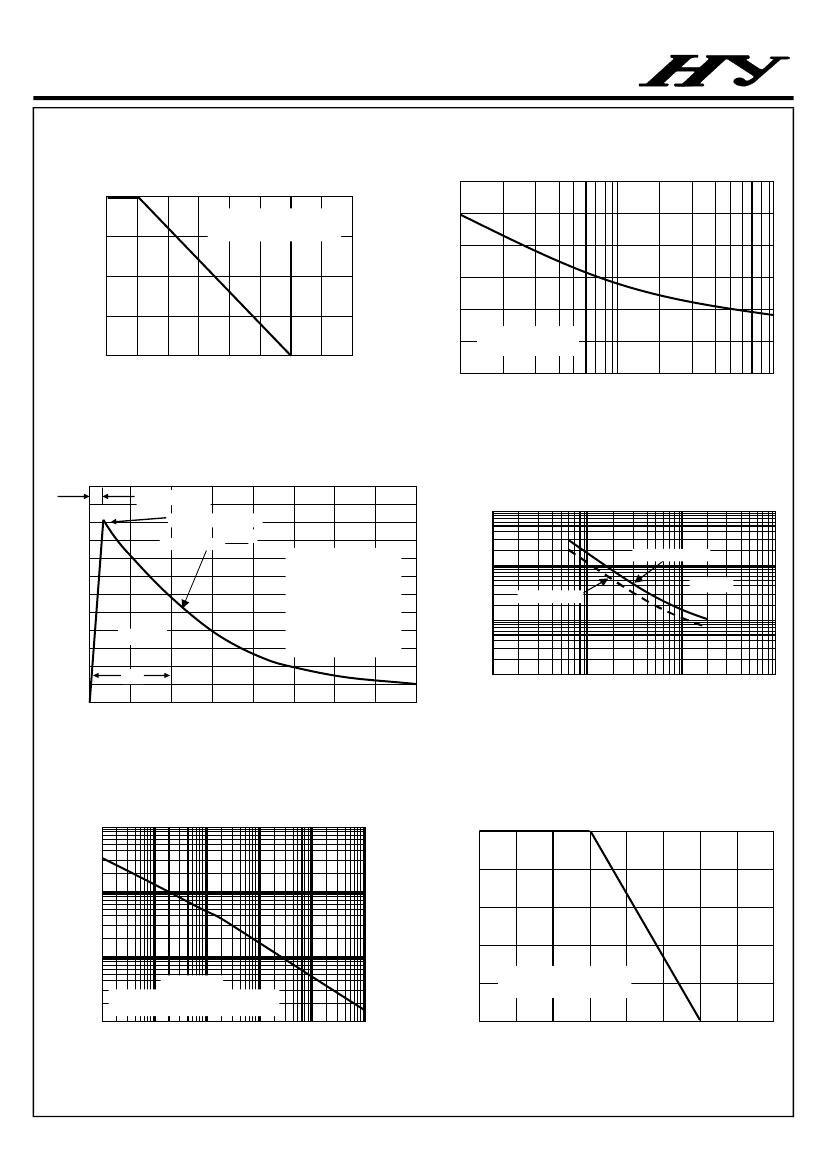

RATING AND CHARACTERTIC CURVES
SMBJ SERIES
FIG.1-PULSE DERATING CURVE
100
75
50
10*1000 WAVEFORM
AS DEFINED BY R.E.A
FIG.2-MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
PEAK FORWARD SURGE CURRENT,
AMPERES
120
100
80
60
40
20
0
1
2
5
10
20
50
100
NUMBER OF CYCLES AT 60Hz
SINGLE SINE-WAVE
JEDEC METHOD
PEAK PULSE DERATING IN % OF
PEAK POWER OR CURRENT
25
0
0
25
50
75
100
125
150
175
200
T
A
AMBIENT TEMPERATURE,℃
FIG.3-PULSE WAVEFORM
FIG.4-TYPICAL JUNCTION CAPACITANCE
IP
，
PEAK PULSE CURRENT
， （
%
）
T
R
=10us
Half value =
I
RSM
2
Pulse with (Tp) is defined
as that point where the
peak current decays to
50% of I
RSM
CAPACITANCE
，（
P
F
）
100
Peak value(I
RSM
)
10000
Uni-directional
1000
T
J
=25℃
Bi-directional
50
T
J
=
25°C
10*1000waveform as
defined by R.E.A
100
TP
10
1
4
10
100
1000
0
0
1.0
2.0
T, TIME (ms)
3.0
4.0
STAND-OFF VOLTAGE,VOLTS
100
P
M
(
AV
), STEADY STATE POWER DISSIPATION (W)
FIG.5-PULSE RATING CURVE
FIG.6-STEADY STATE POWER
DERATING CURVE
5.0
4.0
3.0
2.0
1.0
0.0
0
25
50
75
100
125
150
175
200
60Hz RESISTIVE OR
INDUCTIVE LOAD
P
P
, PEAK POWER (
K
w)
10
1.0
T
A
=25℃
NON-REPETIVE PULSE WAVE
FORM SHOWN IN FIG.3
0.1
0.1us
1.0us
10us
100us
1.0ms
10ms
TP, PULSE WIDTH
TL, LEAD TEMPERATURE
~ 285 ~
