T107J6AQE2 Overview

ROCKER SWITCH

T107J6AQE2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	C&K
Reach Compliance Code	not_compliant
ECCN code	EAR99
Actuator color	BLACK
Executor completed	MATTE
Actuator length	0.35 inch
Actuator material	NYLON
Actuator type	ROCKER
center contact material	COPPER ALLOY
Center contact plating	SILVER
Contact (AC) maximum rated R load	2A@120VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	2 A
Contact (DC) maximum rated R load	2A@28VDC
Contact resistance	0.02 mΩ
Maximum contact voltage (AC)	120 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1000VRMS V
Electrical life	60000 Cycle(s)
End contact material	COIN SILVER
End contact plating	SILVER
Shell material	STAINLESS STEEL
Insulation resistance	1000000000 Ω
JESD-609 code	e4
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
PCB hole count	5
seal	EPOXY
Solderability	MIL-STD
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	ROCKER SWITCH
Terminal surface	Silver (Ag)
Terminal material	COPPER ALLOY
Termination type	SOLDER

Preview

Download Datasheet

View All

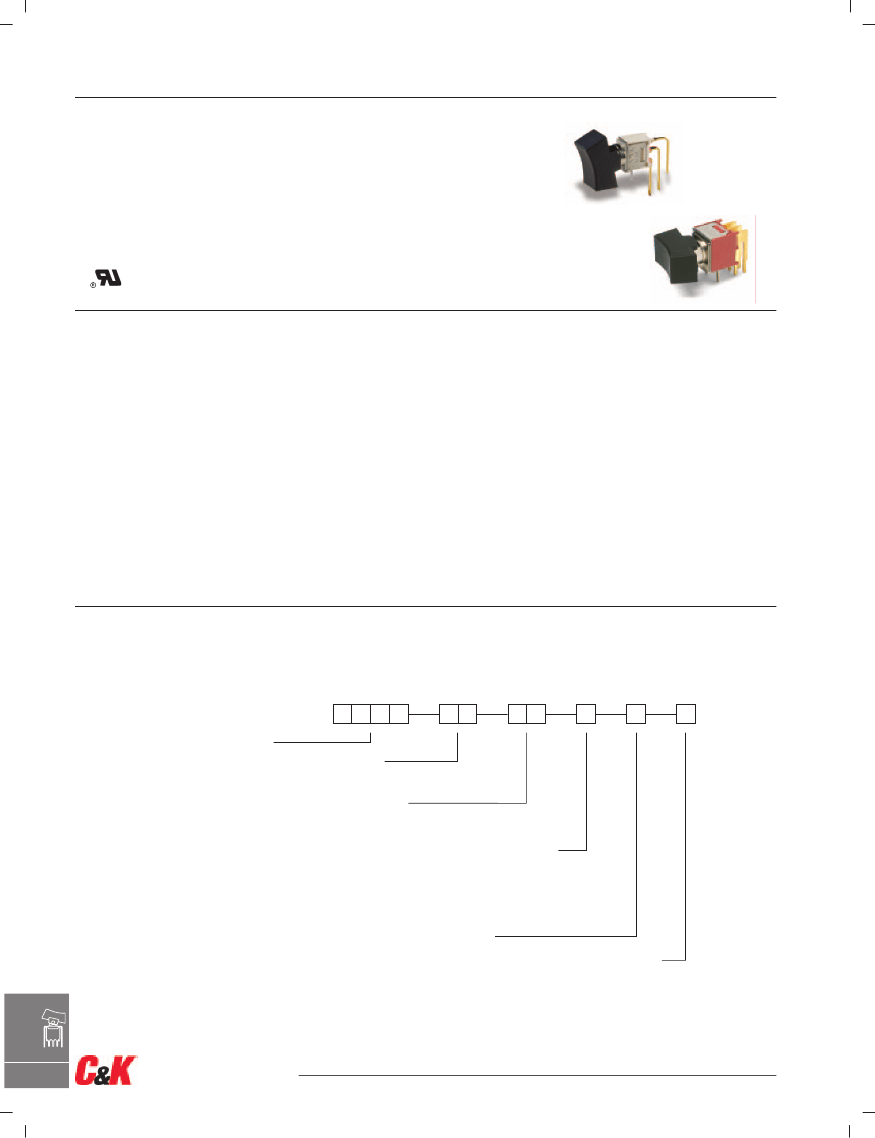

T Series

Subminiature Rocker Switches

Features/Benefits

•

Compact size—small footprint

•

Single and double pole models

•

PC and panel mounting options available

•

RoHS compliant

Typical Applications

•

Telecommunications

•

Instrumentation

•

Medical Equipment

Models Available

Specifications

CONTACT RATING: Q contact material (TX01 models): 3 AMPS @

120 V AC or 28 V DC. All other models: 2 AMPS @ 120 V AC or

28 V DC. See page H-50 for additional ratings.

ELECTRICAL LIFE: TX01 models: 60,000 make-and-break

cycles at full load. All other models: 30,000 cycles.

CONTACT RESISTANCE: Below 20 m

Ω

typ. initial @

2–4 V DC, 100 mA, for both silver and gold plated contacts.

INSULATION RESISTANCE: 109

Ω

min.

DIELECTRIC STRENGTH: 1000 Vrms min. @ sea level.

OPERATING TEMPERATURE: –30ºC to 85ºC.

SOLDERABILITY: Per MIL-STD-202F method 208D, or

EIA RS-186E method 9 (1 hour steam aging).

NOTE:

Any models supplied with B, G, P, Q or R contact material are RoHS compliant.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service Center.

Materials

CASE: Glass filled nylon 6/6, flame retardant, heat stabilized or

diallyl phthalate (DAP), (UL 94V-0) or glass filled nylon 4/6, flame

retardant, heat stabilized.

ACTUATOR: Nylon, black standard.

BUSHING: Brass, nickel plated.

HOUSING: Stainless steel.

SWITCH SUPPORT: Brass, matte-tin plated.

MOUNTING BRACKET: Stainless steel.

END CONTACTS: B contact material: Copper alloy, with gold plate

over nickel plate. Q contact material: Coin silver, silver plated.

See page G-50 for additional contact materials.

CENTER CONTACTS & TERMINALS: B contact material: Copper alloy,

with gold plate over nickel plate. Q contact material: Copper alloy,

silver plated. See page G-53 for additional contact materials.

TERMINAL SEAL: Epoxy.

HARDWARE: Nut, Screws & Lockwasher: Stainless steel.

Standoff: Nylon standard.

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown

and described on pages G-47 through G-51. For additional options not shown in catalog, consult Customer Service Center.

All models have epoxy terminal seal and are compatible with all “bottom-wash” PCB cleaning methods.

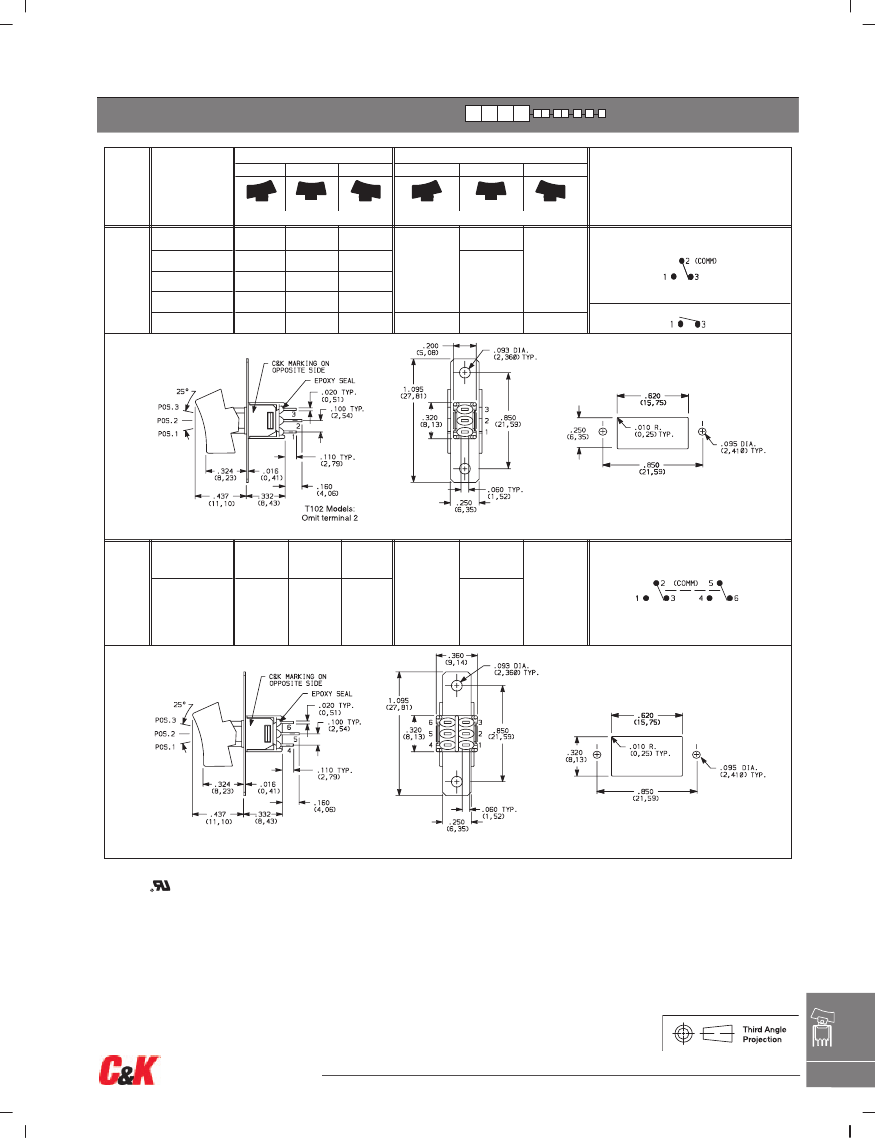

Switch Function

T101

SP On-None-On

T102

SP Off-None-On

T103

SP On-Off-On

T105

SP Mom.-Off-Mom.

T107

SP On-Off-Mom.

T201

DP On-None-On

T205

DP Mom.-Off-Mom.

Rocker

Actuator

Rocker, .300" wide

Rocker, .230" wide

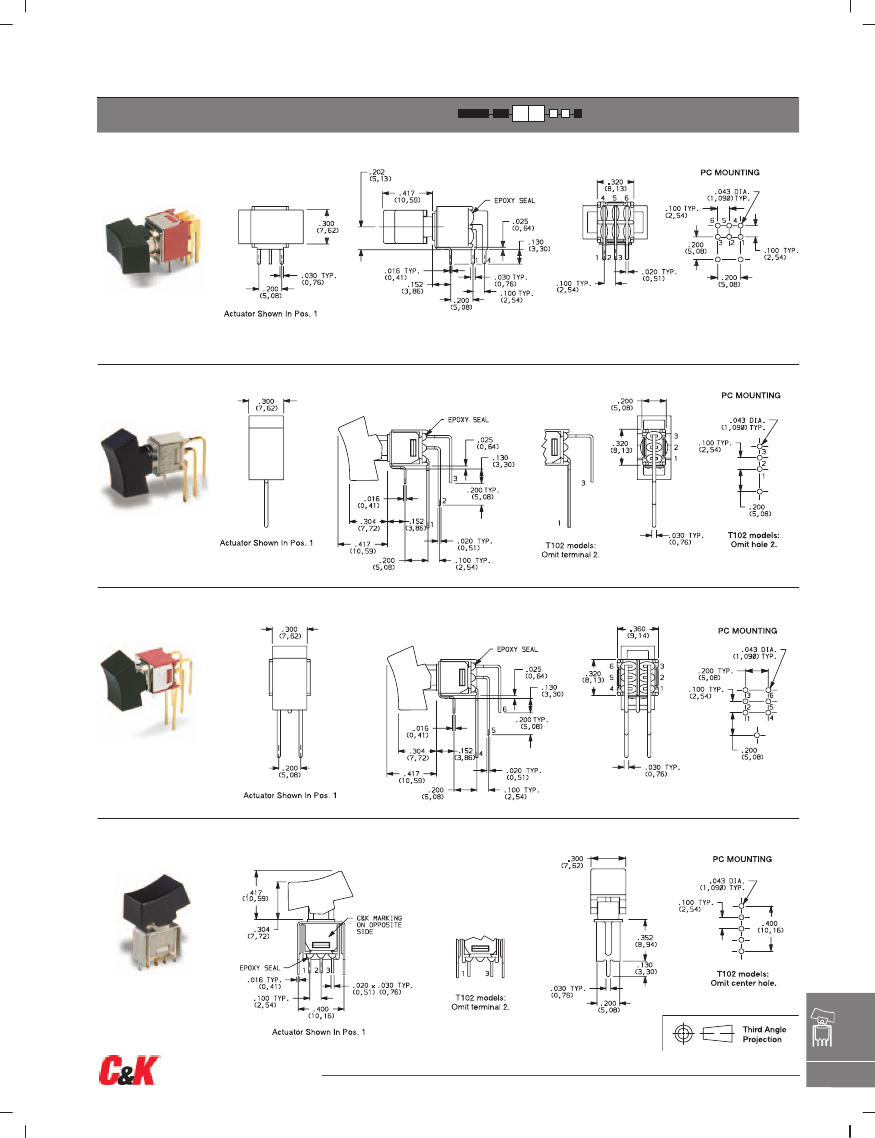

Terminations

Right angle, PC thru-hole

Vertical Right angle, PC thru-hole

Solder lug

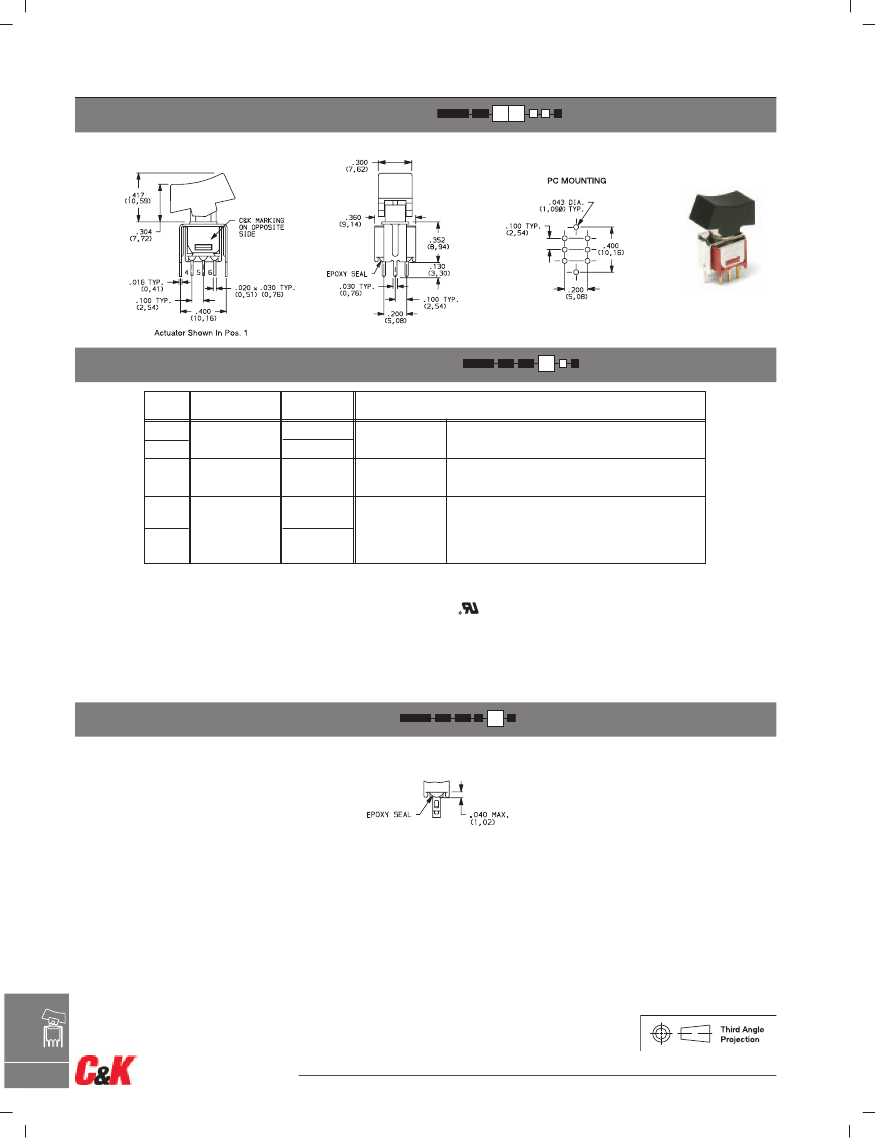

Contact Material

V-bracket

Gold

Gold, matte-tin

Silver

Gold over silver

Gold over silver, matte-tin

Seal

Epoxy

Actuator Color

Black

G–46

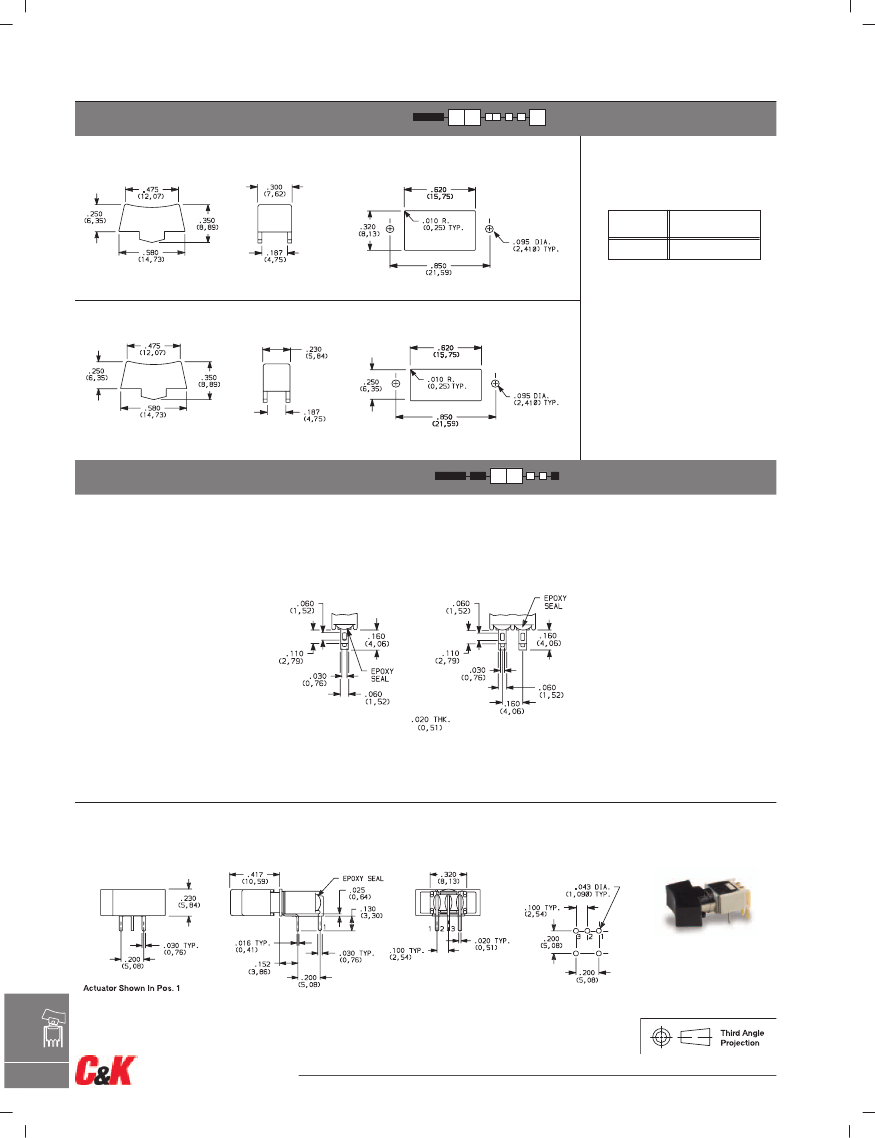

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

www.ck-components.com
