MJE18004BD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> MJE18004BD

MJE18004BD: DescriptionTRANSISTOR 5 A, 450 V, NPN, Si, POWER TRANSISTOR, PLASTIC, TO-220AB, 3 PIN, BIP General Purpose Power; CategoryDiscrete semiconductor The transistor; File Size185KB，11 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

MJE18004BD Overview

TRANSISTOR 5 A, 450 V, NPN, Si, POWER TRANSISTOR, PLASTIC, TO-220AB, 3 PIN, BIP General Purpose Power

MJE18004BD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
Parts packaging code	TO-220AB
package instruction	PLASTIC, TO-220AB, 3 PIN
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Shell connection	COLLECTOR
Maximum collector current (IC)	5 A
Collector-emitter maximum voltage	450 V
Configuration	SINGLE
Minimum DC current gain (hFE)	6
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Polarity/channel type	NPN
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Maximum time at peak reflow temperature	NOT SPECIFIED
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	13 MHz

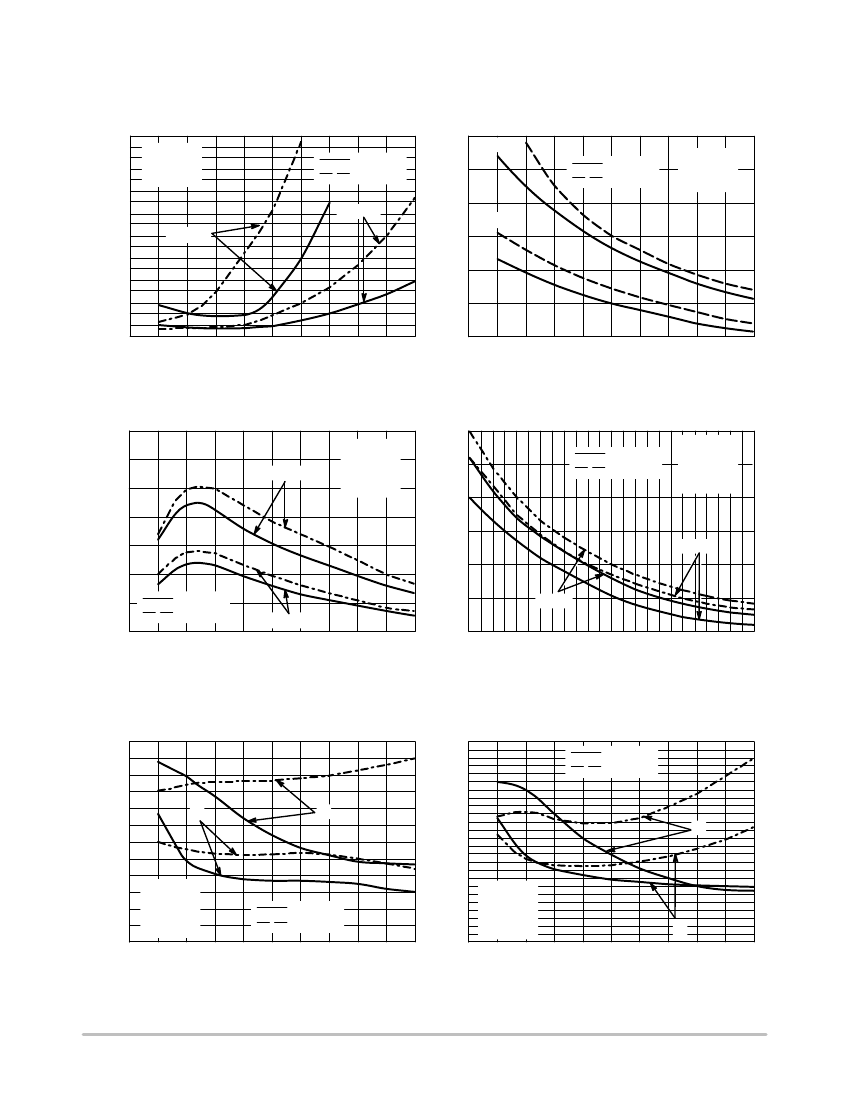

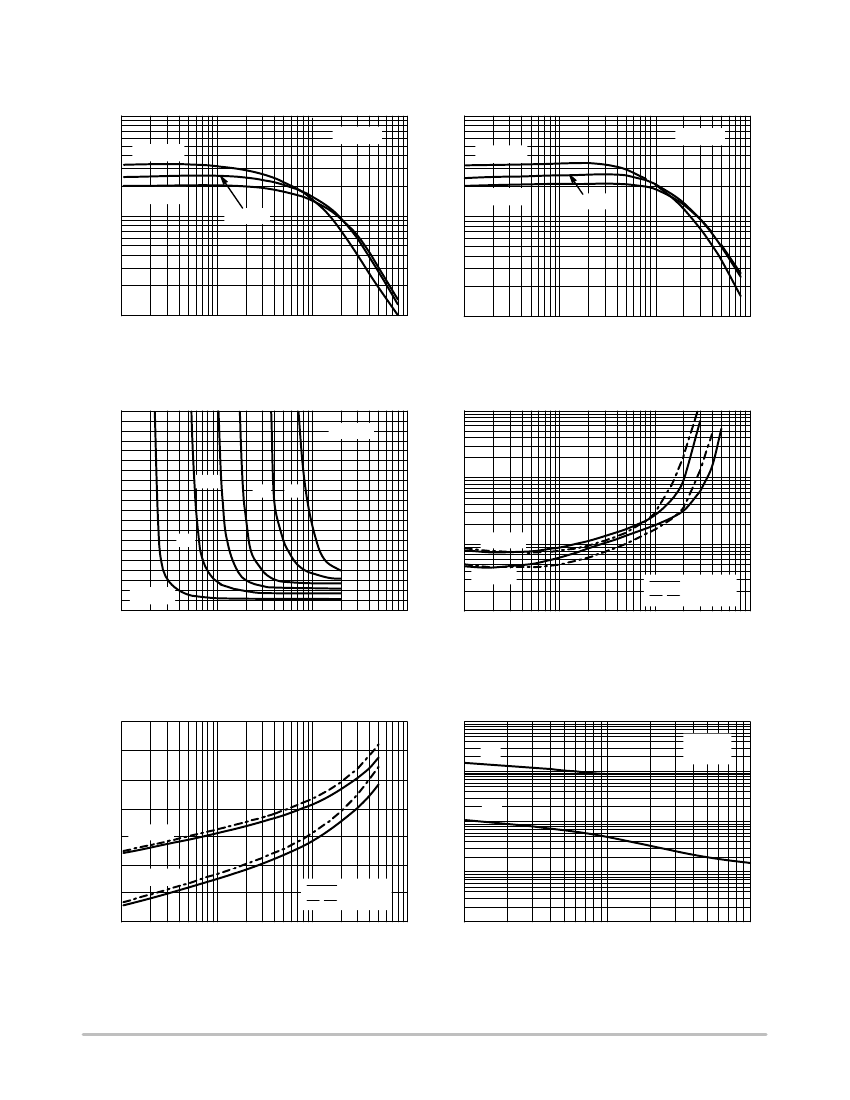

Preview

Download Datasheet

View All

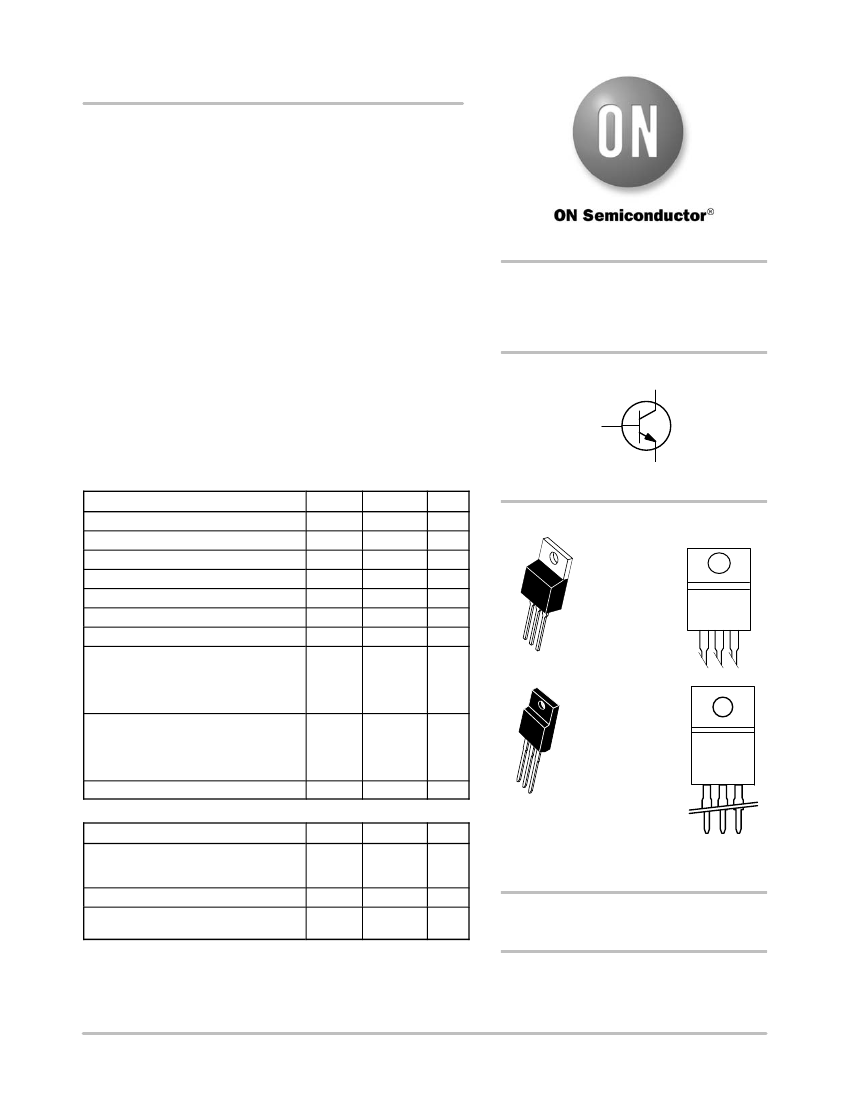

MJE18004G, MJF18004G

SWITCHMODE

NPN Bipolar Power Transistor

For Switching Power Supply Applications

The MJE/MJF18004G have an applications specific state−of−the−art

die designed for use in 220 V line−operated SWITCHMODE Power

supplies and electronic light ballasts.

Features

♦

http://onsemi.com

•

Improved Efficiency Due to Low Base Drive Requirements:

•

High and Flat DC Current Gain h

Fast Switching

No Coil Required in Base Circuit for Turn−Off (No Current Tail)

Full Characterization at 125_C

ON Semiconductor Six Sigma Philosophy Provides Tight and

Reproducible Parametric Distributions

Two Package Choices: Standard TO−220 or Isolated TO−220

MJF18004, Case 221D, is UL Recognized at 3500 V

RMS

: File

#E69369

These Devices are Pb−Free and are RoHS Compliant*

Rating

Symbol

CEO

CES

EBO

ISOL

Value

450

1000

9.0

5.0

2.0

4.0

MJF18004

4500

3500

1500

Unit

Vdc

Adc

POWER TRANSISTOR

5.0 AMPERES

1000 VOLTS

35 and 75 WATTS

COLLECTOR

2,4

BASE

EMITTER

MAXIMUM RATINGS

Collector−Emitter Sustaining Voltage

Collector−Base Breakdown Voltage

Emitter−Base Voltage

Collector Current

Base Current

−

Continuous

−

Peak (Note 1)

−

Continuous

−

Peak (Note 1)

MARKING

DIAGRAMS

MJE18004G

AYWW

RMS Isolation Voltage (Note 2)

Test No. 1 Per Figure 22a

Test No. 2 Per Figure 22b

Test No. 3 Per Figure 22c

(for 1 sec, R.H. < 30%, T

= 25_C)

Total Device Dissipation @ T

= 25_C

MJE18004

MJF18004

Derate above 25°C

MJE18004

MJF18004

Operating and Storage Temperature

TO−220AB

CASE 221A−09

STYLE 1

0.6

0.28

−65

to 150

W/_C

, T

stg

TO−220 FULLPACK

CASE 221D

STYLE 2

UL RECOGNIZED

= Pb−Free Package

= Assembly Location

= Year

= Work Week

MJF18004G

AYWW

THERMAL CHARACTERISTICS

Characteristics

Thermal Resistance, Junction−to−Case

MJE18004

MJF18004

Thermal Resistance, Junction−to−Ambient

Maximum Lead Temperature for Soldering

Purposes 1/8″ from Case for 5 Seconds

Symbol

qJC

Max

1.65

3.55

62.5

260

Unit

_C/W

qJA

_C/W

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 8 of this data sheet.

Stresses exceeding Maximum Ratings may damage the device. Maximum

Ratings are stress ratings only. Functional operation above the Recommended

Operating Conditions is not implied. Extended exposure to stresses above the

Recommended Operating Conditions may affect device reliability.

1. Pulse Test: Pulse Width = 5 ms, Duty Cycle

≤

10%.

2. Proper strike and creepage distance must be provided.

Semiconductor Components Industries, LLC, 2013

*For additional information on our Pb−Free strategy

and soldering details, please download the

ON Semiconductor Soldering and Mounting

Techniques Reference Manual, SOLDERRM/D.

Publication Order Number:

MJE18004/D

August, 2013

−

Rev. 11
