5962-9169501M3X datasheet, PDF

5962-9169501M3X: DescriptionEE PLD, 20ns, CMOS, CQCC28, 0.460 X 0.460 INCH, 0.100 INCH HEIGHT, CC-28; CategoryProgrammable logic devices Programmable logic; File Size755KB，26 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

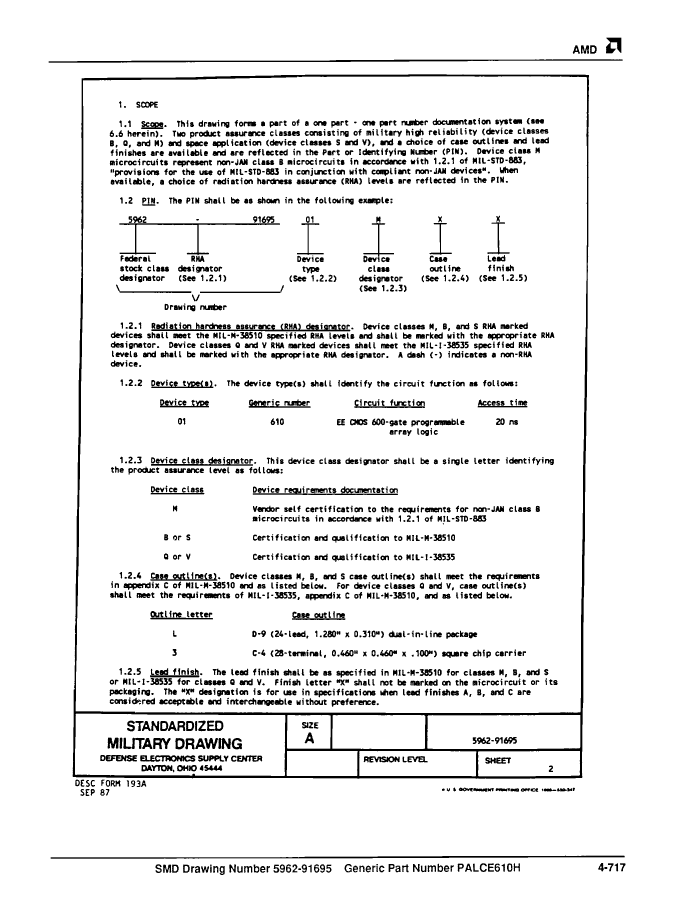

5962-9169501M3X Overview

EE PLD, 20ns, CMOS, CQCC28, 0.460 X 0.460 INCH, 0.100 INCH HEIGHT, CC-28

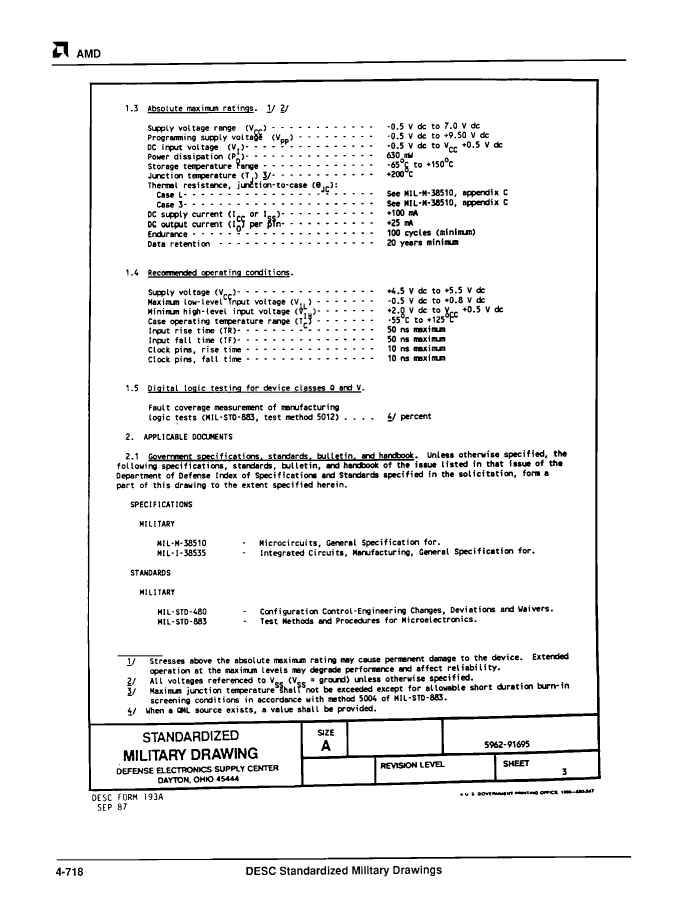

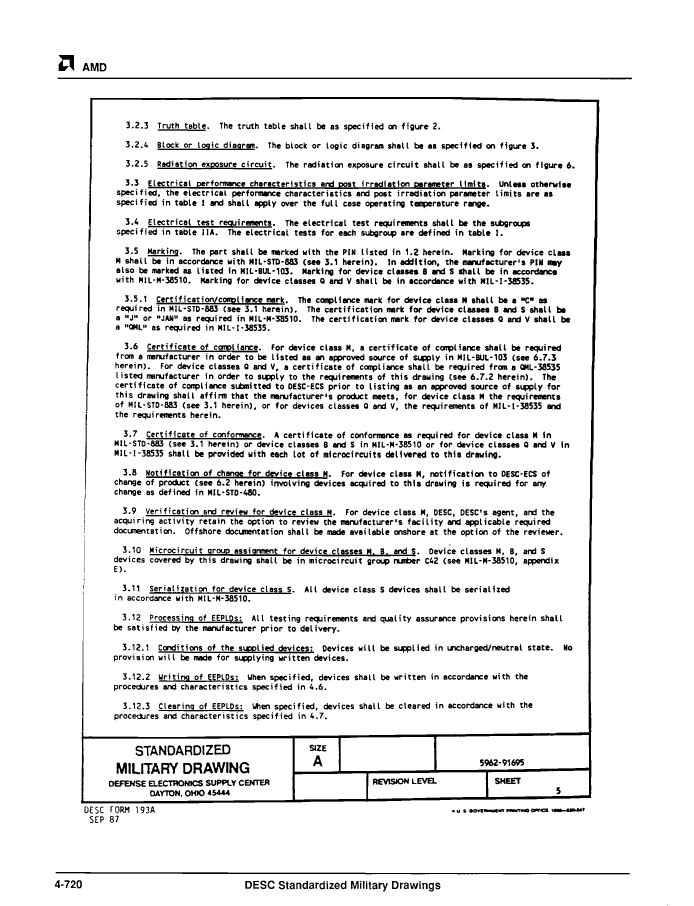

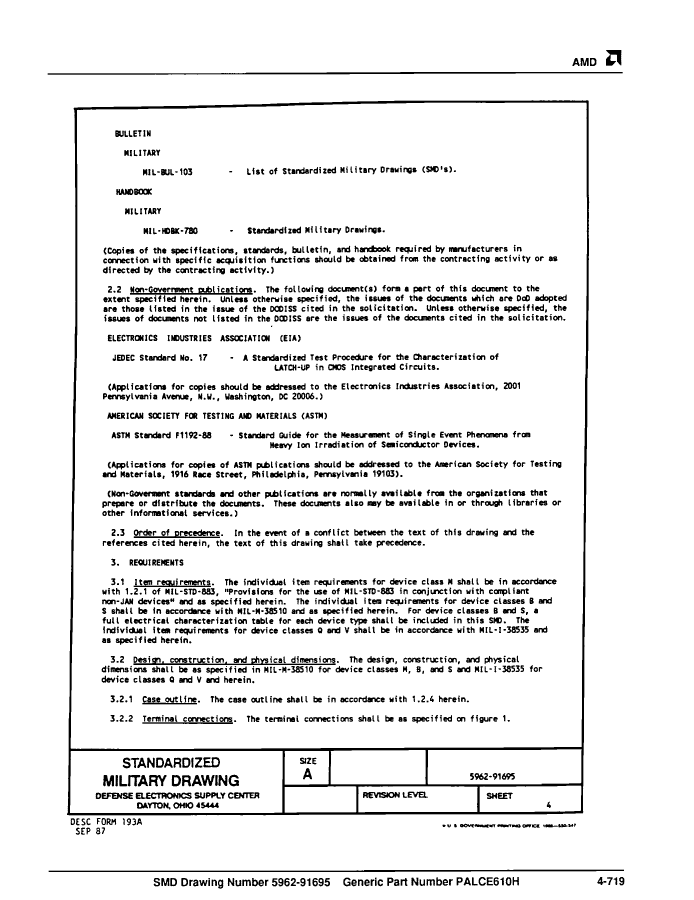

Parameter Name	Attribute value
Maker	AMD
Parts packaging code	QFN
package instruction	QCCN,
Contacts	28
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	PAL WITH MACROCELLS; 16 MACROCELLS
maximum clock frequency	40 MHz
JESD-30 code	S-CQCC-N28
length	11.43 mm
Dedicated input times	4
Number of I/O lines	16
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	4 DEDICATED INPUTS, 16 I/O
Output function	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Package shape	SQUARE
Package form	CHIP CARRIER
Programmable logic type	EE PLD
propagation delay	20 ns
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	2.54 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	11.43 mm

	5962-9169501M3X	5962-9169501MLX
Description	EE PLD, 20ns, CMOS, CQCC28, 0.460 X 0.460 INCH, 0.100 INCH HEIGHT, CC-28	EE PLD, 20ns, CMOS, CDIP24, 1.280 X 0.310 INCH, DIP-24
Maker	AMD	AMD
Parts packaging code	QFN	DIP
package instruction	QCCN,	DIP,
Contacts	28	24
Reach Compliance Code	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C
Other features	PAL WITH MACROCELLS; 16 MACROCELLS	PAL WITH MACROCELLS; 16 MACROCELLS
maximum clock frequency	40 MHz	40 MHz
JESD-30 code	S-CQCC-N28	R-GDIP-T24
length	11.43 mm	31.9405 mm
Dedicated input times	4	4
Number of I/O lines	16	16
Number of terminals	28	24
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
organize	4 DEDICATED INPUTS, 16 I/O	4 DEDICATED INPUTS, 16 I/O
Output function	MACROCELL	MACROCELL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	QCCN	DIP
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
Programmable logic type	EE PLD	EE PLD
propagation delay	20 ns	20 ns
Certification status	Not Qualified	Not Qualified
Filter level	MIL-STD-883	MIL-STD-883
Maximum seat height	2.54 mm	5.08 mm
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal form	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
width	11.43 mm	7.62 mm
