DO5040H-153MSB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> DO5040H-153MSB

DO5040H-153MSB: DescriptionGeneral Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, CHIP; CategoryPassive components inductor; File Size178KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/

Download Datasheet Parametric View All

DO5040H-153MSB Overview

General Purpose Inductor, 15uH, 20%, 1 Element, Ferrite-Core, SMD, 7360, CHIP

DO5040H-153MSB Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	COILCRAFT
package instruction	7360
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	7360
structure	Unshielded
core material	FERRITE
DC Resistance	0.02 Ω
Nominal inductance(L)	15 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	12 mm
Package length	18.54 mm
Package form	SMT
Package width	15.24 mm
method of packing	TR
Maximum rated current	6.5 A
Guideline	AEC-Q200
self resonant frequency	18 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal surface	Tin/Lead (Sn63Pb37)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Document 479-1

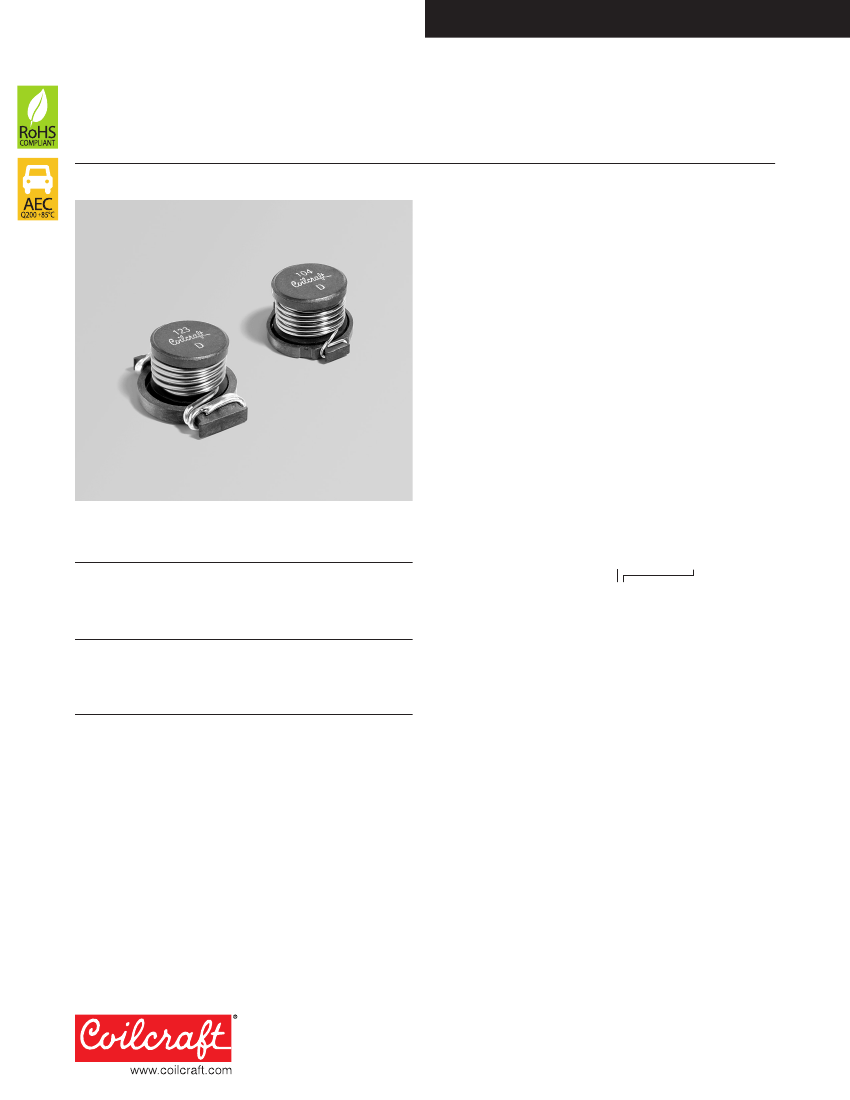

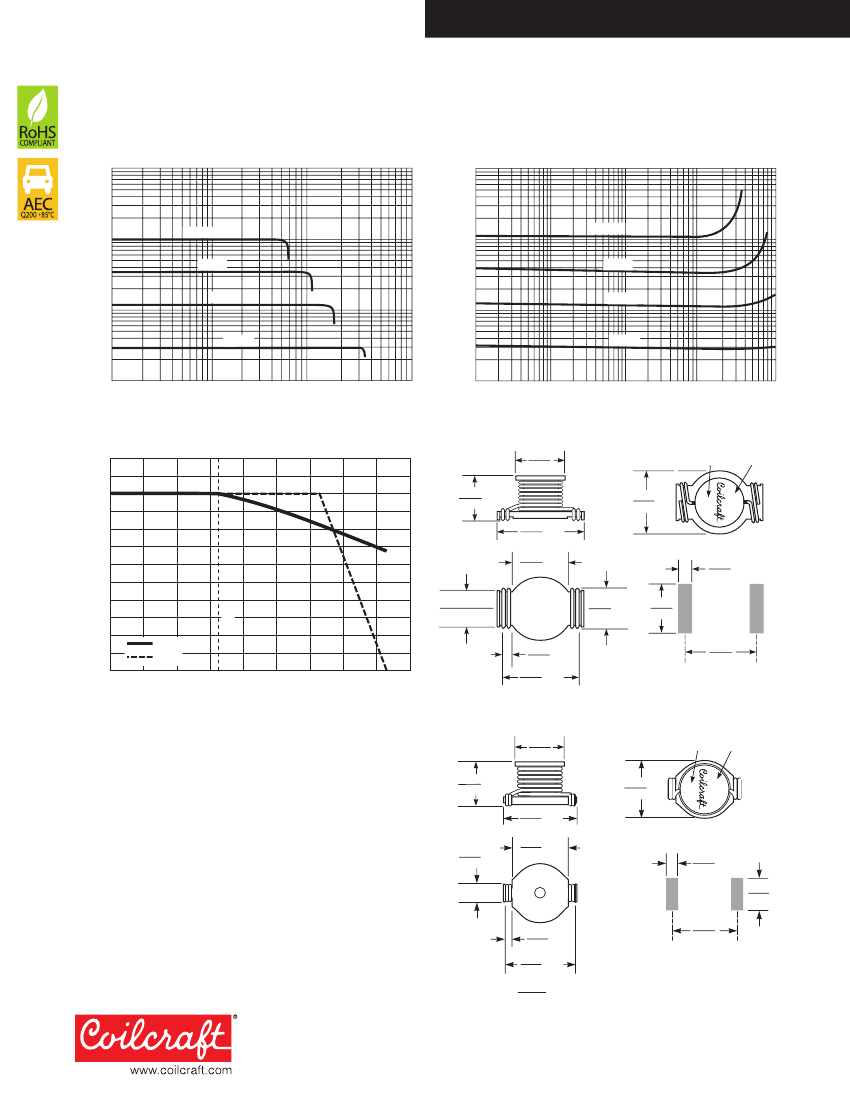

SMT Power Inductors – DO5040H

• Heavy gauge wire and self-leaded terminations for low DCR

• Saturation current ratings as high as 33.4 A

Core material

Ferrite

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant tin-silver (96.5/3.5) over copper. Other

terminations available at additional cost.

Weight

5.8 – 7.6 g (2.8 –12 µH); 5.7 – 7.0 g (15 –1400 µH)

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

175 per 13″ reel

2.8 –12 µH parts

Plastic tape: 44 mm wide, 0.5 mm thick,

24 mm pocket spacing, 12.8 mm pocket depth

15 –1400 µH parts

Plastic tape: 32 mm wide, 0.4 mm thick,

24 mm pocket spacing, 12.1 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

1. When ordering, please specify

termination

and

packaging

codes:

DO5040H-104MLD

Termination: L

= RoHS compliant tin-silver

(96.5/3.5)

over copper.

Special order:

= RoHS tin-silver-copper (95.5/4/0.5) or

= non-RoHS tin-lead (63/37).

Packaging: D

= 13″ machine-ready reel. EIA-481 embossed plastic

tape (175 parts per full reel).

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter C instead.

2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc using Coilcraft

SMD-A fixture in Agilent/HP 4284A impedance analyzer.

3. SRF measured using Agilent/HP 8753D network analyzer and Coilcraft

SMD-D test fixture.

4. DC current at which the inductance drops 10% (typ) from its value with-

out current.

5. Current that causes a 40°C temperature rise from 25°C ambient.

6. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

Part number

Inductance

(µH)

DCR

SRF

max

typ

Isat

Irms

(mOhms) (MHz) (A) (A)

8.0

7.0

6.0

3.0

1.6

1.0

33.4

26.8

22.5

17.8

15.9

13.8

13.2

11.8

9.6

7.8

6.7

5.6

3.0

2.0

1.5

12.1

11.2

9.6

8.6

7.4

6.5

6.0

5.7

4.5

3.7

3.4

2.8

1.5

1.1

0.7

DO5040H-282ML_

2.8 ±20%

5.2

DO5040H-392ML_

3.9 ±20%

6.0

DO5040H-682ML_

6.8 ±20%

9.0

DO5040H-103ML_

10 ±20%

DO5040H-123ML_

12 ±20%

DO5040H-153ML_

15 ±20%

DO5040H-183ML_

18 ±20%

DO5040H-223ML_

22 ±20%

DO5040H-333ML_

33 ±20%

DO5040H-473ML_

47 ±20%

DO5040H-683ML_

68 ±20%

DO5040H-104ML_ 100 ±20%

115

DO5040H-334KL_ 330 ±10%

325

DO5040H-684KL_ 680 ±10%

780

DO5040H-145KL_ 1400 ±10%

1300

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 479-1

Revised 10/14/08

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
