BRA143EMPTL: DescriptionSmall Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon; CategoryDiscrete semiconductor The transistor; File Size104KB，12 Pages; ManufacturerHitachi （Renesas ）; Websitehttp://www.renesas.com/eng/

Download Datasheet Parametric Compare View All

BRA143EMPTL Overview

Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon

BRA143EMPTL Parametric

Parameter Name	Attribute value
Maker	Hitachi （Renesas ）
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	0.1 A
Minimum DC current gain (hFE)	20
Number of components	1
Polarity/channel type	PNP
Maximum power dissipation(Abs)	0.2 W
surface mount	YES
Transistor component materials	SILICON

Preview

Download Datasheet

View All

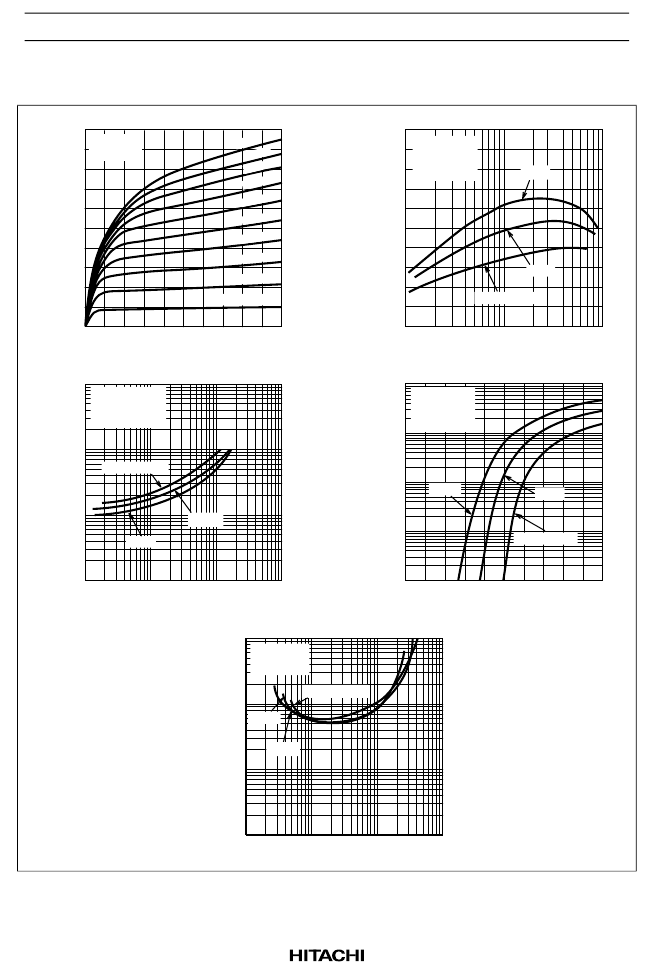

BRA144EMP Series

PNP Built-in Resistor Transistor MPAK Series

Inverter, Driver, Switching

ADE-208-1442B (Z)

Rev.2

Sep. 2001

Features

•

Built–in Resistor Type

•

Simplifies Circuit Design

•

Reduces Board Space

•

Complementary pair with BRC144EMP series

Outline

MPAK

1. Ground (Emitter)

2. Input (Base)

3. Output (Collector)

Note: Marking is shown in below.

Device

BRA144EMP

BRA124EMP

BRA114EMP

BRA143EMP

BRA123EMP

Marking

R1 (kΩ)

Ω

4.7

2.2

R2 (kΩ)

Ω

4.7

2.2

BRA143EMPTL Related Products

	BRA143EMPTL	BRA144EMPUL	BRA144EMPTL	BRA114EMPUL	BRA114EMPTL	BRA143EMPUL	BRA123EMPUL	BRA123EMPTL	BRA124EMPTL	BRA124EMPUL
Description	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon	Small Signal Bipolar Transistor, 0.1A I(C), 1-Element, PNP, Silicon
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum collector current (IC)	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A	0.1 A
Minimum DC current gain (hFE)	20	70	70	30	30	20	20	20	56	56
Number of components	1	1	1	1	1	1	1	1	1	1
Polarity/channel type	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP	PNP
Maximum power dissipation(Abs)	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W	0.2 W
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES	YES
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Maker	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	-	-	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）	Hitachi （Renesas ）
