BCX70H: DescriptionSmall Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon,; CategoryDiscrete semiconductor The transistor; File Size389KB，5 Pages; ManufacturerGalaxy Microelectronics

Download Datasheet Parametric Compare View All

BCX70H Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BCX70H	-	-	View	Buy Now

BCX70H Overview

Small Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon,

BCX70H Parametric

Parameter Name	Attribute value
Maker	Galaxy Microelectronics
package instruction	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown
Other features	LOW NOISE
Maximum collector current (IC)	0.2 A
Collector-emitter maximum voltage	45 V
Configuration	SINGLE
Minimum DC current gain (hFE)	70
JESD-30 code	R-PDSO-G3
Number of components	1
Number of terminals	3
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	250 MHz
category
polarity	NPN
V(BR)CEO (V) min.	45
IC (A)	0.1
hFE min	180
hFE max	310
Condition1_VCE (V)	5
Condition1_IC (mA)	2
VCE (sat) (V)	0.55
Condition2_IC (mA)	50
Condition2_IB (mA)	1.25
fT (MHz) min.	250(typ)
PD (W) max.	0.35
AEC Qualified	No
Maximum operating temperature	150
Minimum operating temperature	-65
Is it lead-free?	Yes
Comply with Reach	Yes
RoHS compliant	Yes
ECCN code	EAR99
Package Outlines	SOT-23

Preview

Download Datasheet

View All

Production specification

Silicon Epitaxial Planar Transistor

FEATURES



For AF input stages and driver

applications.



High current gain.

Low collector-emitter saturation voltage.

Low noise between 30Hz and 15kHz.

Complementary types:BCX71.

BCX70

Lead-free

APPLICATIONS



General purpose transistor.

SOT-23

ORDERING INFORMATION

Type No.

BCX70G

BCX70H

BCX70J

BCX70K

Marking

Package Code

SOT-23

MAXIMUM RATING

@ Ta=25℃ unless otherwise specified

Symbol

CBO

CEO

EBO

stg

Parameter

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

DC collector current

Peak collector current

Peak base current

Collector Dissipation

Junction and Storage Temperature

Value

100

200

350

-65 to +150

Units

℃

C149

Rev.A

www.gmesemi.com

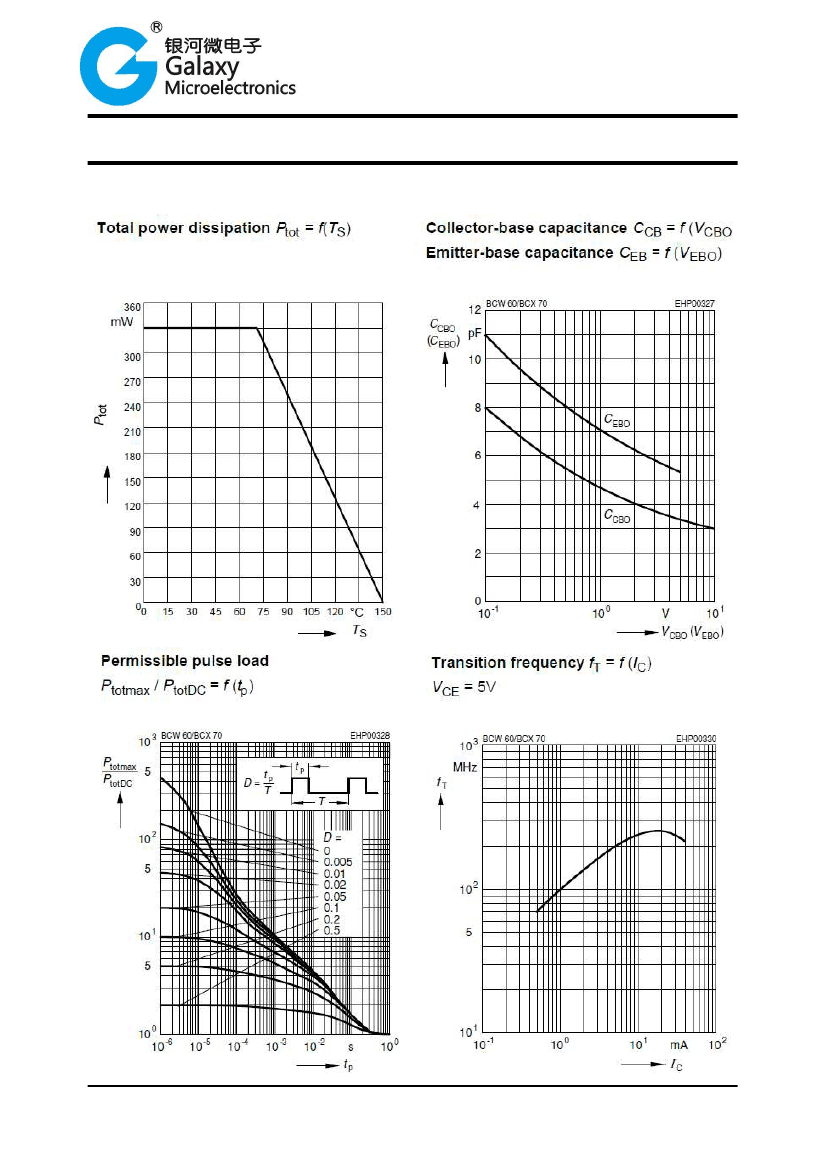

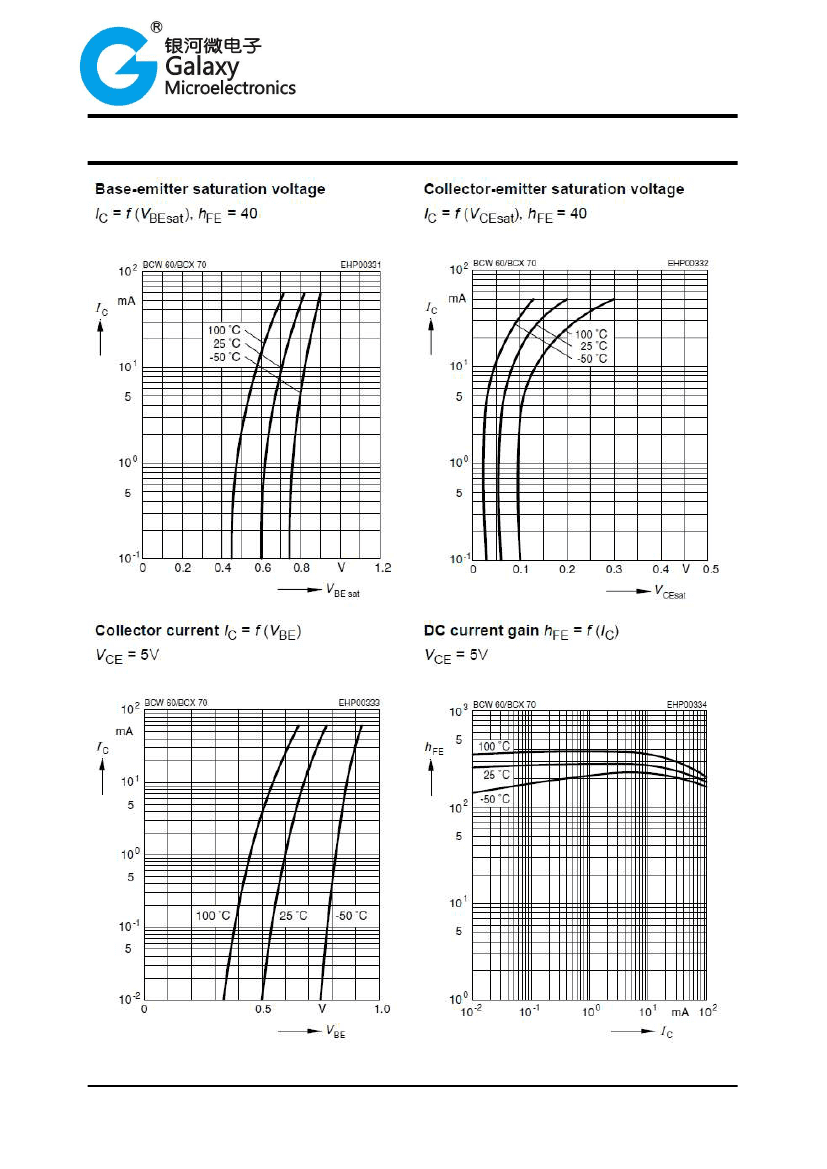

BCX70H Related Products

	BCX70H	BCX70J	BCX70G	BCX70K
Description	Small Signal Bipolar Transistor, 0.2A I(C), 45V V(BR)CEO, 1-Element, NPN, Silicon,	45V,0.1A,General Purpose NPN Bipolar Transistor, Diodes, NPN, 45V, 0.1A, 250, 460, 5V	45V,0.1A,General Purpose NPN Bipolar Transistor, Diodes, NPN, 45V, 0.1A, 120, 220, 5V	45V,0.1A,General Purpose NPN Bipolar Transistor, Diodes, NPN, 45V, 0.1A, 380, 630, 5V
Maker	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics	Galaxy Microelectronics
package instruction	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3	SMALL OUTLINE, R-PDSO-G3
Reach Compliance Code	unknown	unknown	unknown	unknown
Other features	LOW NOISE	LOW NOISE	LOW NOISE	LOW NOISE
Maximum collector current (IC)	0.2 A	0.2 A	0.2 A	0.2 A
Collector-emitter maximum voltage	45 V	45 V	45 V	45 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	70	90	50	100
JESD-30 code	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3	R-PDSO-G3
Number of components	1	1	1	1
Number of terminals	3	3	3	3
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Polarity/channel type	NPN	NPN	NPN	NPN
surface mount	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
transistor applications	AMPLIFIER	AMPLIFIER	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	250 MHz	250 MHz	250 MHz	250 MHz
polarity	NPN	NPN	NPN	NPN
V(BR)CEO (V) min.	45	45	45	45
IC (A)	0.1	0.1	0.1	0.1
hFE min	180	250	120	380
hFE max	310	460	220	630
Condition1_VCE (V)	5	5	5	5
Condition1_IC (mA)	2	2	2	2
VCE (sat) (V)	0.55	0.55	0.55	0.55
Condition2_IC (mA)	50	50	50	50
Condition2_IB (mA)	1.25	1.25	1.25	1.25
fT (MHz) min.	250(typ)	250(typ)	250(typ)	250(typ)
PD (W) max.	0.35	0.35	0.35	0.35
AEC Qualified	No	No	No	No
Maximum operating temperature	150	150	150	150
Minimum operating temperature	-65	-65	-65	-65
Is it lead-free?	Yes	Yes	Yes	Yes
Comply with Reach	Yes	Yes	Yes	Yes
RoHS compliant	Yes	Yes	Yes	Yes
ECCN code	EAR99	EAR99	EAR99	EAR99
Package Outlines	SOT-23	SOT-23	SOT-23	SOT-23
