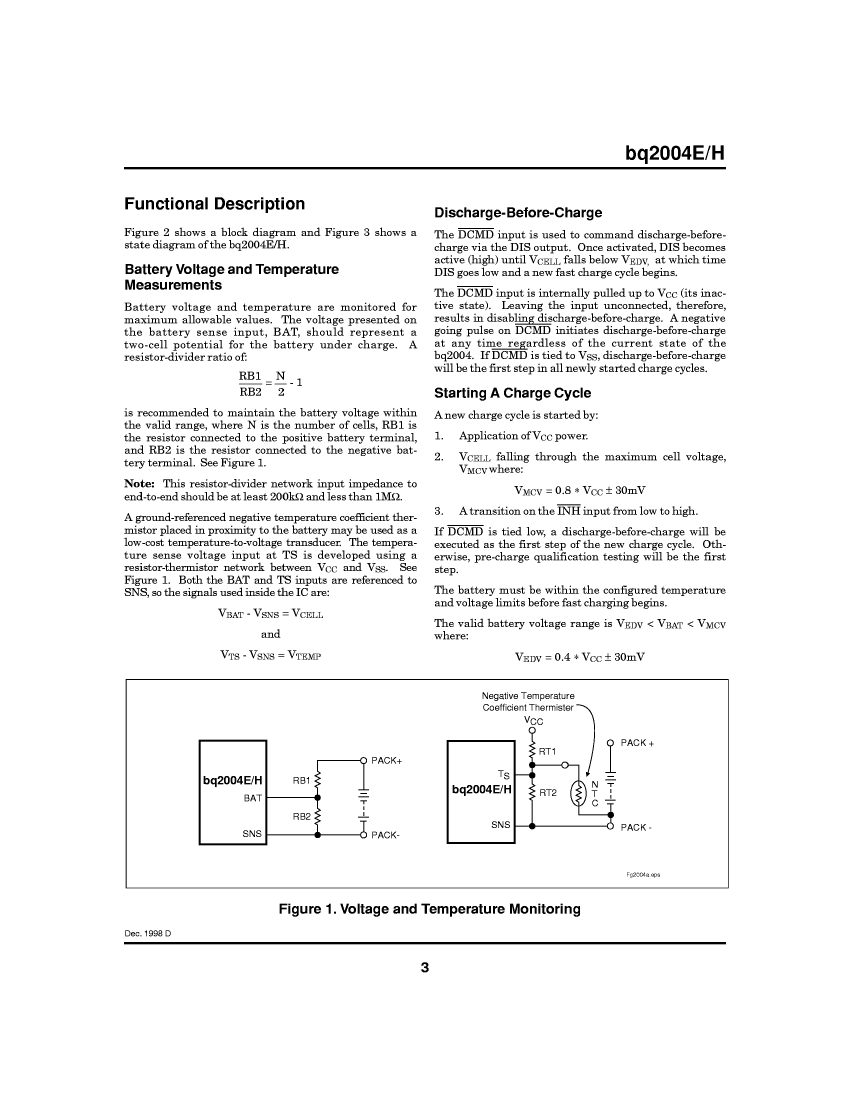

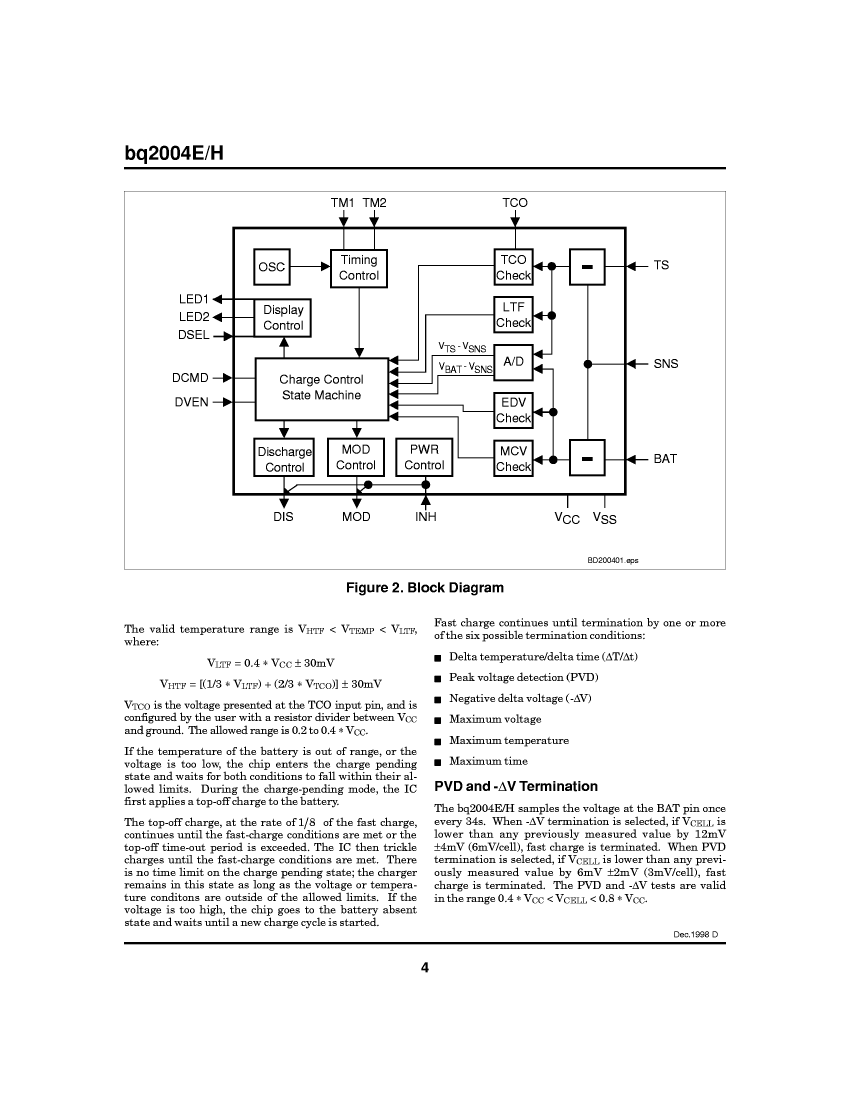

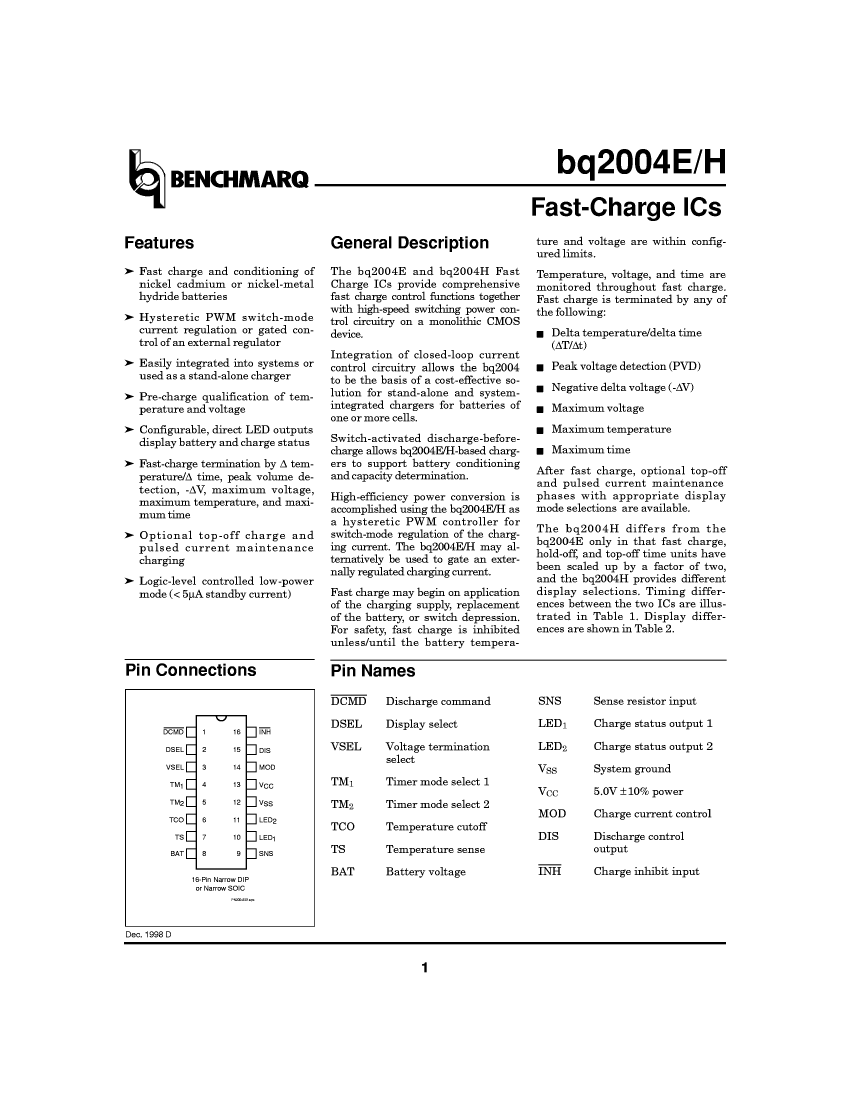

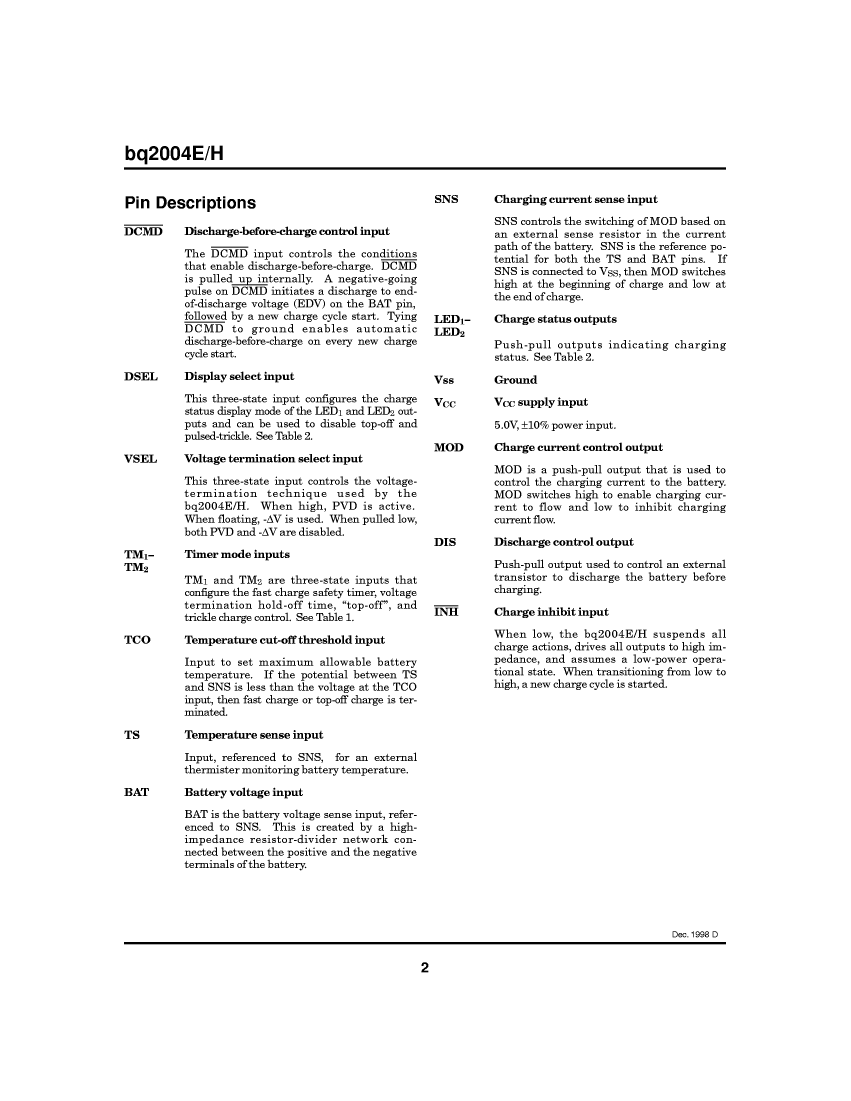

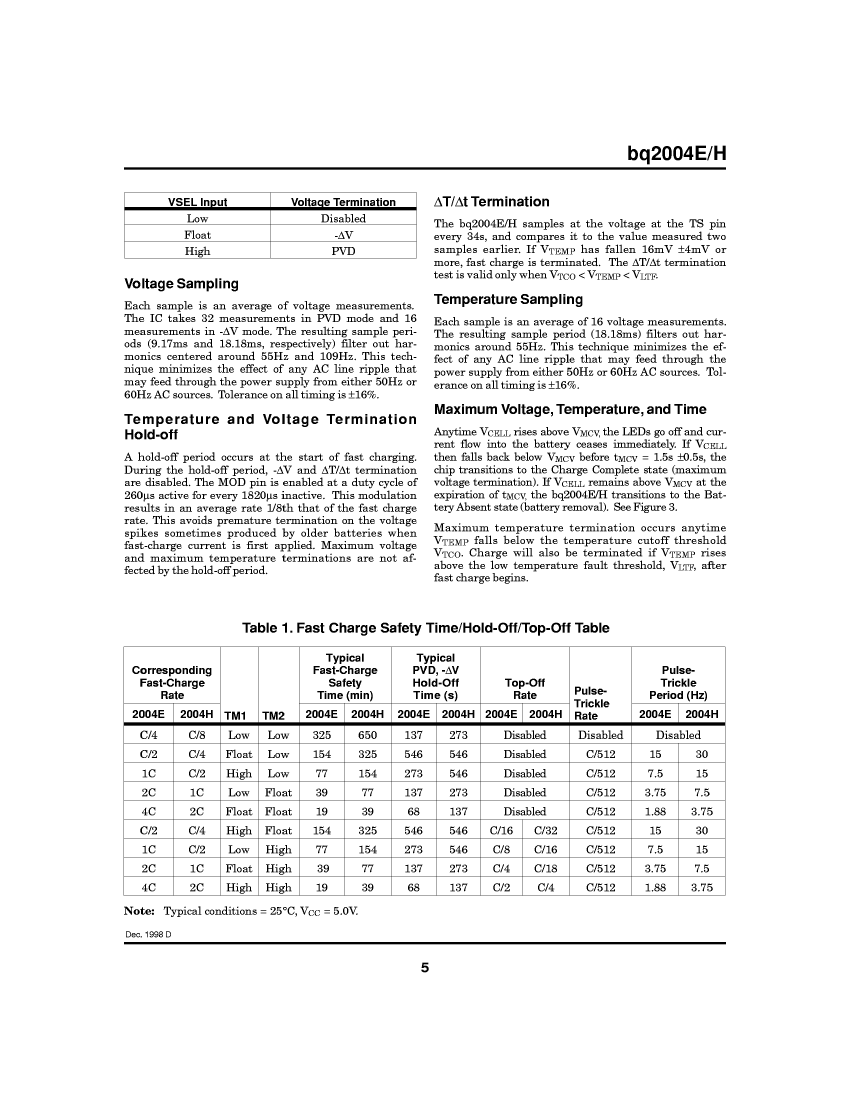

Preview

BQ2004EPN-N: DescriptionBattery Charge Controller, PDIP16,; CategoryPower/power management The power supply circuit; File Size447KB，16 Pages; ManufacturerBenchmarq Microelectronics Inc

Download Datasheet Parametric Compare View All

BQ2004EPN-N Overview

Battery Charge Controller, PDIP16,

BQ2004EPN-N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Benchmarq Microelectronics Inc
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	BATTERY CHARGE CONTROLLER
control mode	CURRENT-MODE
Control Technology	FREQUENCY MODULATION
Maximum input voltage	5.5 V
Minimum input voltage	4.5 V
Nominal input voltage	5 V
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
Number of functions	1
Number of terminals	16
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum supply current (Isup)	3 mA
surface mount	NO
Switch configuration	SINGLE
Maximum switching frequency	300 kHz
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

BQ2004EPN-N Related Products

	BQ2004EPN-N	BQ2004EPN	BQ2004ESN	BQ2004ESN-N
Description	Battery Charge Controller, PDIP16,	Battery Charge Controller, PDIP16,	Battery Charge Controller, PDSO16,	Battery Charge Controller, PDSO16,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	BATTERY CHARGE CONTROLLER	BATTERY CHARGE CONTROLLER	BATTERY CHARGE CONTROLLER	BATTERY CHARGE CONTROLLER
control mode	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE	CURRENT-MODE
Control Technology	FREQUENCY MODULATION	FREQUENCY MODULATION	FREQUENCY MODULATION	FREQUENCY MODULATION
Maximum input voltage	5.5 V	5.5 V	5.5 V	5.5 V
Minimum input voltage	4.5 V	4.5 V	4.5 V	4.5 V
Nominal input voltage	5 V	5 V	5 V	5 V
JESD-30 code	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	e0	e0
Number of functions	1	1	1	1
Number of terminals	16	16	16	16
Maximum operating temperature	85 °C	70 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-20 °C	-20 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	3 mA	3 mA	3 mA	3 mA
surface mount	NO	NO	YES	YES
Switch configuration	SINGLE	SINGLE	SINGLE	SINGLE
Maximum switching frequency	300 kHz	300 kHz	300 kHz	300 kHz
Temperature level	INDUSTRIAL	COMMERCIAL	COMMERCIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Benchmarq Microelectronics Inc	-	Benchmarq Microelectronics Inc	Benchmarq Microelectronics Inc
