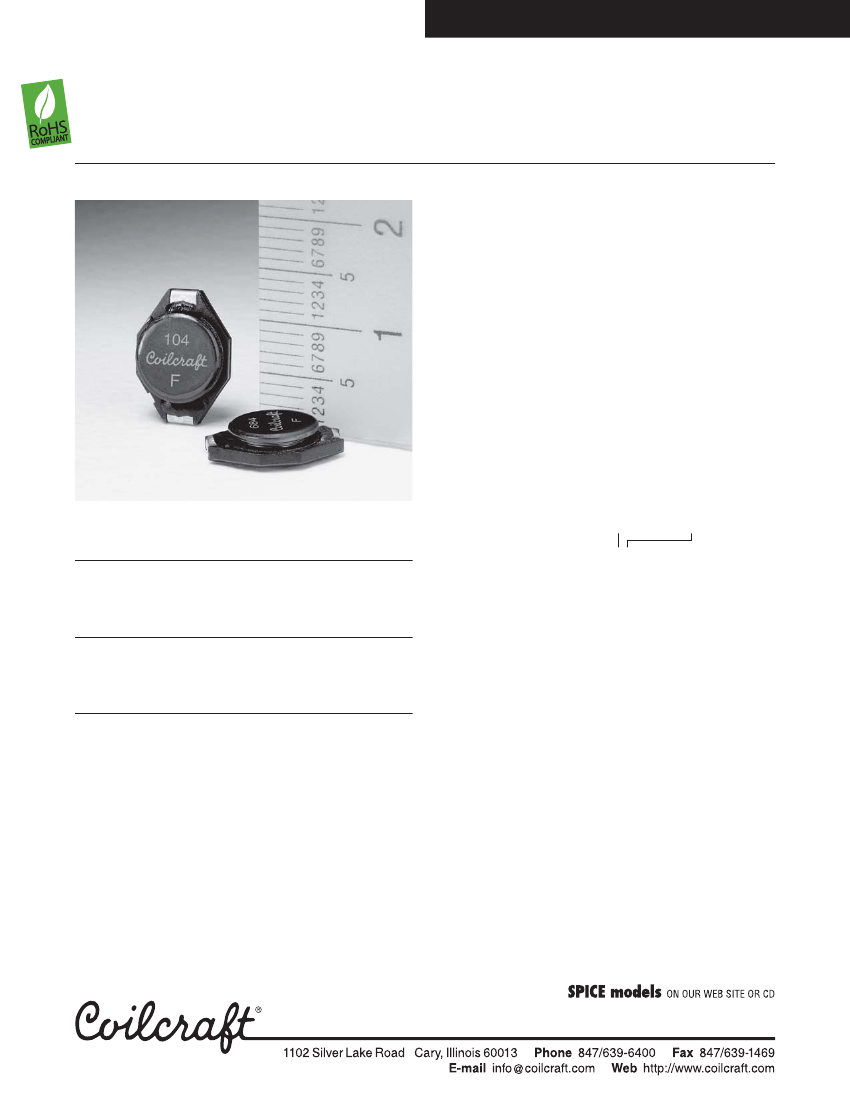

Document 170-1
SMT Power Inductors – DO3308P Series
• Handle saturating currents up to 4.2 Amps
• Defense Supply Center CID: A-A-59738
Designer’s Kit C309
contains 3 each of all values
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS gold over nickel over phos bronze. Other
terminations available at additional cost.
Weight
594 – 640 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Mean Time Between Failures (MTBF)
26,315,789 hours
Packaging
1000/13″ reel Plastic tape: 24 mm wide, 0.4 mm thick,
12 mm pocket spacing, 3.7 mm pocket depth
PCB washing
Only pure water or alcohol recommended
Part
number
1
DO3308P-472ML_
DO3308P-682ML_
DO3308P-103ML_
DO3308P-153ML_
DO3308P-223ML_
DO3308P-333ML_
DO3308P-473ML_
DO3308P-683ML_
DO3308P-104ML_
DO3308P-154ML_
DO3308P-224ML_
DO3308P-334ML_
DO3308P-474ML_
DO3308P-684ML_
DO3308P-105ML_
DCR
L
±20%
2
max
(µH)
(Ohms)
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
1000
0.036
0.060
0.085
0.12
0.18
0.25
0.32
0.54
0.69
0.94
1.60
2.15
3.30
4.40
7.00
SRF
typ
(MHz)
50
47
37
35
26
19
14
12
11
9.0
6.0
5.5
4.5
3.5
2.5
1. When ordering, please specify
termination
and
packaging
codes:
Isat
3
(A)
4.2
3.9
2.7
2.3
1.8
1.6
1.3
1.1
0.87
0.74
0.56
0.50
0.40
0.33
0.29
Irms
4
(A)
3.2
2.6
2.3
1.9
1.5
1.2
1.0
0.9
0.73
0.62
0.51
0.40
0.33
0.28
0.23
DO3308P-105MLD
Termination: L
= RoHS compliant gold over nickel over phos bronze.
Special order:
T
= RoHS tin-silver-copper (95.5/4/0.5)
or
S
= non-RoHS tin-lead (63/37).
Packaging: D
= 13″ machine-ready reel. EIA-481 embossed plastic
tape (1000 parts per full reel).
B
= Less than full reel. In tape, but not machine ready.
To have a leader and trailer added ($25 charge), use
code letter D instead.
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
3. DC current at which inductance drops 10% (typ) from its value without
current.
4. Current that causes a 40°C temperature rise from 25°C ambient.
5. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
Specifications subject to change without notice.
Please check our website for latest information.
Document 170-1
Revised 10/08/08
© Coilcraft, Inc. 2009
Document 170-2
SMT Power Inductors – DO3308P Series

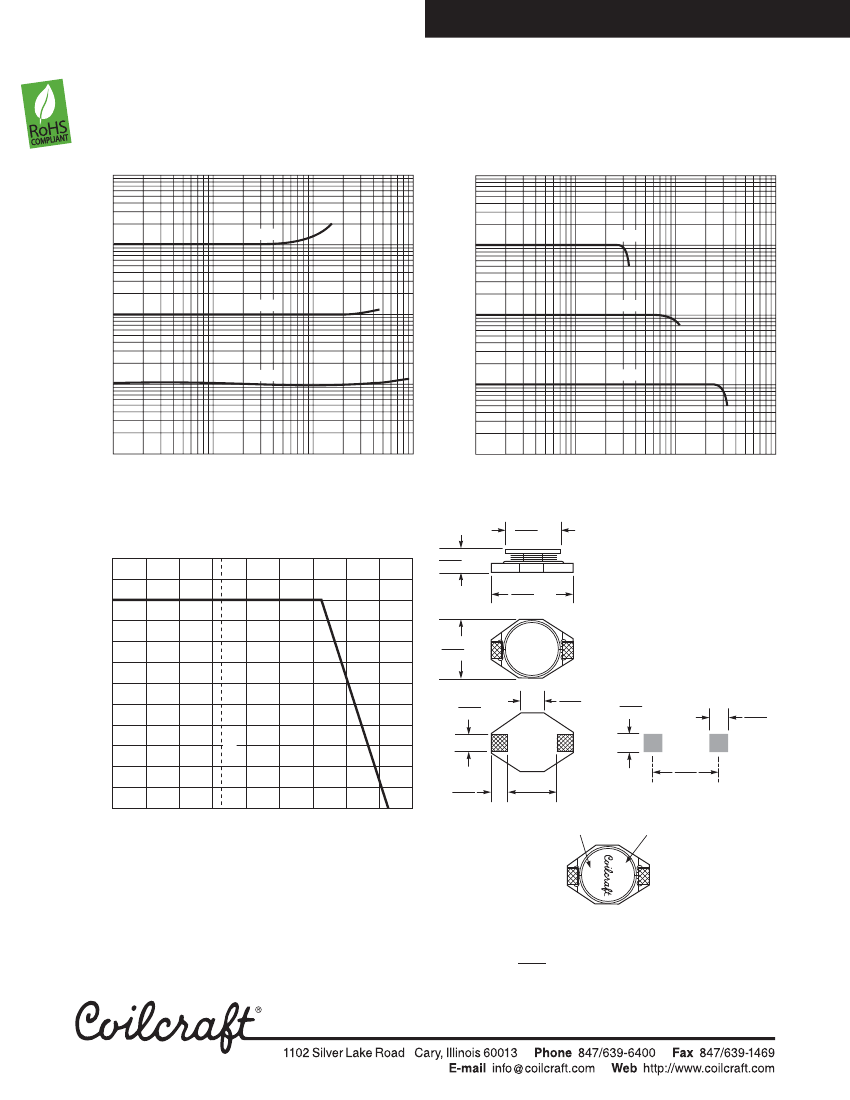

Typical L vs Frequency
10000
Typical L vs Current
10000
1000 µH
1000
1000 µH
1000
Inductance (µH)
100 µH
Inductance (µH)
100
100 µH
100
10
10 µH
10 µH
10
1
0.01
0.1
1
10
1
0.01
0.1
1
10
Frequency (MHz)
Current (A)
Irms Derating
120
110
100
0.330
dia
8,38
0.118
max
*
3,00
0.510
max
*
12,95
additional 0.02/0,508
*
Allow anand 0.01/0,254 in
in width
height for optional tin-lead and
tin-silver-copper application.
Percent of rated
I
rms
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120 140
Internal code
Dash number
0.370
max
9,40
0.100
2,54
0.145
3,69
0.110
2,79
Recommended
Land Pattern
0.115
2,92
25°C
0.100
2,54
0.300
7,62
0.405
10,29
Ambient temperature (°C)
XXX
X
Start
Finish
Part marking since Feb. 2005. Parts manufactured
prior to that date may have color dots.
Visit www.coilcraft.com/colrpowr.cfm for details.
Dimensions are in
inches
mm
Specifications subject to change without notice.
Please check our website for latest information.
Document 170-2
Revised 10/08/08
© Coilcraft, Inc. 2009
