BWR-15/500-D5A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> BWR-15/500-D5A

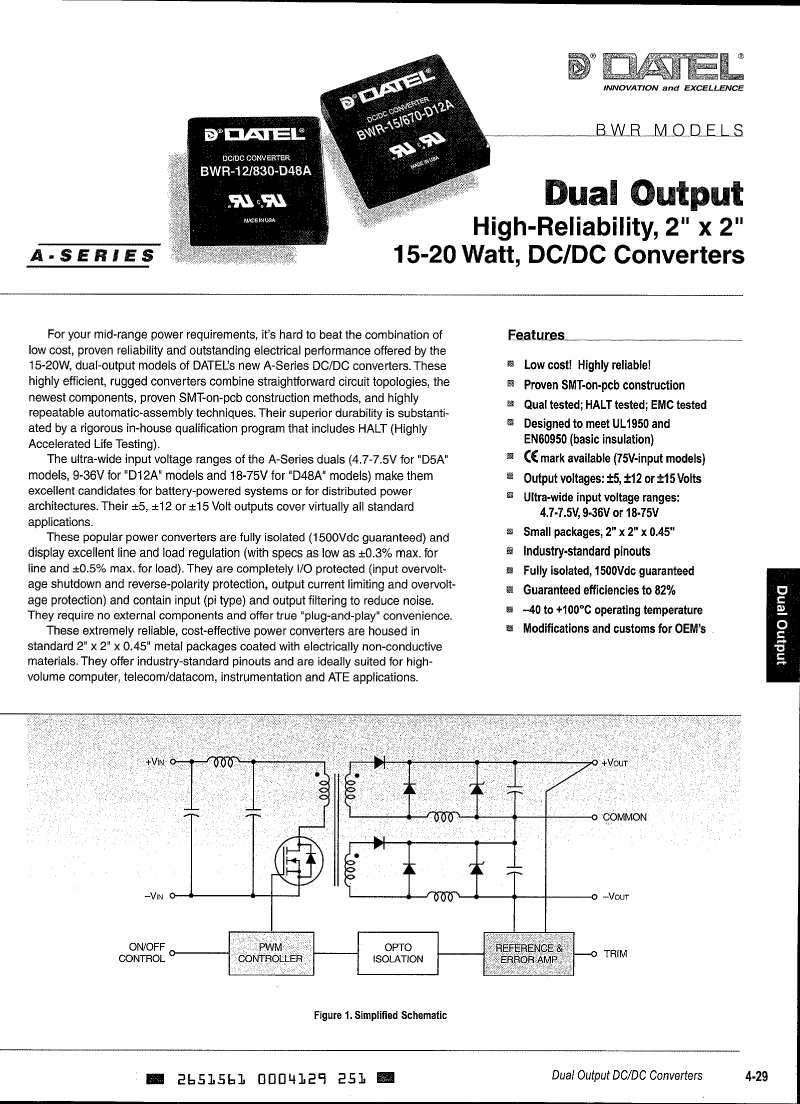

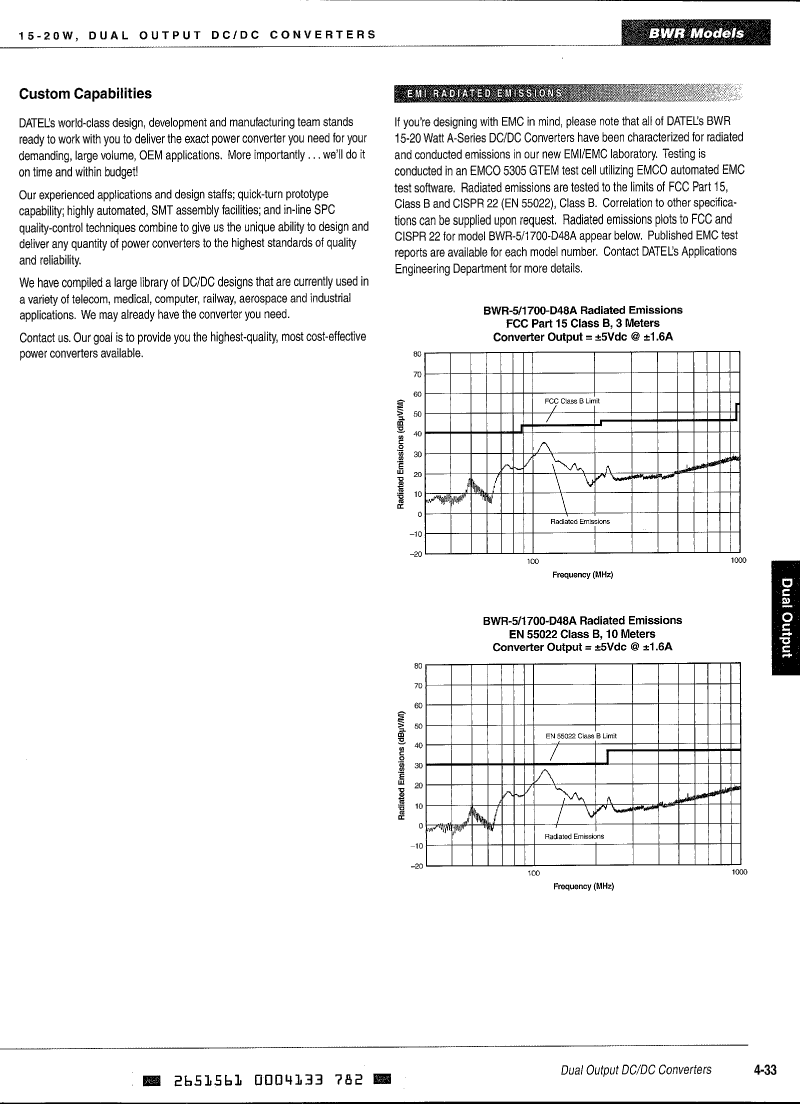

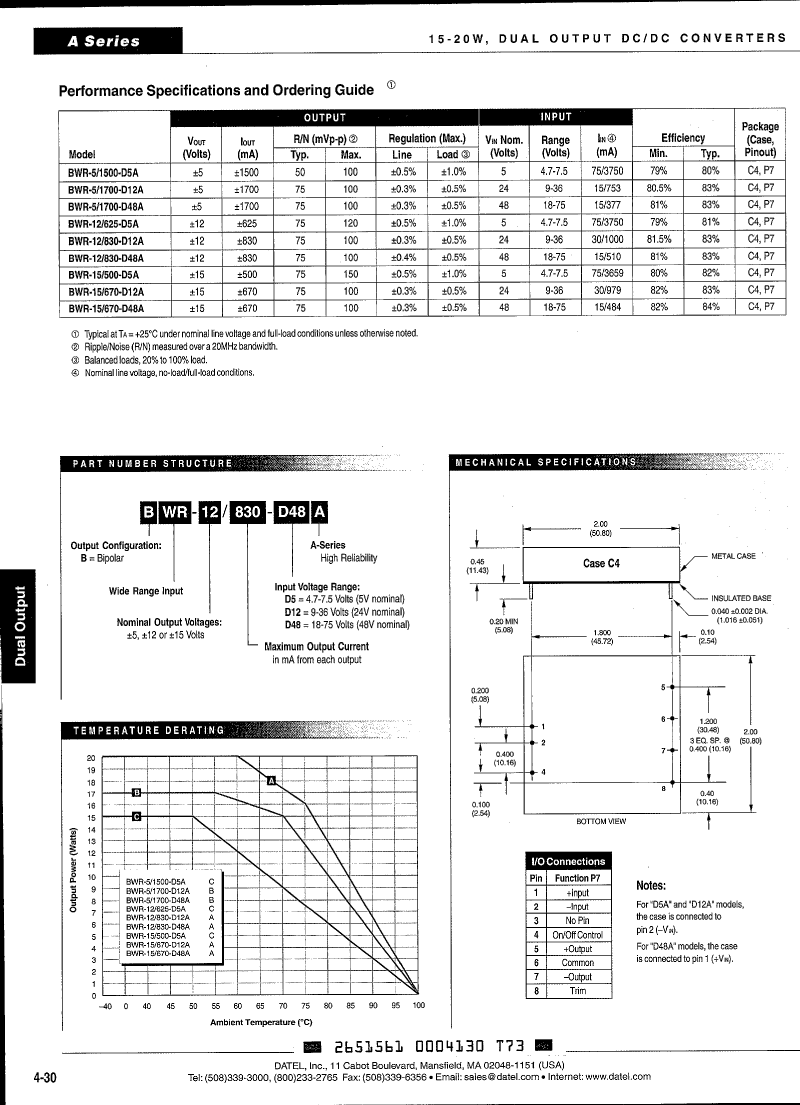

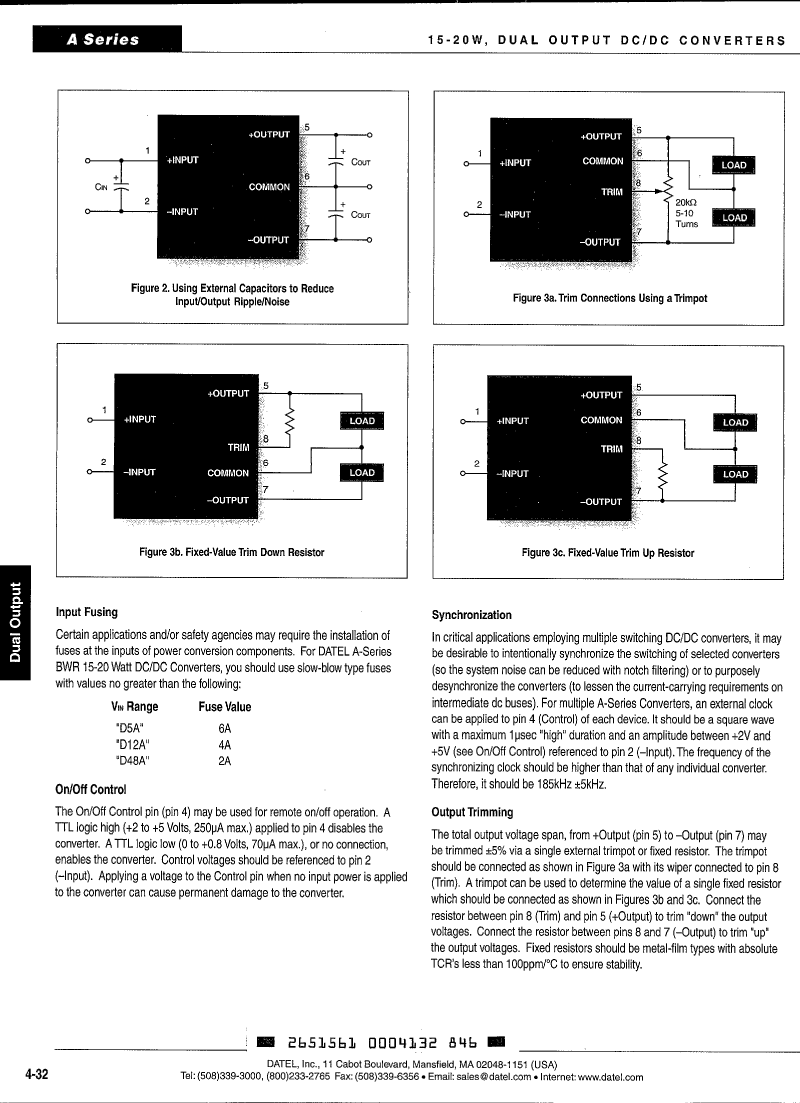

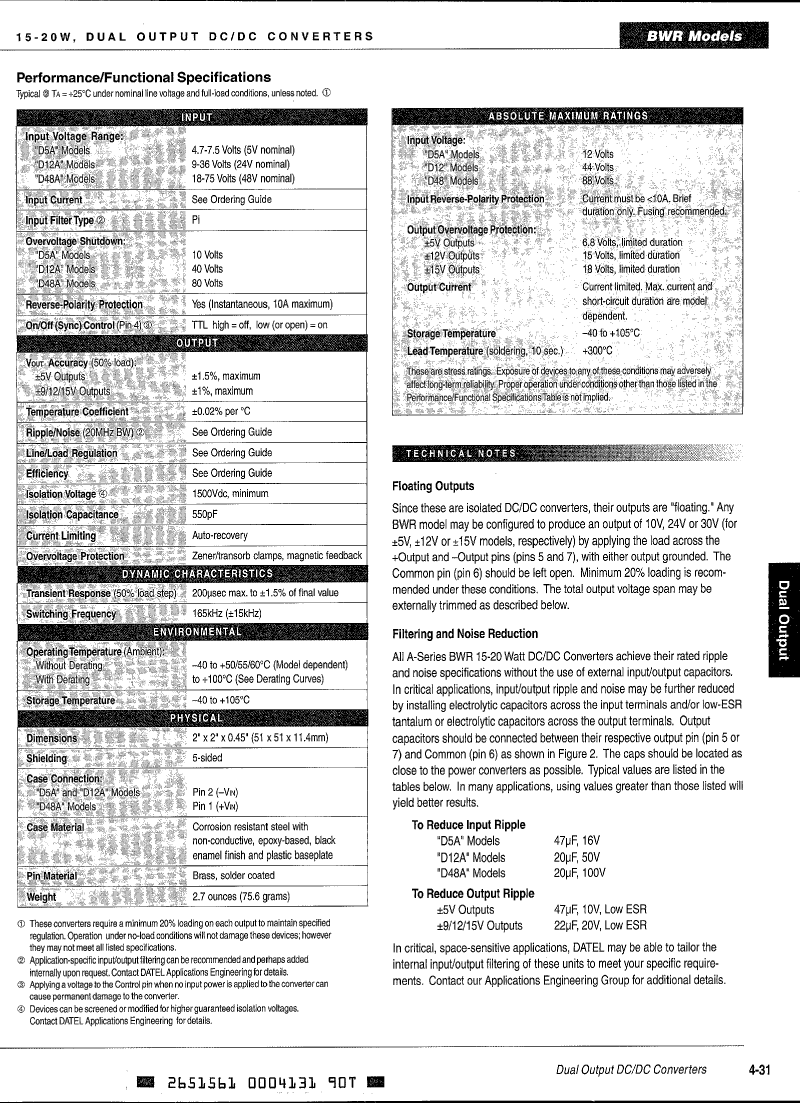

BWR-15/500-D5A: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid,; CategoryPower/power management The power supply circuit; File Size857KB，6 Pages; ManufacturerDATEL Inc.

Download Datasheet Parametric Compare View All

BWR-15/500-D5A Overview

DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid,

BWR-15/500-D5A Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	DATEL Inc.
package instruction	DIP, DIP26,1.8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ADDITIONAL -15V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	7.5 V
Minimum input voltage	4.7 V
Nominal input voltage	5 V
JESD-30 code	S-MDMA-P7
JESD-609 code	e0
Maximum load regulation	1%
Number of functions	1
Output times	2
Number of terminals	7
Maximum operating temperature	50 °C
Minimum operating temperature	-40 °C
Maximum output current	0.5 A
Maximum output voltage	15.75 V
Minimum output voltage	14.25 V
Nominal output voltage	15 V
Package body material	METAL
encapsulated code	DIP
Encapsulate equivalent code	DIP26,1.8
Package shape	SQUARE
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	OTHER
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	15 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

BWR-15/500-D5A Related Products

	BWR-15/500-D5A	BWR-5/1700-D48A	BWR-12/830-D48A	BWR-12/625-D5A	BWR-12/830-D12A	BWR-15/670-D48A
Description	DC-DC Regulated Power Supply Module, 2 Output, 15W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 20W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 20W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 20W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 20W, Hybrid,	DC-DC Regulated Power Supply Module, 2 Output, 20W, Hybrid,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	DIP, DIP26,1.8	DIP, DIP26,1.8	DIP, DIP26,1.8	DIP, DIP26,1.8	DIP, DIP26,1.8	DIP, DIP26,1.8
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ADDITIONAL -15V OUTPUT AVAILABLE	ADDITIONAL -5V OUTPUT AVAILABLE	ADDITIONAL -12V OUTPUT AVAILABLE	ADDITIONAL -12V OUTPUT AVAILABLE	ADDITIONAL -12V OUTPUT AVAILABLE	ADDITIONAL -15V OUTPUT AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	7.5 V	75 V	75 V	7.5 V	36 V	75 V
Minimum input voltage	4.7 V	18 V	18 V	4.7 V	9 V	18 V
Nominal input voltage	5 V	48 V	48 V	5 V	24 V	48 V
JESD-30 code	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7	S-MDMA-P7
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum load regulation	1%	0.5%	0.5%	1%	0.5%	0.5%
Number of functions	1	1	1	1	1	1
Output times	2	2	2	2	2	2
Number of terminals	7	7	7	7	7	7
Maximum operating temperature	50 °C	55 °C	60 °C	50 °C	60 °C	60 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	0.5 A	1.7 A	0.83 A	0.625 A	0.83 A	0.67 A
Maximum output voltage	15.75 V	5.25 V	12.6 V	12.6 V	12.6 V	15.75 V
Minimum output voltage	14.25 V	4.75 V	11.4 V	11.4 V	11.4 V	14.25 V
Nominal output voltage	15 V	5 V	12 V	12 V	12 V	15 V
Package body material	METAL	METAL	METAL	METAL	METAL	METAL
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP26,1.8	DIP26,1.8	DIP26,1.8	DIP26,1.8	DIP26,1.8	DIP26,1.8
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	OTHER	OTHER	OTHER	OTHER	OTHER	OTHER
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	15 W	20 W	20 W	20 W	20 W	20 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES
Maker	DATEL Inc.	-	DATEL Inc.	DATEL Inc.	DATEL Inc.	DATEL Inc.
