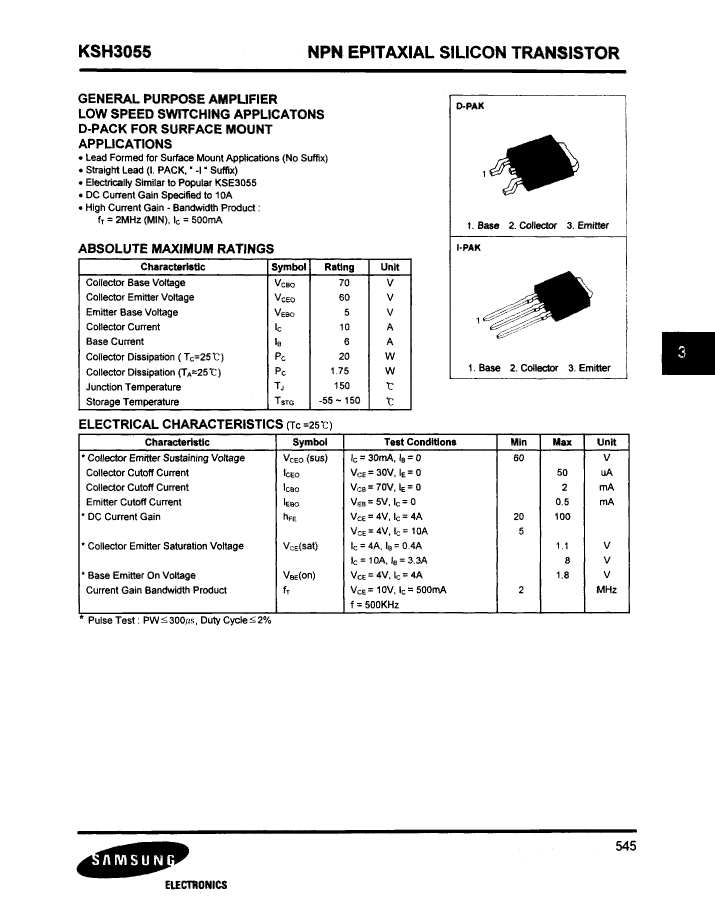

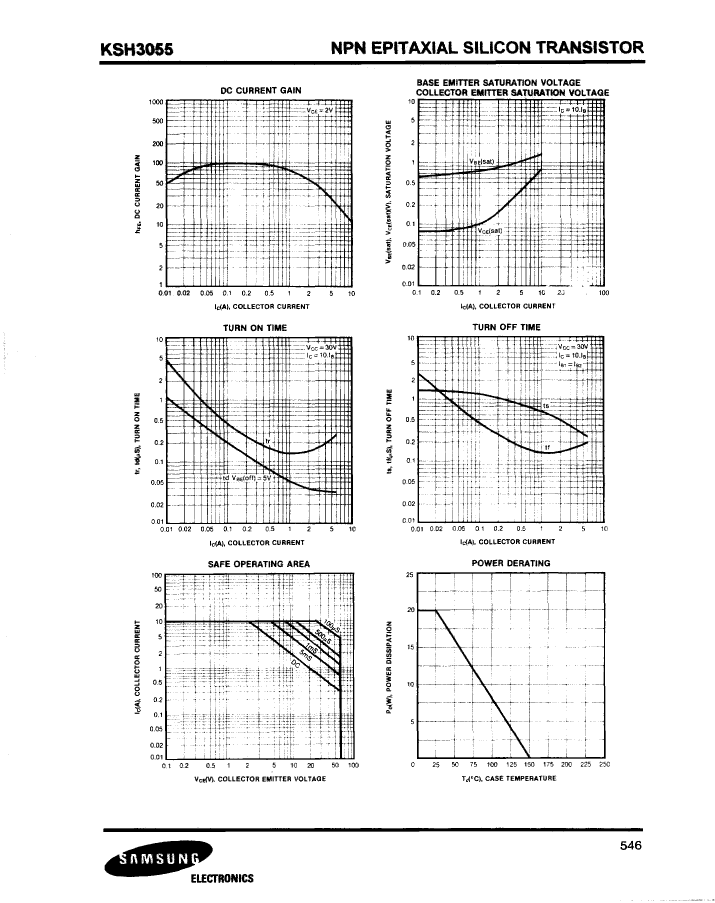

KSH3055 datasheet, PDF - EEWORLD Datasheet

KSH3055: DescriptionPower Bipolar Transistor, 10A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 2 Pin, DPAK-3; CategoryDiscrete semiconductor The transistor; File Size110KB，2 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KSH3055 Overview

Power Bipolar Transistor, 10A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 2 Pin, DPAK-3

Parameter Name	Attribute value
Maker	SAMSUNG
package instruction	SMALL OUTLINE, R-PSSO-G2
Contacts	3
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum collector current (IC)	10 A
Collector-emitter maximum voltage	60 V
Configuration	SINGLE
Minimum DC current gain (hFE)	5
JESD-30 code	R-PSSO-G2
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Polarity/channel type	NPN
Maximum power dissipation(Abs)	20 W
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	SINGLE
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	2 MHz

	KSH3055	KSH3055-I
Description	Power Bipolar Transistor, 10A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 2 Pin, DPAK-3	Power Bipolar Transistor, 10A I(C), 60V V(BR)CEO, 1-Element, NPN, Silicon, Plastic/Epoxy, 3 Pin, IPAK-3
Maker	SAMSUNG	SAMSUNG
package instruction	SMALL OUTLINE, R-PSSO-G2	IN-LINE, R-PSIP-T3
Contacts	3	3
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Maximum collector current (IC)	10 A	10 A
Collector-emitter maximum voltage	60 V	60 V
Configuration	SINGLE	SINGLE
Minimum DC current gain (hFE)	5	5
JESD-30 code	R-PSSO-G2	R-PSIP-T3
Number of components	1	1
Number of terminals	2	3
Maximum operating temperature	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE
Polarity/channel type	NPN	NPN
Maximum power dissipation(Abs)	20 W	20 W
Certification status	Not Qualified	Not Qualified
surface mount	YES	NO
Terminal form	GULL WING	THROUGH-HOLE
Terminal location	SINGLE	SINGLE
transistor applications	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON
Nominal transition frequency (fT)	2 MHz	2 MHz
