821-00870: DescriptionTelecom Transformer, EE5-SM5; CategoryPower management transformer; File Size57KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric Compare View All

821-00870 Overview

Telecom Transformer, EE5-SM5

821-00870 Parametric

Parameter Name	Attribute value
Maker	Elec & Eltek
package instruction	EE5-SM5
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ALSO; TURNS RATIO: 1.35CT:1
high	5.08 mm
length	5.59 mm
Manufacturer's serial number	821-00870
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	5.59mm X 7.75mm X 5.08mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	7.75 mm

Preview

Download Datasheet

View All

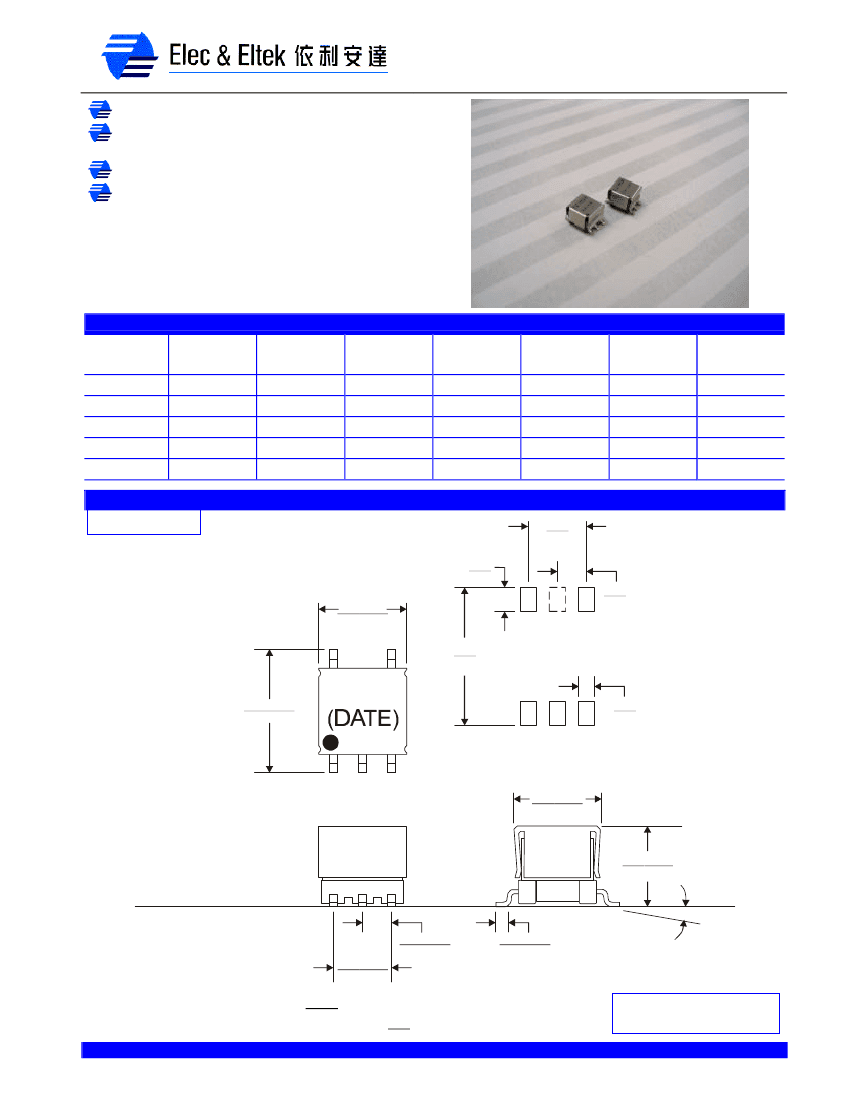

T1/E1/CEPT/ISDN-Pri TRANSFORMER

E & E Magnetic Products Limited

Compact surface mount package

Designed to meet Return Loss requirements of ITU

G.703

Extended temperature range of -40°C to +85°C

Isolation voltage: 1500 Vrms minimum

Single, SMT, Extended Temperature Range

E

LECTRICAL

S

PECIFICATION

@25°C

Part Number

821-00768

821-00868

821-00869

821-00870

821-01672

OCL

Turns Ratio

Primary @25°C

(Pri : Sec ± 2%)

(mH Min)

1.26CT:1

1CT:1

1.14CT:1

1.35CT:1

1CT:1

1.2

2.0

2.2

2.0

1.2

LL

(uH Max)

1.0

1.2

1.4

1.2

Cww

(pF Max)

50

65

35

DCR

Primary

(Ω Max)

2.5

2.7

2.8

2.7

DCR

Secondary

(Ω Max)

2.0

2.7

2.8

2.0

2.7

Isolation

Voltage

(Vrms Min)

1500

M

ECHANICAL

D

IMENSIONS

Package: EE5-SM5

.146

3.71

.060

1.52

.220

±.010

5.59

±0.25

.345

8.76

.073

1.85

.305

±.010

7.75

±0.25

EExxxx

.040

1.02

Recommended

Pad Layout

.230

±.010

5.84

±0.25

.200

±.010

5.08

±0.25

REFERENCE OR

GAUGE PLANE

.073

±.005

1.85

±0.13

.146

±.005

3.70

±0.13

.030

±.010

0.76

±0.25

0-8°

Note :

inches

mm with higher precedence in inches.

.010

Unless otherwise specified, all tolerances are

±

0.25 .

All dimensions are specified in

Weight (in gram)

Tape & Reel

:

0.38 typ

800 / reel

Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong • Tel: (852) 2954 3333 • Fax: (852) 2954 3304

1

Preliminary

TE003(01)

Released in 03/09
