BCX19L datasheet, PDF - EEWORLD Datasheet

BCX19L: DescriptionTRANSISTOR,BJT,NPN,45V V(BR)CEO,500MA I(C),SOT-23; CategoryDiscrete semiconductor The transistor; File Size65KB，1 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

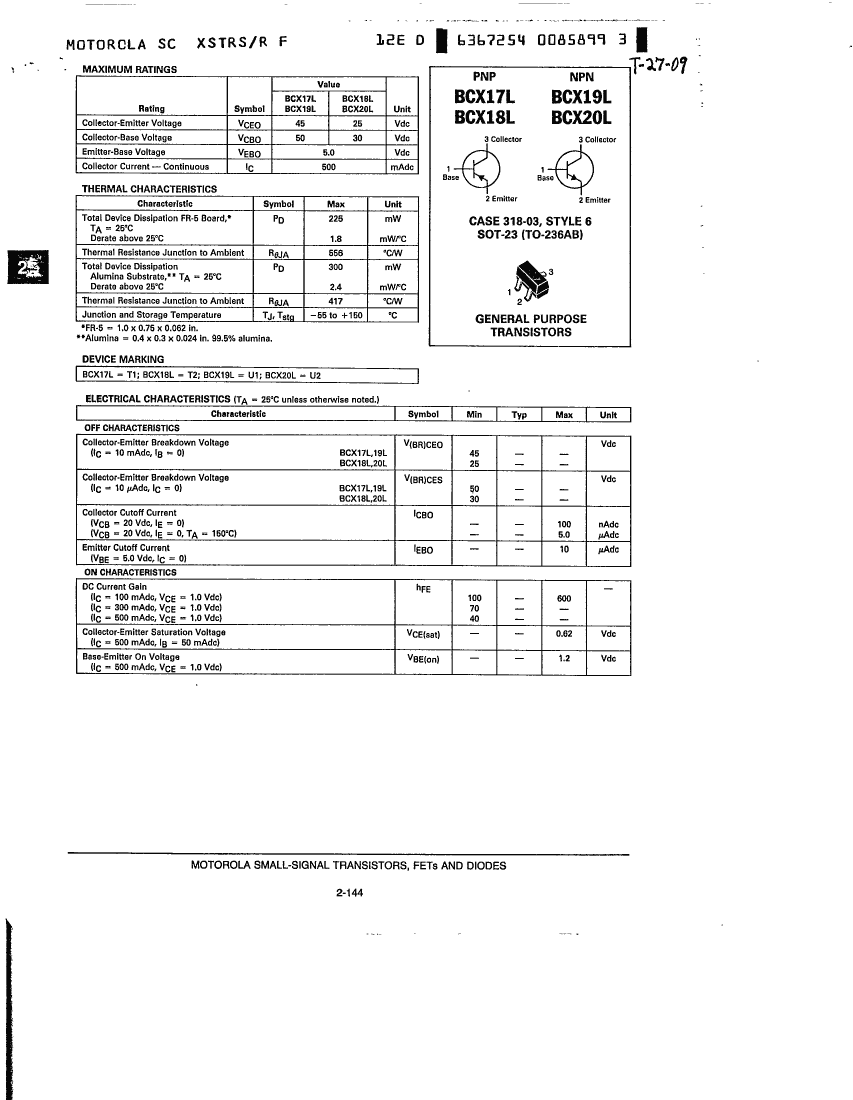

BCX19L Overview

TRANSISTOR,BJT,NPN,45V V(BR)CEO,500MA I(C),SOT-23

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	,
Reach Compliance Code	unknown
Maximum collector current (IC)	0.5 A
Configuration	Single
Minimum DC current gain (hFE)	100
JESD-609 code	e0
Maximum operating temperature	150 °C
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.425 W
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	200 MHz

	BCX19L	BCX17L	BCX20L	BCX18L
Description	TRANSISTOR,BJT,NPN,45V V(BR)CEO,500MA I(C),SOT-23	TRANSISTOR,BJT,PNP,45V V(BR)CEO,500MA I(C),SOT-23	TRANSISTOR,BJT,NPN,25V V(BR)CEO,500MA I(C),SOT-23	TRANSISTOR,BJT,PNP,25V V(BR)CEO,500MA I(C),SOT-23
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	NXP	NXP	NXP	NXP
Reach Compliance Code	unknown	unknown	unknown	unknown
Maximum collector current (IC)	0.5 A	0.5 A	0.5 A	0.5 A
Configuration	Single	Single	Single	Single
Minimum DC current gain (hFE)	100	100	100	100
JESD-609 code	e0	e0	e0	e0
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Polarity/channel type	NPN	PNP	NPN	PNP
Maximum power dissipation(Abs)	0.425 W	0.425 W	0.425 W	0.425 W
surface mount	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Nominal transition frequency (fT)	200 MHz	100 MHz	200 MHz	100 MHz
