FM-67.000MHZ-AAD00030: DescriptionSeries - 3Rd Overtone Quartz Crystal, 67MHz Nom, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size146KB，1 Pages; ManufacturerFOX [Fox Electronics]; Environmental Compliance

Download Datasheet Parametric View All

FM-67.000MHZ-AAD00030 Overview

Series - 3Rd Overtone Quartz Crystal, 67MHz Nom, ULTRA MINIATURE, CERAMIC, SMD, 4 PIN

FM-67.000MHZ-AAD00030 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	FOX [Fox Electronics]
package instruction	ULTRA MINIATURE, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	SERIES - 3RD OVERTONE
Drive level	100 µW
frequency stability	0.01%
frequency tolerance	100 ppm
JESD-609 code	e4
Manufacturer's serial number	FM
Installation features	SURFACE MOUNT
Nominal operating frequency	67 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L6.0XB3.5XH1.0 (mm)/L0.236XB0.138XH0.039 (inch)
Series resistance	70 Ω
surface mount	YES
Terminal surface	Gold (Au)

Preview

Download Datasheet

View All

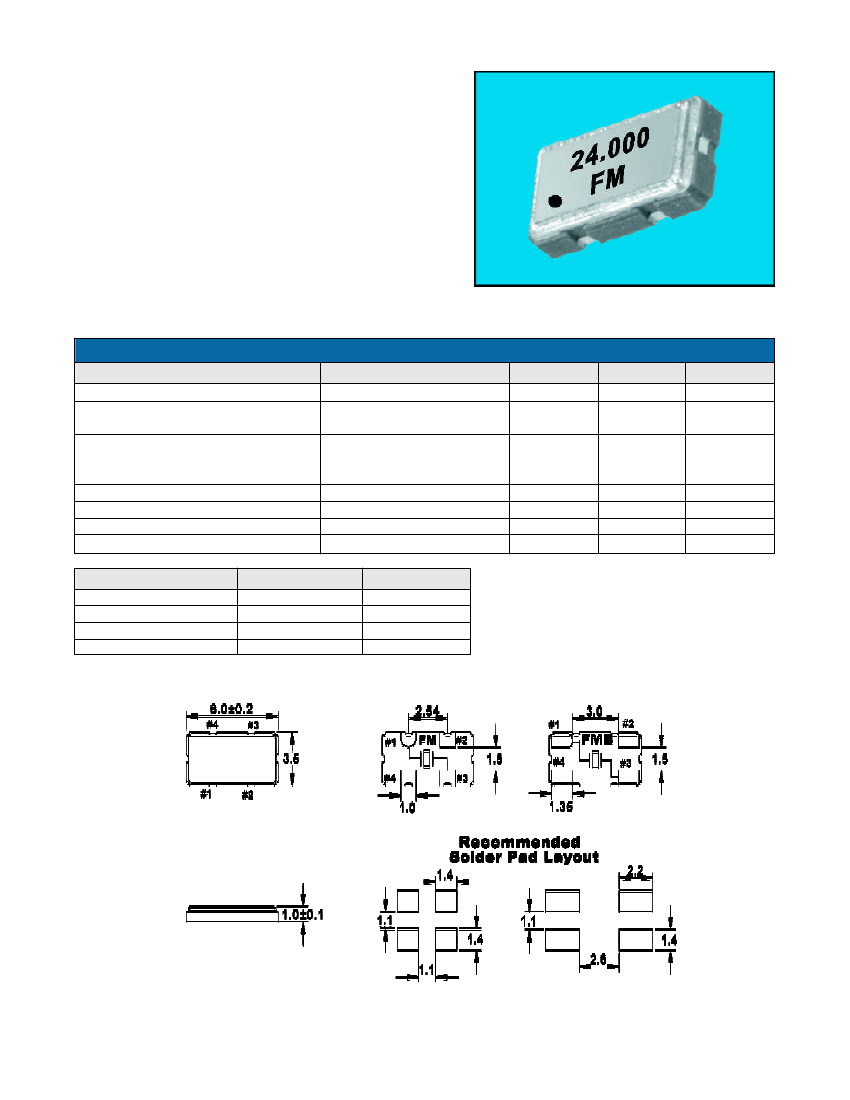

ULTRA MINIATURE CERAMIC SMD CRYSTAL

FM

The Fox FM Series SMD crystal features a package size of 6.0 x

3.5 x 1.0mm. With its ceramic base and metal lid, the FM Series

provides the durability and reliability necessary for strenuous

processes like infrared and vapor phase reflows. Also, the high

frequency fundamental mode up to 40MHz eases circuit design.

FEATURES

•

Ultra Miniature Package

1.0mm Height

Only 2.1cc Volume

High Frequency Fundamental

High Reliability

Tape and Reel (2,000 pcs. STD)

• FM/FMB STANDARD SPECIFICATIONS *

PARAMETERS

Frequency Range

Frequency Stability

Temperature Range

Operating

Storage

Shunt Capacitance

Load Capacitance

Drive Level

Aging

CONDITIONS

Ta = -10ºC ~ +60ºC

Inclusive of Tolerance at 25ºC

(T

OPR

)

(T

STG

)

(Co)

(C

L

)

MIN

10.368

-100

MAX

67.000

+100

UNITS

MHz

PPM

-10

-30

Customer Specified

10.368 ~ 67.000 MHz

Ta = 25ºC; per year

Operating Mode

Fundamental

3rd OT

Max ESR

Ω

80

60

40

70

10

-5.0

+60

+85

7.0

Series

0.1

+5.0

ºC

pF

mW

PPM

Frequency Range (MHz)

10.368 ~ 12.000

12.000+ ~ 16.000

16.000+ ~ 40.000

40.000+ ~ 67.000

* Other tolerances, stabilities & operating temperature ranges available.

Consult Fox Customer Service for specific requirements, or use crystal

order form on page 6. All specifications subject to change without notice.

Rev. 05/03/00

All dimensions are in millimeters.

See page 31 for tape and reel specifications.

FOXElectronics

5570 Enterprise Parkway

Fort Myers, Florida 33905

941-693-0099

FAX 941-693-1554

http://www.foxonline.com
