APC08K08-9: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, SMT-6; CategoryPower/power management The power supply circuit; File Size137KB，2 Pages; ManufacturerVertiv

Download Datasheet Parametric View All

APC08K08-9 Overview

DC-DC Regulated Power Supply Module, 1 Output, 30W, Hybrid, SMT-6

APC08K08-9 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Vertiv
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	13 V
Minimum input voltage	5 V
Nominal input voltage	8 V
JESD-30 code	R-XXMA-X6
JESD-609 code	e0
Maximum load regulation	0.5%
Number of functions	1
Output times	1
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	6.2 V
Minimum output voltage	0.9 V
Nominal output voltage	1.2 V
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	30 W
Fine-tuning/adjustable output	YES

Preview

Download Datasheet

View All

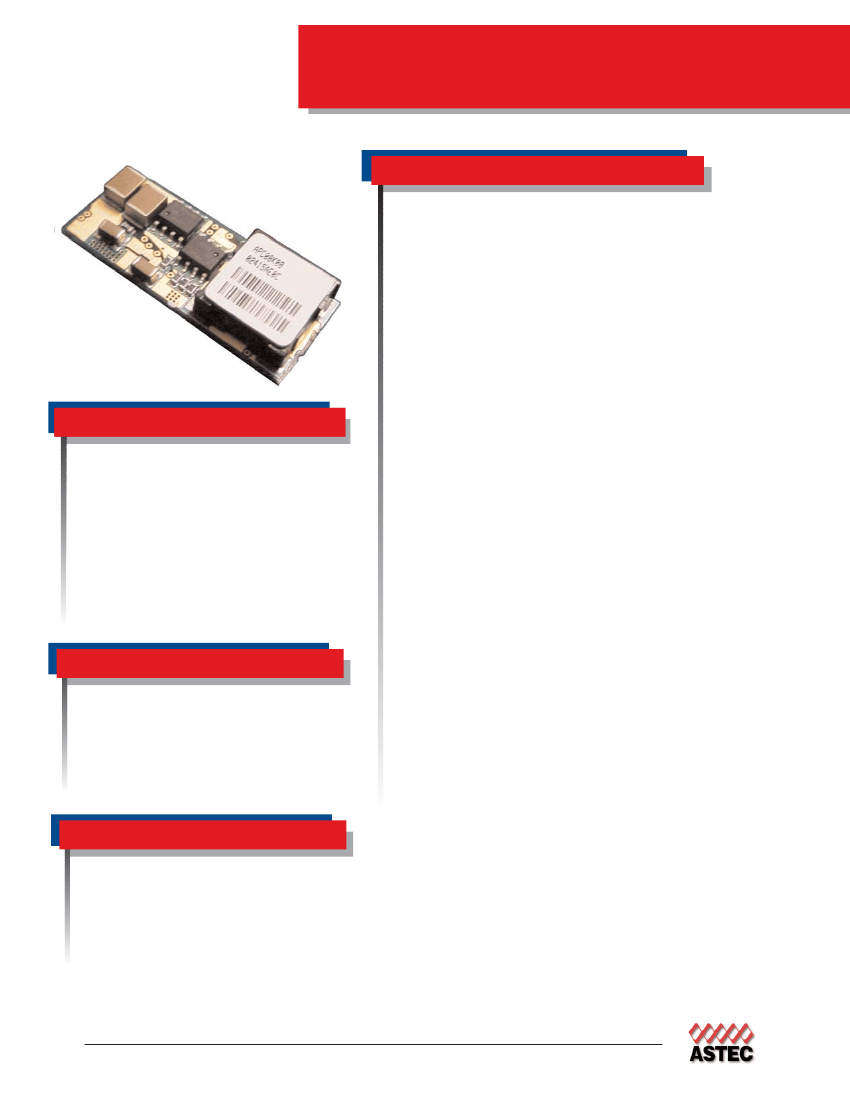

Astec Industry Standard

30 Watts

APC08

(8 Amp)

Total Power:

Input Voltages:

No. of Outputs:

30W

1.8V - 13V

Single

Electrical Specs

Input

Input range

Input Surge

Efficiency

1.8-6.0VDC and 5.0-13.0VDC

08 Device: 14V

03 Device: 7V

93%@3.3V

Control

Enable

TTL compatible

(positive enable option)

Output

Regulation

(Line, Load, Temp)

<3%

100mV (5V and 6V)

75mV (2.5V and 3.3V)

50mV (below 2.5V)

08 Device: 0.9V to 6.2V

03 Device: 0.9V to 3.6V

5% max deviation with

50% to 75% full load

500 μS (max) recovery

Special Features

• Point of load (POL) applications

• High efficiency, 3.3V@93%

• -40°C to +85°C Ambient operating

temperature

• Open Frame SMT

• Positive enable function

• Low output ripple and noise

• Regulation to zero load

• Adjustable Output through external resistor

programming

• Fixed frequency switching (400 kHz)

Ripple and noise

Output voltage

adjust range

Transient Response

Specifications subject to change without notice.

Environmental

Operating temperature

-40°C to +85°C

Storage temperature: -55°C to +125°C

Demonstrated MTBF: > 2.3 Million Hours

Safety

UL, cUL

60950 Recognized

TUV

EN60950 Licensed

1

North America (USA): 1-888-41-ASTEC

Europe (UK): 44 (1384) 842-211

Asia (HK): 852-2437-9662

11.17.06
