D38999/20MG41PN datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> D38999/20MG41PN

Preview

D38999/20MG41PN: Description41 CONTACT(S), COMPOSITE, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE; CategoryThe connector The connector; File Size71KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric View All

D38999/20MG41PN Overview

41 CONTACT(S), COMPOSITE, MALE, MIL SERIES CONNECTOR, SOLDER, RECEPTACLE

D38999/20MG41PN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TE Connectivity
Reach Compliance Code	not_compliant
Factory Lead Time	24 weeks 6 days
Other features	STANDARD: MIL-DTL-38999, EMI SHIELDED
Back shell type	SOLID
Body/casing type	RECEPTACLE
Connector type	MIL SERIES CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Gold (Au)
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
empty shell	NO
Environmental characteristics	CORROSION/ENVIRONMENT/FLUID RESISTANT
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	YES
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE AND PANEL
Options	GENERAL PURPOSE
Shell surface	NICKEL PLATED
Shell material	COMPOSITE
Housing size	G
Termination type	CRIMP
Total number of contacts	41

Preview

Download Datasheet

View All

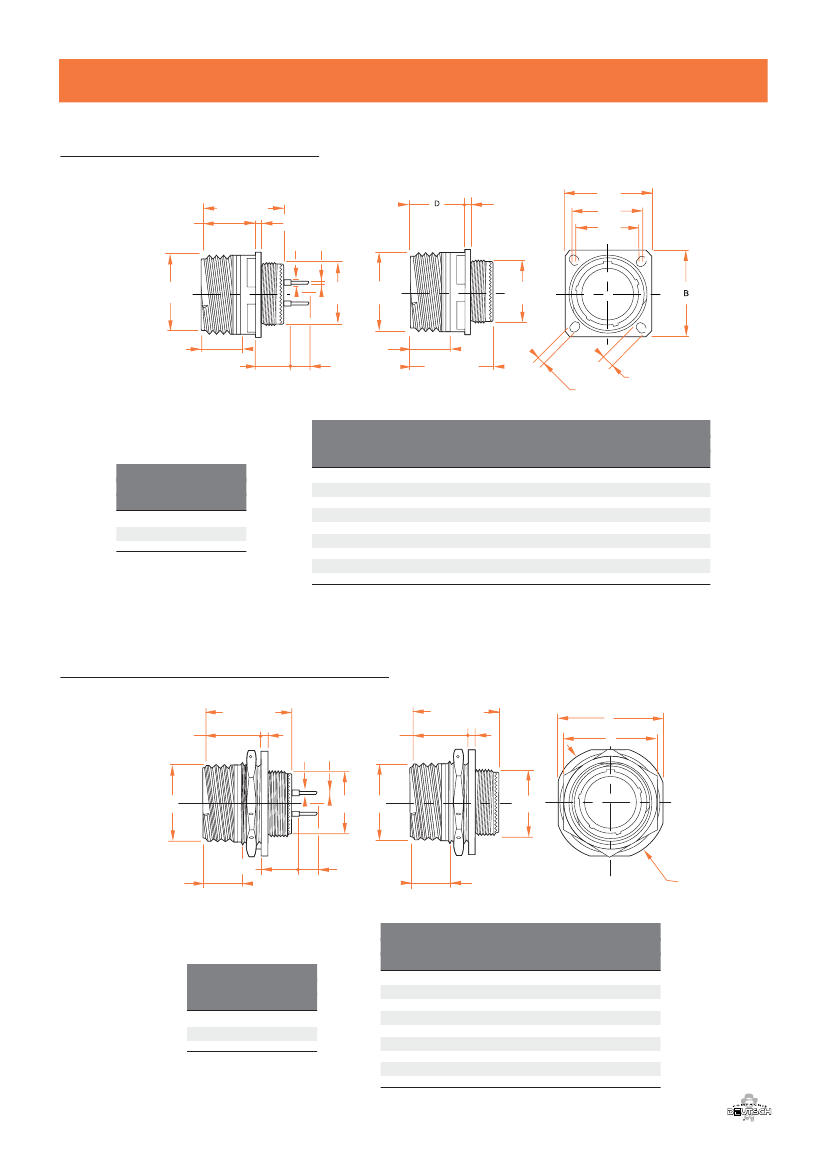

Receptacles

■

Square flange -

TYPE 90

B

31,50 max.

D

E

ØR ØS

E

C1

C2

ACT

F

G

F

G

13,20 max.

13,50

±

0,1

With PCB contacts

13,20 max.

5

31,50 max.

P

PP

Size

B

± 0,3

C1

C2

.

15,09

18,26

20,62

23,01

24,61

26,97

29,36

31,75

34,93

D

max.

19,50

18,70

E

F

± 0,1

G

± 0,1

± 0,2

P

.

PP

± 0,2

Mass

max.

Contact

Size

22

20

16

R

+ 0..

- 0,05

S

± 0,05

10,5

1,5

2,6

0,7.

1,15

P/N PCB contacts, page 11

A

B

C

D

E

F

G

H

J

23,80

26,20

28,60

31,00

33,30

36,50

39,70

42,90

46,00

18,26

20,62

23,01

24,61

26,97

29,36

31,75

34,93

38,10

3,65

4,35

15,75

18,90

22,10

25,25

29,95

31,55

34,70

37,90

41,10

11,90

14,90

17,90

21,90

24,90

27,90

30,90

33,90

36,90

3,25

3,91

5,49

4,93

6,15

8,00

11,00

14,00

18,00

23,00

26,00

31,00

36,00

43,00

■

Single hole mounting -

TYPE 94

32,50 max.

22,60 max.

E

ØR ØS

22,60 max.

32,50 max.

E

B

M

F

G

F

G

12,06

±

0,6

13,20 max.

With PCB contacts

5

13,20 max.

ØA

Size

A

± 0,3

B

± 0,4

E

+ 0,7

..

- 0,1

F

± 0,1

G

± 0,1

M

Mass

max.

Contact

Size

22

20

16

R

+ 0..

- 0,05

S

± 0,05

10,5

1,5

2,6

0,7.

1,15

P/N PCB contacts, page 11

A

B

C

D

E

F

G

H

J

30,20

34,90

38,10

41,30

44,50

49,20

52,40

55,60

58,70

27,00

31,80

34,90

38,10

41,30

46,00

49,20

52,40

55,60

3,00

3,70

15,75

18,90

22,10

25,25

29,95

31,55

34,70

37,90

41,10

11,90

14,90

17,90

21,90

24,90

27,90

30,90

33,90

36,90

21,82

24,99

29,77

32,91

36,12

39,25

42,47

45,61

49,25

11,00

14,00

18,00

23,00

29,00

35,00

38,00

46,00

55,00

6
