821-M0696: DescriptionTelecom Transformer, SOIC, 16 PINS; CategoryPower management transformer; File Size61KB，2 Pages; ManufacturerElec & Eltek; Websitehttp://www.eleceltek.com

Download Datasheet Parametric View All

821-M0696 Overview

Telecom Transformer, SOIC, 16 PINS

821-M0696 Parametric

Parameter Name	Attribute value
Maker	Elec & Eltek
package instruction	SOIC, 16 PINS
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BREADTH & HEIGHT DIM. INCLUDES TERMINALS ALSO; TURNS RATIO: 1:1
high	5.08 mm
length	12.7 mm
Manufacturer's serial number	821-M0696
Installation features	SURFACE MOUNT
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	TAPE & REEL
physical size	12.7mm X 9.4mm X 5.08mm
surface mount	YES
Transformer type	TELECOM TRANSFORMER
width	9.4 mm

Preview

Download Datasheet

View All

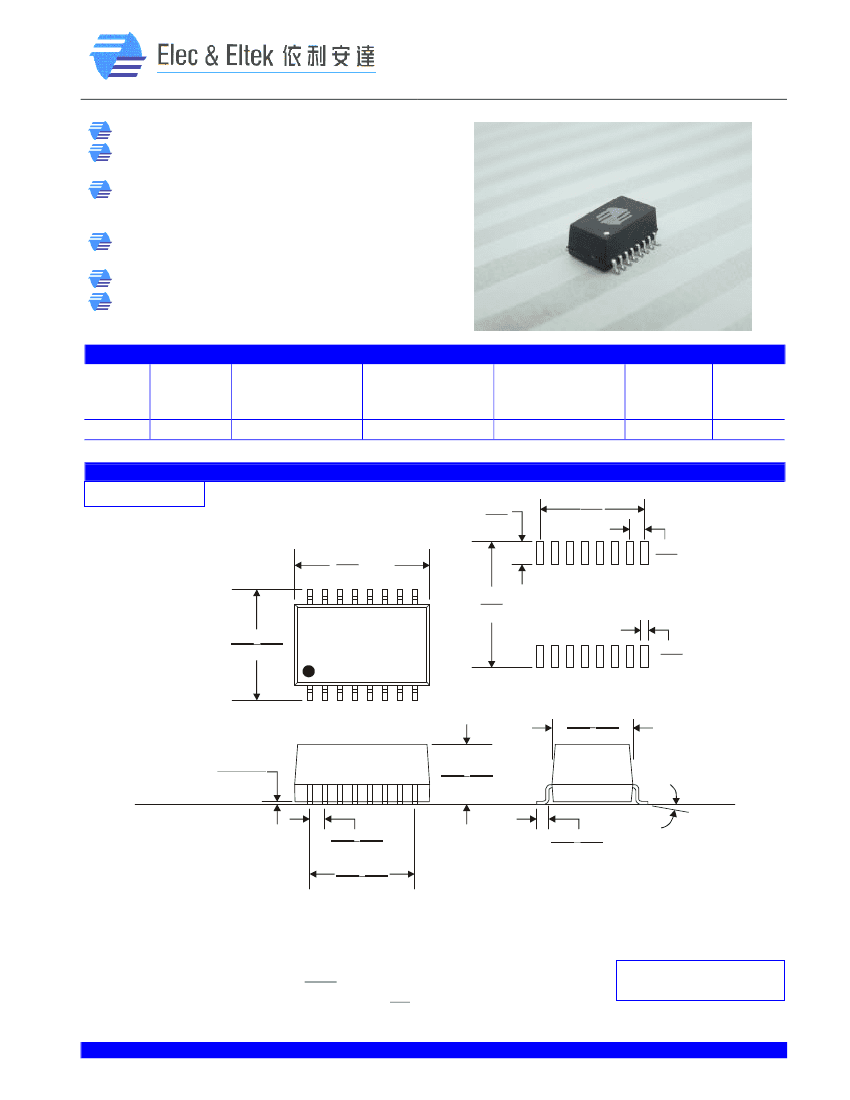

E & E Magnetic Products Limited

E4/STM-1/STS-3/OC-3 TRANSFORMER

Dual, SOIC, 16 Pin,

Extended Temperature Range

Compliant with ITU-T/G.703

Supports 139.264 (E4) and 155.52 (STM-1) Mbps for

Coded Mark Inversion (CMI) interfaces

Designed to interface with AMCC’s chip sets

S3015/S3016 and S3031B for use with 75

Ω

coaxial

cable

Dual design supports transmit and receive circuitry or

PHY chip transmit cable and monitor outputs

Designed for fast rise time and low signal distortion

Extended temperature range of -40

°

C to +85

°

C

E

LECTRICAL

S

PECIFICATION

@25°C

Part

Number

821-M0696

Turns Ratio

(Pri : Sec ± 5%)

1:1

Primary

Inductance

OCL (uH Min)

@ 20m Vrms, 100kHz

42.0

Leakage

Inductance

LL

(nH Max)

100

Interwinding

Capacitance

Cww

(pF Max)

6.0

DC

Resistance

DCR

(Ω Max)

0.25

Hipot

(Vrms Min)

1500

M

ECHANICAL

D

IMENSIONS

Package: SO016A

.075

1.91

.350

8.89

.050

1.27

.500

12.70 MAX

.420

10.67

.370

±

.010

9.40

±

0.25

EE

1M0696

(DATE)

.025

0.64

Recommended

Pad Layout

.270

±

.005

6.86

±0.13

.005-.020

0.13-0.51

.200

±

.010

5.08

±

0.25

REFERENCE OR

GAUGE PLANE

.050

±

.005

1.27

±

0.13

.350

±

.010

8.89

±

0.25

.035

±

.010

0.89

±0.25

0-8°

Note :

All dimensions are specified in

inches

with higher precedence in inches.

mm

.010

Unless otherwise specified, all tolerances are

±

.

0.25

Weight (in gram)

Tape & Reel

:

1.0 typ.

600 / reel

Unit B10, 3/F., 94 Tokwawan Road, Kowloon, Hong Kong • Tel: (852) 2954 3333 • Fax: (852) 2954 3304

Preliminary

1

TE401(01) Revised in 03/09
