BC368D26Z datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC368D26Z

BC368D26Z: DescriptionSmall Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92; CategoryDiscrete semiconductor The transistor; File Size125KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BC368D26Z Overview

Small Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92

BC368D26Z Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Fairchild
package instruction	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum collector current (IC)	2 A
Collector-emitter maximum voltage	20 V
Configuration	SINGLE
Minimum DC current gain (hFE)	60
JEDEC-95 code	TO-92
JESD-30 code	O-PBCY-T3
JESD-609 code	e3
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	ROUND
Package form	CYLINDRICAL
Polarity/channel type	NPN
Maximum power dissipation(Abs)	0.8 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal location	BOTTOM
transistor applications	SWITCHING
Transistor component materials	SILICON
Nominal transition frequency (fT)	45 MHz

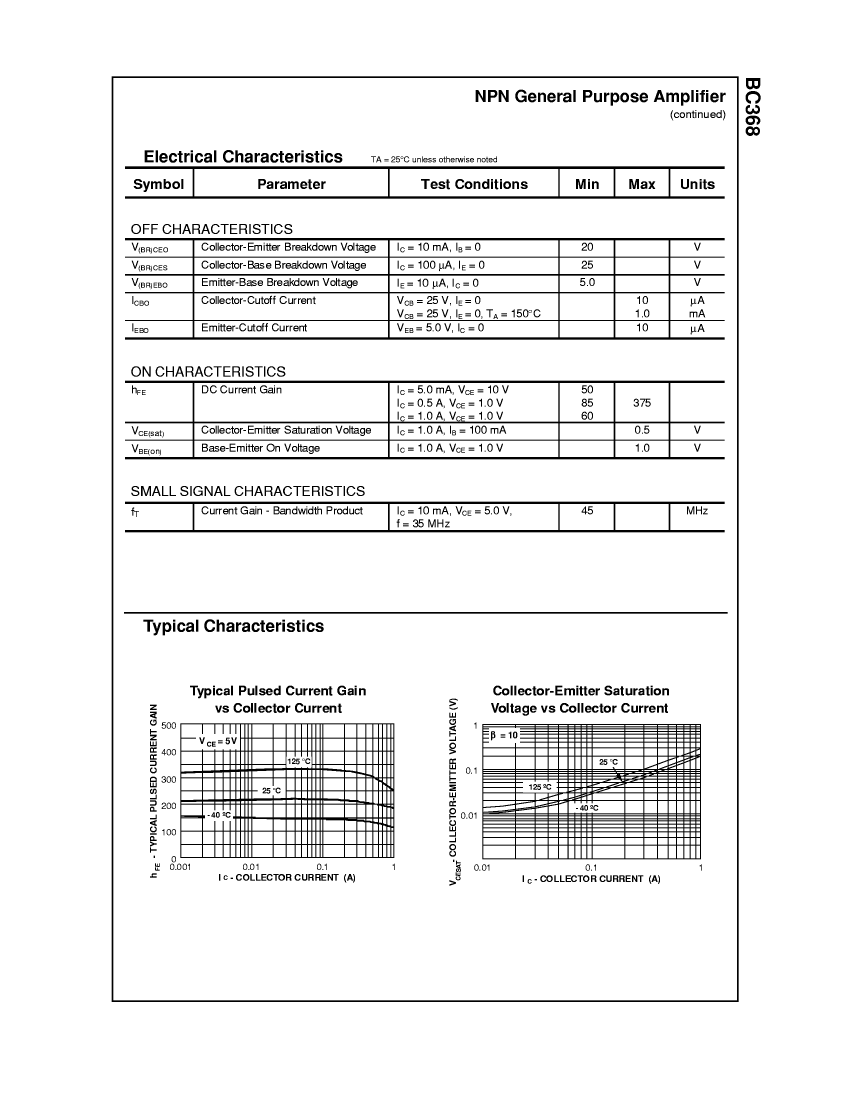

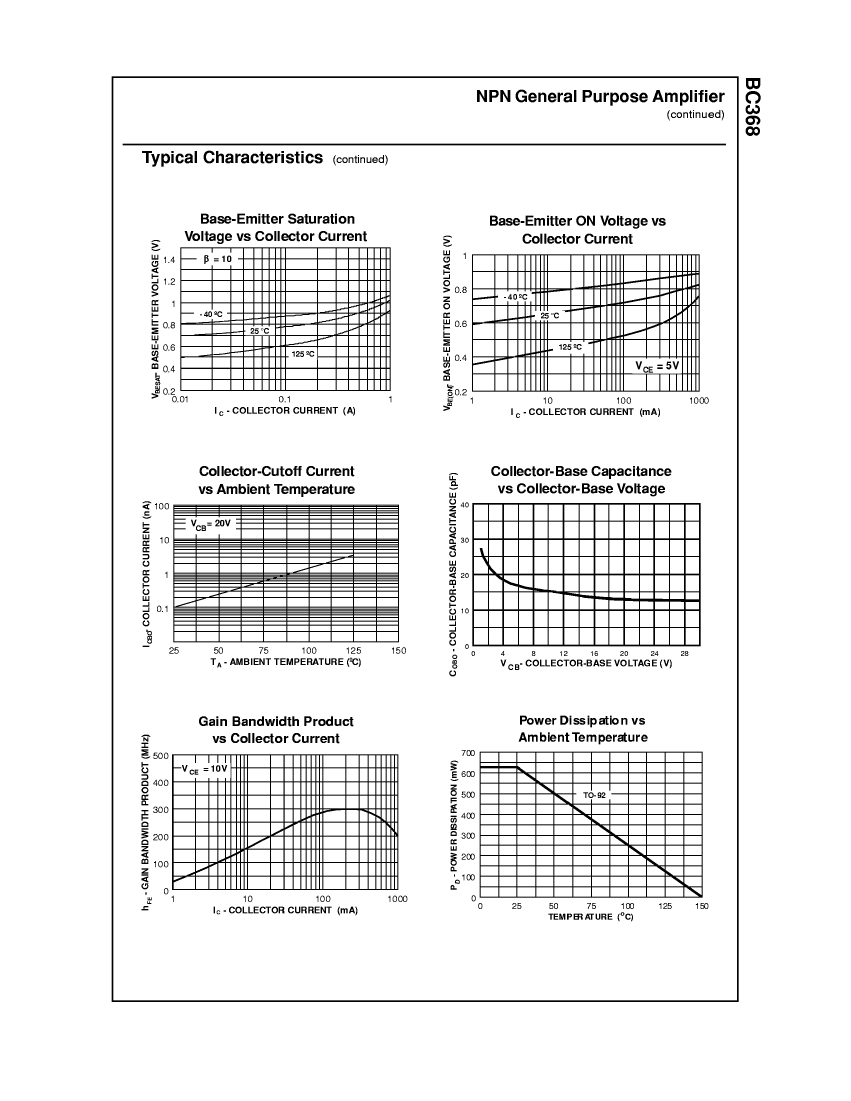

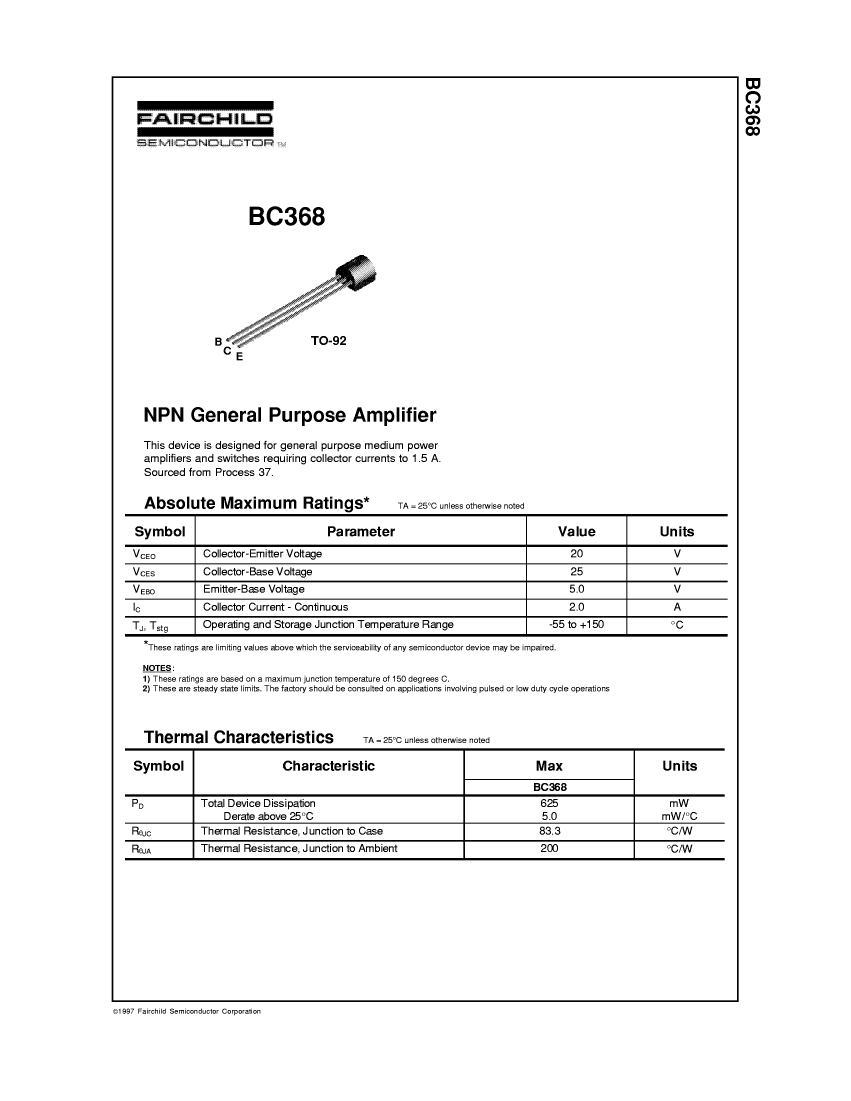

Preview

Download Datasheet

View All

BC368D26Z Related Products

	BC368D26Z	BC368D27Z	BC368D75Z	BC368J18Z	BC368J05Z
Description	Small Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92	Small Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 3 PIN	Small Signal Bipolar Transistor, 2A I(C), 20V V(BR)CEO, 1-Element, NPN, Silicon, TO-92, 3 PIN
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
package instruction	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3	CYLINDRICAL, O-PBCY-T3
Reach Compliance Code	compliant	compliant	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum collector current (IC)	2 A	2 A	2 A	2 A	2 A
Collector-emitter maximum voltage	20 V	20 V	20 V	20 V	20 V
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Minimum DC current gain (hFE)	60	60	60	60	60
JESD-30 code	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3	O-PBCY-T3
Number of components	1	1	1	1	1
Number of terminals	3	3	3	3	3
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	ROUND	ROUND	ROUND	ROUND	ROUND
Package form	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL	CYLINDRICAL
Polarity/channel type	NPN	NPN	NPN	NPN	NPN
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	BOTTOM	BOTTOM	BOTTOM	BOTTOM	BOTTOM
transistor applications	SWITCHING	SWITCHING	SWITCHING	SWITCHING	SWITCHING
Transistor component materials	SILICON	SILICON	SILICON	SILICON	SILICON
Nominal transition frequency (fT)	45 MHz	45 MHz	45 MHz	45 MHz	45 MHz
JEDEC-95 code	TO-92	TO-92	TO-92	-	-
