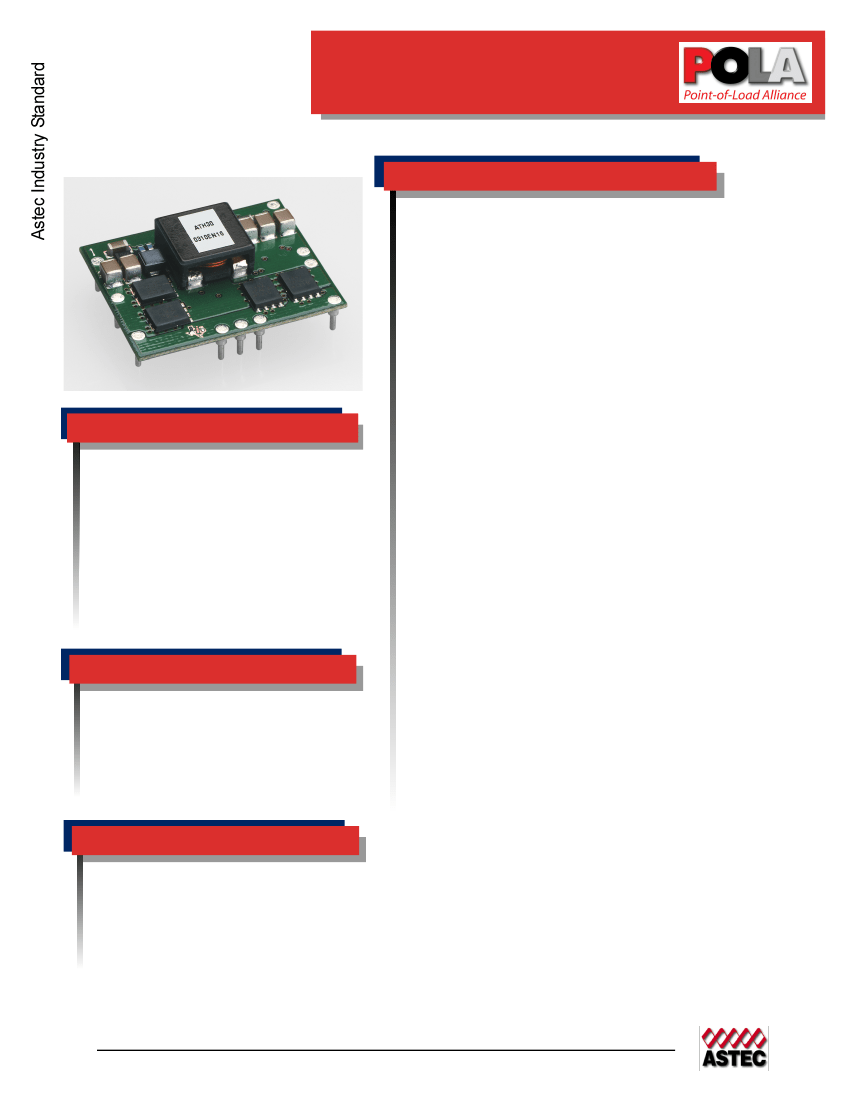

30Amps
ATH30
PRELIMINARY
Total Power:
Input Voltages:
No. of Outputs:
143W
3.3V, 5V, 12V
Single
Electrical Specs
Input
Input Range
3.0 - 3.6V
4.5 - 5.5V
10.8 - 13.2V
Under Voltage Lockout with hysterisis
Efficiency
up to 92%
Output
Overall Regulation
Noise/Ripple
Remote sense
Transient Response
1% of Vo Typ
40mV Typ (2.5Vo and below)
1% Vo Typ (Vo > 2.5V)
Up to 300mV max
100mV typical for 3.3Vo
for 50% to 100% I
O,MAX
step change
70us recovery time (Co = 330uF)
155% I
O,MAX
typical (autorecovery)
Special Features
•
•
•
•
•
•
•
•
•
•
•
Point-of-Load Alliance product
Open frame TH or SMT termination
Auto-Track™ Sequencing
Margin Up/Down Controls
Remote sense compensation
Output Voltage Adjust (Resistor Programming)
Under Voltage Lockout
Pre-Biased start-up
Output On/Off Inhibit
-40°C to +85°C Ambient Air Operation
Non Isolated module
Over Current Protection
Control
Inhibit On/Off
Output Voltage Adjust
Output Margin
Output Auto-Track™
Positive Enable Logic
See output range on page 2
±5% V
O,NOM
(See Note 5)
Environmental
Ambient air operating temperature range:
-40°C to +85°C
Storage temperature: -40°C to +125°C
Calculated MTBF: > TBA
Specifications subject to change without notice
Safety
UL,cUL 60950 Recognition (Pending)
EN 60950 though TUV or VDE (Pending)
2
North America (USA): 1-888-41-ASTEC
Europe (UK): 44 (1384) 842-211Asia (HK): 852-2437-9662
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone: 44 (1384) 842-211
Facsimile: 44 (1384) 843-355
ASIA
Units 2111-2116, Level 21
Tower1, Metroplaza
223, Hing Fong Road
Fwai Fong, New Territories
Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
Ordering Information
Input
Voltage
3.0V to 3.6V
4.5V to 5.5V
10.8V to 13.2V
Output
Voltage
0.8V to 2.5V
0.8V to 3.6V
1.2V to 5.5V
Output
2
Current
30A
30A
26A
Efficiency
3
Model Number
93%
94%
94%
ATH30T033-9(S)(J)
ATH30T05-9(S)(J)
ATH26K12-9(S)(J)
OPTIONS:
“-9J” - Output Trim, TH termination, Tray Packaging
“-9SJ” - Output Trim, SMT termination, Tray Packaging
“-9S” - Output Trim, SMT Ternination, T&R packaging
Pin Assignments
Single Output
GND
Vin
Inhibit
Vo Adjust
Vo Sense
Vout
GND
Track
Margin Down
Margin Up
:
:
:
:
:
:
:
:
:
:
PINS
1, 3
2
4
5
6
8, 9
7, 10
11
12
13
Notes:
1. Nominal values apply with sense pins
connected to +Vout and Ground Return
with other control pins unconnected.
2. Output derating applies at elevated
ambient temperature.
3. Typical efficiency taken at 20A load, 2.5V
output (3.3Vin device); 20A load, 3.3V
output (5Vin device); 18A load, 5V output
(12Vin device).
4. Mechanical Dimensions are nominal values.
5. Consult the technical reference notes when
available.
6. Auto-Track™ is a trademark of Texas
Instruments.
7. Specification subject to change without
notice.

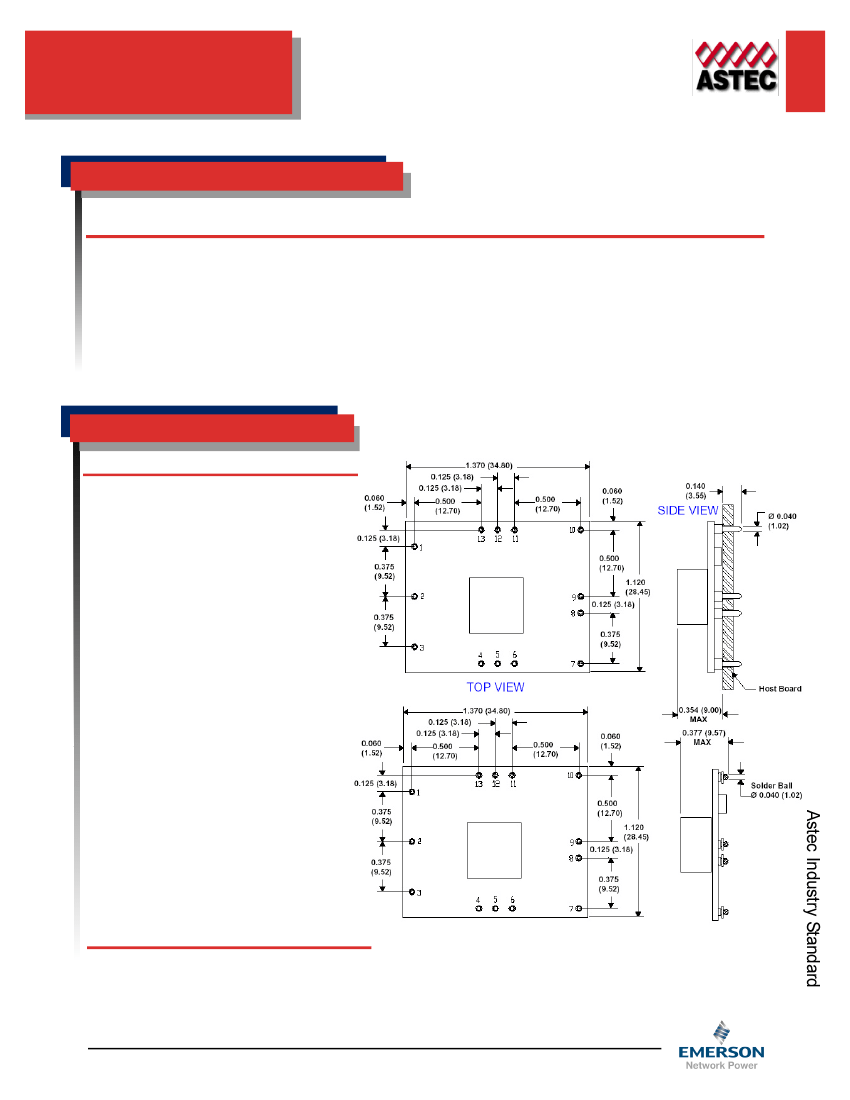

Through-hole and SMT Outline [in (mm)]
* This is a Preliminary Data Sheet. Astec reserves the right to
make changes to the information contained herein without notice
and assumes no liability as a result of its use or application.
(REV01: JULY 31, 2003)
www.astecpower.com
3
