D8156H datasheet, PDF - EEWORLD Datasheet

D8156H: DescriptionParallel I/O Port, 14-Bit, 256X8, 22 I/O, NMOS, CDIP40, CERDIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size374KB，14 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric View All

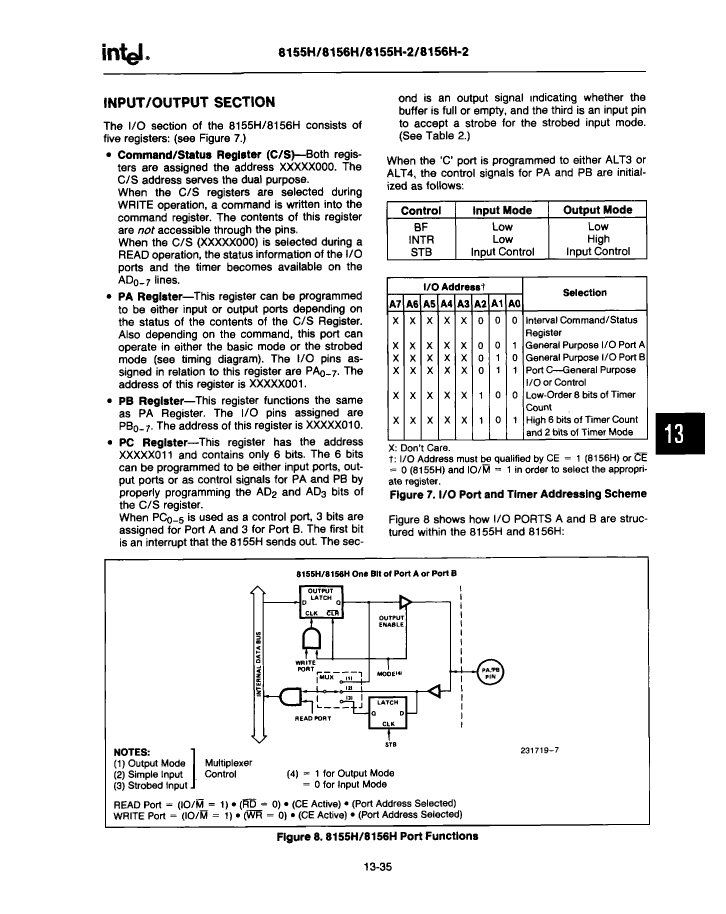

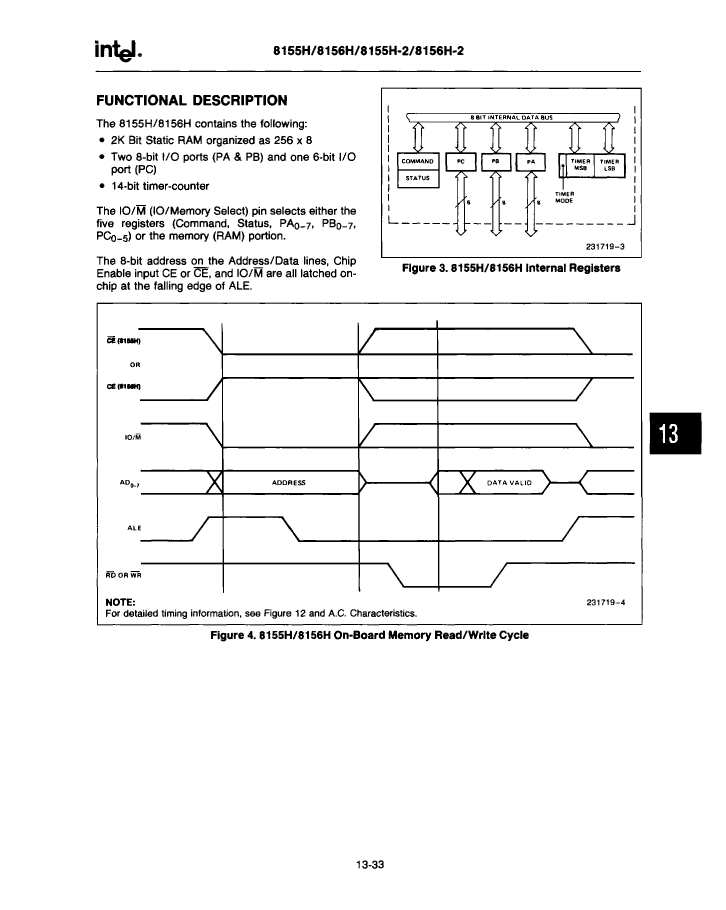

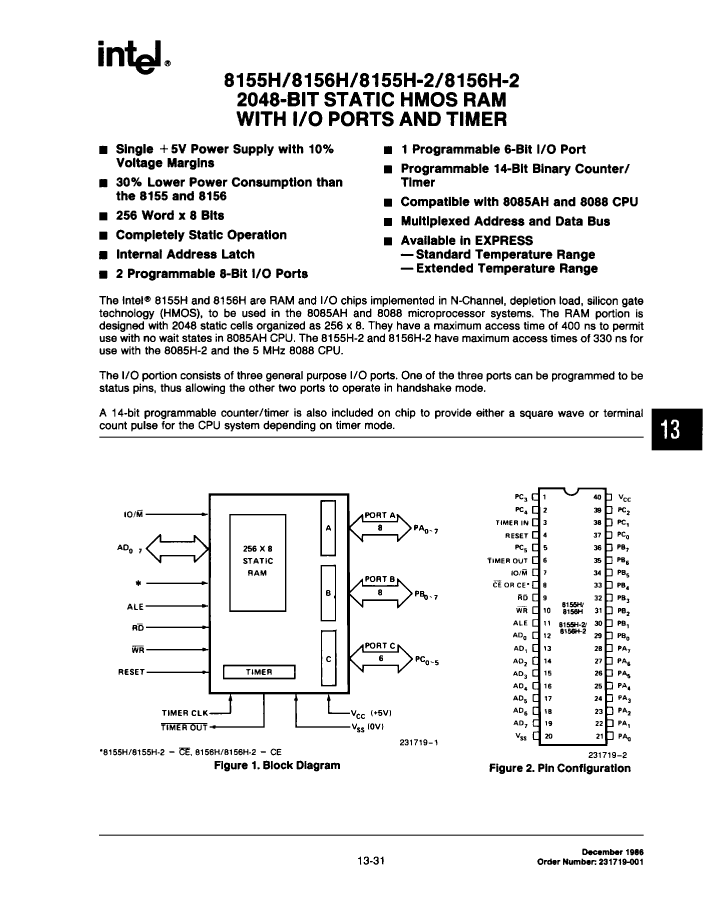

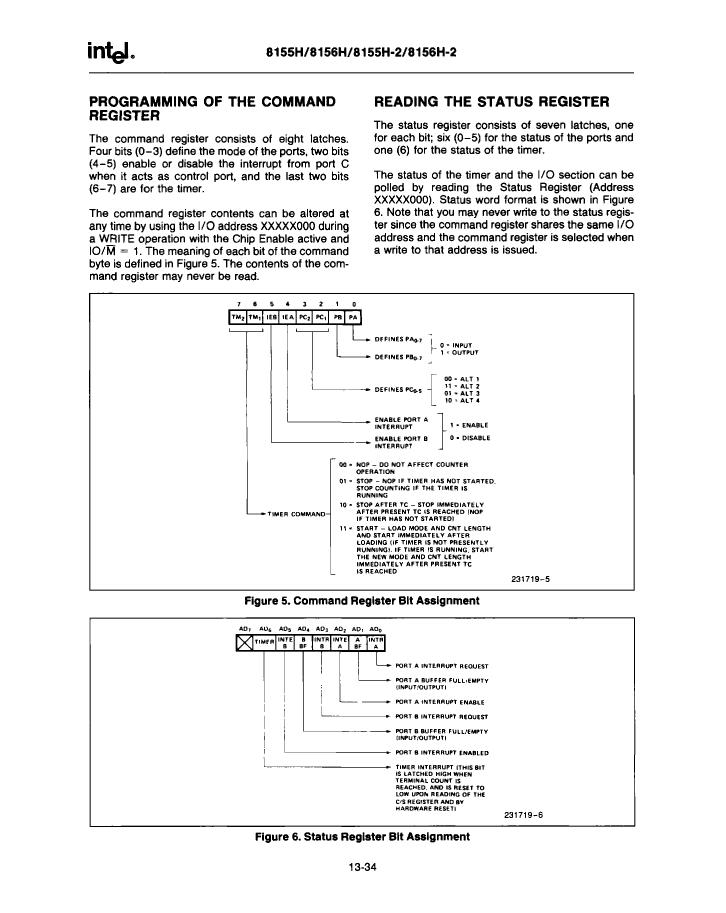

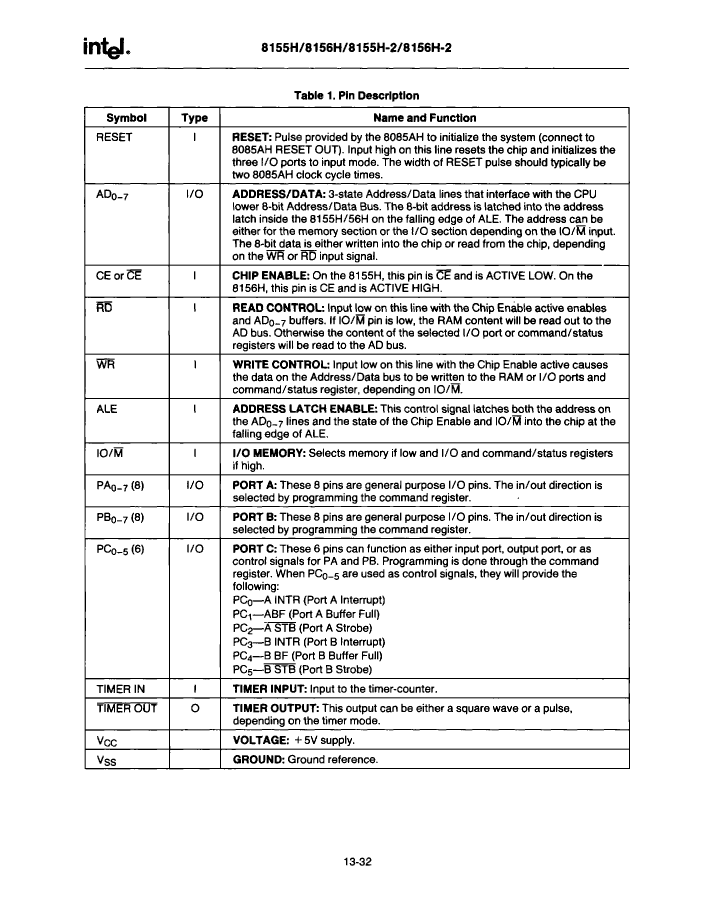

D8156H Overview

Parallel I/O Port, 14-Bit, 256X8, 22 I/O, NMOS, CDIP40, CERDIP-40

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	compliant
ECCN code	EAR99
CPU series	8085
External data bus width	8
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
length	52.325 mm
memory organization	256X8
Number of digits	14
Number of I/O lines	22
Number of ports	3
Number of terminals	40
Number of timers	1
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.72 mm
Maximum slew rate	125 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	PARALLEL IO PORT, GENERAL PURPOSE
