DS1237S-3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> DS1237S-3

DS1237S-3: DescriptionPower Management Circuit, CMOS, PDSO16; CategoryPower/power management The power supply circuit; File Size303KB，10 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

DS1237S-3 Overview

Power Management Circuit, CMOS, PDSO16

DS1237S-3 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
package instruction	SOP, SOP16,.25
Reach Compliance Code	not_compliant
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum supply current (Isup)	7 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

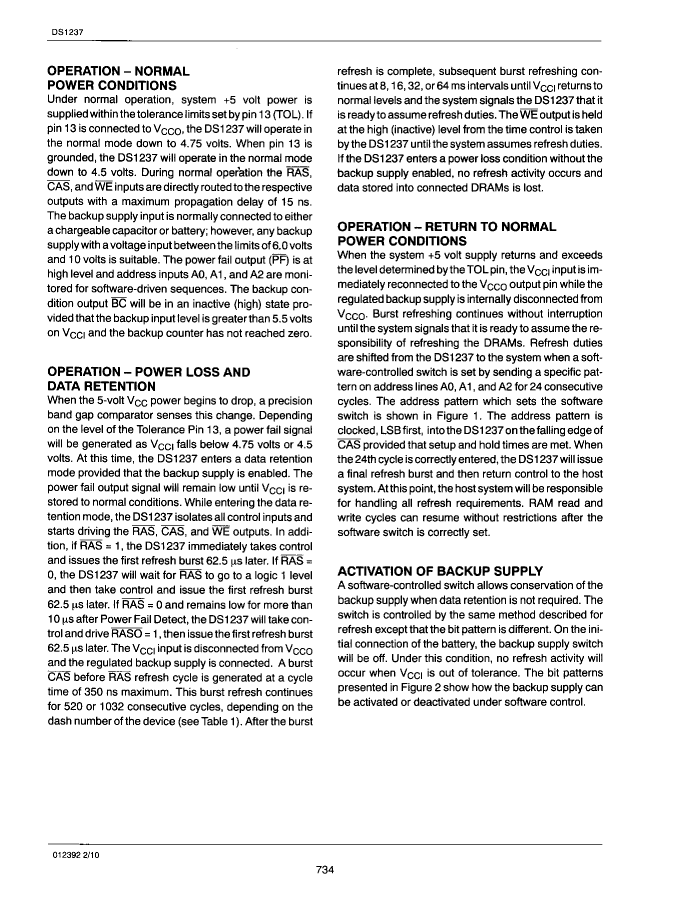

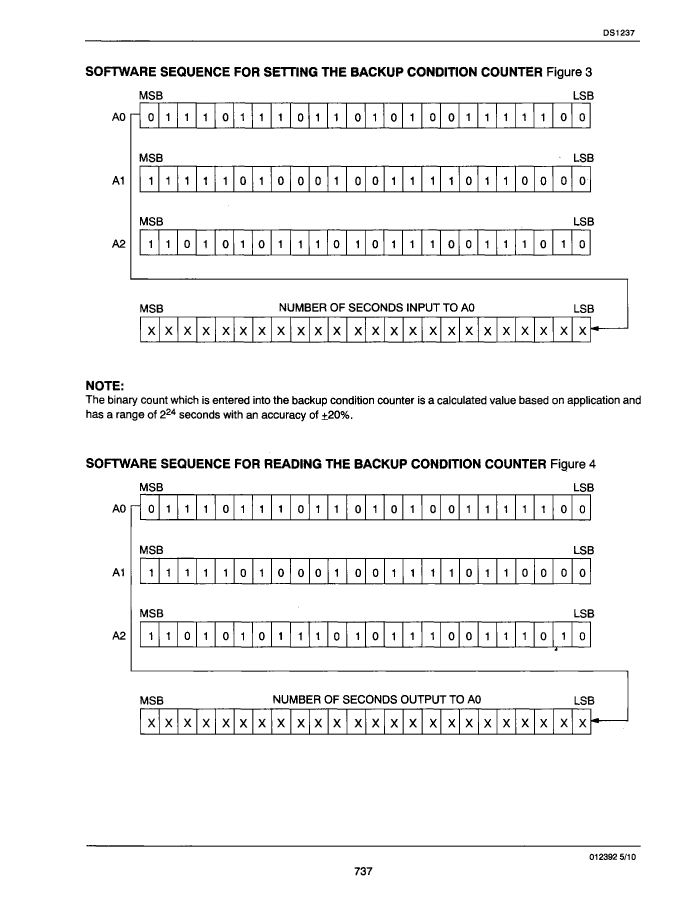

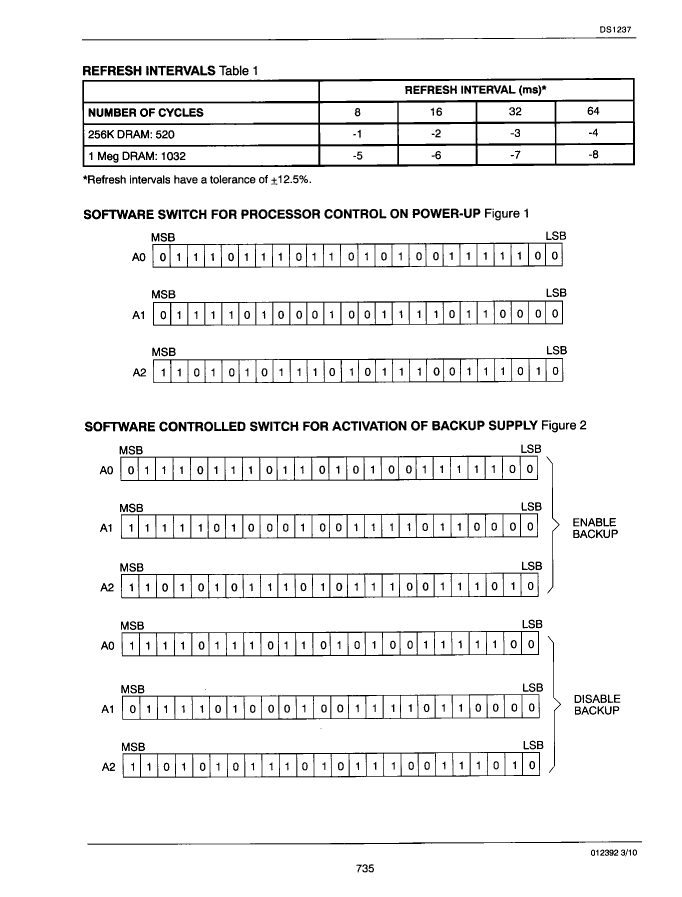

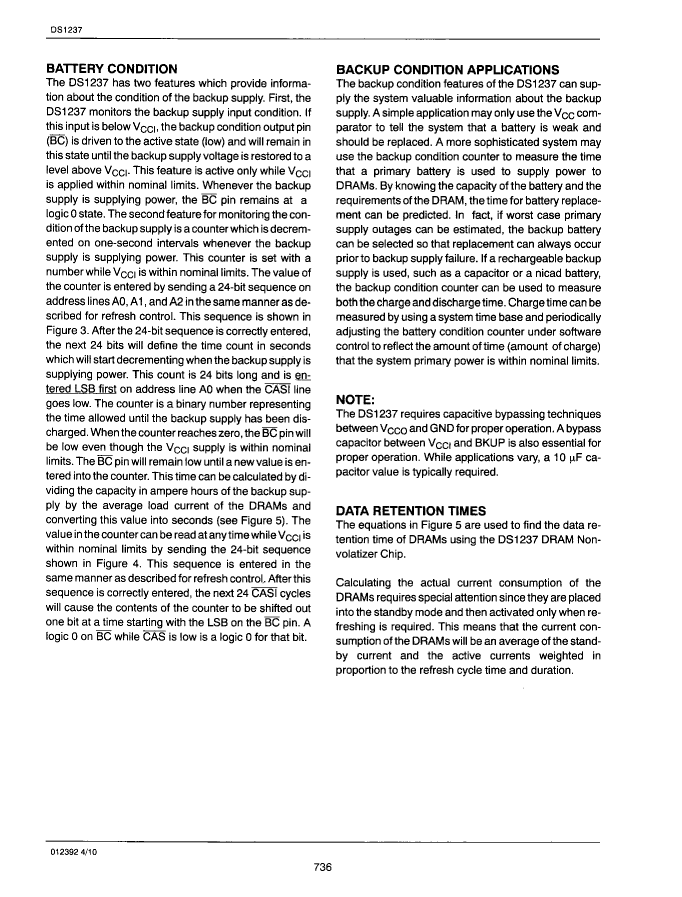

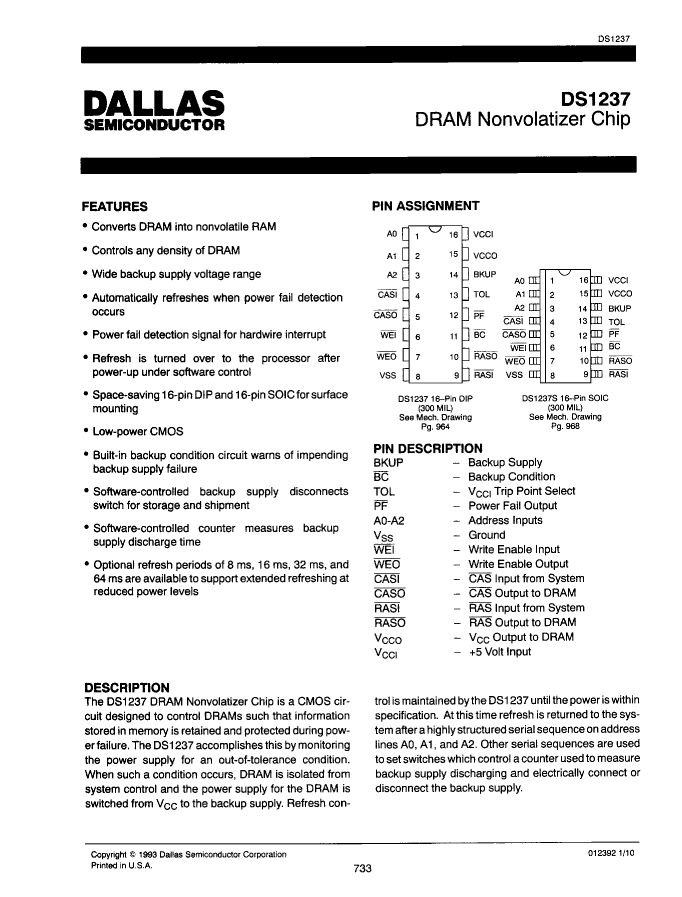

Preview

Download Datasheet

View All

DS1237S-3 Related Products

	DS1237S-3	DS1237S-5	DS1237S-1	DS1237-6	DS1237-8	DS1237S-8	DS1237S-6	DS1237-1	DS1237-2	DS1237-4
Description	Power Management Circuit, CMOS, PDSO16	Power Management Circuit, CMOS, PDSO16	Power Management Circuit, CMOS, PDSO16	Power Management Circuit, CMOS, PDIP16	Power Management Circuit, CMOS, PDIP16	Power Management Circuit, CMOS, PDSO16	Power Management Circuit, CMOS, PDSO16	Power Management Circuit, CMOS, PDIP16	Power Management Circuit, CMOS, PDIP16	Power Management Circuit, CMOS, PDIP16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim	Maxim
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G16	R-PDSO-G16	R-PDIP-T16	R-PDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	16	16	16	16	16	16	16	16	16	16
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	DIP	DIP	SOP	SOP	DIP	DIP	DIP
Encapsulate equivalent code	SOP16,.25	SOP16,.25	SOP16,.25	DIP16,.3	DIP16,.3	SOP16,.25	SOP16,.25	DIP16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply current (Isup)	7 mA	7 mA	7 mA	7 mA	7 mA	7 mA	7 mA	7 mA	7 mA	7 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	NO	YES	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Is Samacsys	-	N	N	N	N	N	N	N	N	N
Base Number Matches	-	1	1	1	1	1	1	1	1	1
