SMRA46 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> SMRA46

SMRA46: DescriptionCascadable Amplifier 1000 to 4000 MHz; CategoryWireless rf/communication Radio frequency and microwave; File Size176KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SMRA46 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SMRA46	-	-	View	Buy Now

SMRA46 Overview

Cascadable Amplifier 1000 to 4000 MHz

SMRA46 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MACOM
Reach Compliance Code	compli
Other features	LOW NOISE, I/P POWER-MAX (PEAK)=24DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	23.5 dB
Maximum input power (CW)	7 dBm
Maximum operating frequency	4000 MHz
Minimum operating frequency	1000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-54 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.1

Preview

Download Datasheet

View All

RA46/SMRA46

Cascadable Amplifier

1000 to 4000 MHz

Features

•

ULTRAWIDE BANDWIDTH: 0.8-4.2 GHz (TYP.)

HIGH GAIN: 25.5 dB (TYP.)

HIGH OUTPUT POWER: +19.0 dBm (TYP.)

LOW NOISE: 4.5 dB (TYP.)

Rev. V3

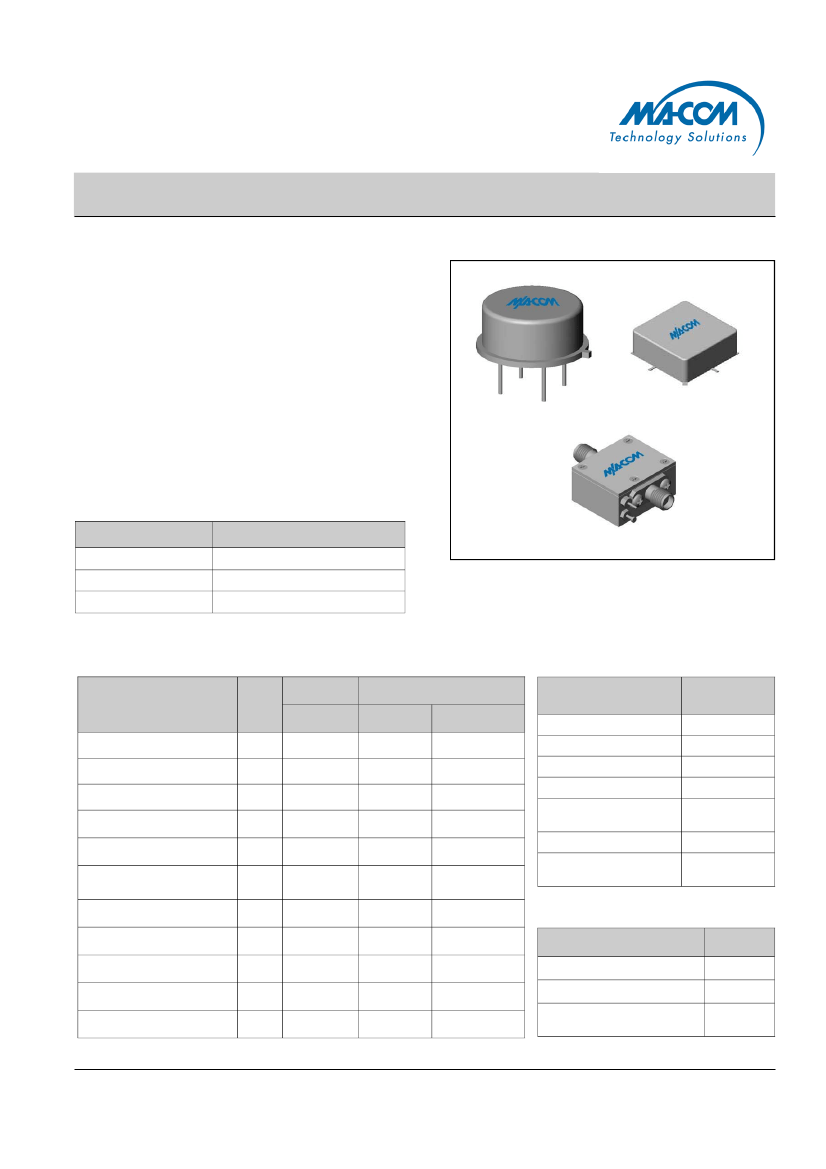

Product Image

Description

The RA46 RF amplifier is a discrete hybrid design, which uses

thin film manufacturing processes for accurate performance

and high reliability.

This two stage GaAs FET feedback amplifier design displays

impressive performance characteristics over a broadband

frequency range. Both TO-8B and Surface Mount packages

are hermetically sealed, and MIL-STD-883 environmental screen-

ing is available

An SMA connectorized self assembly kit is also

available for the TO-8B module.

Ordering Information

Part Number

RA46

SMRA46

MAAM-008740-0CRA46

Package

TO-8B

Surface Mount

SMA Connectorized **

** The connectorized version is not RoHs compliant.

Electrical Specifications: Z

= 50Ω, V

= +12 V

Typical

Parameter

Frequency

Small Signal Gain (min)

Gain Flatness (max)

Reverse Isolation

Noise Figure (max)

Power Output

@ 1 dB comp. (min)

IP3

IP2

Second Order Harmonic IP

VSWR Input / Output (max)

DC Current @ 12 Volts (max)

Absolute Maximum Ratings

Parameter

Storage Temperature

Case Temperature

DC Voltage

Continuous Input Power

Short Term Input power

(1 minute max.)

Peak Power (3 µsec max.)

“S” Series Burn-In

Temperature (case)

Guaranteed

0º to 50ºC

1.0-4.0

24.0

±1.0

Units

25ºC

GHz

dBm

0.8-4.2

26.0

±0.8

4.0

20.0

+30

+50

+55

1.6:1 / 1.5:1

170

2.0:1 / 2.0:1

185

2.1:1 / 2.1:1

190

5.2

17.0

5.7

16.5

Absolute

Maximum

-62ºC to +125ºC

85ºC

+13 V

+7 dBm

100 mW

0.25 W

85ºC

-54º to +85ºC*

1.0-4.0

23.5

±1.2

Thermal Data: V

= +12 V

Parameter

Thermal Resistance

Transistor Power Dissipation P

Junction Temperature Rise

Above Case T

Rating

146ºC/W

0.49 W

72ºC

ADVANCED:

Data Sheets contain information regarding a product M/A-COM Technology Solutions

•

North America

Tel: 800.366.2266 •

Europe

Tel: +353.21.244.6400

is considering for development. Performance is based on target specifications, simulated results,

•

India

Tel: +91.80.43537383

•

China

Tel: +86.21.2407.1588

and/or prototype measurements. Commitment to develop is not guaranteed.

Visit www.macomtech.com for additional data sheets and product information.

PRELIMINARY:

Data Sheets contain information regarding a product M/A-COM Technology

Solutions has under development. Performance is based on engineering tests. Specifications are

typical. Mechanical outline has been fixed. Engineering samples and/or test data may be available.

M/A-COM Technology Solutions Inc. and its affiliates reserve the right to make

Commitment to produce in volume is not guaranteed.

changes to the product(s) or information contained herein without notice.

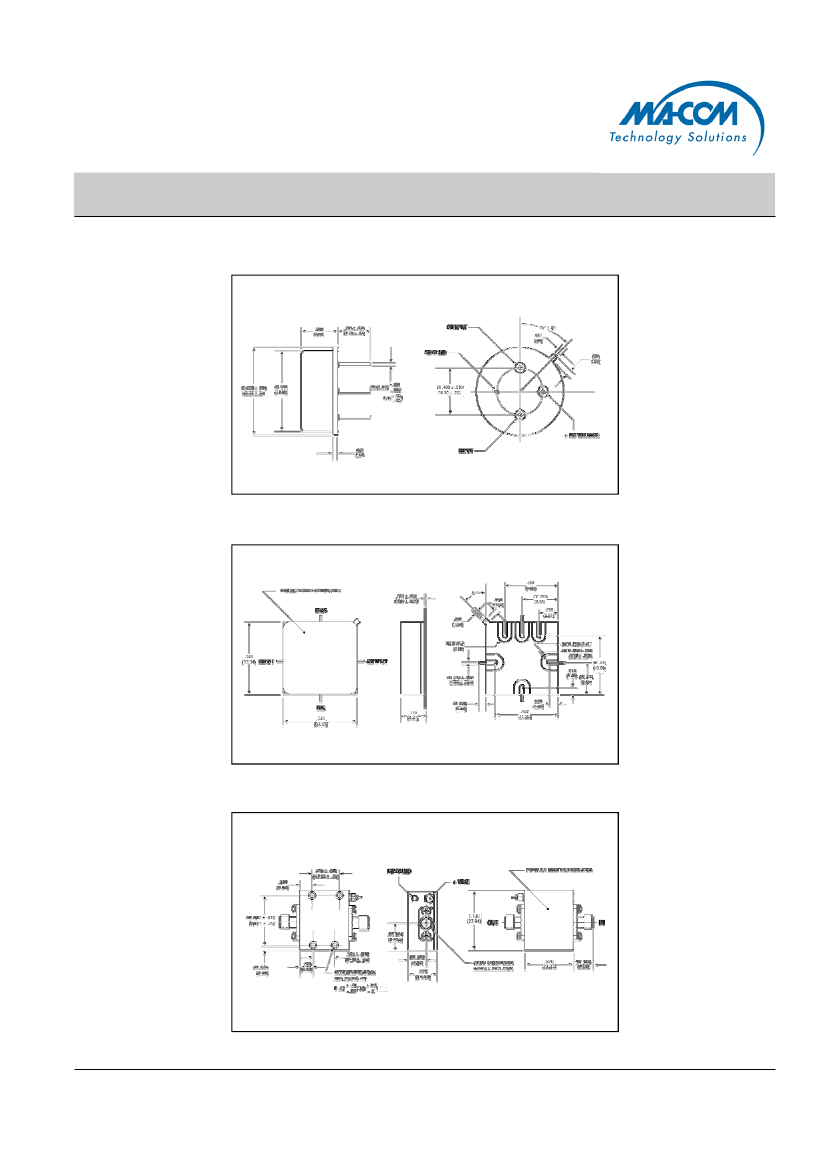

SMRA46 Related Products

	SMRA46	RA46
Description	Cascadable Amplifier 1000 to 4000 MHz	Cascadable Amplifier 1000 to 4000 MHz
Is it Rohs certified?	conform to	incompatible
Maker	MACOM	MACOM
Reach Compliance Code	compli	compli
Other features	LOW NOISE, I/P POWER-MAX (PEAK)=24DBM	LOW NOISE, I/P POWER-MAX (PEAK)=24DBM
Characteristic impedance	50 Ω	50 Ω
structure	COMPONENT	COMPONENT
Gain	23.5 dB	23.5 dB
Maximum input power (CW)	7 dBm	7 dBm
Maximum operating frequency	4000 MHz	4000 MHz
Minimum operating frequency	1000 MHz	1000 MHz
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-54 °C	-54 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2.1	2.1
