L-31-53 datasheet, PDF - EEWORLD Datasheet

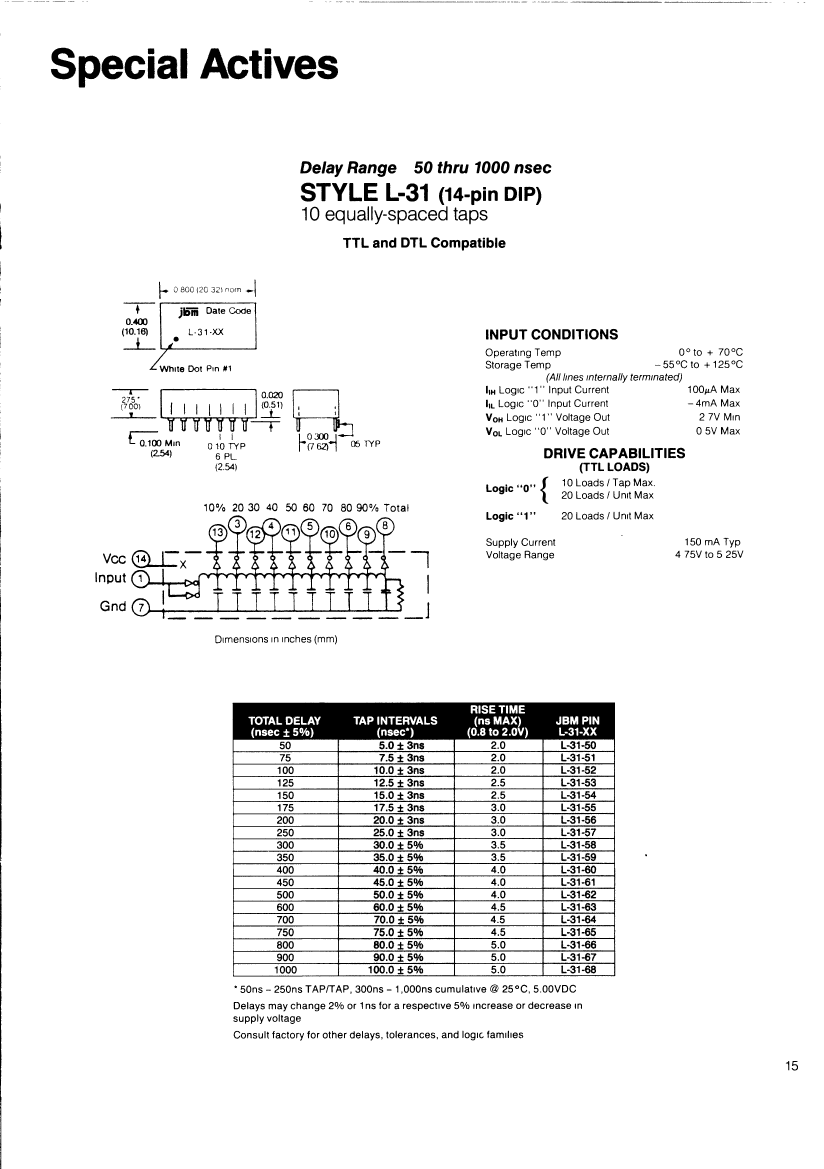

L-31-53: DescriptionActive Delay Line, 1-Func, 10-Tap, True Output, PDIP14, DIP-14; Categorylogic logic; File Size62KB，1 Pages; ManufacturerSIXNET; Websitehttp://www.sixnet.com/index.cfm

Download Datasheet Parametric View All

L-31-53 Overview

Active Delay Line, 1-Func, 10-Tap, True Output, PDIP14, DIP-14

Parameter Name	Attribute value
Maker	SIXNET
Parts packaging code	DIP
package instruction	DIP,
Contacts	14
Reach Compliance Code	unknown
JESD-30 code	R-PDIP-T14
length	20.32 mm
Load capacitance (CL)	10 pF
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	10
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	7.51 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	125 ns
width	7.62 mm
