MC14052BCPD datasheet, PDF - EEWORLD Datasheet

MC14052BCPD: DescriptionDifferential Multiplexer, 1 Func, 4 Channel, CMOS, PDIP16, 648-08; CategoryAnalog mixed-signal IC The signal circuit; File Size556KB，9 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

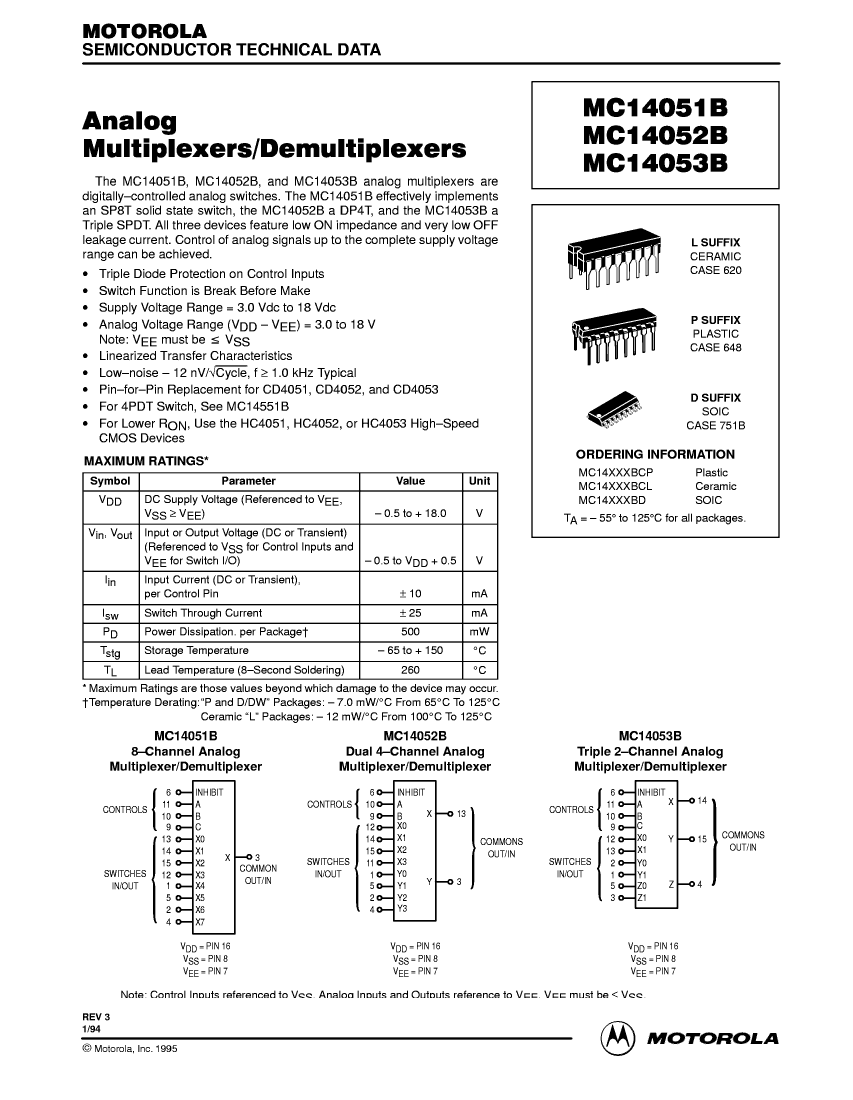

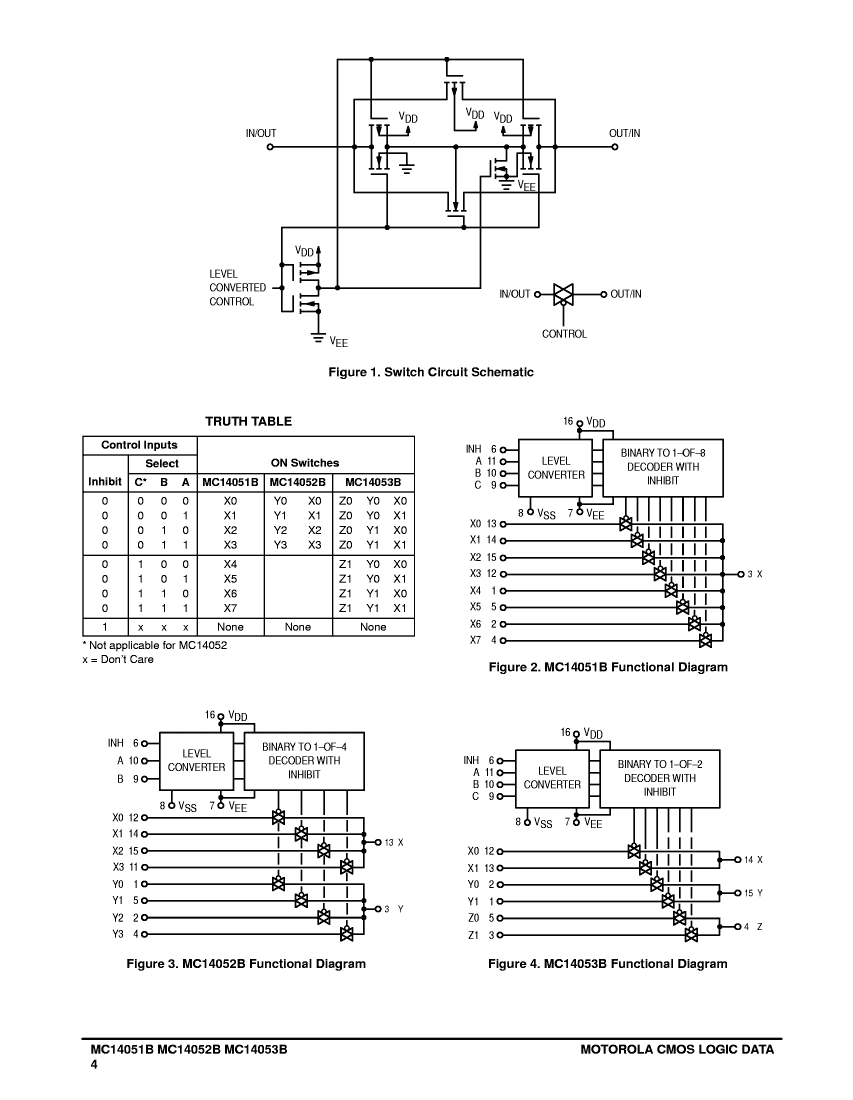

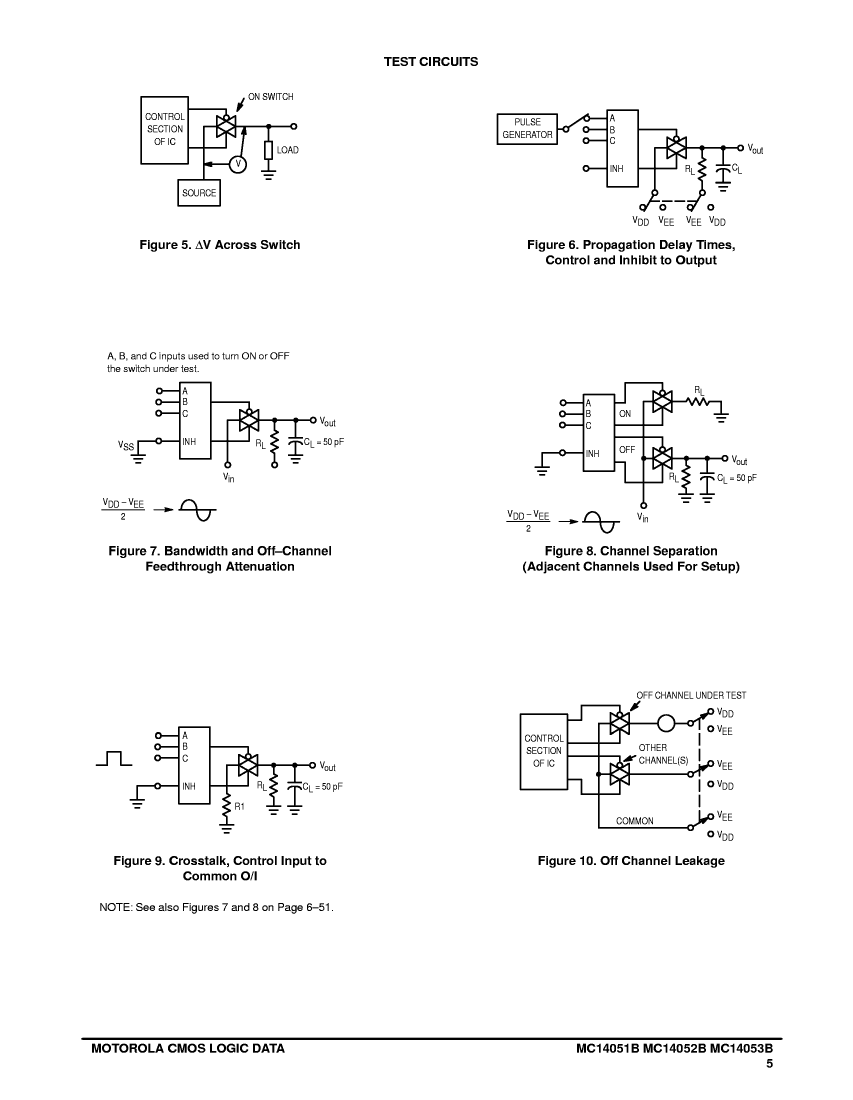

MC14052BCPD Overview

Differential Multiplexer, 1 Func, 4 Channel, CMOS, PDIP16, 648-08

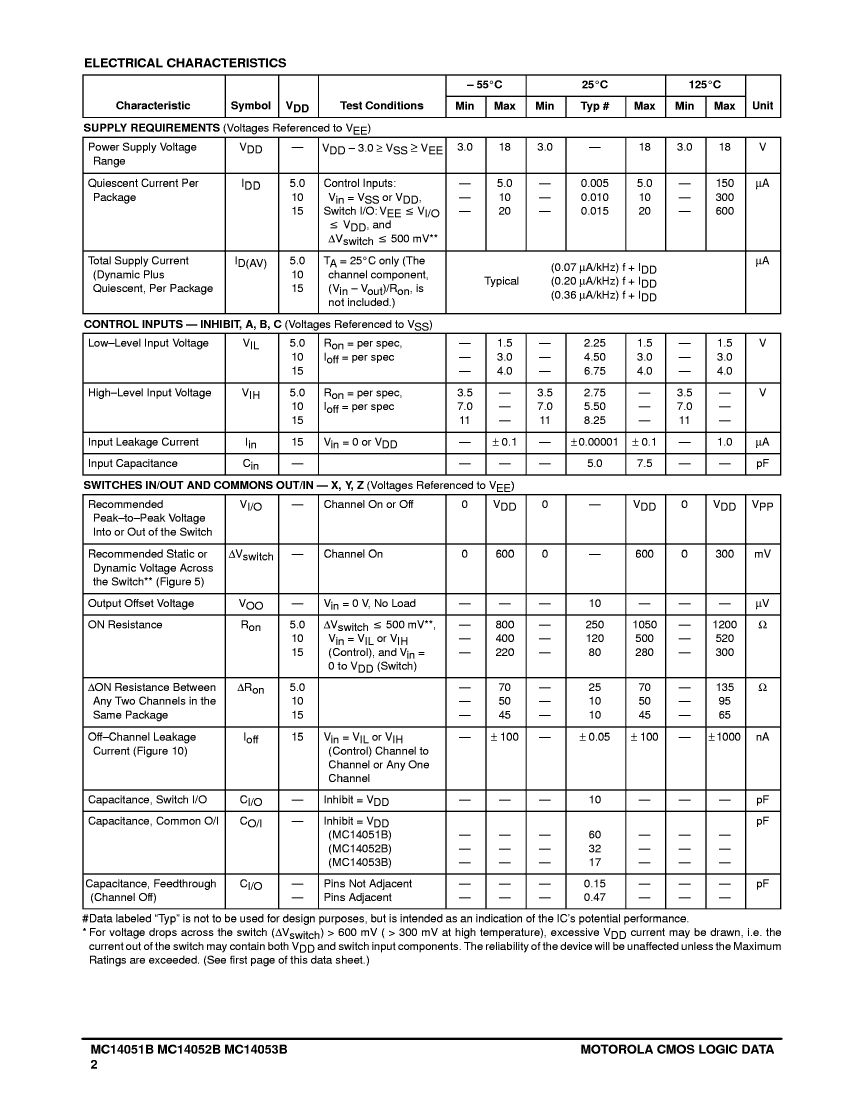

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDIP-T16
JESD-609 code	e0
length	19.175 mm
Nominal Negative Supply Voltage (Vsup)
Number of channels	4
Number of functions	1
Number of terminals	16
Nominal off-state isolation	50 dB
On-state resistance matching specifications	10 Ω
Maximum on-state resistance (Ron)	280 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/15 V
Certification status	Not Qualified
Maximum seat height	4.44 mm
Maximum supply current (Isup)	0.6 mA
Nominal supply voltage (Vsup)	15 V
surface mount	NO

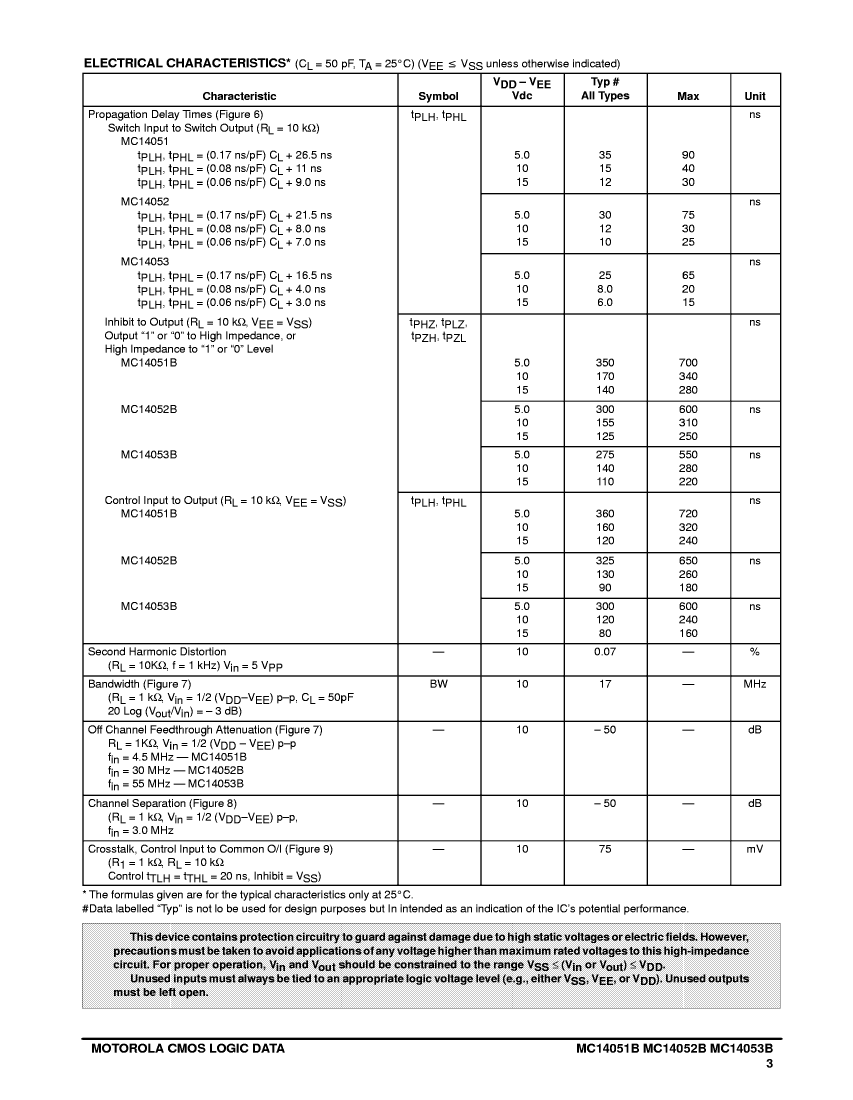

Maximum disconnect time	250 ns
Maximum connection time	250 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
