5240-44TUJ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5240-44TUJ

5240-44TUJ: DescriptionD Type Connector, 44 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size245KB，1 Pages; ManufacturerRatioplast Electronics; Environmental Compliance

Download Datasheet Parametric View All

5240-44TUJ Overview

D Type Connector, 44 Contact(s), Female, 0.09 inch Pitch, Solder Terminal, Locking, Plug

5240-44TUJ Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
body width	0.494 inch
body length	2.09 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLUE
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	5240
Plug contact pitch	0.09 inch
Match contact row spacing	0.078 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	3
Number of rows loaded	3
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact pattern	STAGGERED
PCB contact row spacing	1.9812 mm
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN OVER COPPER
Terminal pitch	2.286 mm
Termination type	SOLDER
Total number of contacts	44

Preview

Download Datasheet

View All

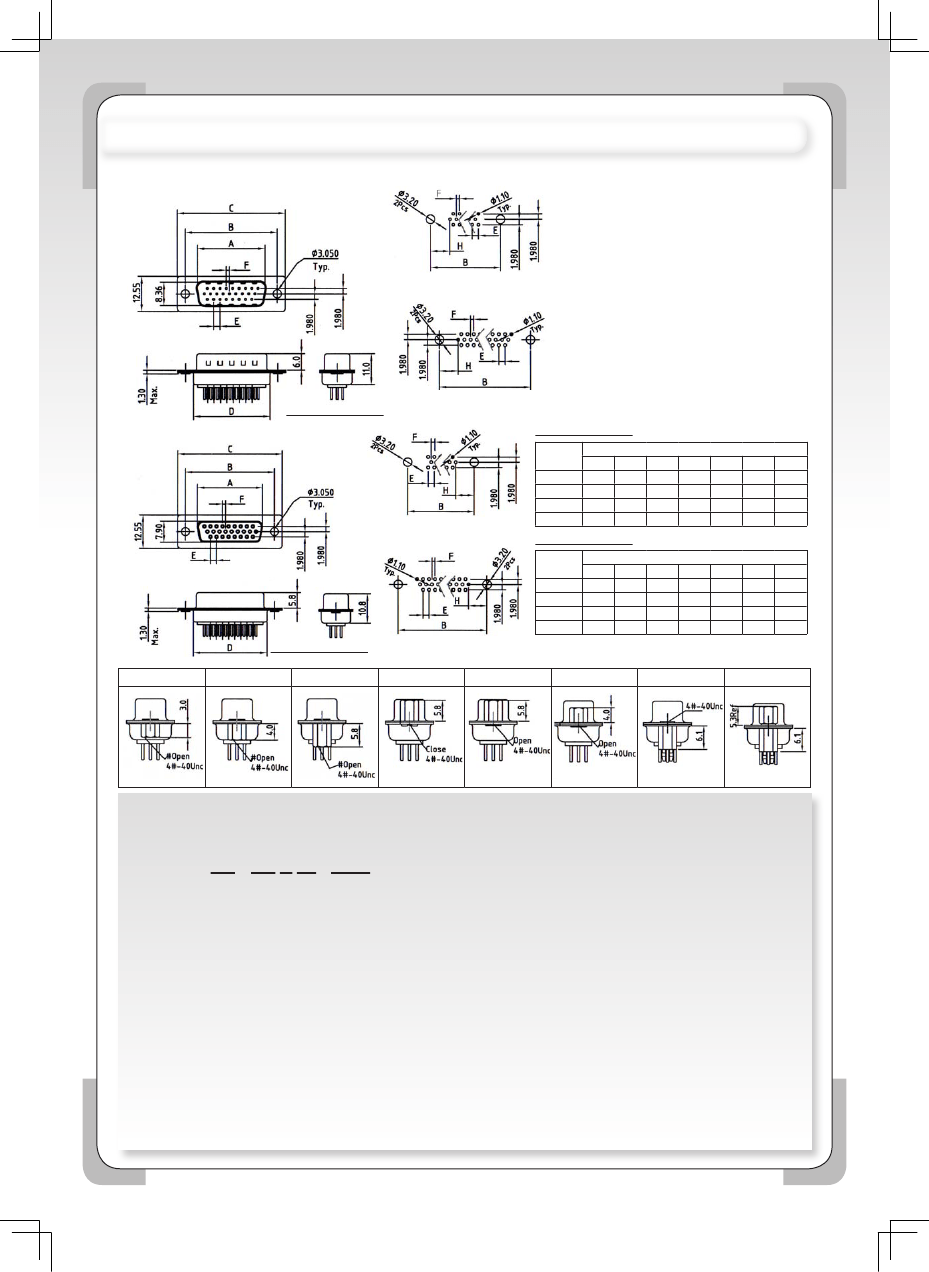

D-SUB. HIGH DENSITY CONNECTOR STRAIGHT PCB MOUNT TYPE

Recommended P.C.Board Layout

(15 POSITION)

Current Rating:

3A or 5A

Contact Resistance:

25mΩ Max.

Insulation Resistance:

1000MΩ Min. at 500V

Dielectric Voltage:

1000V at 1 Minute

Operating Temperature:

-55ºc to +105ºc

SPECIFICATIONS

MATERIALS

5229, 5237, 5239

Recommended P.C.Board Layout

(26, 44, 62 POSITION)

No. of

Contacts

Insulator:

PBT, UL94V-0 Rated

Contact:

Brass

Shell:

Brass,Steel

Contact Plating:

Gold Over Nickel Plated

Shell Plating:

Tin Over Copper Plated

*RoHS & REACH compliant.

5229, 5237, 5239

16.92

25.25

38.96

55.42

24.99

33.32

47.04

63.50

Dimensions(mm)

30.81 19.23 2.29

39.14 27.56 2.29

53.04 41.28 2.29

69.32 57.33 2.41

Dimensions(mm)

30.81 19.23 2.29

39.14 27.56 2.29

53.04 41.28 2.29

69.32 57.33 2.41

1.145

1.205

7.04

6.88

7.00

Recommended P.C.Board Layout

5230, 5238, 5240

(15 POSITION)

No. of

Contacts

16.33

24.66

38.38

54.84

24.99

33.32

47.04

63.50

1.145

1.205

7.04

6.88

7.00

5230, 5238, 5240

Recommended P.C.Board Layout

(26, 44, 62 POSITION)

J4T

BRJ

ORDERING INFORMATION:

P/N 5 2 x x - x x T W / x x x

2 3 4

1. CONNECTOR TYPE:

"29" MALE WITH SELECTIVE GOLD

PLATED STAMPED CONTACTS (3A)

"30" FEMALE WITH SELECTIVE GOLD

PLATED STAMPED CONTACTS (3A)

"37" MALE WITH FULL GOLD

PLATED MACHINED CONTACTS (5A)

"38" FEMALE WITH FULL GOLD

PLATED MACHINED CONTACTS (5A)

"39" MALE WITH FULL GOLD

PLATED STAMPED CONTACTS (3A)

"40" FEMALE WITH FULL GOLD

PLATED STAMPED CONTACTS (3A)

2. NO. OF CONTACTS:

15, 26, 44, 62, 78

3. SHELL FINISH:

"T" TIN PLATED

4. INSULATOR COLOR:

"W" WHITE (STANDARD)

"B" BLACK

"U" BLUE

5. MOUNTING OPTION:

" " Ø3.05MM THROUGH HOLES

OTHERS: K, K3, K6, J, JT, J4T, BR, BRJ

C0033
