DS1225Y
64k Nonvolatile SRAM
www.maxim-ic.com
FEATURES
10 years minimum data retention in the
absence of external power
Data is automatically protected during power
loss
Directly replaces 2k x 8 volatile static RAM
or EEPROM
Unlimited write cycles
Low-power CMOS
JEDEC standard 28-pin DIP package
Read and write access times of 150 ns
Full ±10% operating range
Optional industrial temperature range of
-40°C to +85°C, designated IND
PIN ASSIGNMENT
NC
A12
A7
A6
A5
A4
A3
A2
A1
A0
DQ0
DQ1
DQ2
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
16
15
VCC
WE
NC
A8
A9
A11
OE
A10
CE
DQ7
DQ6
DQ5
DQ4
DQ3
24-Pin ENCAPSULATED PACKAGE
720-mil EXTENDED
PIN DESCRIPTION
A0-A12
DQ0-DQ7
CE
WE
OE
V
CC
GND
- Address Inputs
- Data In/Data Out
- Chip Enable
- Write Enable
- Output Enable
- Power (+5V)
- Ground
DESCRIPTION
The DS1225Y 64k Nonvolatile SRAM is a 65,536-bit, fully static, nonvolatile RAM organized as 8192
words by 8 bits. Each NV SRAM has a self-contained lithium energy source and control circuitry which
constantly monitors V
CC
for an out-of-tolerance condition. When such a condition occurs, the lithium
energy source is automatically switched on and write protection is unconditionally enabled to prevent
data corruption. The NV SRAM can be used in place of existing 8k x 8 SRAMs directly conforming to
the popular bytewide 28-pin DIP standard. The DS1225Y also matches the pinout of the 2764 EPROM or
the 2864 EEPROM, allowing direct substitution while enhancing performance. There is no limit on the
number of write cycles that can be executed and no additional support circuitry is required for micro-
processor interfacing.
1 of 8
NOT RECOMMENDED FOR NEW DESIGNS
DS1225Y
READ MODE
The DS1225Y executes a read cycle whenever
WE
(Write Enable) is inactive (high) and
CE
(Chip
Enable) and OE (Output Enable) are active (low). The unique address specified by the 13 address inputs
(A
0
-A
12
) defines which of the 8192 bytes of data is to be accessed. Valid data will be available to the
eight data output drivers within t
ACC
(Access Time) after the last address input signal is stable, providing
that
CE
and
OE
access times are also satisfied. If
CE
and
OE
access times are not satisfied, then data
access must be measured from the later-occurring signal and the limiting parameter is either t
CO
for
CE
or t
OE
for
OE
rather than address access.
WRITE MODE
The DS1225Y executes a write cycle whenever the
WE
and
CE
signals are active (low) after address
inputs are stable. The later-occurring falling edge of
CE
or
WE
will determine the start of the write
cycle. The write cycle is terminated by the earlier rising edge of
CE
or
WE
. All address inputs must be
kept valid throughout the write cycle. WE must return to the high state for a minimum recovery time
(t
WR
) before another cycle can be initiated. The
OE
control signal should be kept inactive (high) during
write cycles to avoid bus contention. However, if the output drivers are enabled (
CE
and
OE
active) then
WE
will disable the outputs in t
ODW
from its falling edge.
DATA RETENTION MODE
The DS1225Y provides full functional capability for V
CC
greater than 4.5 volts and write protects at 4.25
nominal. Data is maintained in the absence of V
CC
without any additional support circuitry. The
DS1225Y constantly monitors V
CC
. Should the supply voltage decay, the NV SRAM automatically write
protects itself, all inputs become “don’t care,” and all outputs become high impedance. As V
CC
falls
below approximately 3.0 volts, a power switching circuit connects the lithium energy source to RAM to
retain data. During power-up, when V
CC
rises above approximately 3.0 volts, the power switching circuit
connects external V
CC
to RAM and disconnects the lithium energy source. Normal RAM operation can
resume after V
CC
exceeds 4.5 volts.
2 of 8
NOT RECOMMENDED FOR NEW DESIGNS
DS1225Y
ABSOLUTE MAXIMUM RATINGS
Voltage on Any Pin Relative to Ground
Operating Temperature Range
Commercial:
Industrial:
Storage Temperature
Lead Temperature (soldering, 10s)
Note:
EDIP is wave or hand soldered only.
-0.3V to +6.0V
0°C to +70°C
-40°C to +85°C
-40°C to +85°C
+260°C
This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operation
sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect
reliability.
RECOMMENDED DC OPERATING CONDITIONS
PARAMETER
Power Supply Voltage
Input Logic 1
Input Logic 0
SYMBOL
V
CC
V
IH
V
IL
MIN
4.5
2.2
0.0
TYP
5.0
MAX
5.5
VCC
+0.8
(T
A
: See Note 10)
UNITS
V
V
V
NOTES
DC ELECTRICAL CHARACTERISTICS
PARAMETER
Input Leakage Current
I/O Leakage Current
CE
≥
V
IH
≤
V
CC
Output Current @ 2.4V
Output Current @ 0.4V
Standby Current
CE
= 2.2V
Standby Current
CE
=V
CC
-0.5V
Operating Current t
CYC
=200ns
(Commercial)
Operating Current t
CYC
= 200ns
(Industrial)
Write Protection Voltage
SYMBOL
I
IL
I
IO
I
OH
I
OL
1
CCS1
1
CCS2
1
CCO1
I
CCO1
V
TP
MIN
-1.0
-1.0
-1.0
2.0
(T
A
: See Note 10; V
CC
= 5V ± 10%)
TYP
MAX
+1.0
+1.0
UNITS
µA
µA
mA
mA
mA
mA
mA
mA
V
10
NOTES
5
3
10
5
75
85
4.25
3 of 8
NOT RECOMMENDED FOR NEW DESIGNS
DS1225Y
AC ELECTRICAL CHARACTERISTICS
PARAMETER
SYMBOL
(T
A
: See Note 10; V
CC
=5.0V ± 10%)
DS1225Y-150
MIN
MAX
UNITS
NOTES
Read Cycle Time
Access Time
OE to Output Valid
CE
to Output Valid
OE
or
CE
to
Output Active
Output High Z from
Deselection
Output Hold from
AddressChange
Write Cycle Time
Write Pulse Width
Address Setup Time
Write Recovery Time
Output High Z from
WE
Output Active from
WE
Data Setup Time
Data Hold Time
t
RC
t
ACC
t
OE
t
CO
t
COE
t
OD
t
OH
t
WC
t
WP
t
AW
t
WR1
t
WR2
t
ODW
t
OEW
t
DS
t
DH1
t
DH2
150
150
70
150
5
35
5
150
100
0
0
10
35
5
60
0
10
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
5
5
3
12
13
5
5
4
12
13
CAPACITANCE
PARAMETER
Input Capacitance
Input/Output Capacitance
SYMBOL
C
IN
C
I/O
MIN
TYP
MAX
10
10
(T
A
= +25°C)
UNITS
pF
pF
NOTES
4 of 8
NOT RECOMMENDED FOR NEW DESIGNS
DS1225Y

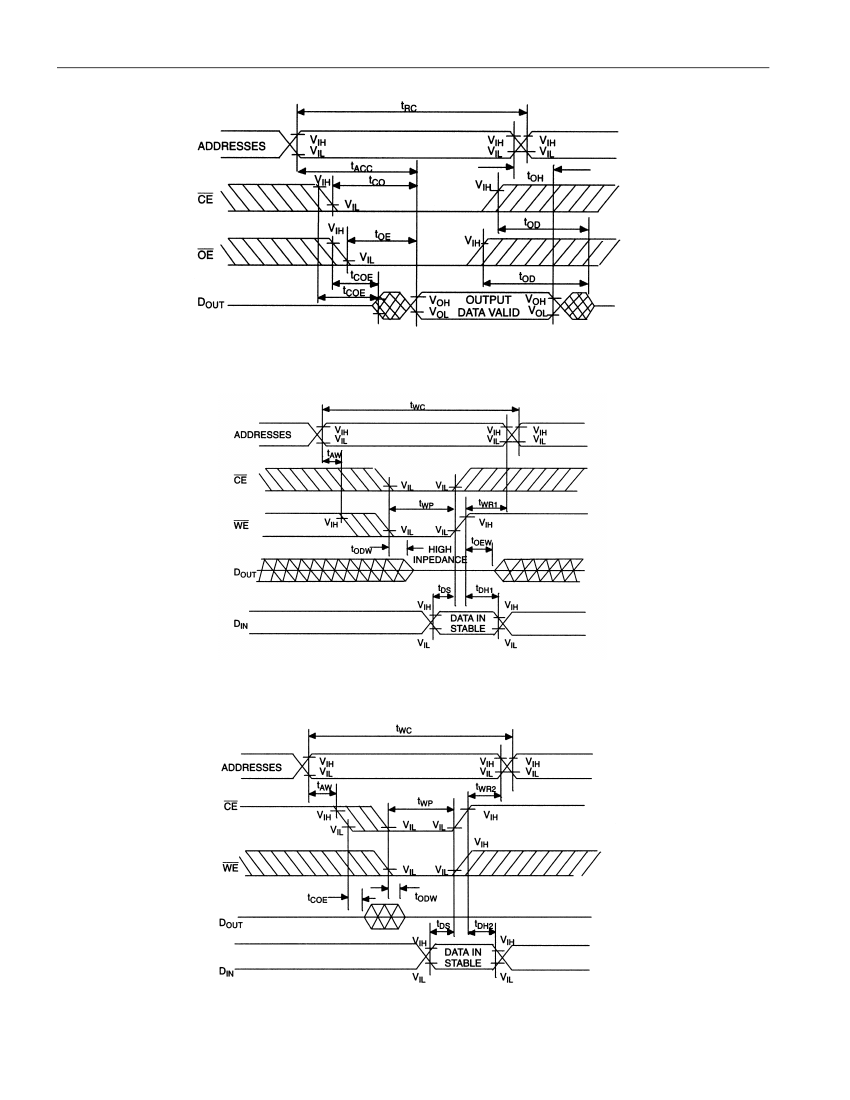

READ CYCLE
SEE NOTE 1
WRITE CYCLE 1
SEE NOTE 2, 3, 4, 6, 7, 8 AND 12
WRITE CYCLE 2
SEE NOTE 2, 3, 4, 6, 7, 8 AND 13
5 of 8
