803-99-052-30-001000

Description
Board Connector, 52 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,
CategoryThe connector    The connector
File Size88KB,2 Pages
ManufacturerMill-Max
Websitehttps://www.mill-max.com
Download Datasheet Parametric View All

803-99-052-30-001000 Overview

Board Connector, 52 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,

803-99-052-30-001000 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMill-Max
Reach Compliance Codecompliant
ECCN codeEAR99
Body/casing typeSOCKET
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN LEAD (100) OVER NICKEL (50)
Contact completed and terminatedTIN LEAD (100) OVER NICKEL (50)
Contact point genderFEMALE
Contact materialBERYLLIUM COPPER
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Manufacturer's serial number803-99-052-30-001000
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSURFACE MOUNT
Total number of contacts52
Product Number: 803-99-052-30-001000
Description:
Interconnect Socket
.100 Grid; Surface Mount Socket
Double Row Gull Wing
Double Row
Surface Mount
Plating Code:
99
Shell Plating:
200 " Tin/Lead(93/7) over 100 "
Nickel
Inner Contact Plating:
100 " Tin/Lead(93/7) over 50 "
Nickel
#
Of
Pins
52
Mill-Max
Part
Number
803-99-052-30-001000
RoHS
Compliant
CONTACT:
Contact Used: #47, Standard 6 Finger Contact
Current Rating =
4.5 Amps
BERYLLIUM COPPER ALLOY
172 (UNS C17200) per
ASTM B 194
Properties of BERYLLIUM COPPER:
Chemical composition: Cu 98.1%, Be 1.9%
Temper as stamped: TD01
Properties after heat treatment (TH01):
Hardness: 36-43 Rockwell C
Mechanical Life: 100 Cycles Min.
Density: .298 lbs/in3
Electrical Conductivity: 22% IACS*
Resistance: 10 miliohms Max
Operating Temperature: -55°C/+125°C
Melting point: 980°C/865°C (liquidus/solidus)
Stress Relaxation†: 96% of stress remains after 1,000 hours @ 100 ºC ; 70% of stress remains after 1,000 hours @ 200
ºC
*International Annealed Copper Standard, i.e. as a % of pure copper.
†Since BeCu loses its spring properties over time at high temperatures; it is rated for continuous use up to 150°C. For
applications up to 300°C, Mill-Max offers many contacts in Beryllium Nickel. Contact Tech Support for more info.
INSULATOR INFORMATION:
PCT
Polyester, (Thermx CG933, black)
High Temperature

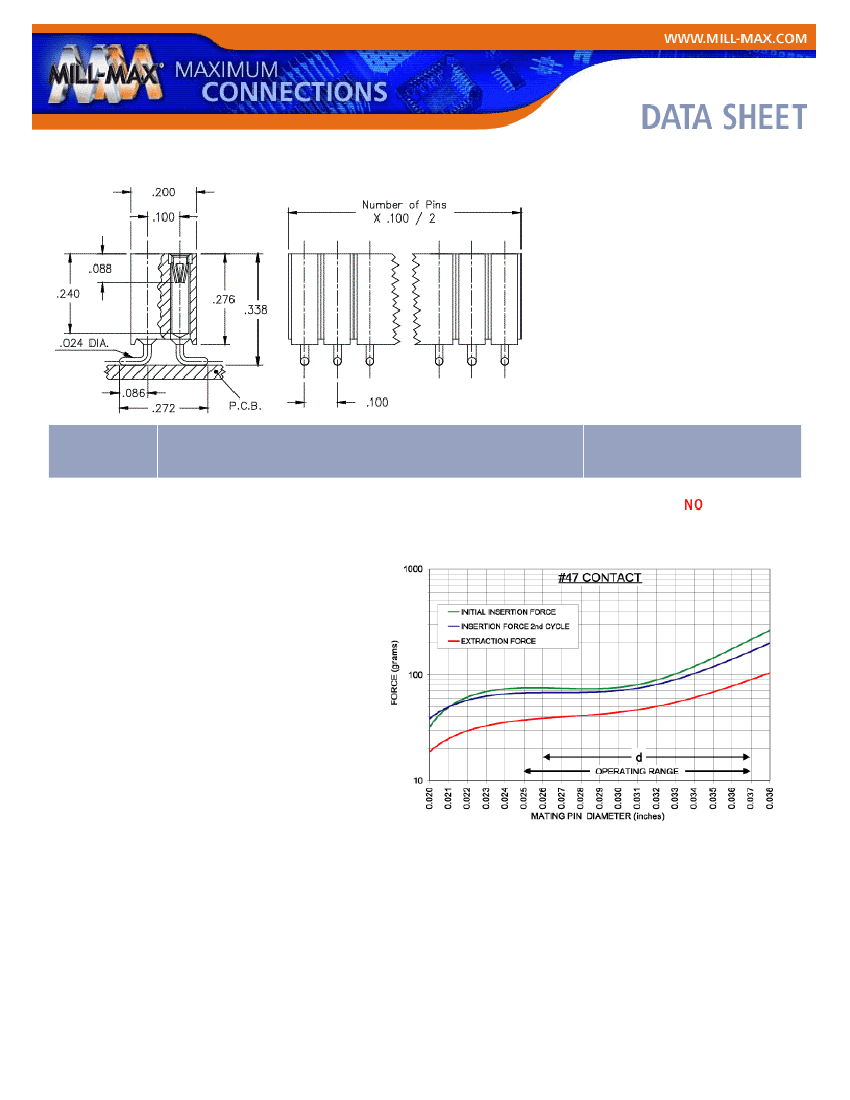

Mill-Max Mfg. Corp. Datasheet – Last Modified 1/19/2008
Page 1 of 2
