BYQ28EF Series
PRV : 100 - 200 Volts
Io : 10 Ampere
FEATURES :
* High current capability
* High surge current capability
* Low leakage, high voltage
* Glass passivated chip junction
* Pb / RoHS Free
Dual Ultrafast Plastic Rectifiers
ITO-220AB
0.134(3.4)DIA.
0.113(3.0)DIA.
0.112(2.85)
0.100(2.55)
0.406(10.3)MAX.
0.185(4.70)Max.
0.124(3.16)Max.
0.272(6.9)
0.248(6.3)
0.603(15.5)
0.573(14.8)
1
0.543(13.8)
0.512(13.2)
2 3
0.161(4.1)Max.
0.055(1.4)Max.
0.110(2.8)
0.098(2.5)
MECHANICAL DATA :
* Case : Epoxy, Molded
* Lead Temperature for Soldering Purposes:
260°C Max. for 10 Seconds
* Polarity: As marked
* Mounting Position: Any
* Weight : 2.24 grams (Approximately)
0.100(2.55)
PIN 1
PIN 2
0.035(0.9)Max.
0.030(0.76)Max.
PIN 3
Dimensions in inches and ( millimeters )
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(Tc =25°C unless otherwise specified.)
RATING
Maximum Repetitive Peak Reverse Voltage
Maximum Working Peak Reverse Voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current, Tc = 100°C
Maximum Peak Forward Surge Current
8.3ms single half sine-wave superimposed on
rated load (JEDEC Method) at Tc = 100°C
Maximum Non-reptitive Peak Reverse Current per Leg
Maximum Instantaneous Forward Voltage per Leg
at I
F
= 10A, Tj = 25°C
I
F
= 5.0A, Tj = 25°C
Maximum Reverse Current per Leg
at Working Peak Reverse Voltage
Maximum Reverse Recovery Time per Leg
(I
F
= 0.5A, I
R
= 1.0A, Irr = 0.25A )
Typical junction capacitance at 4V, 1MHz
Maximum Thermal Resistance, Junction to Case
Operating storage and temperature range
Page 1 of 2
I
R
I
R(H)
Trr
Cj
RθJC
T
J
, T
STG
V
F
1.25
1.1
10 (Tj = 25°C)
200 (Tj = 100°C)
20
85
6.7
- 55 to + 150
µA
µA
ns
pF
°C/W
°C
Rev. 02 : March 25, 2005
V
I
RSM
0.2 ( tp = 100µs)
A
I
FSM
55
A
SYMBOL BYQ28EF-100 BYQ28EF-150 BYQ28EF-200 UNIT
V
RRM
V
RWM
V
DC
I
F(AV)
100
100
100
150
150
150
10 (Total Device)
5 (Total Device)
200
200
200
V
V
V
A

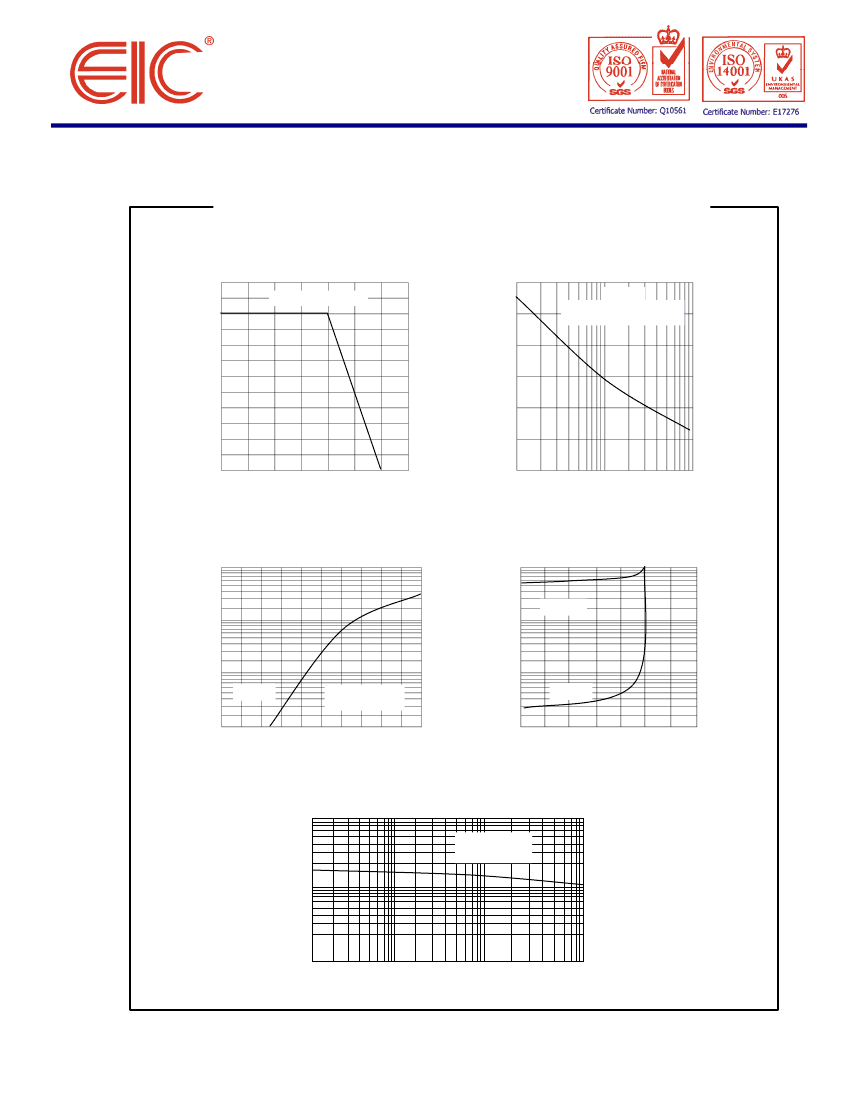

RATING AND CHARACTERISTIC CURVES ( BYQ28EF Series )
FIG.1 - FORWARD CURRENT
DERATING CURRENT
12
60
Resistive or Inductive Load
FIG.2 - MAXIMUM NON-REPETITIVE
PEAK FORWARD SURGE CURRENT PER LEG
Tj =150 °C
AVERAGE FORWARD RECTIFIED
CURRENT, AMPERES
PEAK FORWARD SURGE
CURRENT, AMPERES
10
50
10ms SINGLE HALF SINE-WAVE
(JEDEC) Method
8
40
6
30
4
20
2
10
0
0
25
50
75
100
125
150
175
0
1
2
4
6
10
20
40
60
100
CASE TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.3 - TYPICAL INSTANTANEOUS
FORWARD CHARACTERISTICS PER LEG
100
FIG. 4 - TYPICAL REVERSE
CHARACTERISTICS PER LEG
100
INSTANTANEOUS FORWARD
CURRENT, AMPERES
INSTANTANEOUS REVERSE
CURRENT, MICROAMPERES
T
J
= 100
°C
10
10
1
T
J
= 25
°C
Pulse Width = 300
µs
1% Duty Cycle
1
T
J
= 25
°C
0.1
0.4
0.1
0.5
0.6
0.7
0.8
0.9
1.0
1.1
1.2
1.3
1.4
0
20
40
60
80
100
120
140
INSTANTANEOUS FORWARD
VOLTAGE, VOLTS
PERCENT OF RATED PEAK REVERSE
VOLTAGE, (%)
FIG. 5 – TYPICAL JUNCTION CAPACITANCE PER LEG
JUNCTION CAPACITANCE, pF
100
T
J
= 25°C
f = 1.0 MHz
Vsig = 50 mVp-p
10
0
0.1
1
10
100
REVERSE VOLTAGE, VOLTS
Page 2 of 2
Rev. 02 : March 25, 2005
