B483B-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> B483B-2

B483B-2: DescriptionBridge Rectifier Diode, 1 Phase, 35A, 400V V(RRM), Silicon, MODULE-4; CategoryDiscrete semiconductor diode; File Size4MB，4 Pages; ManufacturerCrydom; Websitehttp://www.crydom.com/en/index.shtml; Environmental Compliance

Download Datasheet Parametric Compare View All

B483B-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B483B-2	-	-	View	Buy Now

B483B-2 Overview

Bridge Rectifier Diode, 1 Phase, 35A, 400V V(RRM), Silicon, MODULE-4

B483B-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Crydom
Parts packaging code	MODULE
package instruction	R-XUFM-D4
Contacts	4
Reach Compliance Code	compliant
Other features	UL RECOGNIZED
Shell connection	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V
JESD-30 code	R-XUFM-D4
Maximum non-repetitive peak forward current	600 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Maximum output current	35 A
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	400 V
surface mount	NO
Terminal surface	COPPER
Terminal form	SOLDER LUG
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

DataSheet

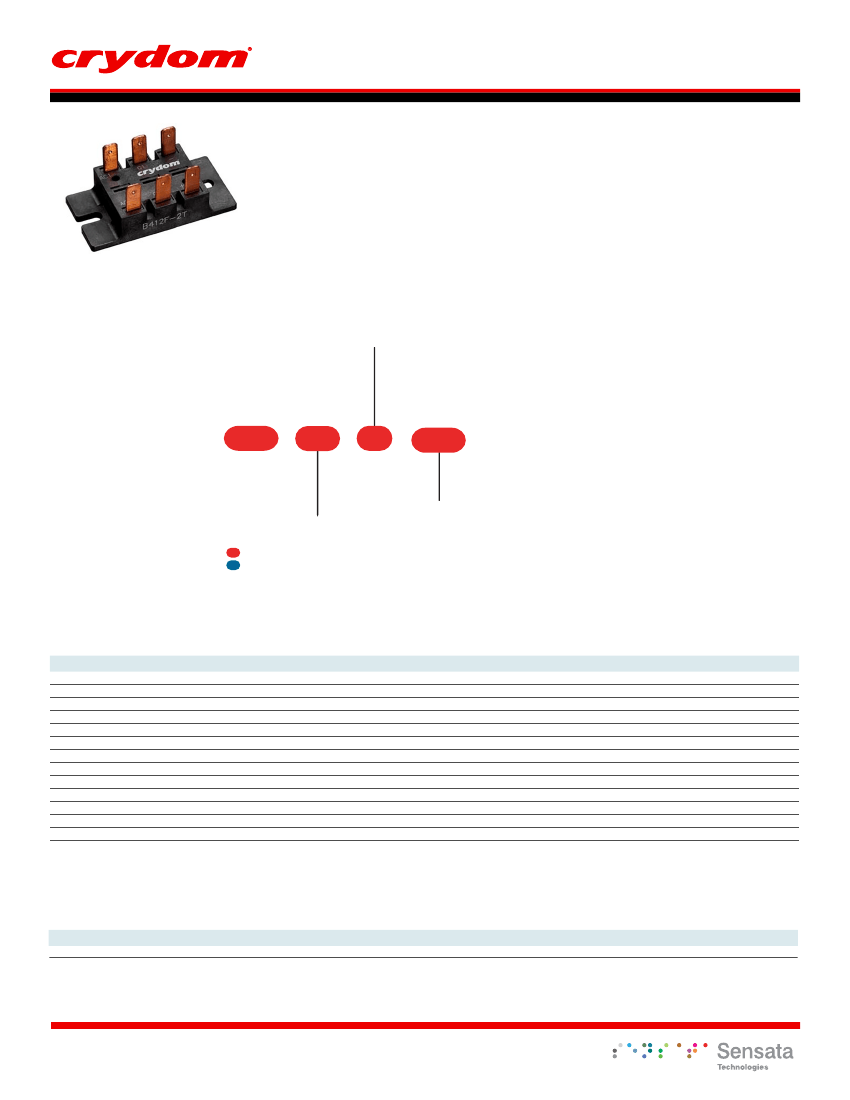

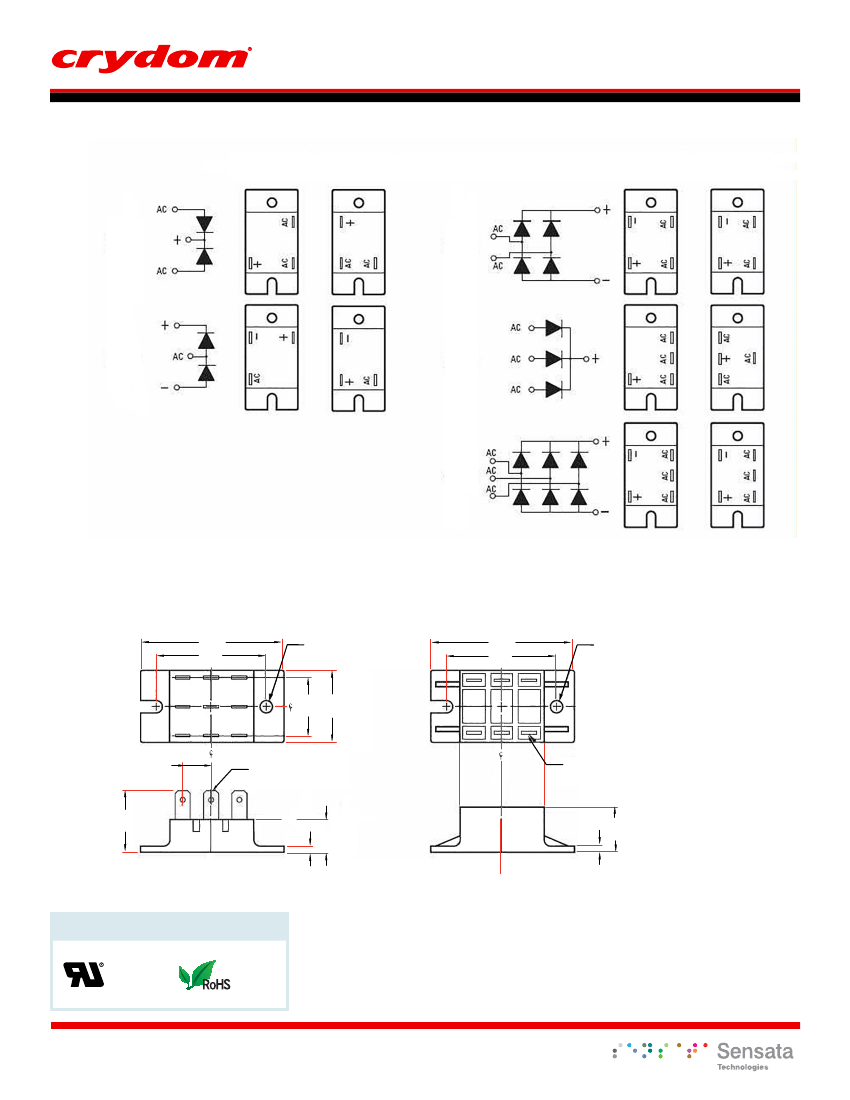

B48-2T, B48-2 Series

•

Single and Three Phase Circuits

•

5 Different Circuits to Choose from

•

Up to 1600 Volt Blocking Standard

•

UL Recognized E72445

Power Modules

AVAILABLE OPTIONS

AC Line Voltage

400 (120VAC)

1200 (480VAC)

600 (240VAC)

1400 (530VAC)

1000 (380VAC)

1600 (600VAC)

Series

B48

Circuit Type

1 2 3 4 5

(see schematic

diagrams)

-2T

Case Style

-2T:

Standard

-2:

With Isolation Barriers

Required for valid part number

For options only and not required for valid part number

Note: Not all combinations available

ELECTRICAL SPECIFICATIONS

Symbol

Maximum DC Output Current (Tc = 85°C)

Maximum Voltage Drop @ Amps Peak

Operating Junction Temperature Range

Single Phase

35 A

1.25V @ 35 A

-40 - 125°C

400 (120 VAC)

600 (240 VAC)

800 (280 VAC)

1200 (480 VAC)

1400 (530 VAC)

1600 (600 VAC)

600

1500

0.9ºC/W

2500

Three Phase

50 A

1.35V @ 50 A

-40 - 125°C

Repetitive Peak Reverse Voltage (AC Line Nominal) [Vpk]

RRM

Maximum Non-Repetitive Surge Current (1/2 Cycle, 60 Hz)

Maximum I²T for Fusing (t=8.3ms) [A²sec]

Maximum Thermal Resistance, Junction to Ceramic Base per Chip [°C/W]

Isolation Voltage [Vrms]

TSM

ISOL

600

1500

0.9ºC/W

GENERAL SPECIFICATIONS

Description

Weight (typical)

Parameters

1.5 oz (42.5g)

Do not forget to visit us at:

www.crydom.com

B483B-2 Related Products

	B483B-2	B483B-2T	B483G-2T	B482F-2T	B482F-2	B484F-2	B484F-2T	B485G-2T	B484G-2	B485F-2T
Description	Bridge Rectifier Diode, 1 Phase, 35A, 400V V(RRM), Silicon, MODULE-4	Bridge Rectifier Diode, 1 Phase, 35A, 400V V(RRM), Silicon, MODULE-4	Bridge Rectifier Diode, 1 Phase, 35A, 1400V V(RRM), Silicon, MODULE-4	Rectifier Diode, 1 Phase, 2 Element, 35A, 1200V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3	Rectifier Diode, 1 Phase, 2 Element, 35A, 1200V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-3	Rectifier Diode, 3 Phase, 3 Element, 50A, 1200V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-4	Rectifier Diode, 3 Phase, 3 Element, 50A, 1200V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-4	Bridge Rectifier Diode, 3 Phase, 50A, 1400V V(RRM), Silicon, MODULE-5	Rectifier Diode, 3 Phase, 3 Element, 50A, 1400V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-4	Bridge Rectifier Diode, 3 Phase, 50A, 1200V V(RRM), Silicon, MODULE-5
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-X3	R-XUFM-X3	R-XUFM-X4	R-XUFM-X4	R-XUFM-D5	R-XUFM-X4	R-XUFM-D5
Contacts	4	4	4	3	3	4	4	5	4	5
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	SERIES CONNECTED, CENTER TAP, 2 ELEMENTS	COMMON CATHODE, 3 ELEMENTS	COMMON CATHODE, 3 ELEMENTS	BRIDGE, 6 ELEMENTS	COMMON CATHODE, 3 ELEMENTS	BRIDGE, 6 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
Maximum forward voltage (VF)	1.25 V	1.25 V	1.25 V	1.25 V	1.25 V	1.35 V	1.35 V	1.35 V	1.35 V	1.35 V
JESD-30 code	R-XUFM-D4	R-XUFM-D4	R-XUFM-D4	R-XUFM-X3	R-XUFM-X3	R-XUFM-X4	R-XUFM-X4	R-XUFM-D5	R-XUFM-X4	R-XUFM-D5
Maximum non-repetitive peak forward current	600 A	600 A	600 A	600 A	600 A	600 A	600 A	600 A	600 A	600 A
Number of components	4	4	4	2	2	3	3	6	3	6
Phase	1	1	1	1	1	3	3	3	3	3
Number of terminals	4	4	4	3	3	4	4	5	4	5
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output current	35 A	35 A	35 A	35 A	35 A	50 A	50 A	50 A	50 A	50 A
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	400 V	400 V	1400 V	1200 V	1200 V	1200 V	1200 V	1400 V	1400 V	1200 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Terminal surface	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER	COPPER
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	SOLDER LUG	UNSPECIFIED	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Crydom	Crydom	-	-	-	Crydom	Crydom	Crydom	Crydom	Crydom
