BAV19 thru BAV21
Vishay Semiconductors
formerly General Semiconductor
Small-Signal Diodes
DO-204AH (DO-35 Glass)
Features
• Silicon Epitaxial Planar Diodes
• For general purpose
• This diode is also available in other case styles
including: the SOD-123 case with the type
designation BAV19W to BAV21W, the MiniMELF
case with the type designation BAV101 to BAV103,
the SOT-23 case with the type designation BAS19
to BAS21, and the SOD-323 case with type
designation BAV19WS to BAV21WS.
Mechanical Data
Case:
DO-35 Glass Case
Weight:
approx. 0.13g
Packaging Codes/Options:
F2/10K per Ammo tape (52mm tape), 50K/box
F3/10K per 13” reel (52mm tape), 50K/box
Dimensions in inches and (millimeters)
Maximum Ratings and Thermal Characteristics
Parameter
Continuous Reverse Voltage
BAV19
BAV20
BAV21
BAV19
BAV20
BAV21
Symbol
V
R
(T
A
= 25°C unless otherwise noted)
Value
100
150
200
120
200
250
250
200
Unit
V
Repetitive Peak Reverse Voltage
V
RRM
I
F
I
F(AV)
V
mA
mA
Forward DC Current at T
amb
= 25°C
(1)
Rectified Current (Average)
Half Wave Rectification with Resist. Load
at T
amb
= 25°C
(1)
Repetitive Peak Forward Current
at f
≥
50Hz,
Θ
= 180°, T
amb
= 25°C
(1)
Surge Forward Current at t < 1s, T
j
= 25°C
Power Dissipation at T
amb
= 25°C
(1)
Thermal Resistance Junction to Ambient Air
(1)
Junction Temperature
(1)
Storage Temperature Range
(1)
I
FRM
I
FSM
P
tot
R
θJA
T
j
T
S
625
1
500
430
175
–65 to +175
mA
A
mW
°C/W
°C
°C
Note:
(1) Valid provided that leads are kept at ambient temperature at a distance of 8mm from case.
Document Number 88149
14-May-02
www.vishay.com
1
BAV19 thru BAV21
Vishay Semiconductors
formerly General Semiconductor
Electrical Characteristics
(T
Parameter
Forward Voltage
BAV19
BAV19
BAV20
BAV20
BAV21
BAV21
J
= 25°C unless otherwise noted)
Symbol
V
F
Test Condition
I
F
= 100mA
I
F
= 200mA
V
R
= 100V
V
R
= 100V, T
j
= 100°C
V
R
= 150V
V
R
= 150V, T
j
= 100°C
V
R
= 200V
V
R
= 200V, T
j
= 100°C
I
F
= 10mA
V
R
= 0, f = 1MHz
I
F
= 30mA, I
R =
30mA
I
rr =
3mA, R
L
= 100Ω
Min
—
—
—
—
—
—
—
—
—
—
—
Typ
—
—
—
—
—
—
—
—
5
1.5
—
Max
1.00
1.25
100
15
100
15
100
15
—
—
50
Unit
V
nA
µA
nA
µA
nA
µA
Ω
pF
ns
Leakage Current
I
R
Dynamic Forward Resistance
Capacitance
Reverse Recovery Time
r
f
C
tot
t
rr

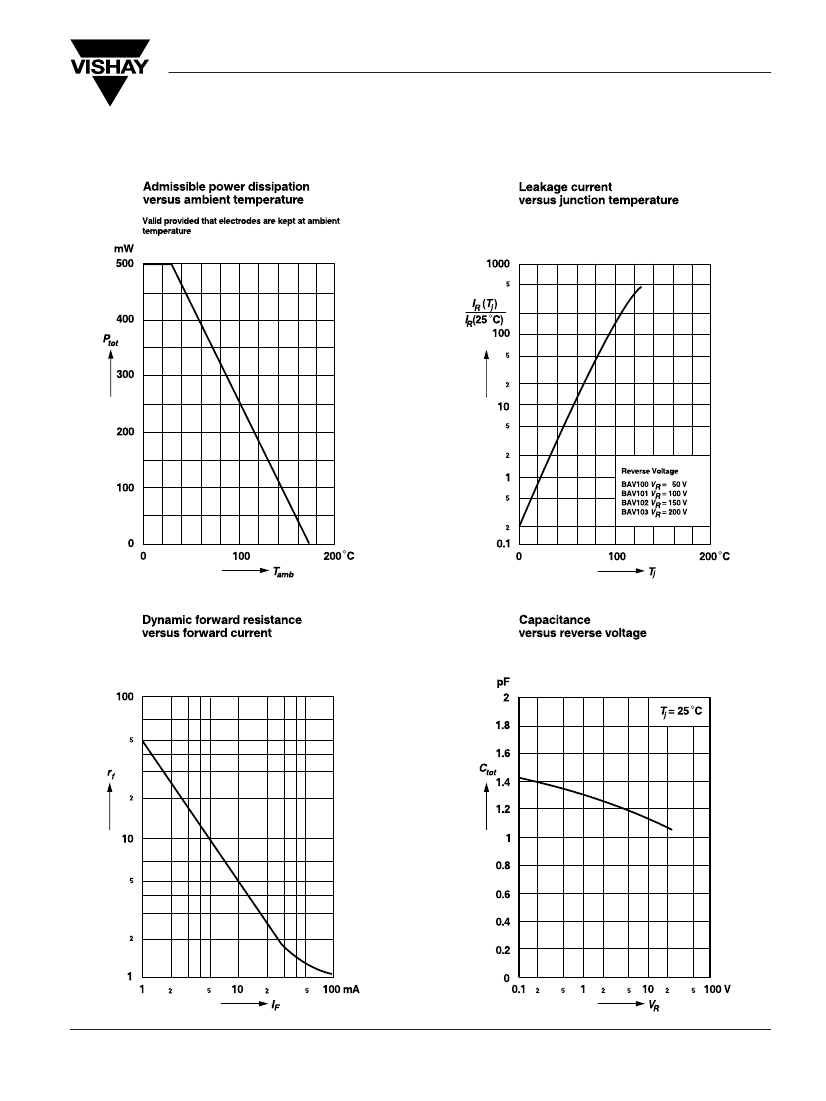

Ratings and
Characteristic Curves
(T
A
= 25°C unless otherwise noted)
www.vishay.com
2
Document Number 88149
14-May-02
