ERA15-01 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> ERA15-01

Preview

ERA15-01: DescriptionRectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon; CategoryDiscrete semiconductor diode; File Size52KB，2 Pages; ManufacturerFuji Electric Co., Ltd.

Download Datasheet Parametric View All

ERA15-01 Overview

Rectifier Diode, 1 Element, 1A, 100V V(RRM), Silicon

ERA15-01 Parametric

Parameter Name	Attribute value
Maker	Fuji Electric Co., Ltd.
package instruction	O-XALF-W2
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	HIGH RELIABILITY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	O-XALF-W2
Number of components	1
Number of terminals	2
Maximum operating temperature	140 °C
Minimum operating temperature	-40 °C
Maximum output current	1 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
surface mount	NO
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

ERA15

(1.0A)

GENERAL USE RECTIFIER DIODE

(100V to 1000V / 1.0A )

Outline drawings, mm

ø2.5

ø0.56

28 MIN.

3.0

28 MIN.

Features

Ultra small pakage, possible for 5mm pitch automatic

insertion.

High reliability

Marking

Color code : White

Applications

General purpose rectifier applications

Voltage class

Lot No.

6

3

02

Cathode mark

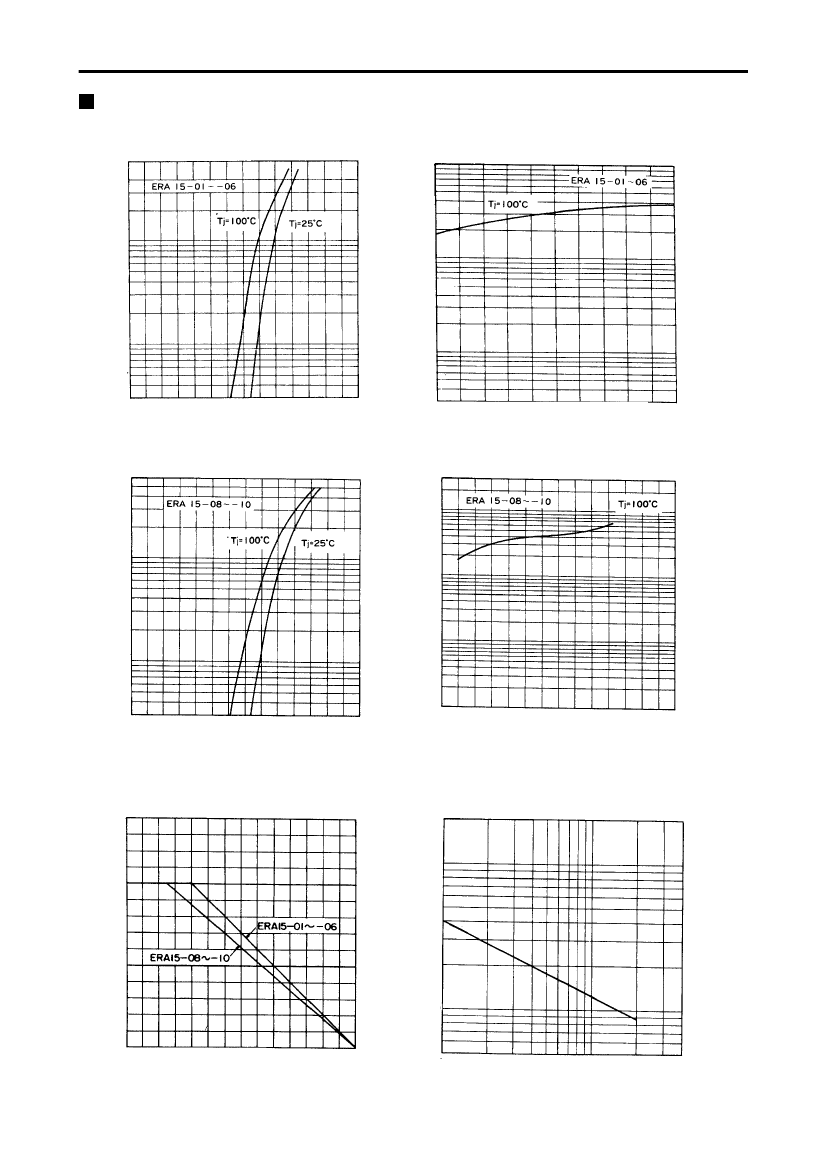

Maximum ratings and characteristics

Absolute maximum ratings

Item

Repetitive peak reverse voltage

Average forward current

Surge current

Operating junction temperature

Storage temperature

Symbol

V

RRM

I

F(AV)

I

FSM

T

j

T

stg

Resistive load

Sine wave 10ms

Conditions

Rating

-01 -02 -04 -06 -08 -10

100 200 400 600 800 1000

1.0 (Ta=40°C)

40

-40 to +140

1.0

(Ta=25°C)

Unit

V

A

°C

Electrical characteristics (Ta=25°C Unless otherwise specified )

Item

Forward voltage drop

Reverse current

Symbol

V

FM

I

RRM

Conditions

Tj=25°C I

FM

=2.0A

Tj=25°C V

R

=V

RRM

Max.

1.1

10

Unit

V

µA

Recommended Resources

A leakage protector circuit design

Circuit diagram to avoid repeated triggering

Voice controlled timer switch circuit

+5V to +15V voltage converter circuit diagram

Computer motherboard circuit diagram 815 1_34
