ERB12-01 ~ ERB12-10
PRV : 100 - 1000 Volts
Io : 1.0 Ampere
SILICON RECTIFIER DIODES
DO - 41
1.00 (25.4)
MIN.
0.107 (2.72)
0.080 (2.03)
FEATURES :
*
*
*
*
*
High current capability
High surge current capability
High reliability
Low reverse current
Low forward voltage drop
0.034 (0.86)
0.028 (0.71)
0.205 (5.20)
0.160 (4.10)
1.00 (25.4)
MIN.
Dimensions in inches and ( millimeters )
MECHANICAL DATA :
* Case : DO-41 Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Axial lead solderable per MIL-STD-202,
Method 208 guaranteed
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.34 grams
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25
°
C ambient temperature unless otherwise specified.
Single phase, half wave, 50 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
RATING
Maximum Repetitive Peak Reverse Voltage
Maximum RMS voltage
Maximum DC Blocking Voltage
Maximum Average Forward Current (See Fig. 1)
Non-Repetitive Peak Forward Surge Current
SYMBOL
V
RRM
V
RMS
V
DC
I
F(AV)
I
FSM
ERB
12-01
100
70
100
ERB
12-02
200
140
200
ERB
12-04
400
280
400
1.0
60
1.1
10
ERB
12-06
600
420
600
ERB
12-10
1000
700
1000
UNIT
V
V
V
A
50
A
V
µA
°C
°C
( Sine wave 10 ms at no load)
Maximum Forward Voltage at I
F
= 2.0 A
Maximum Repetitive Peak Reverse Current
Junction Temperature Range
Storage Temperature Range
Page 1 of 2
V
F
I
RRM
T
J
T
STG
- 40 to + 140
- 40 to + 140
Rev. 01 : August 13, 2003

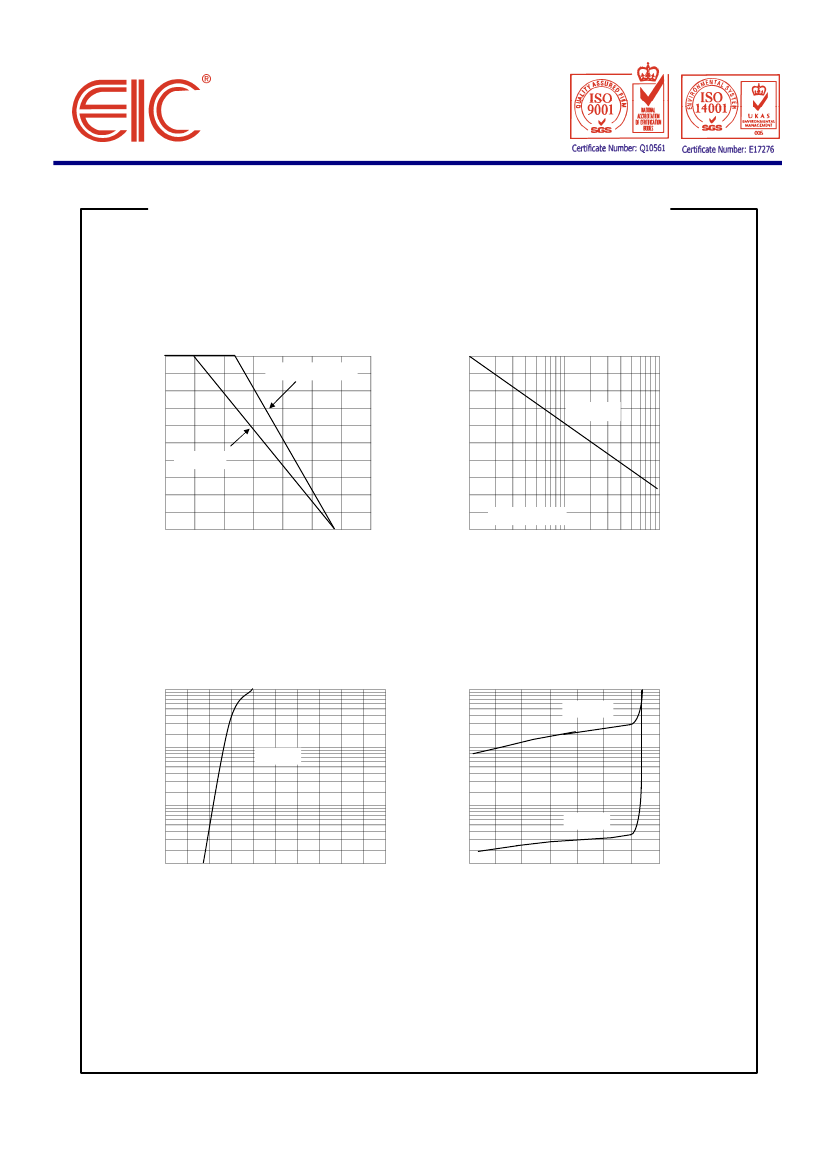

RATING AND CHARACTERISTIC CURVES (ERB12-01 ~ ERB12-10)
FIG.1 - DERATING CURVE FOR OUTPUT
RECTIFIED CURRENT
1.0
60
FIG.2 - MAXIMUM NON-REPETITIVE PEAK
FORWARD SURGE CURRENT
AVERAGE FORWARD OUTPUT
CURRENT, AMPERES
0.8
PEAK FORWARD SURGE
CURRENT, AMPERES
ERB12-01,02,04,06
48
Ta = 25
°C
36
0.6
0.4
ERB12-10
24
0.2
12
Sine wave 10ms
0
0
25
50
75
100
125
150
175
0
1
2
4
6
10
20
40
60
100
AMBIENT TEMPERATURE, (
°
C)
NUMBER OF CYCLES AT 60Hz
FIG.3 - TYPICAL FORWARD CHARACTERISTICS
FIG.4 - TYPICAL REVERSE CHARACTERISTICS
FORWARD CURRENT, AMPERES
10
10
T
J
= 100
°C
1
REVERSE CURRENT,
MICROAMPERES
T
J
= 25
°C
1.0
0.1
0.1
T
J
= 25
°C
0.01
0.4
0.6
0.8
1.0
1.2
1.4
1.6
1.8
2.0
2.2
2.4
0.01
0
20
40
60
80
100
120
140
FORWARD VOLTAGE, VOLTS
PERCENT OF RATED REVERSE
VOLTAGE, (%)
Page 2 of 2
Rev. 01 : August 13, 2003
