ERC04-06

Description
Rectifier Diode, 1 Phase, 1 Element, 1.2A, 600V V(RRM), Silicon,
CategoryDiscrete semiconductor    diode
File Size32KB,2 Pages
ManufacturerFuji Electric Co., Ltd.
Download Datasheet Parametric View All

ERC04-06 Overview

Rectifier Diode, 1 Phase, 1 Element, 1.2A, 600V V(RRM), Silicon,

ERC04-06 Parametric

Parameter NameAttribute value
MakerFuji Electric Co., Ltd.
package instructionO-XALF-W2
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresHIGH RELIABILITY
applicationGENERAL PURPOSE
Shell connectionISOLATED
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1.1 V
JESD-30 codeO-XALF-W2
Maximum non-repetitive peak forward current100 A
Number of components1
Phase1
Number of terminals2
Maximum operating temperature140 °C
Minimum operating temperature-40 °C
Maximum output current1.2 A
Package body materialUNSPECIFIED
Package shapeROUND
Package formLONG FORM
Certification statusNot Qualified
Maximum repetitive peak reverse voltage600 V
Maximum reverse current10 µA
surface mountNO
Terminal formWIRE
Terminal locationAXIAL
ERC04
(1.2A)
GENERAL USE RECTIFIER DIODE
(200V to 1000V / 1.2A )
Outline drawings, mm
ø 4.0
ø 1.0
28 MIN.
7.5
28 MIN.
Features
Wide voltage class
High reliability
Marking
Color code : Orange
Applications
General purpose rectifier applications
Abridged type name
Voltage class
Lot No.
C04
Cathode mark
02
81
···
Maximum ratings and characteristics
Absolute maximum ratings
Item
Repetitive peak reverse voltage
Average forward current
Surge current
Operating junction temperature
Storage temperature
Symbol
V
RRM
I
F(AV)
I
FSM
T
j
T
stg
Resistive load Ta=60°C
Sine wave 10ms
Conditions
-02
Rating
-04
-06
-10
Unit
V
A
A
°C
°C
200 400
600 1000
1.2
100
-30 to +140
-30 to +140

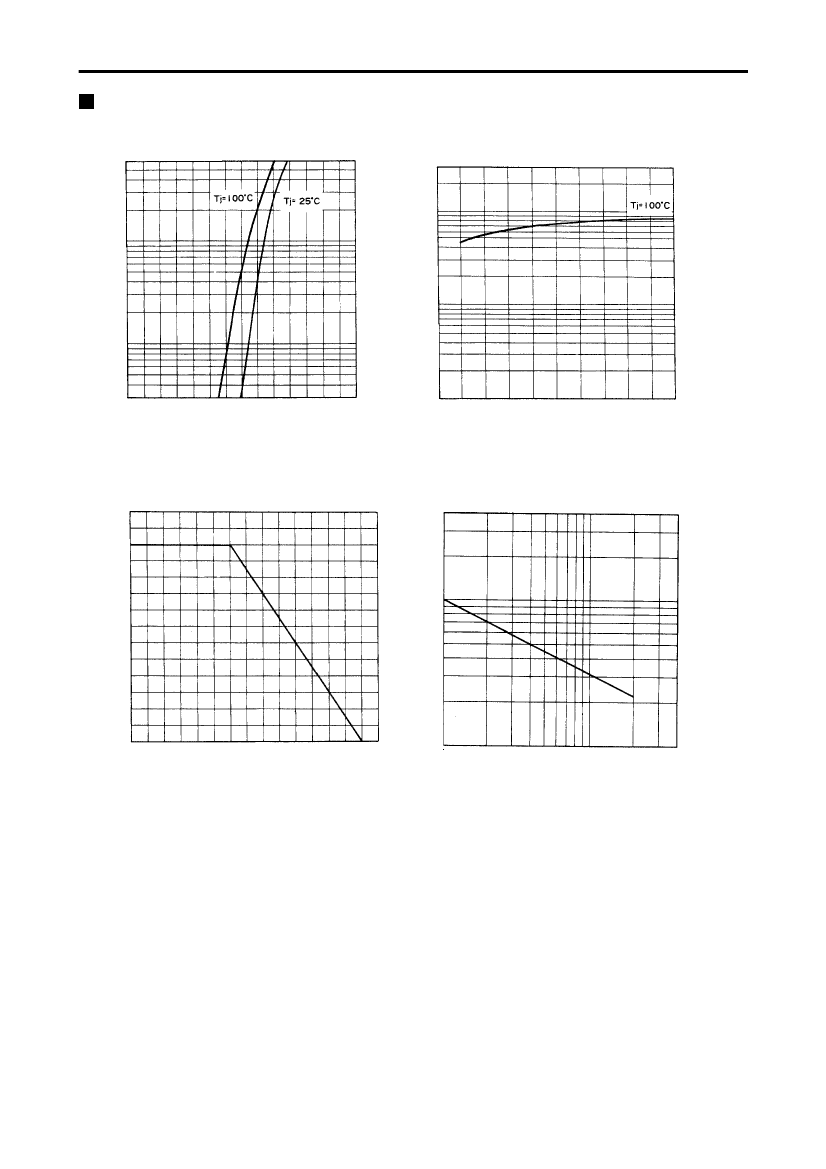

Electrical characteristics (Ta=25°C Unless otherwise specified )
Item
Forward voltage drop
Reverse current
Symbol
V
FM
I
RRM
Conditions
Tj=25°C I
FM
=4.0A
Tj=25°C V
R
=V
RRM
Max.
1.1
10
Unit
V
µA
