DAC7644EB/1K datasheet, PDF - EEWORLD Datasheet

DAC7644EB/1K: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, 8us Settling Time, PDSO48, SSOP-48; CategoryAnalog mixed-signal IC converter; File Size1MB，21 Pages; ManufacturerBurr-Brown; Websitehttp://www.burr-brown.com/

Download Datasheet Parametric Compare View All

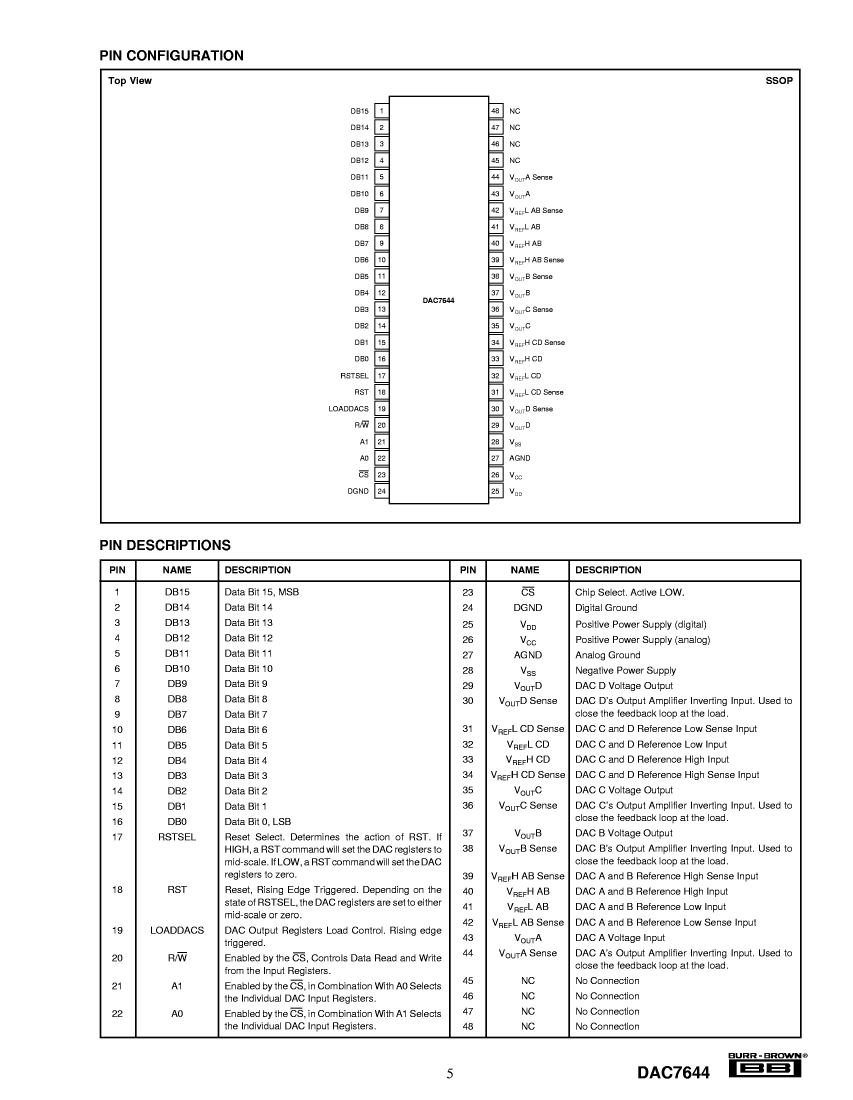

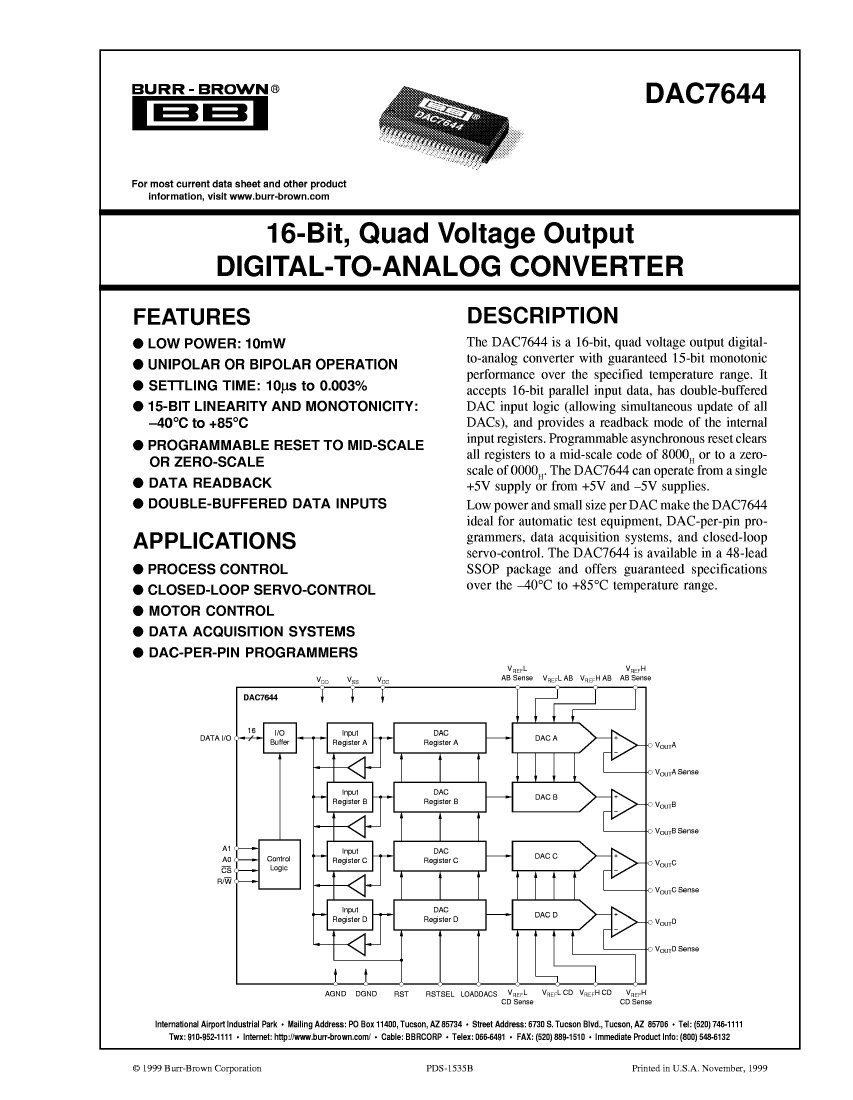

DAC7644EB/1K Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, 8us Settling Time, PDSO48, SSOP-48

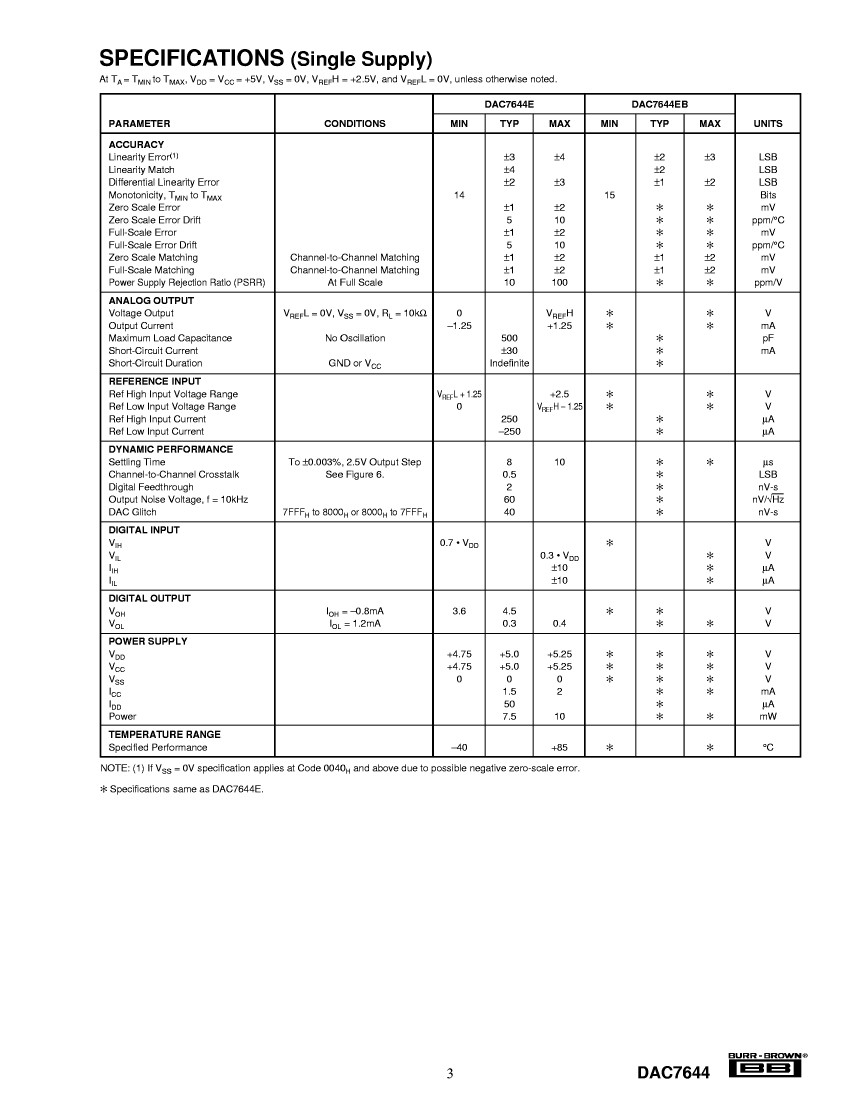

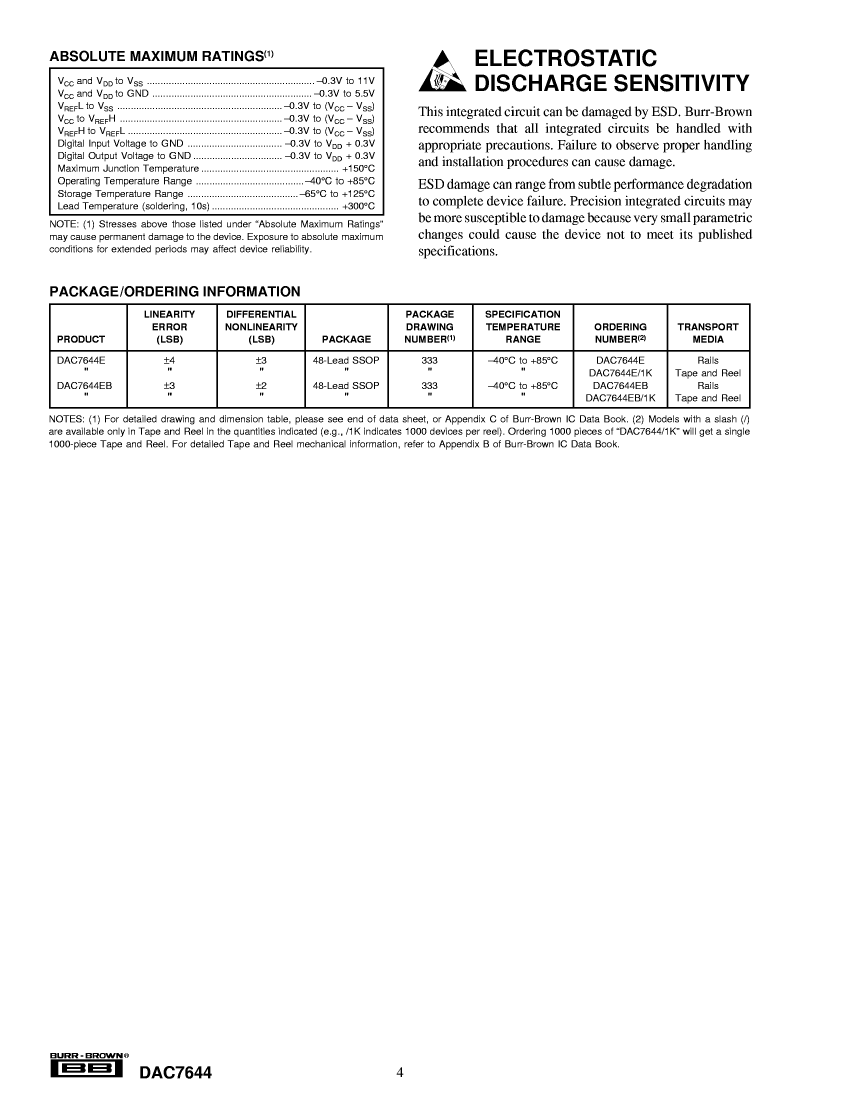

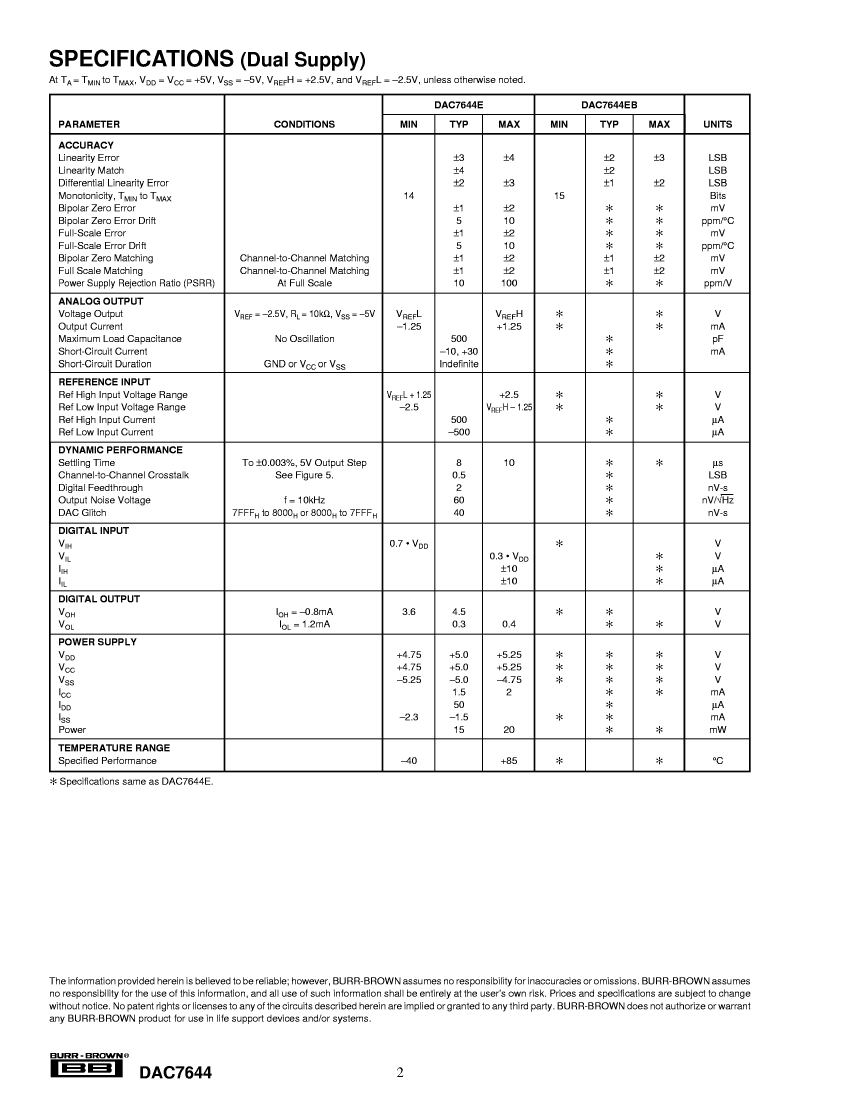

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Burr-Brown
package instruction	SSOP-48
Reach Compliance Code	unknown
Maximum analog output voltage	2.5 V
Minimum analog output voltage	-2.5 V
Converter type	D/A CONVERTER
Enter bit code	BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-PDSO-G48
JESD-609 code	e0
Maximum linear error (EL)	0.0046%
Nominal negative supply voltage	-5 V
Number of digits	16
Number of functions	1
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SSOP
Encapsulate equivalent code	SSOP48,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5/+-5 V
Certification status	Not Qualified
Maximum stabilization time	10 µs
Nominal settling time (tstl)	8 µs
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.635 mm
Terminal location	DUAL

	DAC7644EB/1K	DAC7644E/1K
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, 8us Settling Time, PDSO48, SSOP-48	D/A Converter, 1 Func, Parallel, Word Input Loading, 8us Settling Time, PDSO48, SSOP-48
Is it Rohs certified?	incompatible	incompatible
Maker	Burr-Brown	Burr-Brown
package instruction	SSOP-48	SSOP-48
Reach Compliance Code	unknown	unknown
Maximum analog output voltage	2.5 V	2.5 V
Minimum analog output voltage	-2.5 V	-2.5 V
Converter type	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY	BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-PDSO-G48	R-PDSO-G48
JESD-609 code	e0	e0
Maximum linear error (EL)	0.0046%	0.0061%
Nominal negative supply voltage	-5 V	-5 V
Number of digits	16	16
Number of functions	1	1
Number of terminals	48	48
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SSOP	SSOP
Encapsulate equivalent code	SSOP48,.4	SSOP48,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	5/+-5 V	5/+-5 V
Certification status	Not Qualified	Not Qualified
Maximum stabilization time	10 µs	10 µs
Nominal settling time (tstl)	8 µs	8 µs
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL
