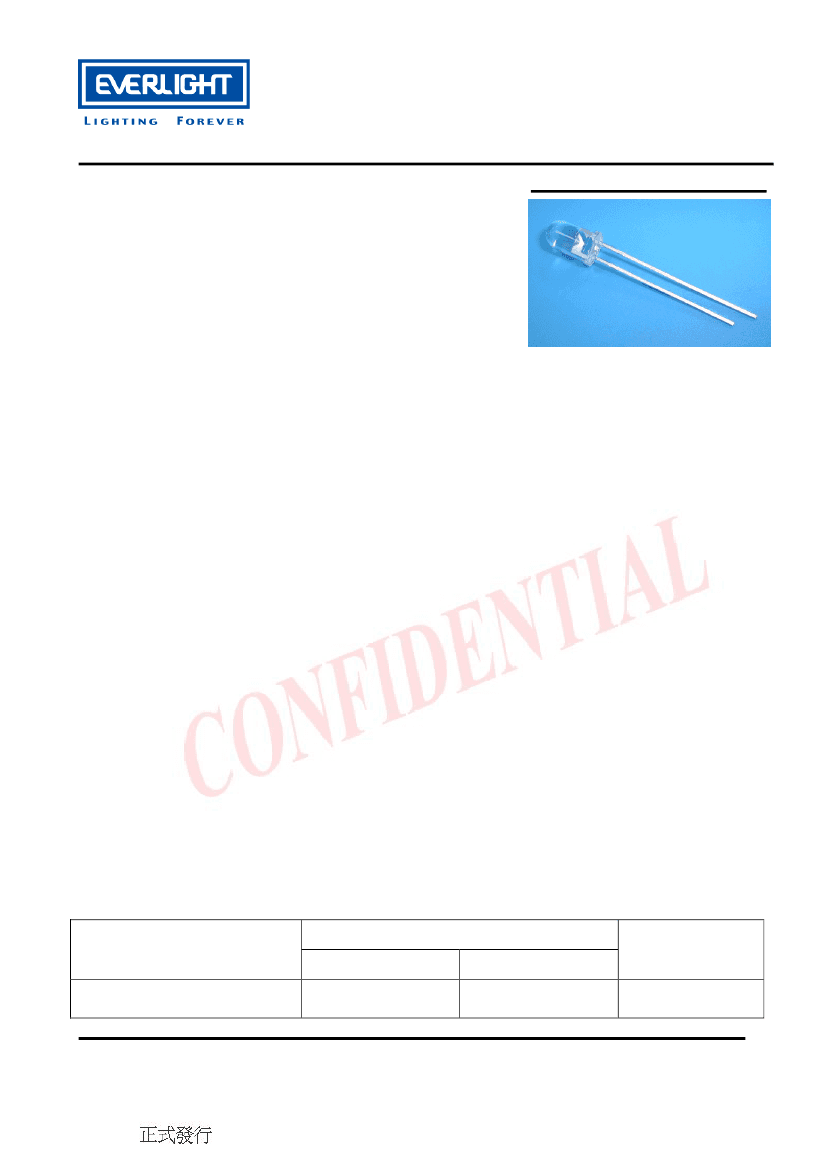

Technical Data Sheet
334-15/T2C2-7TVA
Features
․Popular
T-1 3/4 round package.
․High
luminous power.
˙Typical
chromaticity coordinates x=0.30y=0.29
according to CIE1931.
˙Bulk,
available taped on reel.
˙ESD-withstand
voltage: up to 4KV
․The
product itself will remain within RoHS compliant version.
Descriptions
˙The
series is designed for application required
high luminous intensity.
˙The
phosphor filled in the reflector converts the
blue emission of InGaN chip to ideal white.
Applications
․Message
panels
․Optical
Indicators
․Backlighting
․Marker
Lights
Device Selection Guide
PART NO.
Material
334-15/T2C2-7TVA
InGaN
Chip
Emitted Color
White
Water Clear
Lens Color
Everlight Electronics Co., Ltd.
Device Number:
DLE-0001416
http\\:www.everlight.com
Established date:06-17-2008
Rev:
1
Page: 1 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-05-13 19:41:56.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
334-15/T2C2-7TVA

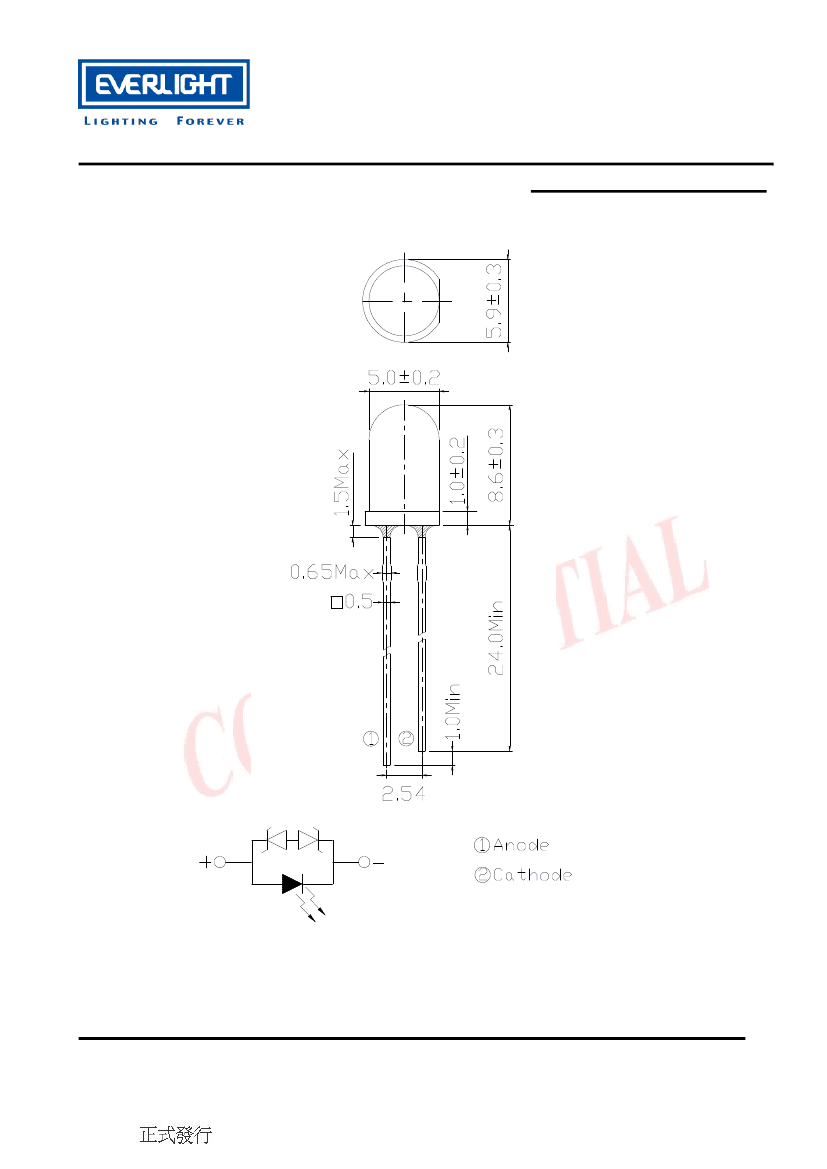

Package Dimensions
Notes:
1.All dimensions are in millimeters, and tolerance is 0.25mm except being specified.
2.Lead spacing is measured where the lead emerges from the package.
3.Protruded resin under flange is 1.5mm Max. LED.
Everlight Electronics Co., Ltd.
Device Number:
DLE-0001416
http\\:www.everlight.com
Established date:06-17-2008
Rev:
1
Page: 2 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-05-13 19:41:56.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
334-15/T2C2-7TVA
Absolute Maximum Ratings (Ta=25℃)
Parameter
Continuous Forward Current
Peak Forward Current(Duty /10 @ 1KHZ)
Reverse Voltage
Operating Temperature
Storage Temperature
Soldering Temperature (T=5 sec)
Power Dissipation
Zener Reverse Current
Electrostatic Discharge
Symbol
I
F
I
FP
V
R
T
opr
T
stg
T
sol
P
d
Iz
ESD
Rating
30
100
5
-40 ~ +85
-40 ~ +100
260
110
100
4K
Unit
mA
mA
V
℃
℃
℃
mW
mA
V
Everlight Electronics Co., Ltd.
Device Number:
DLE-0001416
http\\:www.everlight.com
Established date:06-17-2008
Rev:
1
Page: 3 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-05-13 19:41:56.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
334-15/T2C2-7TVA
Production Designation
334-15/T2C2-□
□ □ □
Voltage Group
Luminous Intensity Bins
Color Group
Electro-Optical Characteristics (Ta=25℃)
Parameter
Forward Voltage
Zener Reverse Voltage
Reverse Current
Luminous Intensity
Viewing Angle
Symbol
V
F
Vz
I
R
I
V
2θ1/2
x
Chromaticity Coordinates
y
I
F
=20mA
--
0.29
--
--
Condition
I
F
=20mA
Iz=5mA
V
R
=5V
I
F
=20mA
I
F
=20mA
Min.
2.8
5.2
--
7150
--
--
Typ.
--
--
--
--
20
0.30
Max.
3.6
--
50
14250
--
--
Units
V
V
uA
mcd
deg
--
Everlight Electronics Co., Ltd.
Device Number:
DLE-0001416
http\\:www.everlight.com
Established date:06-17-2008
Rev:
1
Page: 4 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-05-13 19:41:56.0
Expired Period: Forever
LifecyclePhase:
Technical Data Sheet
334-15/T2C2-7TVA
Luminous Intensity Combination (
mcd at 20mA)
Rank
T
U
V
Min
7150
9000
11250
Max
9000
11250
14250
*Measurement Uncertainty of Luminous Intensity:
±10%
Forward Voltage Combination (
V at 20mA)
Rank
Forward Voltage
0
2.8~3.0
1
3.0~3.2
2
3.2~3.4
3
3.4~3.6
*Measurement Uncertainty of Forward Voltage：±0.1V
Color Combination ( at 20mA)
Group
7
Bins
B5+B6
Everlight Electronics Co., Ltd.
Device Number:
DLE-0001416
http\\:www.everlight.com
Established date:06-17-2008
Rev:
1
Page: 5 of 12
Established by: Ruby Lin
Revision
:1
Release Date:2009-05-13 19:41:56.0
Expired Period: Forever
LifecyclePhase:
